OVERVIEW

Product description	Base (standard designation)	Nominal wattage	Nominal voltage	Nominal lamp life time	Nominal luminous flux	Claimed equiv. conventional lamp power	Beam angle	Dimmable
LED VALUE CLAS A 4.9 W/2700 K B22d	B22d	4.9 W	220…240 V	15000 h	470 lm	40 W	200 °	No
LED VALUE CLAS A 4.9 W/2700 K E27	E27	4.9 W	220…240 V	15000 h	470 lm	40 W	200 °	No
LED VALUE CLAS A 4.9 W/6500 K B22d	B22d	4.9 W	220…240 V	15000 h	470 lm	40 W	200 °	No
LED VALUE CLAS A 4.9 W/6500 K E27	E27	4.9 W	220…240 V	15000 h	470 lm	40 W	200 °	No
LED VALUE CLAS A 7 W/3000 K E27 GEN2	E27	7 W	100…240 V	25000 h	600 lm	50 W	200 °	No
LED VALUE CLAS A 7 W/4000 K E27 GEN2	E27	7 W	100…240 V	25000 h	600 lm	50 W	200 °	No
LED VALUE CLAS A 7 W/6500 K E27 GEN2	E27	7 W	100…240 V	25000 h	600 lm	50 W	200 °	No
LED VALUE CLAS A 8.5 W/2700 K B22d GEN4	B22d	8.5 W	220…240 V	15000 h	806 lm	60 W	180 °	No
LED VALUE CLAS A 8.5 W/2700 K E27 GEN4	E27	8.5 W	220…240 V	15000 h	806 lm	60 W	180 °	No
LED VALUE CLAS A 8.5 W/4000 K E27 GEN4	E27	8.5 W	220…240 V	15000 h	806 lm	60 W	180 °	No
LED VALUE CLAS A 8.5 W/6500 K B22d GEN4	B22d	8.5 W	220…240 V	15000 h	806 lm	60 W	180 °	No
LED VALUE CLAS A 8.5 W/6500 K E27 GEN4	E27	8.5 W	220…240 V	15000 h	806 lm	60 W	180 °	No
LED VALUE CLAS A 8.5 W/3000 K E27 GEN2	E27	8.5 W	100…240 V	25000 h	1018 lm	75 W	200 °	No
LED VALUE CLAS A 8.5 W/4000 K E27 GEN2	E27	8.5 W	100…240 V	25000 h	1018 lm	75 W	200 °	No
LED VALUE CLAS A 8.5 W/6500 K E27 GEN2	E27	8.5 W	100…240 V	25000 h	1018 lm	75 W	200 °	No
LED VALUE CLAS A 9 W/4000 K E27 GEN2	E27	9 W	100…240 V	25000 h	806 lm	60 W	200 °	No
LED VALUE CLAS A 9 W/6500 K E27 GEN2	E27	9 W	100…240 V	25000 h	806 lm	60 W	200 °	No
LED VALUE CLAS A 10 W/2700 K E27 GEN4	E27	10 W	220…240 V	15000 h	1055 lm	75 W	180 °	No
LED VALUE CLAS A 10 W/4000 K E27 GEN4	E27	10 W	220…240 V	15000 h	1055 lm	75 W	180 °	No
LED VALUE CLAS A 10 W/6500 K E27 GEN4	E27	10 W	220…240 V	15000 h	1055 lm	75 W	180 °	No
LED VALUE CLAS A 12 W/3000 K E27 GEN2	E27	12 W	100…240 V	25000 h	1055 lm	75 W	200 °	No
LED VALUE CLAS A 12 W/4000 K E27 GEN2	E27	12 W	100…240 V	25000 h	1055 lm	75 W	200 °	No
LED VALUE CLAS A 12 W/6500 K E27 GEN2	E27	12 W	100…240 V	25000 h	1055 lm	75 W	200 °	No
LED VALUE CLAS A 12 W/3000 K E27 GEN2	E27	12 W	100…240 V	25000 h	1521 lm	100 W	200 °	No
LED VALUE CLAS A 12 W/4000 K E27 GEN2	E27	12 W	100…240 V	25000 h	1521 lm	100 W	200 °	No
LED VALUE CLAS A 12 W/6500 K E27 GEN2	E27	12 W	100…240 V	25000 h	1521 lm	100 W	200 °	No
LED VALUE CLAS A 12 W/4000 K E27	E27	12 W	100…240 V	15000 h	1560 lm	100 W	220 °	No
LED VALUE CLAS A 13 W/2700 K E27 GEN4	E27	13 W	220…240 V	15000 h	1521 lm	100 W	180 °	No
LED VALUE CLAS A 13 W/4000 K E27 GEN4	E27	13 W	220…240 V	15000 h	1521 lm	100 W	180 °	No
LED VALUE CLAS A 13 W/6500 K E27 GEN4	E27	13 W	220…240 V	15000 h	1521 lm	100 W	180 °	No
LED VALUE CLAS A 14 W/4000 K E27	E27	14 W	100…240 V	15000 h	1820 lm	125 W	180 °	No
LED VALUE CLAS A 15 W/3000 K E27 GEN2	E27	15 W	100…240 V	25000 h	1521 lm	100 W	200 °	No
LED VALUE CLAS A 15 W/4000 K E27 GEN2	E27	15 W	100…240 V	25000 h	1521 lm	100 W	200 °	No
LED VALUE CLAS A 15 W/6500 K E27 GEN2	E27	15 W	100…240 V	25000 h	1521 lm	100 W	200 °	No

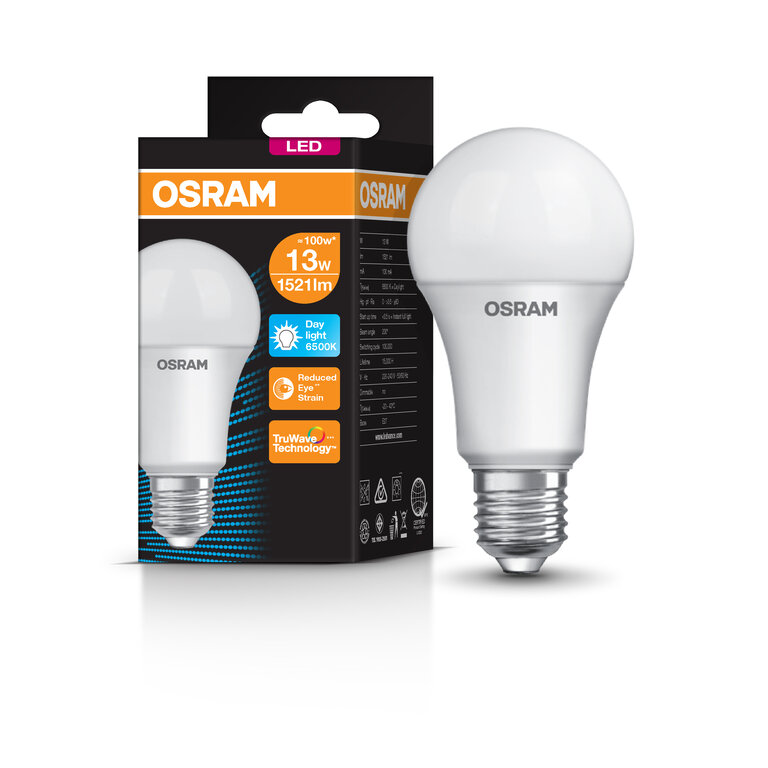

LED VALUE CLAS A 13 W/6500 K E27 GEN4

Product benefits

No “Blue Light” Hazard (according to IEC 62471)
Photobiological safety according to IEC 62471, risk group RG0
Energy savings of up to 85 % (compared to traditional incandescent lamps)
Instant 100 % light, no warm-up time
No UV and near-IR radiation in the light beam
Reliable operation thanks to brand quality

View all details

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	13 W
Construction wattage	13.00 W
Nominal voltage	220…240 V
Claimed equiv. conventional lamp power	100 W
Nominal current	108 mA
Type of current	AC
Operating frequency	50…60 Hz
Mains frequency	50…60 Hz
Power factor λ	> 0.50

Photometrical data

Luminous flux	1521 lm
Nominal useful luminous flux 90°	1521 lm
Luminous efficacy	117 lm/W
Lumen main.fact.at end of nom.life time	0.70
Light color (designation)	Daylight
Color temperature	6500 K
Color rendering index Ra	≥80
Light color	865
Standard deviation of color matching	≤6 sdcm
Rated LLMF at 6,000 h	0.80

Light technical data

Beam angle	180 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Dimensions & Weight

Overall length	118.00 mm
Diameter	60.00 mm
Maximum diameter	60 mm
Product weight	45.00 g

Temperatures & operating conditions

Ambient temperature range

-20…+40 °C

Lifespan

Number of switching cycles	100000
Lumen maintenance at end of service lifetime	0.70
Rated lamp survival factor at 6,000 h	≥ 0.90

Additional product data

Base (standard designation)	E27
Mercury content	0.0 mg
Mercury-free	Yes
Product remark	All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable

Certificates & Standards

Energy efficiency class	E ¹⁾
Energy consumption	13.00 kWh/1000h
Photobiological safety group acc. to EN62778	RG0

¹⁾ Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

Country-specific categorizations

Order reference

LVCLA100 13W/86

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface)	E27
Correlated colour temperature type	SINGLE_VALUE
Length	118.00 mm
Height	60.00 mm
Width	60.00 mm
EPREL ID	1403222
Model number	AC24706
