Professional
LED ECO STICK

LED ECO STICK

Choose your product version

7 W/2700 K B22d

7 W/2700 K E27

7 W/4000 K B22d

7 W/4000 K E27

7 W/6500 K B22d

7 W/6500 K E27

9 W/2700 K B22d

9 W/2700 K E27

9 W/4000 K B22d

9 W/4000 K E27

9 W/6500 K B22d

9 W/6500 K E27

11 W/2700 K B22d

11 W/2700 K E27

11 W/4000 K B22d

11 W/4000 K E27

11 W/6500 K B22d

11 W/6500 K E27

13 W/2700 K B22d

13 W/2700 K E27

13 W/4000 K B22d

13 W/4000 K E27

13 W/6500 K B22d

13 W/6500 K E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED ECO STICK 7 W/2700 K B22d B22d 7 W 220…240 V 12000 h 550 lm 10 W 200 ° No
LED ECO STICK 7 W/2700 K E27 E27 7 W 220…240 V 12000 h 550 lm 10 W 200 ° No
LED ECO STICK 7 W/4000 K B22d B22d 7 W 220…240 V 12000 h 600 lm 13 W 200 ° No
LED ECO STICK 7 W/4000 K E27 E27 7 W 220…240 V 12000 h 600 lm 13 W 200 ° No
LED ECO STICK 7 W/6500 K B22d B22d 7 W 220…240 V 12000 h 600 lm 13 W 200 ° No
LED ECO STICK 7 W/6500 K E27 E27 7 W 220…240 V 12000 h 600 lm 13 W 200 ° No
LED ECO STICK 9 W/2700 K B22d B22d 9 W 220…240 V 12000 h 750 lm 15 W 200 ° No
LED ECO STICK 9 W/2700 K E27 E27 9 W 220…240 V 12000 h 750 lm 15 W 200 ° No
LED ECO STICK 9 W/4000 K B22d B22d 9 W 220…240 V 12000 h 800 lm 15 W 200 ° No
LED ECO STICK 9 W/4000 K E27 E27 9 W 220…240 V 12000 h 800 lm 15 W 200 ° No
LED ECO STICK 9 W/6500 K B22d B22d 9 W 220…240 V 12000 h 800 lm 15 W 200 ° No
LED ECO STICK 9 W/6500 K E27 E27 9 W 220…240 V 12000 h 800 lm 15 W 200 ° No
LED ECO STICK 11 W/2700 K B22d B22d 11 W 220…240 V 12000 h 1000 lm 17 W 200 ° No
LED ECO STICK 11 W/2700 K E27 E27 11 W 220…240 V 12000 h 1000 lm 17 W 200 ° No
LED ECO STICK 11 W/4000 K B22d B22d 11 W 220…240 V 12000 h 1050 lm 20 W 200 ° No
LED ECO STICK 11 W/4000 K E27 E27 11 W 220…240 V 12000 h 1050 lm 20 W 200 ° No
LED ECO STICK 11 W/6500 K B22d B22d 11 W 220…240 V 12000 h 1050 lm 20 W 200 ° No
LED ECO STICK 11 W/6500 K E27 E27 11 W 220…240 V 12000 h 1050 lm 20 W 200 ° No
LED ECO STICK 13 W/2700 K B22d B22d 13 W 220…240 V 12000 h 1200 lm 23 W 200 ° No
LED ECO STICK 13 W/2700 K E27 E27 13 W 220…240 V 12000 h 1200 lm 23 W 200 ° No
LED ECO STICK 13 W/4000 K B22d B22d 13 W 220…240 V 12000 h 1250 lm 23 W 200 ° No
LED ECO STICK 13 W/4000 K E27 E27 13 W 220…240 V 12000 h 1250 lm 23 W 200 ° No
LED ECO STICK 13 W/6500 K B22d B22d 13 W 220…240 V 12000 h 1250 lm 23 W 200 ° No
LED ECO STICK 13 W/6500 K E27 E27 13 W 220…240 V 12000 h 1250 lm 23 W 200 ° No


LED ECO STICK 9 W/4000 K B22d

Product benefits
  • Low energy consumption
  • Attractive lamp appearance
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 9 W
Construction wattage 9.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 15 W
Nominal current 68 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ > 0.50

Photometrical data

Luminous flux 800 lm
Nominal useful luminous flux 90° 800 lm
Luminous efficacy 88 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra ≥80
Light color 840
Standard deviation of color matching ≤6 sdcm

Light technical data

Beam angle 200 °
Starting time < 0.5 s

Dimensions & Weight

Overall length 115.00 mm
Diameter 36.00 mm
Maximum diameter 36 mm
Product weight 26.00 g

Temperatures & operating conditions

Ambient temperature range -20…+30 °C

Lifespan

Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70

Additional product data

Base (standard designation) B22d
Mercury content 0.0 mg

Capabilities

Dimmable No

Certificates & Standards

Standards CB, RoHS

Country-specific categorizations

Order reference LECO STICK 9W/8

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) B22d
Length 115.00 mm
Height 36.00 mm
Width 36.00 mm
Product benefits
  • Low energy consumption
  • Attractive lamp appearance
Areas of application
  • All domestic rooms, especially where the lamps are visible
  • Wherever compact and efficient lamps are needed
  • Where the lamps need to last a long time or have to withstand frequent on/off switching
Product features
  • LED alternative to conventional lamps
  • Mercury-free lamps
  • Lifetime: up to 8,000 h
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075667358 Folding box
1		 42 mm x 42 mm x 117 mm 39.00 g 0.21 dm³
4058075667365 Shipping box
10		 218 mm x 92 mm x 132 mm 460.00 g 2.65 dm³
Product Image, Diagonal with OSRAM LOGO, White BG
LED ECO STICK 7W-9W B2 2d JPG (1.24 MB)
Product Image, Upright with Osram LOGO, White BG
LED ECO STICK 7W-9W B2 2d JPG (1.14 MB)
Prod.line drw, front, no dimensions
LSTICK T FR B22d SVG (4.09 KB)

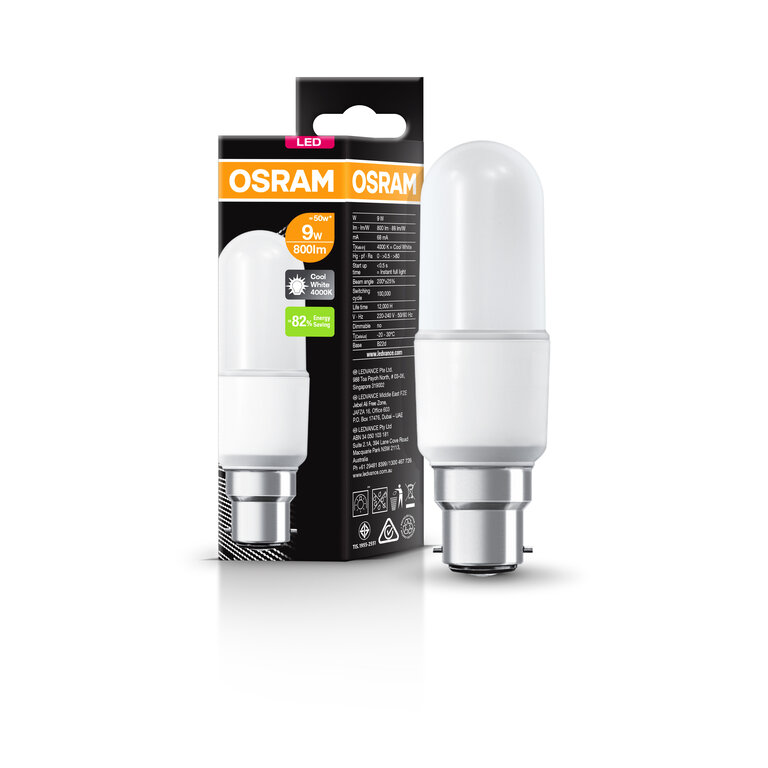

Combo Shot = Product Beauty Shot + Packaging Image
LED ECO STICK 9W/840 B 22D JPG (1.45 MB)
