Professional
LED ECO STICK

LED ECO STICK

Choose your product version

7 W/2700 K B22d

7 W/2700 K E27

7 W/4000 K B22d

7 W/4000 K E27

7 W/6500 K B22d

7 W/6500 K E27

9 W/2700 K B22d

9 W/2700 K E27

9 W/4000 K B22d

9 W/4000 K E27

9 W/6500 K B22d

9 W/6500 K E27

11 W/2700 K B22d

11 W/2700 K E27

11 W/4000 K B22d

11 W/4000 K E27

11 W/6500 K B22d

11 W/6500 K E27

13 W/2700 K B22d

13 W/2700 K E27

13 W/4000 K B22d

13 W/4000 K E27

13 W/6500 K B22d

13 W/6500 K E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED ECO STICK 7 W/2700 K B22d B22d 7 W 220…240 V 12000 h 550 lm 10 W 200 ° No
LED ECO STICK 7 W/2700 K E27 E27 7 W 220…240 V 12000 h 550 lm 10 W 200 ° No
LED ECO STICK 7 W/4000 K B22d B22d 7 W 220…240 V 12000 h 600 lm 13 W 200 ° No
LED ECO STICK 7 W/4000 K E27 E27 7 W 220…240 V 12000 h 600 lm 13 W 200 ° No
LED ECO STICK 7 W/6500 K B22d B22d 7 W 220…240 V 12000 h 600 lm 13 W 200 ° No
LED ECO STICK 7 W/6500 K E27 E27 7 W 220…240 V 12000 h 600 lm 13 W 200 ° No
LED ECO STICK 9 W/2700 K B22d B22d 9 W 220…240 V 12000 h 750 lm 15 W 200 ° No
LED ECO STICK 9 W/2700 K E27 E27 9 W 220…240 V 12000 h 750 lm 15 W 200 ° No
LED ECO STICK 9 W/4000 K B22d B22d 9 W 220…240 V 12000 h 800 lm 15 W 200 ° No
LED ECO STICK 9 W/4000 K E27 E27 9 W 220…240 V 12000 h 800 lm 15 W 200 ° No
LED ECO STICK 9 W/6500 K B22d B22d 9 W 220…240 V 12000 h 800 lm 15 W 200 ° No
LED ECO STICK 9 W/6500 K E27 E27 9 W 220…240 V 12000 h 800 lm 15 W 200 ° No
LED ECO STICK 11 W/2700 K B22d B22d 11 W 220…240 V 12000 h 1000 lm 17 W 200 ° No
LED ECO STICK 11 W/2700 K E27 E27 11 W 220…240 V 12000 h 1000 lm 17 W 200 ° No
LED ECO STICK 11 W/4000 K B22d B22d 11 W 220…240 V 12000 h 1050 lm 20 W 200 ° No
LED ECO STICK 11 W/4000 K E27 E27 11 W 220…240 V 12000 h 1050 lm 20 W 200 ° No
LED ECO STICK 11 W/6500 K B22d B22d 11 W 220…240 V 12000 h 1050 lm 20 W 200 ° No
LED ECO STICK 11 W/6500 K E27 E27 11 W 220…240 V 12000 h 1050 lm 20 W 200 ° No
LED ECO STICK 13 W/2700 K B22d B22d 13 W 220…240 V 12000 h 1200 lm 23 W 200 ° No
LED ECO STICK 13 W/2700 K E27 E27 13 W 220…240 V 12000 h 1200 lm 23 W 200 ° No
LED ECO STICK 13 W/4000 K B22d B22d 13 W 220…240 V 12000 h 1250 lm 23 W 200 ° No
LED ECO STICK 13 W/4000 K E27 E27 13 W 220…240 V 12000 h 1250 lm 23 W 200 ° No
LED ECO STICK 13 W/6500 K B22d B22d 13 W 220…240 V 12000 h 1250 lm 23 W 200 ° No
LED ECO STICK 13 W/6500 K E27 E27 13 W 220…240 V 12000 h 1250 lm 23 W 200 ° No


LED ECO STICK 11 W/2700 K B22d

Product benefits
  • Low energy consumption
  • Attractive lamp appearance
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 11 W
Construction wattage 11.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 17 W
Nominal current 88 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ > 0.50

Photometrical data

Luminous flux 1000 lm
Nominal useful luminous flux 90° 1000 lm
Luminous efficacy 90 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm

Light technical data

Beam angle 200 °
Starting time < 0.5 s

Dimensions & Weight

Overall length 118.00 mm
Diameter 43.00 mm
Maximum diameter 43 mm
Product weight 33.00 g

Temperatures & operating conditions

Ambient temperature range -20…+30 °C

Lifespan

Number of switching cycles 100000

Additional product data

Base (standard designation) B22d
Mercury content 0.0 mg

Capabilities

Dimmable No

Certificates & Standards

Standards CB, RoHS

Country-specific categorizations

Order reference LECO STICK 11W/

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) B22d
Length 118.00 mm
Height 43.00 mm
Width 43.00 mm
Product benefits
  • Low energy consumption
  • Attractive lamp appearance
Areas of application
  • All domestic rooms, especially where the lamps are visible
  • Wherever compact and efficient lamps are needed
  • Where the lamps need to last a long time or have to withstand frequent on/off switching
Product features
  • LED alternative to conventional lamps
  • Mercury-free lamps
  • Lifetime: up to 8,000 h
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075667099 Folding box
1		 46 mm x 46 mm x 127 mm 46.00 g 0.27 dm³
4058075667105 Shipping box
10		 240 mm x 102 mm x 141 mm 543.00 g 3.45 dm³

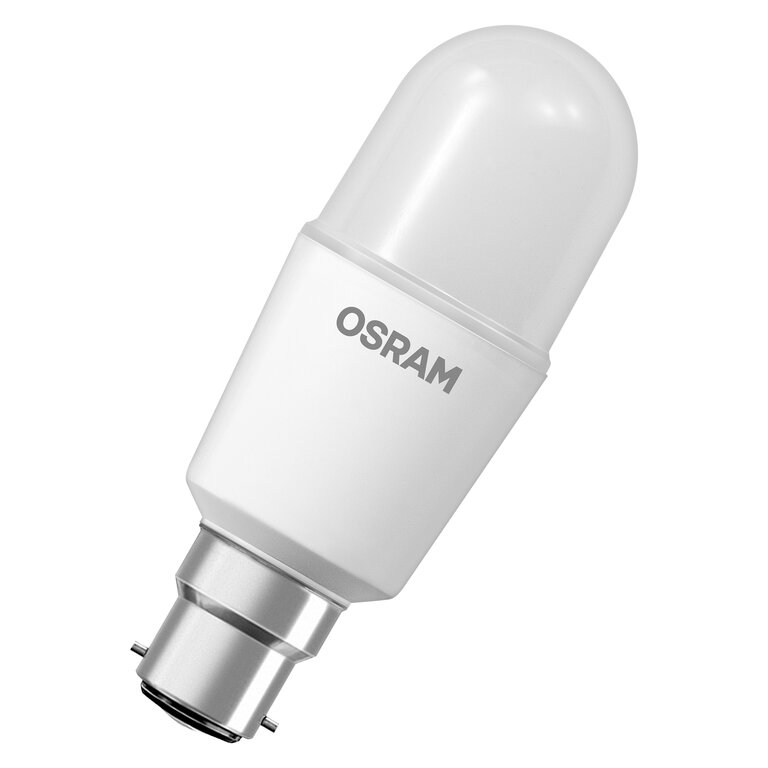

Product Image, Diagonal with OSRAM LOGO, White BG
LED ECO STICK 11W-13W B22d JPG (1.32 MB)

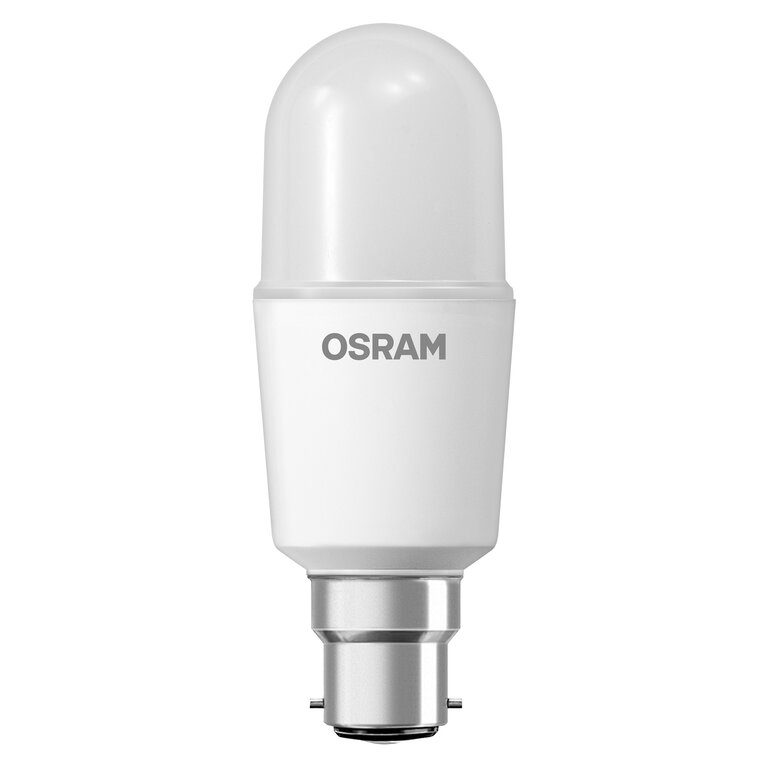

Product Image, Upright with Osram LOGO, White BG
LED ECO STICK 11W-13W B22d JPG (1.23 MB)
Prod.line drw, front, no dimensions
LSTICK T FR B22d SVG (4.09 KB)

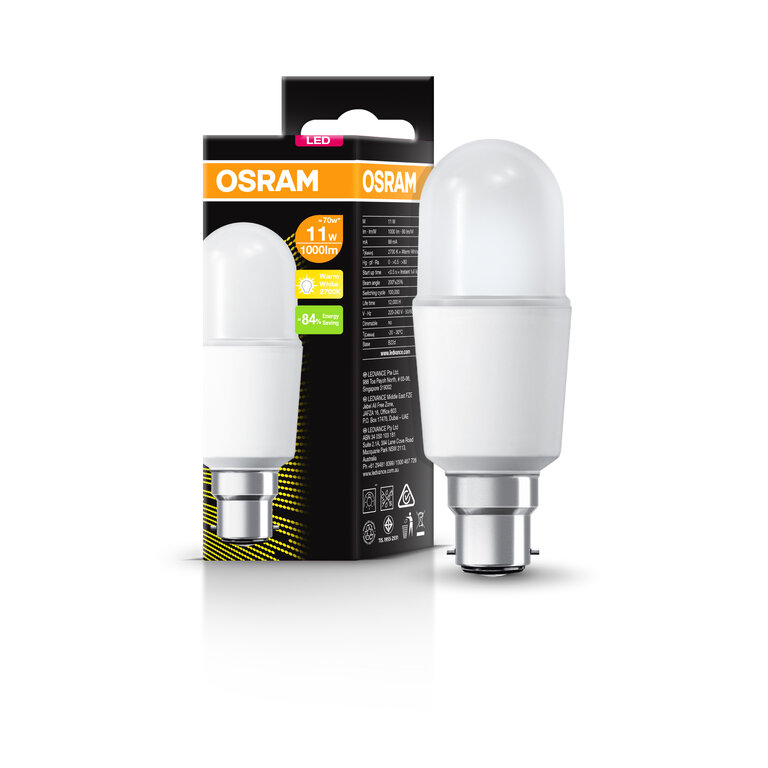

Combo Shot = Product Beauty Shot + Packaging Image
LED ECO STICK 11W/827 B22D JPG (1.55 MB)
