LED ECO HIGH WATT

LED ECO HIGH WATT

Choose your product version

120 20 W/3000 K E27

125 20 W/6500 K B22

125 20 W/6500 K E27

175 30 W/3000 K E27

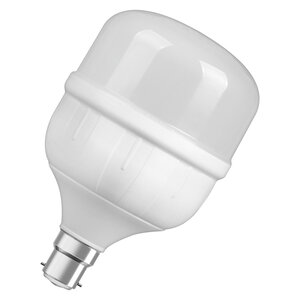

175 30 W/6500 K B22

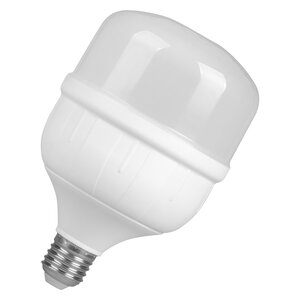

175 30 W/6500 K E27

225 40 W/3000 K E27

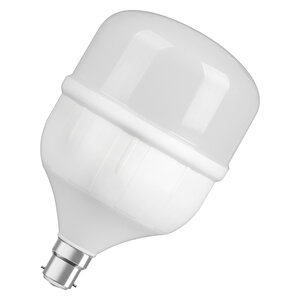

225 40 W/6500 K B22

225 40 W/6500 K E27

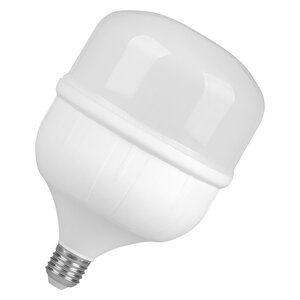

275 50 W/3000 K E27

275 50 W/6500 K E27

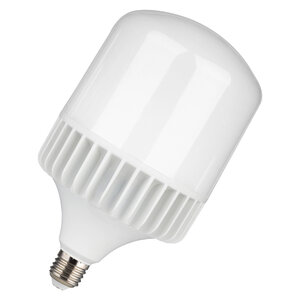

325 60 W/6500 K E27

325 60 W/6500 K E40

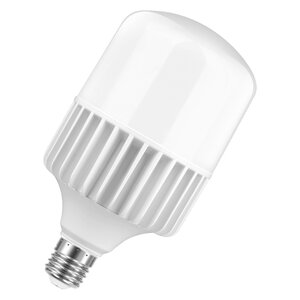

425 80 W/6500 K E40

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED ECO Hi-Watt 120 20 W/3000 K E27 E27 20 W 220…240 V 12000 h 1800 lm 120 W 180 ° No

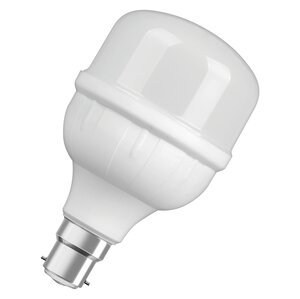

LED ECO Hi-Watt 125 20 W/6500 K B22 B22 20 W 220…240 V 12000 h 2000 lm 125 W 180 ° No
LED ECO Hi-Watt 125 20 W/6500 K E27 E27 20 W 220…240 V 12000 h 2000 lm 125 W 180 ° No
LED ECO Hi-Watt 175 30 W/3000 K E27 E27 30 W 220…240 V 12000 h 2700 lm 175 W 180 ° No
LED ECO Hi-Watt 175 30 W/6500 K B22 B22 30 W 220…240 V 12000 h 3000 lm 175 W 180 ° No
LED ECO Hi-Watt 175 30 W/6500 K E27 E27 30 W 220…240 V 12000 h 3000 lm 175 W 180 ° No
LED ECO Hi-Watt 225 40 W/3000 K E27 E27 40 W 220…240 V 12000 h 3600 lm 225 W 180 ° No
LED ECO Hi-Watt 225 40 W/6500 K B22 B22 40 W 220…240 V 12000 h 4000 lm 225 W 180 ° No

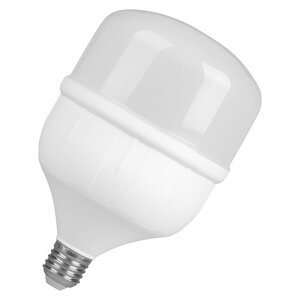

LED ECO Hi-Watt 225 40 W/6500 K E27 E27 40 W 220…240 V 12000 h 4000 lm 225 W 180 ° No
LED ECO Hi-Watt 275 50 W/3000 K E27 E27 50 W 220…240 V 12000 h 4500 lm 275 W 180 ° No
LED ECO Hi-Watt 275 50 W/6500 K E27 E27 50 W 220…240 V 12000 h 5000 lm 275 W 180 ° No
LED ECO Hi-Watt 325 60 W/6500 K E27 E27 60 W 220…240 V 12000 h 6000 lm 325 W 180 ° No

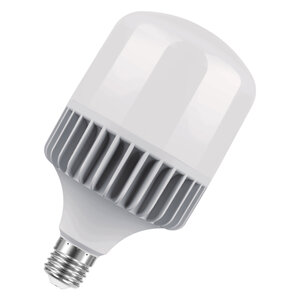

LED ECO Hi-Watt 325 60 W/6500 K E40 E40 60 W 220…240 V 12000 h 6000 lm 325 W 180 ° No
LED ECO Hi-Watt 425 80 W/6500 K E40 E40 80 W 220…240 V 12000 h 8000 lm 425 W 180 ° No


LED ECO Hi-Watt 120 20 W/3000 K E27

Product benefits
  • Energy savings of up to 85 % (compared to traditional incandescent lamps)
  • Wide beam angle: 200°
  • Instant 100 % light, no warm-up time
  • No UV and near-IR radiation in the light beam
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 20 W
Construction wattage 20.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 120 W
Nominal current 160 mA
Type of current AC
Operating frequency 50 Hz
Mains frequency 50 Hz
Power factor λ 0.50

Photometrical data

Luminous flux 1800 lm
Nominal useful luminous flux 90° 1800 lm
Luminous efficacy 90 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra ≥80
Light color 830
Standard deviation of color matching ≤6 sdcm

Light technical data

Beam angle 180 °
Starting time < 0.5 s

Dimensions & Weight

Overall length 135.00 mm
Diameter 80.00 mm
Maximum diameter 80 mm
Product weight 65.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C

Lifespan

Number of switching cycles 100000

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes

Capabilities

Dimmable No

Certificates & Standards

Standards CB, RoHS

Country-specific categorizations

Order reference LE HW 20W/830 2

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) E27
Length 135.00 mm
Height 80.00 mm
Width 80.00 mm
Product benefits
  • Energy savings of up to 85 % (compared to traditional incandescent lamps)
  • Wide beam angle: 200°
  • Instant 100 % light, no warm-up time
  • No UV and near-IR radiation in the light beam
Areas of application
  • Especially suitable for the food sector
  • Warehouses
  • Supermarkets and department stores
  • Suitable for indoor applications
Product features
  • Lifetime: up to 12,000 h
  • Good color rendering index Ra: ≥ 80
  • Overtemperature protection
  • Surge protection: up to 2,000 V
  • Luminous efficacy: up to 100 lm/W
  • Mercury-free lamps
  • Minimum start voltage at 180 VAC
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075683051 Folding box
1		 81 mm x 81 mm x 148 mm 100.00 g 0.97 dm³
4058075683068 Shipping box
10		 421 mm x 178 mm x 175 mm 1329.00 g 13.11 dm³

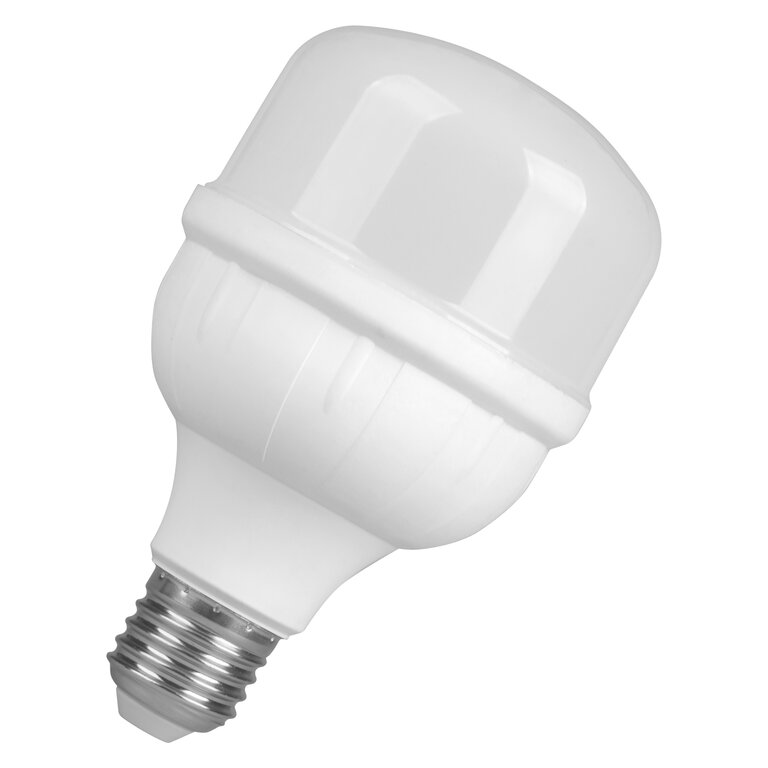

Product Image, Diagonal, White BG
LE HW 20W E27 JPG (1.49 MB)

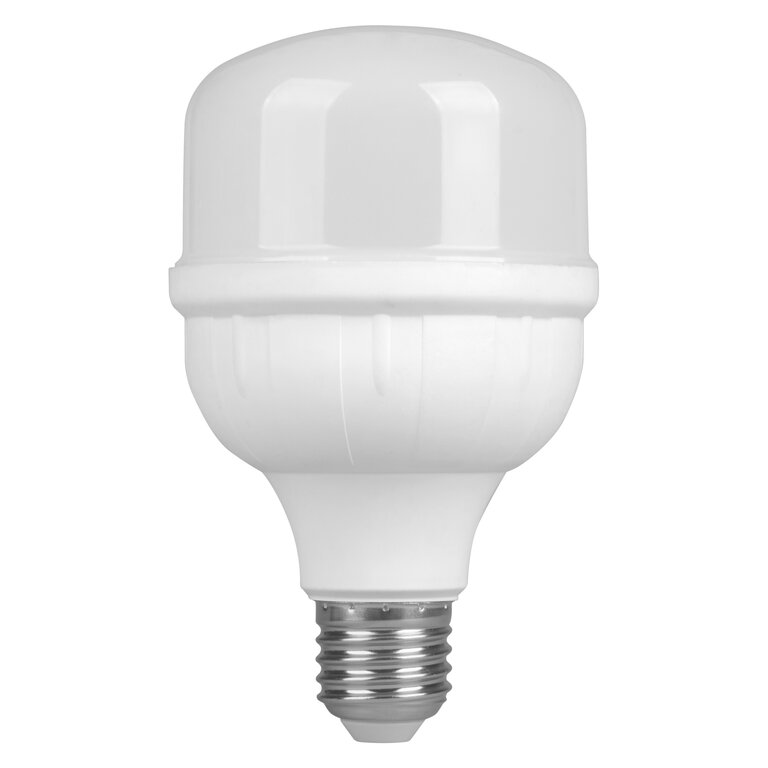

Product Image, Upright, White BG
LE HW 20W E27 JPG (1.45 MB)
Product line drawing with numbers
LE HW 20W E27 SVG (9.44 KB)
