Professional
LED ECO HIGH WATT

LED ECO HIGH WATT

Choose your product version

120 20 W/3000 K E27

125 20 W/6500 K B22

125 20 W/6500 K E27

175 30 W/3000 K E27

175 30 W/6500 K B22

175 30 W/6500 K E27

225 40 W/3000 K E27

225 40 W/6500 K B22

225 40 W/6500 K E27

275 50 W/3000 K E27

275 50 W/6500 K E27

325 60 W/6500 K E27

325 60 W/6500 K E40

425 80 W/6500 K E40

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED ECO Hi-Watt 120 20 W/3000 K E27 E27 20 W 220…240 V 12000 h 1800 lm 120 W 180 ° No
LED ECO Hi-Watt 125 20 W/6500 K B22 B22 20 W 220…240 V 12000 h 2000 lm 125 W 180 ° No
LED ECO Hi-Watt 125 20 W/6500 K E27 E27 20 W 220…240 V 12000 h 2000 lm 125 W 180 ° No
LED ECO Hi-Watt 175 30 W/3000 K E27 E27 30 W 220…240 V 12000 h 2700 lm 175 W 180 ° No
LED ECO Hi-Watt 175 30 W/6500 K B22 B22 30 W 220…240 V 12000 h 3000 lm 175 W 180 ° No
LED ECO Hi-Watt 175 30 W/6500 K E27 E27 30 W 220…240 V 12000 h 3000 lm 175 W 180 ° No
LED ECO Hi-Watt 225 40 W/3000 K E27 E27 40 W 220…240 V 12000 h 3600 lm 225 W 180 ° No
LED ECO Hi-Watt 225 40 W/6500 K B22 B22 40 W 220…240 V 12000 h 4000 lm 225 W 180 ° No
LED ECO Hi-Watt 225 40 W/6500 K E27 E27 40 W 220…240 V 12000 h 4000 lm 225 W 180 ° No
LED ECO Hi-Watt 275 50 W/3000 K E27 E27 50 W 220…240 V 12000 h 4500 lm 275 W 180 ° No
LED ECO Hi-Watt 275 50 W/6500 K E27 E27 50 W 220…240 V 12000 h 5000 lm 275 W 180 ° No
LED ECO Hi-Watt 325 60 W/6500 K E27 E27 60 W 220…240 V 12000 h 6000 lm 325 W 180 ° No
LED ECO Hi-Watt 325 60 W/6500 K E40 E40 60 W 220…240 V 12000 h 6000 lm 325 W 180 ° No
LED ECO Hi-Watt 425 80 W/6500 K E40 E40 80 W 220…240 V 12000 h 8000 lm 425 W 180 ° No


LED ECO Hi-Watt 275 50 W/6500 K E27

Product benefits
  • Energy savings of up to 85 % (compared to traditional incandescent lamps)
  • Wide beam angle: 200°
  • Instant 100 % light, no warm-up time
  • No UV and near-IR radiation in the light beam
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 50 W
Construction wattage 50.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 275 W
Nominal current 385 mA
Type of current AC
Operating frequency 50 Hz
Mains frequency 50 Hz
Power factor λ 0.50

Photometrical data

Luminous flux 5000 lm
Nominal useful luminous flux 90° 5000 lm
Luminous efficacy 100 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Daylight
Color temperature 6500 K
Color rendering index Ra ≥80
Light color 865
Standard deviation of color matching ≤6 sdcm

Light technical data

Beam angle 180 °
Starting time < 0.5 s

Dimensions & Weight

Overall length 203.00 mm
Diameter 138.00 mm
Maximum diameter 138 mm
Product weight 200.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C

Lifespan

Number of switching cycles 100000

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes

Capabilities

Dimmable No

Certificates & Standards

Standards CB, RoHS

Country-specific categorizations

Order reference LE HW 50W/865 2

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) E27
Length 203.00 mm
Height 138.00 mm
Width 138.00 mm
Product benefits
  • Energy savings of up to 85 % (compared to traditional incandescent lamps)
  • Wide beam angle: 200°
  • Instant 100 % light, no warm-up time
  • No UV and near-IR radiation in the light beam
Areas of application
  • Especially suitable for the food sector
  • Warehouses
  • Supermarkets and department stores
  • Suitable for indoor applications
Product features
  • Lifetime: up to 12,000 h
  • Good color rendering index Ra: ≥ 80
  • Overtemperature protection
  • Surge protection: up to 2,000 V
  • Luminous efficacy: up to 100 lm/W
  • Mercury-free lamps
  • Minimum start voltage at 180 VAC
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075683259 Folding box
1		 142 mm x 142 mm x 253 mm 305.00 g 5.10 dm³
4058075710207 Shipping box
4		 295 mm x 295 mm x 230 mm 1750.00 g 20.02 dm³

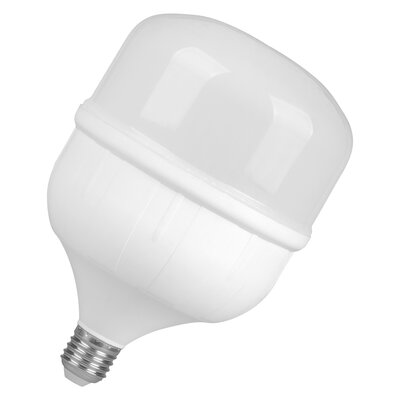

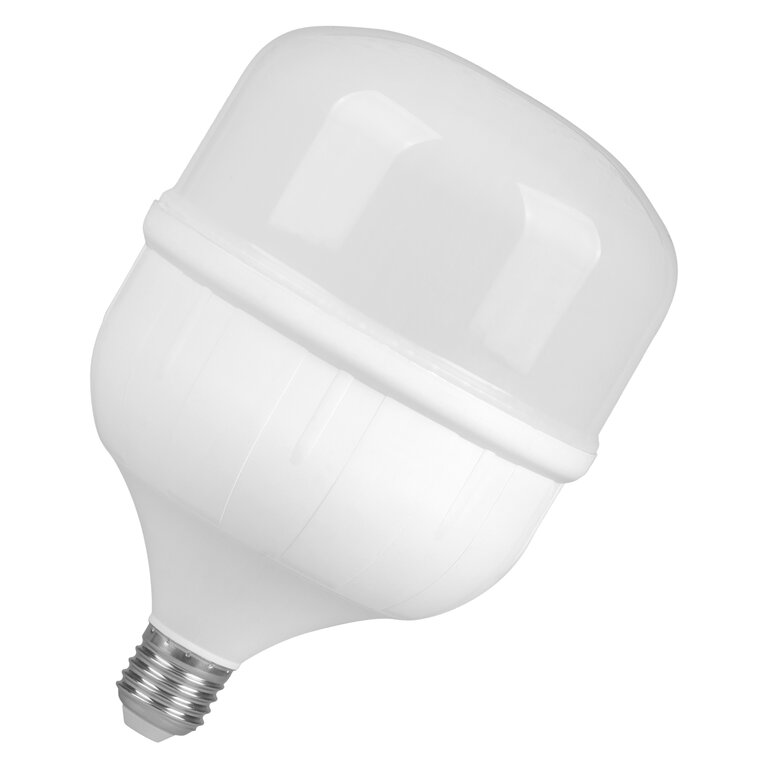

Product Image, Diagonal, White BG
LE HW 50W E27 JPG (1.59 MB)

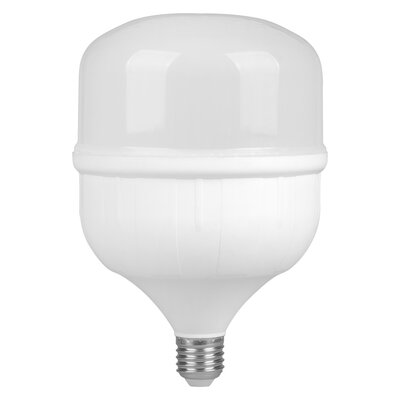

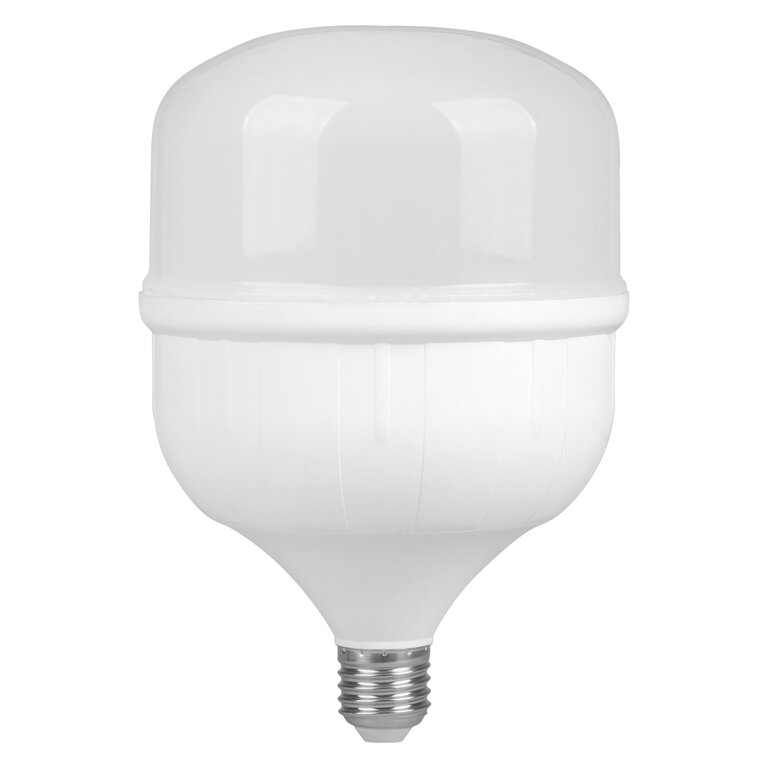

Product Image, Upright, White BG
LE HW 50W E27 JPG (1.56 MB)
Product line drawing with numbers
LE HW 50W E27 SVG (9.86 KB)
