Professional
LED VALUE CLASSIC A FILAMENT

LED VALUE CLASSIC A FILAMENT

Choose your product version

5 W/3000 K E27 GEN2

5 W/6500 K E27 GEN2

7 W/3000 K E27 GEN2

7 W/6500 K E27 GEN2

9 W/3000 K E27 GEN2

9 W/6500 K E27 GEN2

12 W/3000 K E27 GEN2

12 W/6500 K E27 GEN2

15 W/3000 K E27 GEN2

15 W/6500 K E27 GEN2

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED VALUE CLAS A 5 W/3000 K E27 GEN2 E27 5 W 100…240 V 25000 h 470 lm 40 W 200 ° No
LED VALUE CLAS A 5 W/6500 K E27 GEN2 E27 5 W 100…240 V 25000 h 470 lm 40 W 200 ° No
LED VALUE CLAS A 7 W/3000 K E27 GEN2 E27 7 W 100…240 V 25000 h 600 lm 50 W 200 ° No
LED VALUE CLAS A 7 W/6500 K E27 GEN2 E27 7 W 100…240 V 25000 h 600 lm 50 W 200 ° No
LED VALUE CLAS A 9 W/3000 K E27 GEN2 E27 9 W 100…240 V 25000 h 806 lm 60 W 200 ° No
LED VALUE CLAS A 9 W/6500 K E27 GEN2 E27 9 W 100…240 V 25000 h 806 lm 60 W 200 ° No
LED VALUE CLAS A 12 W/3000 K E27 GEN2 E27 12 W 100…240 V 25000 h 1055 lm 75 W 200 ° No
LED VALUE CLAS A 12 W/6500 K E27 GEN2 E27 12 W 100…240 V 25000 h 1055 lm 75 W 200 ° No
LED VALUE CLAS A 15 W/3000 K E27 GEN2 E27 15 W 100…240 V 25000 h 1521 lm 100 W 200 ° No
LED VALUE CLAS A 15 W/6500 K E27 GEN2 E27 15 W 100…240 V 25000 h 1521 lm 100 W 200 ° No


LED VALUE CLAS A 5 W/3000 K E27 GEN2

Product benefits
  • Lamps with innovative LED "filament" technology
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • Very low energy consumption
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lower thermal output (compared with the standard reference product)
  • Correct operation even at low temperatures
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 5 W
Construction wattage 5.00 W
Nominal voltage 100…240 V
Claimed equiv. conventional lamp power 40 W
Nominal current 48 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ > 0.40

Photometrical data

Luminous flux 470 lm
Nominal useful luminous flux 90° 470 lm
Luminous efficacy 94 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra 80
Light color 830
Standard deviation of color matching ≤6 sdcm

Light technical data

Beam angle 200 °
Starting time < 0.5 s

Dimensions & Weight

Overall length 100.00 mm
Diameter 55.00 mm
Maximum diameter 55 mm
Product weight 21.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C

Lifespan

Number of switching cycles 15000

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes

Capabilities

Dimmable No

Certificates & Standards

Type of protection IP20

Country-specific categorizations

Order reference LVCLA 5W/830 10

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) E27
Length 100.00 mm
Height 55.00 mm
Width 55.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lamps with innovative LED "filament" technology
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • Very low energy consumption
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lower thermal output (compared with the standard reference product)
  • Correct operation even at low temperatures
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in outdoor luminaires only (minimum IP65)
Product features
  • Professional LED lamps for line voltage
  • Not dimmable
  • Lifetime: up to 15,000 h
  • Beam angle: up to 300°
  • Lamp made of glass
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854020025 Folding box
1		 55 mm x 55 mm x 102 mm 34.00 g 0.31 dm³
4099854020032 Bundle
10		 280 mm x 112 mm x 104 mm 342.00 g 3.26 dm³
4099854020711 Shipping box
10		 290 mm x 122 mm x 116 mm 421.00 g 4.10 dm³

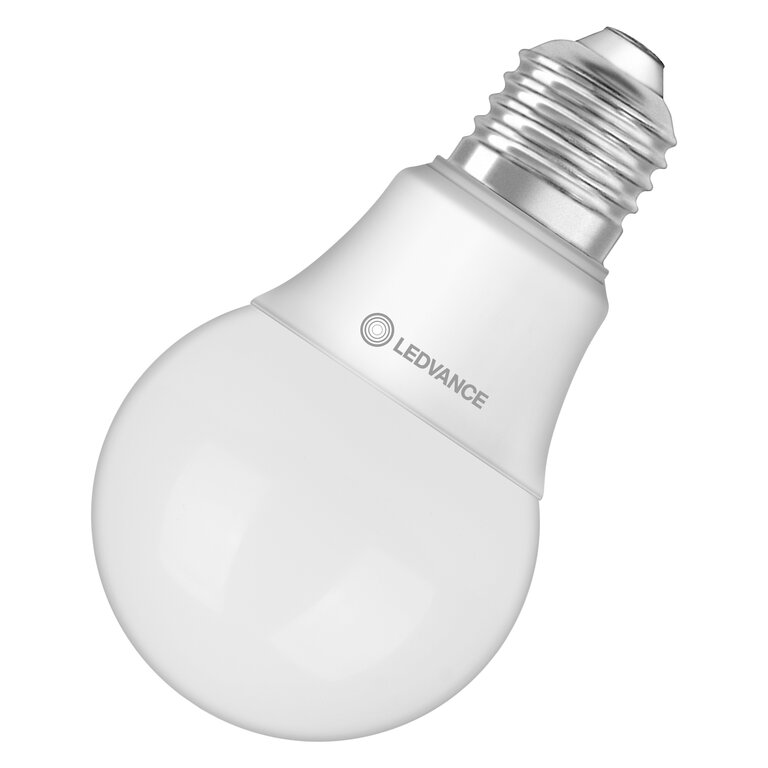

Product Image, Diagonal with LEDVANCE LOGO, White BG
LED VALUE CLASSIC A 5 W 100-240V FR E27 JPG (1.34 MB)

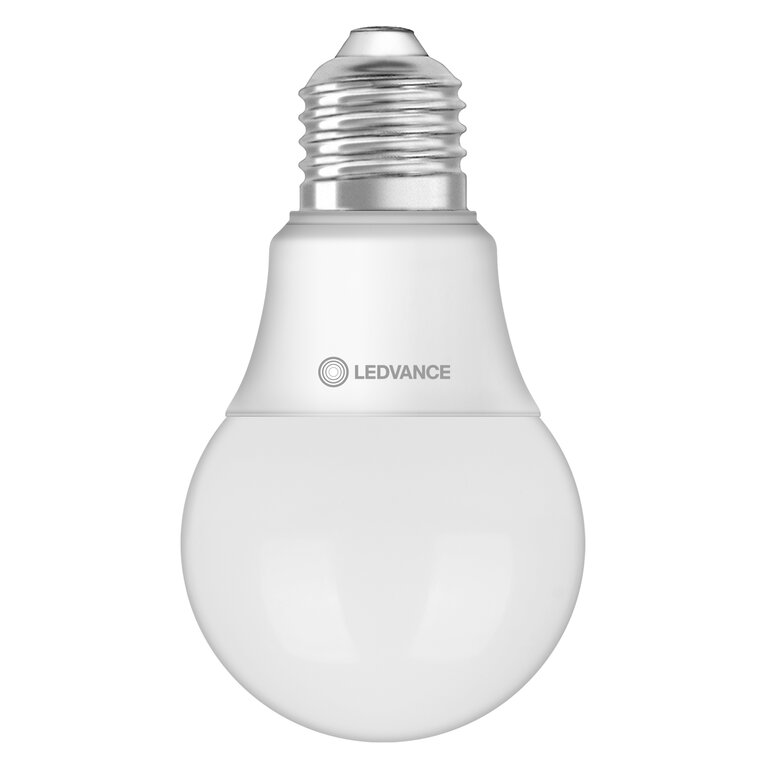

Product Image, Upright with LEDVANCE LOGO, White BG
