Choose your product version
| Product description | Base (standard designation) | Nominal wattage | Nominal voltage | Nominal lamp life time | Nominal luminous flux | Claimed equiv. conventional lamp power | Beam angle | Dimmable |
|---|---|---|---|---|---|---|---|---|
| LED VALUE CLAS A 5 W/3000 K E27 GEN2 | E27 | 5 W | 100…240 V | 25000 h | 470 lm | 40 W | 200 ° | No |
| LED VALUE CLAS A 5 W/6500 K E27 GEN2 | E27 | 5 W | 100…240 V | 25000 h | 470 lm | 40 W | 200 ° | No |
| LED VALUE CLAS A 7 W/3000 K E27 GEN2 | E27 | 7 W | 100…240 V | 25000 h | 600 lm | 50 W | 200 ° | No |
| LED VALUE CLAS A 7 W/6500 K E27 GEN2 | E27 | 7 W | 100…240 V | 25000 h | 600 lm | 50 W | 200 ° | No |
| LED VALUE CLAS A 9 W/3000 K E27 GEN2 | E27 | 9 W | 100…240 V | 25000 h | 806 lm | 60 W | 200 ° | No |
| LED VALUE CLAS A 9 W/6500 K E27 GEN2 | E27 | 9 W | 100…240 V | 25000 h | 806 lm | 60 W | 200 ° | No |

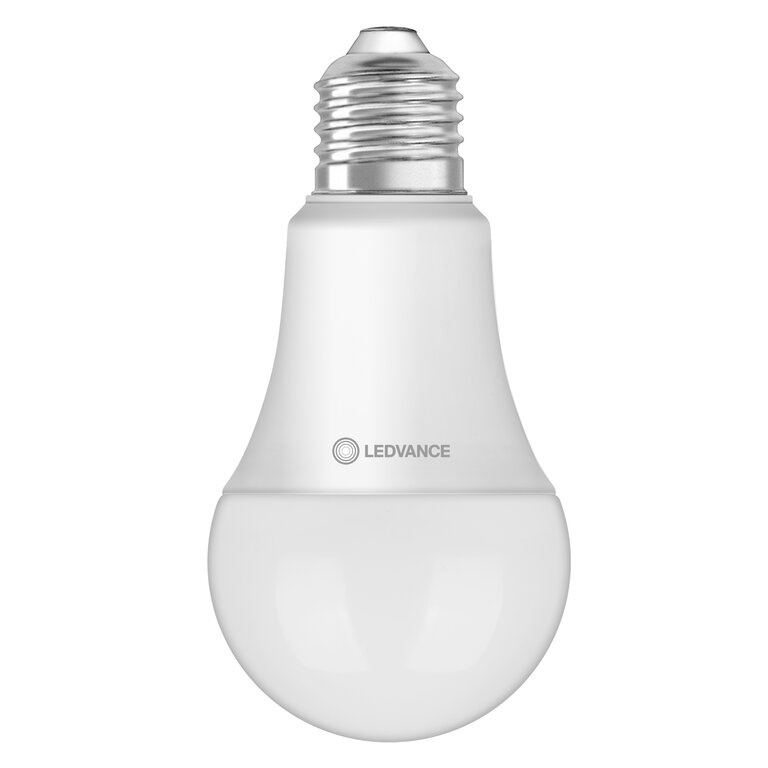

| LED VALUE CLAS A 12 W/3000 K E27 GEN2 | E27 | 12 W | 100…240 V | 25000 h | 1055 lm | 75 W | 200 ° | No |
| LED VALUE CLAS A 12 W/6500 K E27 GEN2 | E27 | 12 W | 100…240 V | 25000 h | 1055 lm | 75 W | 200 ° | No |

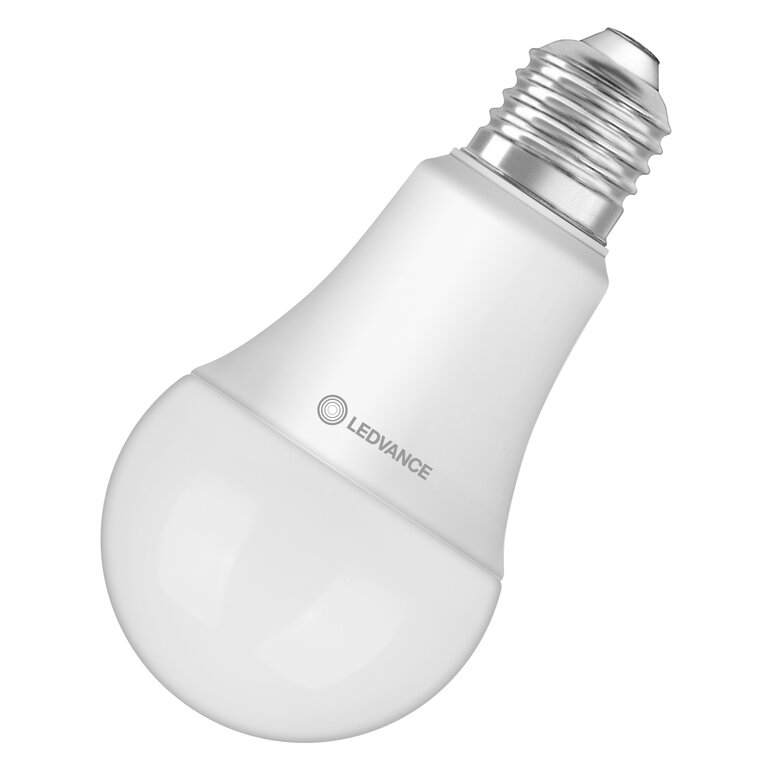

| LED VALUE CLAS A 15 W/3000 K E27 GEN2 | E27 | 15 W | 100…240 V | 25000 h | 1521 lm | 100 W | 200 ° | No |
| LED VALUE CLAS A 15 W/6500 K E27 GEN2 | E27 | 15 W | 100…240 V | 25000 h | 1521 lm | 100 W | 200 ° | No |
| Nominal wattage | 12 W |
| Construction wattage | 12.00 W |
| Nominal voltage | 100…240 V |
| Claimed equiv. conventional lamp power | 75 W |
| Nominal current | 72 mA |
| Type of current | AC |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
| Power factor λ | > 0.70 |
| Luminous flux | 1055 lm |
| Nominal useful luminous flux 90° | 1055 lm |
| Luminous efficacy | 87 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Warm White |
| Color temperature | 3000 K |
| Color rendering index Ra | 80 |
| Light color | 830 |
| Standard deviation of color matching | ≤6 sdcm |
| Beam angle | 200 ° |
| Starting time | < 0.5 s |
| Overall length | 118.00 mm |
| Diameter | 60.00 mm |
| Maximum diameter | 60 mm |
| Product weight | 33.00 g |
| Ambient temperature range | -20…+40 °C |
| Number of switching cycles | 15000 |
| Base (standard designation) | E27 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Dimmable | No |
| Type of protection | IP20 |
| Order reference | LVCLA 12W/830 1 |
| Light source cap-type (or other electric interface) | E27 |
| Length | 118.00 mm |
| Height | 60.00 mm |
| Width | 60.00 mm |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854020209 | Folding box 1 |
60 mm x 60 mm x 122 mm | 57.00 g | 0.44 dm³ |
| 4099854020216 | Bundle 10 |
305 mm x 122 mm x 114 mm | 492.00 g | 4.24 dm³ |
| 4099854020780 | Shipping box 10 |
315 mm x 135 mm x 135 mm | 693.00 g | 5.74 dm³ |
