Professional
LED VALUE CLASSIC P FILAMENT

LED VALUE CLASSIC P FILAMENT

Choose your product version

4 W/2700 K B22d GEN2

4 W/2700 K E14 FR GEN2

4 W/2700 K E14 GEN2

4 W/2700 K E27 GEN2

4 W/2700 K E27 GEN2

4 W/4000 K E14 GEN2

4 W/4000 K E14 CL

4 W/4000 K E14

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED VALUE CLAS P FIL 4 W/2700 K B22d GEN2 B22d 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS P FIL 4 W/2700 K E14 FR GEN2 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS P FIL 4 W/2700 K E14 GEN2 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS P FIL 4 W/2700 K E27 GEN2 E27 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS P FIL 4 W/2700 K E27 GEN2 E27 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS P FIL 4 W/4000 K E14 GEN2 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS P FIL 4 W/4000 K E14 CL E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS P FIL 4 W/4000 K E14 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No


LED VALUE CLAS P FIL 4 W/2700 K B22d GEN2

Product benefits
  • Very low energy consumption
  • Lamps with innovative LED "filament" technology
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lower thermal output (compared with the standard reference product)
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 4 W
Construction wattage 4.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 40 W
Nominal current 35 mA
Type of current AC
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Power factor λ > 0.40

Photometrical data

Luminous flux 470 lm
Nominal useful luminous flux 90° 470 lm
Luminous efficacy 117 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm

Light technical data

Beam angle 300 °
Starting time < 0.5 s

Dimensions & Weight

Overall length 83.00 mm
Diameter 45.00 mm
Maximum diameter 45 mm
Product weight 19.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C

Lifespan

Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70

Additional product data

Base (standard designation) B22d
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Type of protection IP20
Photobiological safety group acc. to EN62778 RG0

Country-specific categorizations

Order reference LV CLP 4W/827 2

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) B22d
Standby power 0 W
Length 83.00 mm
Height 45.00 mm
Width 45.00 mm
EPREL ID 1403407,523183
Model number AC24333,AC32372

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Very low energy consumption
  • Lamps with innovative LED "filament" technology
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lower thermal output (compared with the standard reference product)
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
Areas of application
  • Perfect for decorative installations
  • General illumination
  • Outdoor use in outdoor luminaires only (minimum IP65)
  • Domestic applications
Product features
  • Professional LED lamps for line voltage
  • Not dimmable
  • Mercury-free lamps
  • Beam angle: up to 300°
  • Lifetime: up to 15,000 h
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075267787 Folding box
1		 51 mm x 51 mm x 107 mm 32.00 g 0.28 dm³
4058075267794 Shipping box
10		 266 mm x 109 mm x 121 mm 444.00 g 3.51 dm³
4058075751026 Shipping box
10		 266 mm x 109 mm x 121 mm 436.00 g 3.51 dm³
4099854260131 Shipping box
10		 266 mm x 109 mm x 121 mm 436.00 g 3.51 dm³
4058075509221 Shipping box
10		 266 mm x 109 mm x 121 mm 446.00 g 3.51 dm³

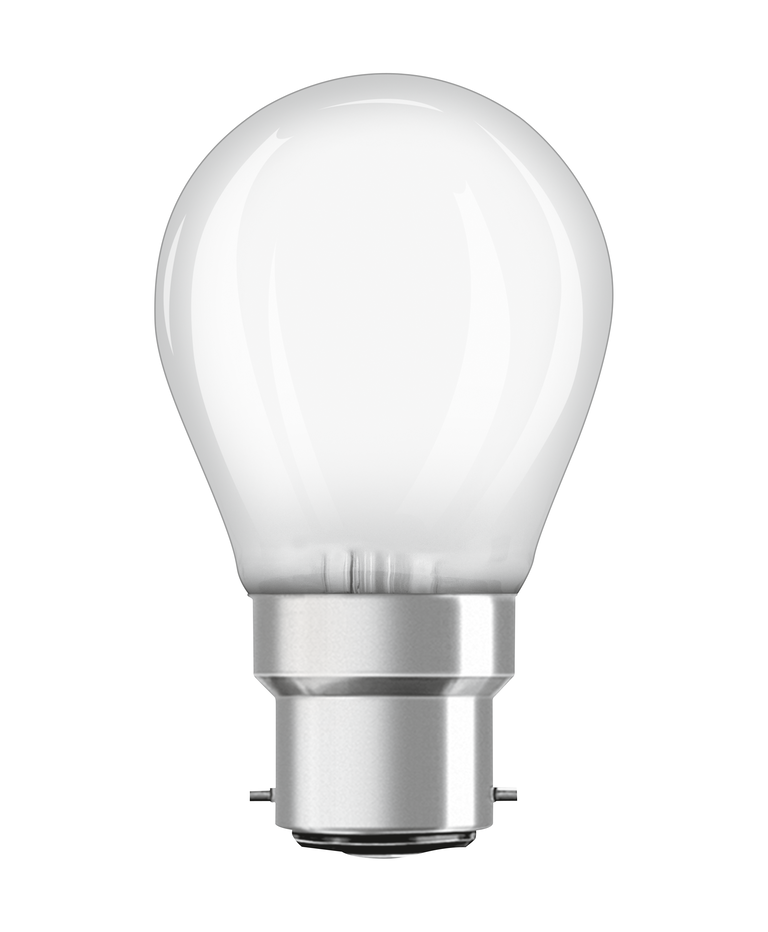

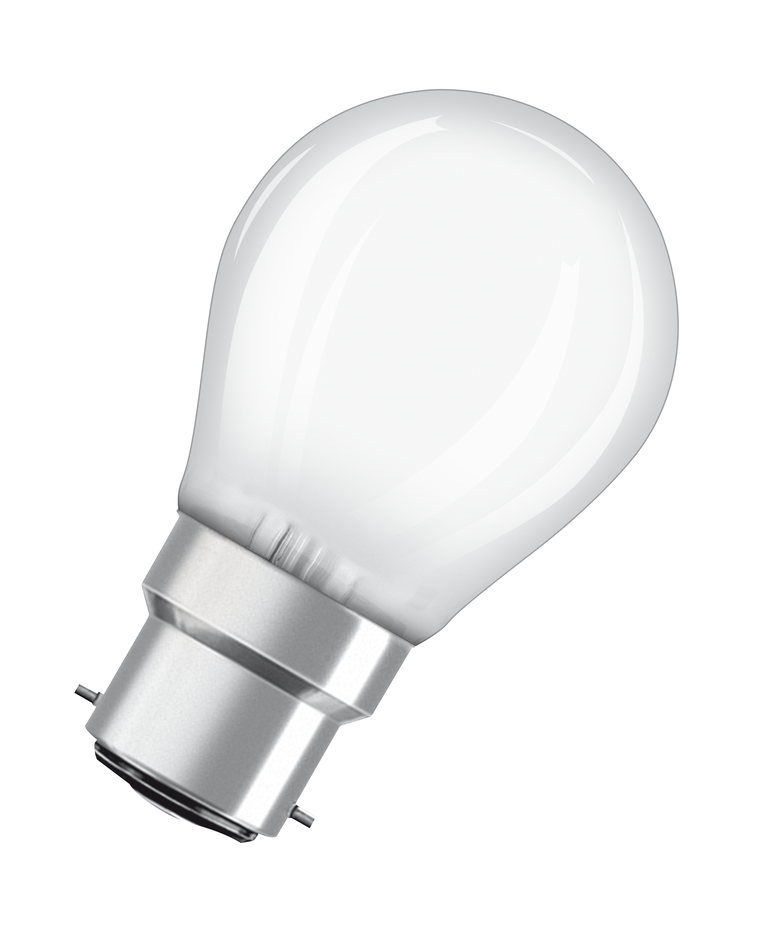

Product Image, Diagonal, White BG
Classic P GLFR B22d TIF (82.68 MB)
Product Image, Upright, White BG
Classic P GLFR B22d TIF (82.68 MB)
Product line drawing with letters
Classic P GLFR B22d SVG (9.76 KB)
Energy label
EL-4058075267787-AC243 33 PDF (21.44 KB)
Energy label
EL-4058075267787-AC323 72 PDF (21.57 KB)
LDT file (Eulumdat)
3522668 LED VALUE CLAS P GLFR 4 W 2700K B22d LDT (11.77 KB)
LDC typ polar
3522668 LED VALUE CLAS P GLFR 4 W 2700K B22d SVG (478.01 KB)
