LED VALUE CLASSIC B FILAMENT

LED VALUE CLASSIC B FILAMENT

Choose your product version

2.5 W/2700 K E14

2.5 W/2700 K E14 GEN2

4 W/2700 K B15d FR GEN2

4 W/2700 K B15d GEN2

4 W/2700 K B22d GEN2

4 W/2700 K B22d FR GEN2

4 W/2700 K E14

4 W/2700 K E14 FR GEN2

4 W/2700 K E14 GEN2

4 W/2700 K E14

4 W/2700 K E27

4 W/2700 K E27 FR GEN2

4 W/4000 K E14 FR GEN2

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED VALUE CLAS B FIL 2.5 W/2700 K E14 E14 2.5 W 220…240 V 15000 h 250 lm 25 W 300 ° No
LED VALUE CLAS B FIL 2.5 W/2700 K E14 GEN2 E14 2.5 W 220…240 V 15000 h 250 lm 25 W 300 ° No
LED VALUE CLAS B FIL 4 W/2700 K B15d FR GEN2 B15d 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS B FIL 4 W/2700 K B15d GEN2 B15d 4 W 220…240 V 10000 h 470 lm 40 W 300 ° No
LED VALUE CLAS B FIL 4 W/2700 K B22d GEN2 B22d 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS B FIL 4 W/2700 K B22d FR GEN2 B22d 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS B FIL 4 W/2700 K E14 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS B FIL 4 W/2700 K E14 FR GEN2 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS B FIL 4 W/2700 K E14 GEN2 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS B FIL 4 W/2700 K E14 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS B FIL 4 W/2700 K E27 E27 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS B FIL 4 W/2700 K E27 FR GEN2 E27 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS B FIL 4 W/4000 K E14 FR GEN2 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No


LED VALUE CLAS B FIL 2.5 W/2700 K E14

Product benefits
  • Lamps with innovative LED "filament" technology
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Lower thermal output (compared with the standard reference product)
  • Can be easily fitted instead of ordinary light bulbs
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 2.5 W
Construction wattage 2.50 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 25 W
Nominal current 19 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ ≥ 0.40

Photometrical data

Luminous flux 250 lm
Nominal useful luminous flux 90° 250 lm
Luminous efficacy 100 lm/W
Lumen main.fact.at end of nom.life time 0.93
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80

Light technical data

Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 100.00 mm
Diameter 35.00 mm
Maximum diameter 35 mm
Product weight 16.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.93
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E14
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class F
Energy consumption 3.00 kWh/1000h
Type of protection IP20
Standards CB
Photobiological safety group acc. to EN62778 RG1

Country-specific categorizations

Order reference LV CLB 2,5W/827

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Light source cap-type (or other electric interface) E14
Correlated colour temperature type SINGLE_VALUE
Length 100.00 mm
Height 35.00 mm
Width 35.00 mm
EPREL ID 523087
Model number AC32467

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lamps with innovative LED "filament" technology
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Lower thermal output (compared with the standard reference product)
  • Can be easily fitted instead of ordinary light bulbs
Areas of application
  • Decorative applications
  • General illumination
  • Outdoor use in outdoor luminaires only (minimum IP65)
  • Perfect for decorative installations
Product features
  • Professional LED lamps for line voltage
  • Not dimmable
  • Mercury-free lamps
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
  • Lifetime: up to 15,000 h
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854311086 Folding box
1		 39 mm x 39 mm x 109 mm 30.00 g 0.17 dm³
4099854311093 Shipping box
10		 205 mm x 87 mm x 123 mm 349.00 g 2.19 dm³

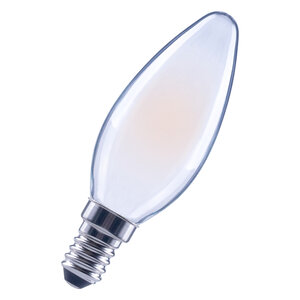

Product Image, Diagonal, White BG
LV CLB E14 JPG (1.05 MB)
Product Image, Upright, White BG
LV CLB E14 JPG (787.57 KB)
Product line drawing with letters
1906_LED_CLASSIC B 25_ FIL GOLD_E14 SVG (10.74 KB)
Prod.line drw, front, no dimensions
1906_LED_CLASSIC B 25_ FIL GOLD_E14 SVG (7.84 KB)
Energy label
EL-4099854311086-AC324 67 PDF (21.79 KB)
Logos and Pictos
F left SVG (1.83 KB)
Logos and Pictos
F left BW SVG (1.07 KB)
Logos and Pictos
F right SVG (1.81 KB)
Logos and Pictos
F right BW SVG (1.06 KB)
