Choose your product version
| Product description | Base (standard designation) | Nominal wattage | Nominal voltage | Nominal lamp life time | Nominal luminous flux | Claimed equiv. conventional lamp power | Beam angle | Dimmable |
|---|---|---|---|---|---|---|---|---|

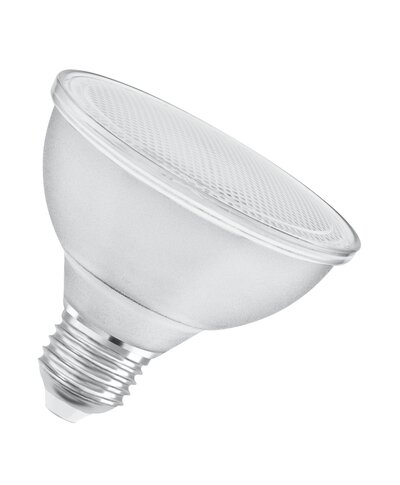

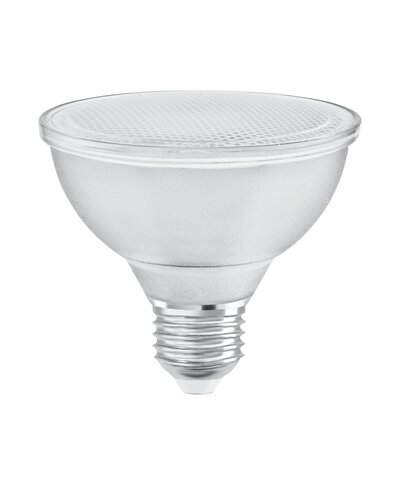

| P PAR 30 75 36 ° 10.5 W/2700 K E27 | E27 | 10.5 W | 220…240 V | 25000 h | 750 lm | 75 W | 36 ° | Yes |
| Nominal wattage | 10.5 W |
| Construction wattage | 10.50 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 75 W |
| Nominal current | 49 mA |
| Type of current | AC |
| Operating frequency | 50…60 Hz |
| Mains frequency | 50…60 Hz |
| Power factor λ | ≥ 0.70 |
| Luminous intensity | 1700 cd |
| Luminous flux | 750 lm |
| Nominal useful luminous flux 90° | 633 lm |
| Luminous efficacy | 71 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Warm White |
| Color temperature | 2700 K |
| Color rendering index Ra | ≥80 |
| Light color | 827 |
| Standard deviation of color matching | ≤6 sdcm |
| Rated peak intensity | 1700 cd |
| Rated LLMF at 6,000 h | 0.80 |
| Beam angle | 36 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
| Overall length | 90.00 mm |
| Diameter | 95.00 mm |
| Maximum diameter | 95 mm |
| Product weight | 180.00 g |
| Ambient temperature range | -20…+40 °C |
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
| Base (standard designation) | E27 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
| Dimmable | Yes |
| Energy efficiency class | A 1) |
| Energy consumption | 11.00 kWh/1000h |
| Type of protection | IP20 |
| Photobiological safety group acc. to EN62778 | RG1 |
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
| Order reference | LPPAR30D7536 10 |
| Light source cap-type (or other electric interface) | E27 |
| Length | 90.00 mm |
| Height | 95.00 mm |
| Width | 95.00 mm |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075184510 | Folding box 1 |
100 mm x 100 mm x 149 mm | 248.00 g | 1.49 dm³ |
| 4058075184527 | Shipping box 6 |
312 mm x 211 mm x 163 mm | 1636.00 g | 10.73 dm³ |
