Choose your product version
| Product description |
|---|

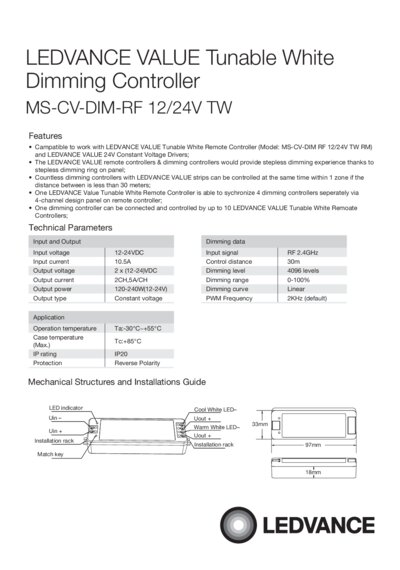

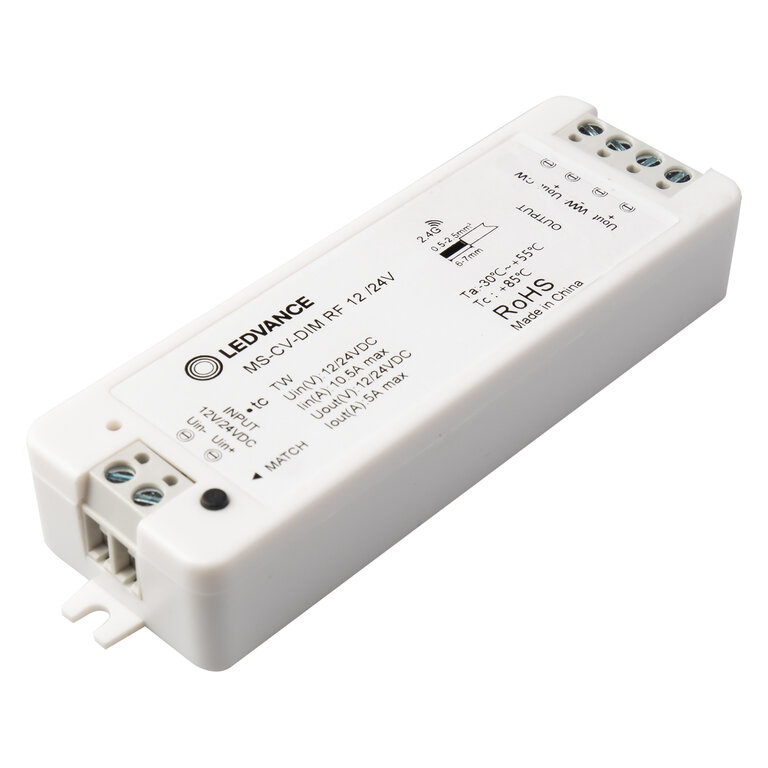

| MS-CV-DIM RF 12/24 V TW |
| Nominal wattage | 288.00 W |
| Nominal output power | 144…288 W |
| Nominal voltage | 12…24 V |
| Nominal output voltage | 12…24 V |
| Mains frequency | 50…60 Hz |
| Length | 97.00 mm |
| Width | 33.00 mm |
| Height | 18.00 mm |
| Product weight | 49.00 g |
| Product color | White |
| Ambient temperature range | -30…+55 °C |
| Dimmable | Yes |
| Dimming interface | PWM |
| Protection class | I |
| Type of protection | IP20 |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075359802 | Folding box 1 |
39 mm x 27 mm x 116 mm | 58.00 g | 0.12 dm³ |
| 4058075359819 | Shipping box 10 |
144 mm x 120 mm x 88 mm | 634.00 g | 1.52 dm³ |
| 4058075383821 | Shipping box 120 |
