LED VALUE DAMP PROOF CLASSIC

LED VALUE DAMP PROOF CLASSIC

Choose your product version

OVERVIEW

Product description Nominal wattage Beam angle Luminous flux Dimmable
LED VALUE DAMPPROOF CLASSIC 600 16W 865 16.00 W 120 ° 1600 lm No
LED VALUE DAMPPROOF CLASSIC 600 16W 840 16.00 W 120 ° 1600 lm No
LED VALUE DAMPPROOF CLASSIC 1200 32W 865 32.00 W 120 ° 3200 lm No
LED VALUE DAMPPROOF CLASSIC 1200 32W 840 32.00 W 120 ° 3200 lm No

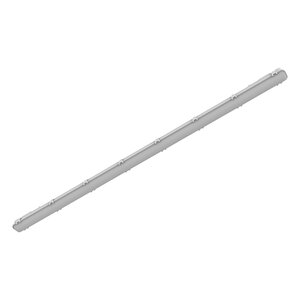

LED VALUE DAMPPROOF CLASSIC 1500 40W 865 40.00 W 120 ° 4000 lm No
LED VALUE DAMPPROOF CLASSIC 1500 40W 840 40.00 W 120 ° 4000 lm No

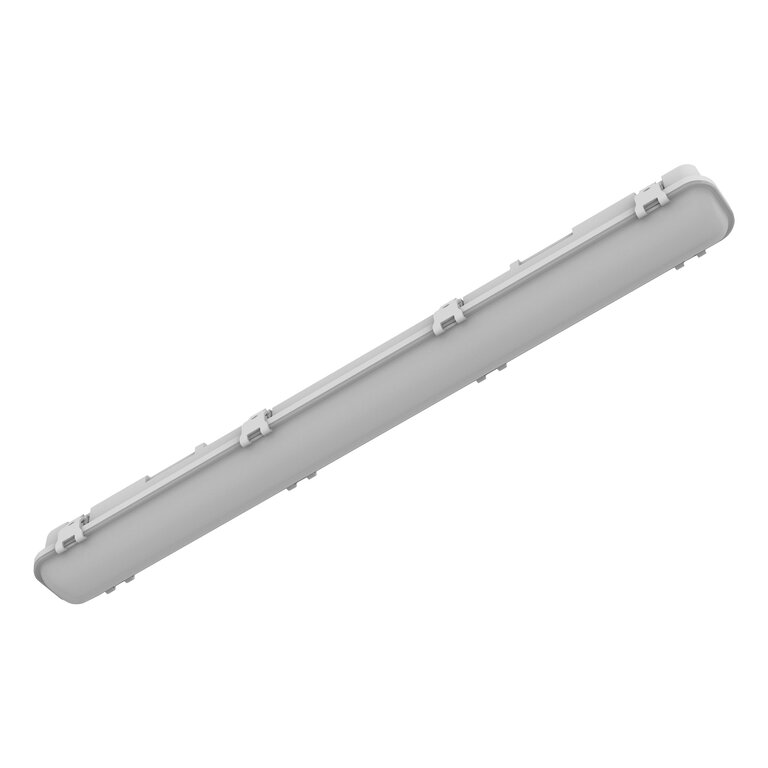

LED VALUE DAMPPROOF CLASSIC 600 16W 865

Product benefits
  • UV-stabilized polycarbonate opal diffuser for uniform light distribution and long durability
  • Classic structural design meets the needs of most customers in the market
  • Long lifetime reduces maintenance cost

PRODUCT DETAILS

Electrical data

Nominal wattage 16.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 140.000 mA
Protection class I

Photometrical data

Luminous flux 1600 lm
Luminous efficacy 100 lm/W
Color temperature 6500 K
Color rendering index Ra > 80
Beam angle 120 °

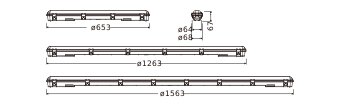

Dimensions & Weight

Length 653.00 mm
Height 67.00 mm
Width 68.00 mm
Product weight 591.00 g

Materials & Colors

Product color Gray
Housing color Gray
Body material Plastic
Mercury content 0.0 mg

Application & Mounting

Type of protection IP65
Dimmable No
Mounting type Surface/Suspended
Application environment Indoor
Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • UV-stabilized polycarbonate opal diffuser for uniform light distribution and long durability
  • Classic structural design meets the needs of most customers in the market
  • Long lifetime reduces maintenance cost
Areas of application
  • Industrial and storage facilities
  • Car parks and underpasses
  • Garages
  • Workshops, assembly lines
Product features
  • Class I Luminaires

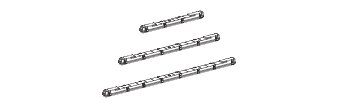

  • Available in 3 length options: 600 mm, 1200 mm, 1500 mm
  • 3 lumen packages: 16W 1600lm, 32W 3200lm, 40W 4000lm
  • Standard CCT: 6500 K and 4000 K
  • Lifetime (L70/B50): up to 30,000 h
  • Color rendering index Ra: > 80
  • Type of protection: IP65
  • Impact resistance: IK08
  • Certificate: CB, RoHS
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854110344 Folding box
1
71 mm x 69 mm x 655 mm 646.00 g 3.21 dm³
4099854110351 Shipping box
12
675 mm x 305 mm x 235 mm 8432.00 g 48.38 dm³
