DAMP PROOF COMPACT GEN 1

DAMP PROOF COMPACT GEN 1

Choose your product version

1200 23W/3000K IP66 GR

1200 23 W 4000K IP66 GR

1500 31W/3000K IP66 GR

1500 31 W 4000K IP66 GR

1200 44W/3000K IP66 GR

1200 44 W 4000K IP66 GR

1200 44 W 6500K IP66 GR

1500 55W/3000K IP66 GR

1500 55 W 4000K IP66 GR

1500 55 W 6500K IP66 GR

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
DP COMPACT 1200 23W/3000K IP66 GR 23.00 W 100000 120 ° 2600 lm No
DP COMPACT 1200 23 W 4000K IP66 GR 23.00 W 100000 120 ° 2800 lm No
DP COMPACT 1500 31W/3000K IP66 GR 31.00 W 100000 120 ° 3500 lm No
DP COMPACT 1500 31 W 4000K IP66 GR 31.00 W 100000 120 ° 3800 lm No
DP COMPACT 1200 44W/3000K IP66 GR 44.00 W 100000 120 ° 5100 lm No
DP COMPACT 1200 44 W 4000K IP66 GR 44.00 W 100000 120 ° 5400 lm No
DP COMPACT 1200 44 W 6500K IP66 GR 44.00 W 100000 120 ° 5400 lm No
DP COMPACT 1500 55W/3000K IP66 GR 55.00 W 100000 120 ° 6300 lm No
DP COMPACT 1500 55 W 4000K IP66 GR 55.00 W 100000 120 ° 6700 lm No
DP COMPACT 1500 55 W 6500K IP66 GR 55.00 W 100000 120 ° 6700 lm No


DP COMPACT 1200 23W/3000K IP66 GR

Product benefits
  • Evenly distributed light
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
  • Easy installation as mounting brackets can be positioned freely on the luminaire
  • Easy access to electrical terminal thanks to end caps with twist and lock mechanism
  • Tool-free electrical connection due to push button connector
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 23.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 130 mA
Inrush current 11 A
Inrush current time Th50 160 µs
Max. number of luminaires per miniature circuit breaker B16 37
Max. number of luminaires per miniature circuit breaker C10 31
Max. number of luminaires per miniature circuit breaker C16 50
Power factor λ > 0.90
Total harmonic distortion 20 %
Protection class II
Operating mode Integrated LED driver

Photometrical data

Luminous flux 2600 lm
Luminous efficacy 115 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching ≤5 sdcm
Low flicker Yes
Flickering metric (Pst LM) ≤ 1
Stroboscope effect metric (SVM) ≤ 0.9
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °

Dimensions & Weight

Length 1290.00 mm
Height 68.00 mm
Width 86.00 mm
Product weight 1120.00 g

Materials & Colors

Product color Gray
Housing color Gray
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -35…+50 °C
Temperature range at storage -40…+70 °C
Type of connection Screwless terminal, 3-Pole
Type of protection IP66
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Suspended/Surface
Mounting location Ceiling, Wall
Application environment Indoor
Replaceable light source (EPREL) Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 35000 h 1)
Lifespan L90/B10 at 25 °C 20000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 270 mA

Certificates & Standards

Standards CE, CB, TÜV SÜD, EAC, RoHS, EPD
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No
EPD LEDV-00003-V01.01-EN

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Evenly distributed light
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
  • Easy installation as mounting brackets can be positioned freely on the luminaire
  • Easy access to electrical terminal thanks to end caps with twist and lock mechanism
  • Tool-free electrical connection due to push button connector
  • 5 years guarantee
Areas of application
  • Industrial and storage facilities
  • Car parks and underpasses
  • Garages
  • Workshops, assembly lines
Product features
  • High luminous efficacy: up to 120 lm/W
  • Type of protection: IP66
  • Beam angle: 120°
  • Through-wiring 3x1.5mm² already installed
  • Polycarbonate housing
Equipment / Accessories
  • Stainless steel clamps with safety screws included
  • Mounting accessories included (suspension kit, theft protection kit)
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075424227 Folding box
1		 72 mm x 1,319 mm x 90 mm 1310.00 g 8.55 dm³
4058075424234 Shipping box
6		 1,340 mm x 200 mm x 240 mm 8140.00 g 64.32 dm³
User Instruction / Safety Instructions
UI_DP COMPACT PDF (3.78 MB)
Legal information

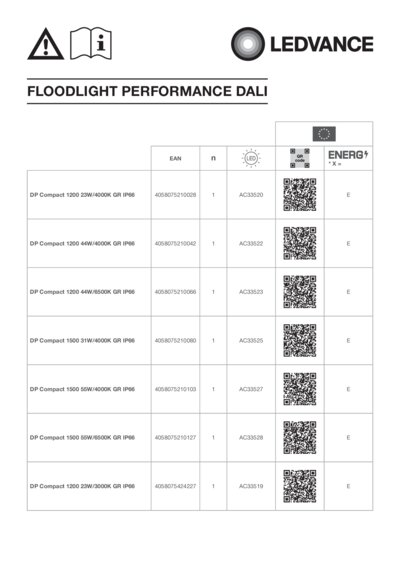

LS Insert DP COMPACT PDF (2.68 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity

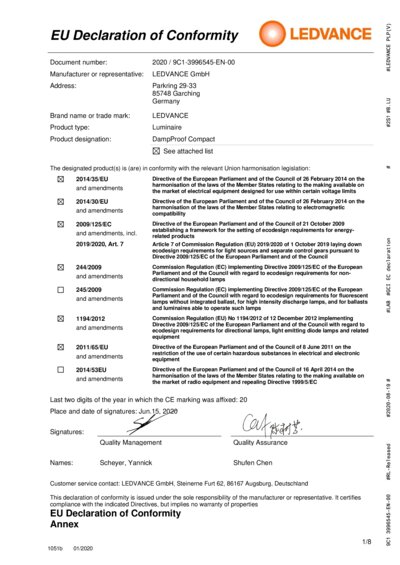

DP COMPACT PDF (316.16 KB)
EPD

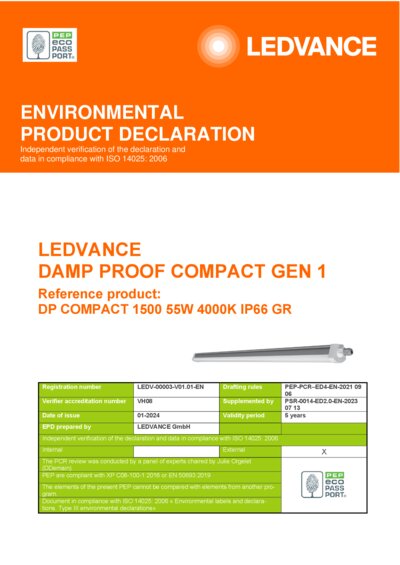

PEP Ecopassport DP COM P G1 PDF (512.98 KB)
Product Image, Diagonal, White BG
Dampproof Compact 1200 IP65 TIF (3.2 MB)
Product Image, Horizontal, White BG
Dampproof Compact 1200 IP65 TIF (1.78 MB)
Product Image, Upright, White BG
Dampproof Compact 1200 IP65 TIF (2.66 MB)
Product line drawing with letters
Dampproof Compact 1200 IP65 SVG (17.03 KB)
Product line drawing with numbers
Dampproof Compact 1200 IP65 SVG (21.71 KB)
Prod.line drw, front, no dimensions
DP COMPACT 1200 PNG (47.29 KB)

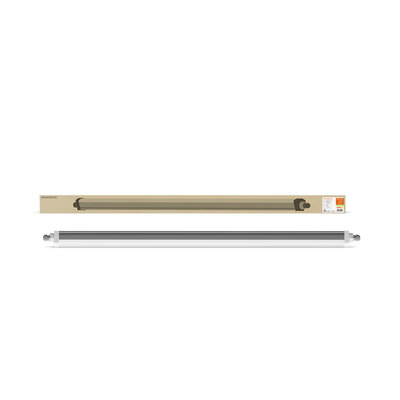

Combo Shot = Product Beauty Shot + Packaging Image
DP COMPACT 1200 23W-30 00K GR IP66 JPG (656.43 KB)

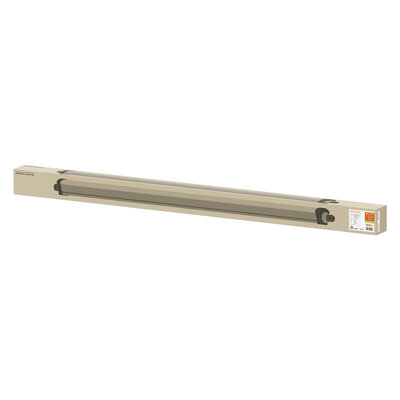

Packaging image, spacial
DampProof LED Compact 1200 23W 830 GR IP66 M iCh TIF (922.45 KB)

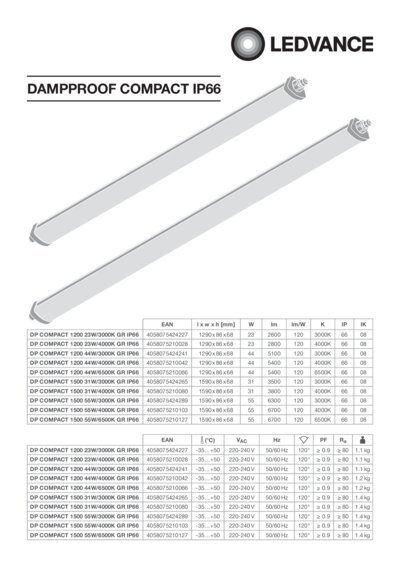

Catalog info 1
UI DampProof Compact I P66 SVG (119.3 KB)
Catalog info 2
UI DampProof Compact I P66 SVG (93.89 KB)
Catalog info 3
UI DampProof Compact I P66 SVG (90.67 KB)
Catalog info 4
UI DampProof Compact I P66 SVG (84.72 KB)
Catalog info 5
UI DampProof Compact I P66 SVG (48.63 KB)
IES file (IES)
DP Compact 1200 23W 30 00K GR IP66 IES (8.23 KB)
LDT file (Eulumdat)
DP Compact 1200 23W 30 00K GR IP66 LDT (10.11 KB)
ULD file (DIALux)
DP COMPACT 1200 23W 30 00K GR IP66 ULD (447.49 KB)
ROLF file (RELUX)
DP COMPACT 1200 23W 30 00K IP66 GR ROLF (179.65 KB)

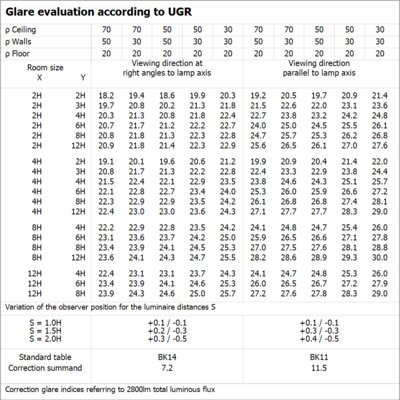

UGR file (UGR table)
