DAMP PROOF COMPACT GEN 1

DAMP PROOF COMPACT GEN 1

Choose your product version

1200 23W/3000K IP66 GR

1200 23 W 4000K IP66 GR

1500 31W/3000K IP66 GR

1500 31 W 4000K IP66 GR

1200 44W/3000K IP66 GR

1200 44 W 4000K IP66 GR

1200 44 W 6500K IP66 GR

1500 55W/3000K IP66 GR

1500 55 W 4000K IP66 GR

1500 55 W 6500K IP66 GR

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
DP COMPACT 1200 23W/3000K IP66 GR 23.00 W 100000 120 ° 2600 lm No
DP COMPACT 1200 23 W 4000K IP66 GR 23.00 W 100000 120 ° 2800 lm No
DP COMPACT 1500 31W/3000K IP66 GR 31.00 W 100000 120 ° 3500 lm No
DP COMPACT 1500 31 W 4000K IP66 GR 31.00 W 100000 120 ° 3800 lm No
DP COMPACT 1200 44W/3000K IP66 GR 44.00 W 100000 120 ° 5100 lm No
DP COMPACT 1200 44 W 4000K IP66 GR 44.00 W 100000 120 ° 5400 lm No
DP COMPACT 1200 44 W 6500K IP66 GR 44.00 W 100000 120 ° 5400 lm No
DP COMPACT 1500 55W/3000K IP66 GR 55.00 W 100000 120 ° 6300 lm No
DP COMPACT 1500 55 W 4000K IP66 GR 55.00 W 100000 120 ° 6700 lm No
DP COMPACT 1500 55 W 6500K IP66 GR 55.00 W 100000 120 ° 6700 lm No


DP COMPACT 1500 31 W 4000K IP66 GR

Product benefits
  • Evenly distributed light
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
  • Easy installation as mounting brackets can be positioned freely on the luminaire
  • Easy access to electrical terminal thanks to end caps with twist and lock mechanism
  • Tool-free electrical connection due to push button connector
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 31.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 170 mA
Inrush current 13 A
Inrush current time Th50 140 µs
Max. number of luminaires per miniature circuit breaker B16 46
Max. number of luminaires per miniature circuit breaker C10 36
Max. number of luminaires per miniature circuit breaker C16 59
Power factor λ > 0.90
Total harmonic distortion 20 %
Protection class II
Operating mode Integrated LED driver

Photometrical data

Luminous flux 3800 lm
Luminous efficacy 120 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching ≤5 sdcm
Low flicker Yes
Flickering metric (Pst LM) ≤ 1
Stroboscope effect metric (SVM) ≤ 0.9
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °

Dimensions & Weight

Length 1590.00 mm
Height 68.00 mm
Width 86.00 mm
Product weight 1350.00 g

Materials & Colors

Product color Gray
Housing color Gray
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -35…+50 °C
Temperature range at storage -40…+70 °C
Type of connection Screwless terminal, 3-Pole
Type of protection IP66
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Suspended/Surface
Mounting location Ceiling, Wall
Application environment Indoor
LED module replaceable Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 35000 h 1)
Lifespan L90/B10 at 25 °C 20000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 356 mA

Certificates & Standards

Standards CE, CB, TÜV SÜD, EAC, RoHS, EPD
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No
EPD LEDV-00003-V01.01-EN
Product benefits
  • Evenly distributed light
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
  • Easy installation as mounting brackets can be positioned freely on the luminaire
  • Easy access to electrical terminal thanks to end caps with twist and lock mechanism
  • Tool-free electrical connection due to push button connector
  • 5 years guarantee
Areas of application
  • Industrial and storage facilities
  • Car parks and underpasses
  • Garages
  • Workshops, assembly lines
Product features
  • High luminous efficacy: up to 120 lm/W
  • Type of protection: IP66
  • Beam angle: 120°
  • Through-wiring 3x1.5mm² already installed
  • Polycarbonate housing
Equipment / Accessories
  • Stainless steel clamps with safety screws included
  • Mounting accessories included (suspension kit, theft protection kit)
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075210080 Folding box
1		 72 mm x 1,619 mm x 90 mm 1540.00 g 10.49 dm³
4058075210097 Shipping box
6		 1,640 mm x 200 mm x 240 mm 9855.00 g 78.72 dm³
User Instruction / Safety Instructions
UI_DP COMPACT PDF (3.78 MB)
Legal information
LS Insert DP COMPACT PDF (2.68 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
EC Declaration of Damp Proof Compact PDF (256.14 KB)
EPD
PEP Ecopassport DP COM P G1 PDF (512.98 KB)
Product Image, Diagonal, White BG
Dampproof Compact 1500 IP65 TIF (3.2 MB)
Product Image, Horizontal, White BG
Dampproof Compact 1500 IP65 TIF (1.78 MB)
Product Image, Upright, White BG
Dampproof Compact 1500 IP65 TIF (2.66 MB)
Product line drawing with letters
Dampproof Compact 1500 IP65 SVG (16.99 KB)
Product line drawing with numbers
Dampproof Compact 1500 IP65 SVG (21.68 KB)
Prod.line drw, front, no dimensions
DP COMPACT 1500 PNG (43.07 KB)

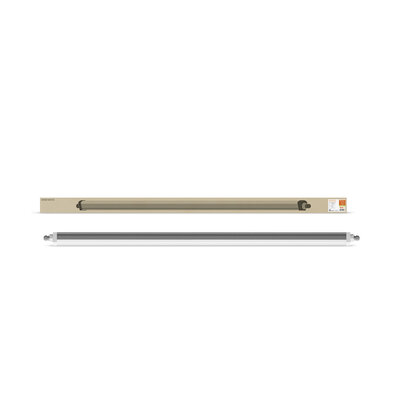

Combo Shot = Product Beauty Shot + Packaging Image
DP COMPACT 1500 31W-40 00K GR IP66 JPG (645.84 KB)

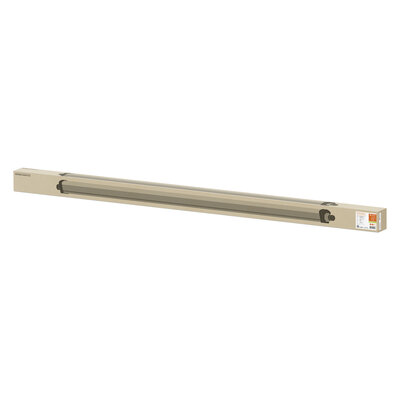

Packaging image, spacial
DampProof LED Compact 1500 31W 840 GR IP66 M iCh Side TIF (873.26 KB)
Catalog info 1
UI DampProof Compact I P66 SVG (119.3 KB)
Catalog info 2
UI DampProof Compact I P66 SVG (93.89 KB)
Catalog info 3
UI DampProof Compact I P66 SVG (90.67 KB)
Catalog info 4
UI DampProof Compact I P66 SVG (84.72 KB)
Catalog info 5
UI DampProof Compact I P66 SVG (48.63 KB)
IES file (IES)
DP Compact 1500 31W 40 00K GR IP66 IES (10.16 KB)
LDT file (Eulumdat)
DP Compact 1500 31W 40 00K GR IP66 LDT (11.27 KB)
ULD file (DIALux)
DP COMPACT 1500 31W 40 00K GR IP66 ULD (443.39 KB)
ROLF file (RELUX)
DP COMPACT 1500 31W 40 00K IP66 GR ROLF (180.86 KB)
UGR file (UGR table)
DP Compact 1500 31W 40 00K GR IP66 PNG (63.04 KB)
LDC typ cone
DP Compact 1500 31W 40 00K GR IP66 SVG (89.33 KB)
LDC typ polar
DP Compact 1500 31W 40 00K GR IP66 SVG (548.68 KB)
BIM_Revit_3D
Damp Proof Compact G1 ZIP (2.07 MB)
CAD_STEP_3D
DP COMP 1500 STEP (1.17 MB)
Tender documents
DAMP PROOF COMPACT IP6 6 1500 31 W 4000K IP66 GR-EN TXT (1.97 KB)
Application Pictures
Industry Dampproof Com pact TIF (35.58 MB)
Video
LEDVANCE LUM Installat ion Video EN Damp Proo f Compact MP4 (165.36 MB)
EAN SEG number STK number EFO number ELDAS number
4058075210080 7214986 4315540 3304018 941000810
