DOWNLIGHT ALU DALI

DOWNLIGHT ALU DALI

Choose your product version

150 14 W 3000 K IP44/IP20 WT

150 14 W 4000 K IP44/IP20 WT

150 14 W 6500 K IP44/IP20 WT

200 25 W 3000 K IP44/IP20 WT

200 25 W 4000 K IP44/IP20 WT

200 25 W 6500 K IP44/IP20 WT

200 35 W 3000 K IP44/IP20 WT

200 35 W 4000 K IP44/IP20 WT

200 35 W 6500 K IP44/IP20 WT

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
DL ALU DALI DN 150 14 W 3000 K IP44/IP20 WT 14.00 W 100000 100 ° 1190 lm Yes
DL ALU DALI DN 150 14 W 4000 K IP44/IP20 WT 14.00 W 100000 100 ° 1260 lm Yes
DL ALU DALI DN 150 14 W 6500 K IP44/IP20 WT 14.00 W 100000 100 ° 1330 lm Yes
DL ALU DALI DN 200 25 W 3000 K IP44/IP20 WT 25.00 W 100000 100 ° 2250 lm Yes
DL ALU DALI DN 200 25 W 4000 K IP44/IP20 WT 25.00 W 100000 100 ° 2370 lm Yes
DL ALU DALI DN 200 25 W 6500 K IP44/IP20 WT 25.00 W 100000 100 ° 2370 lm Yes
DL ALU DALI DN 200 35 W 3000 K IP44/IP20 WT 35.00 W 100000 100 ° 2975 lm Yes
DL ALU DALI DN 200 35 W 4000 K IP44/IP20 WT 35.00 W 100000 100 ° 3150 lm Yes
DL ALU DALI DN 200 35 W 6500 K IP44/IP20 WT 35.00 W 100000 100 ° 3150 lm Yes


DL ALU DALI DN 150 14 W 3000 K IP44/IP20 WT

Product benefits
  • Advanced functionality due to already included DALI driver
  • DALI driver with individual luminaire current set-up already installed
  • High luminous efficacy
  • Energy savings up to 60 % (compared to luminaires that use CFL lamps)
  • Very homogenous light
  • Functional design
  • Easy installation with fast connection
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 14.00 W
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 100.000 mA
Inrush current 20 A
Inrush current time Th50 140 µs
Max. number of luminaires per miniature circuit breaker B16 32
Max. number of luminaires per miniature circuit breaker C10 31
Max. number of luminaires per miniature circuit breaker C16 53
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class II
Operating mode External LED driver

Photometrical data

Luminous flux 1190 lm
Luminous efficacy 85 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching < 6 sdcm
Luminous intensity -
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 100 °

Dimensions & Weight

Diameter 160.00 mm
Height 52.00 mm
Product weight 360.00 g

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Cover material Polymethylmethacrylate (PMMA)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+45 °C
Type of connection Screwless terminal, 5-Pole
Type of protection IP44/IP20
Protection class IK (shock resistance) IK02
Dimmable Yes
Type of dimming DALI
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting diameter 150 mm
Mounting depth 100 mm
Replaceable light source (EPREL) Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 45000 h 1)
Lifespan L90/B10 at 25 °C 30000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

Standards CE, CB, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No

Additional product data

Number of illuminants Not relevant

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Advanced functionality due to already included DALI driver
  • DALI driver with individual luminaire current set-up already installed
  • High luminous efficacy
  • Energy savings up to 60 % (compared to luminaires that use CFL lamps)
  • Very homogenous light
  • Functional design
  • Easy installation with fast connection
  • 5 years guarantee
Areas of application
  • Direct replacement for luminaires with compact fluorescent lamps
  • General illumination
  • Public areas
  • Stairways
  • Corridors
  • Foyers
  • Shops
Product features
  • Advanced applications with DALI light installations
  • Diameter of required ceiling cut-out: 150 mm or 200 mm (depending on version)
  • Type of protection: IP44
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • The luminaires are not suitable for covering with thermally insulated material.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075202610 Folding box
1		 322 mm x 222 mm x 114 mm 525.00 g 8.15 dm³
4058075202627 Shipping box
8		 658 mm x 466 mm x 263 mm 4955.00 g 80.64 dm³
Product image Product name EAN
EM CONVERSION BOX 4058075237025

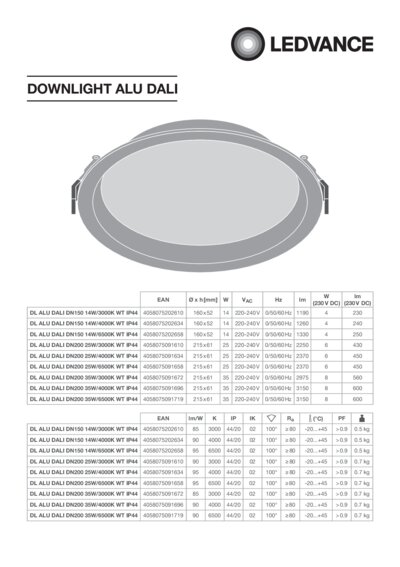

User Instruction / Safety Instructions
DOWNLIGHT ALU DALI PDF (3.46 MB)

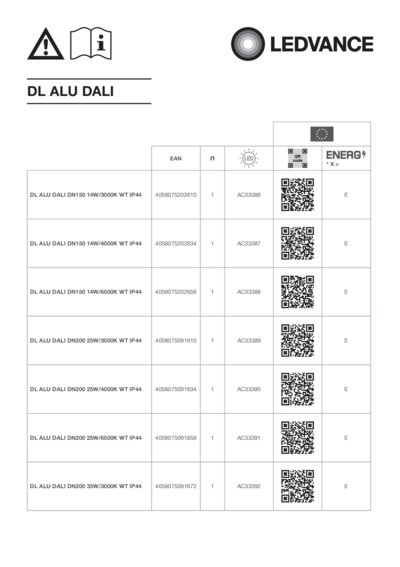

Legal information
LSI DL ALU DALI PDF (1.44 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)

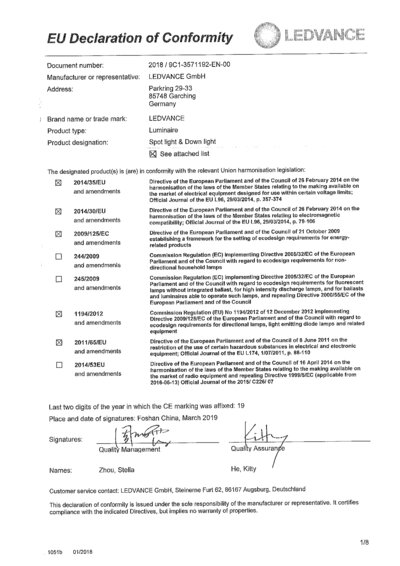

Declarations of conformity
Declaration of conform ity PDF (734.51 KB)
Product Image, Diagonal, White BG
DL ALU DN150 14W TIF (51.66 MB)
Product Image, Upright, White BG
DL ALU DN150 14W TIF (34.57 MB)
Product line drawing with letters
DL ALU DN200 SVG (28.42 KB)
Product line drawing with numbers
DL ALU DN150 14W SVG (37.86 KB)
Prod.line drw, front, no dimensions
DL ALU DN200 SVG (22.89 KB)

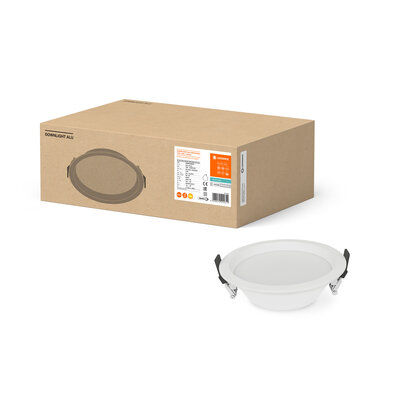

Combo Shot = Product Beauty Shot + Packaging Image
DL ALU DALI DN150 14W- 3000K WT IP44 LEDV JPG (1.22 MB)

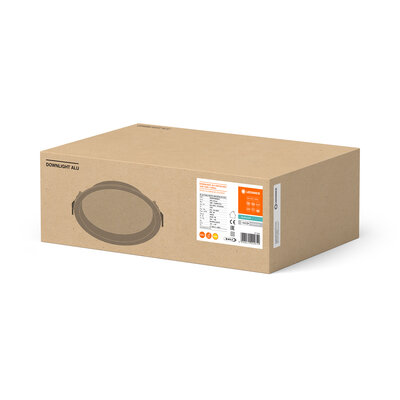

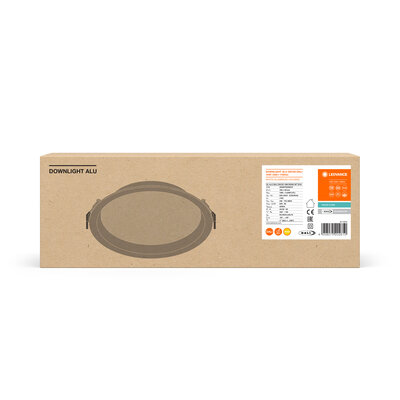

Packaging image, frontal
DL ALU DALI DN150 14W- 3000K WT IP44 LEDV JPG (1.22 MB)
Packaging image, spacial
DL ALU DALI DN150 14W- 3000K WT IP44 LEDV JPG (1.32 MB)
Catalog info 1
UI_Downlight_Alu_DALI SVG (39.05 KB)
IES file (IES)
DL ALU DALI DN150 14W 3000K WT IP44 IES (1.78 KB)
LDT file (Eulumdat)
DL ALU DALI DN150 14W 3000K WT IP44 LDT (2.1 KB)
ULD file (DIALux)
DL ALU DALI DN150 14W -3000K WT ULD (438.78 KB)
ROLF file (RELUX)
DL ALU DALI DN150 14W- 3000K ROLF (288.55 KB)
UGR file (UGR table)
DL ALU DALI DN150 14W 3000K WT IP44 PNG (56.84 KB)
LDC typ cone
DL ALU DALI DN150 14W 3000K WT IP44 SVG (16.76 KB)
LDC typ polar
DL ALU DALI DN150 14W 3000K WT IP44 SVG (17.23 KB)
BIM_Revit_3D
Downlight ALU ZIP (2.59 MB)
CAD_STEP_3D
DL ALU 14W STEP (2.04 MB)
Tender documents
DOWNLIGHT ALU DALI 150 14 W 3000 K IP44IP20 WT-EN TXT (1.67 KB)
Application Pictures
Tirol Kliniken 2019 8 JPG (16.58 MB)
Application Pictures
Tirol Kliniken 2019 27 JPG (14.84 MB)
Application Pictures
Tirol Kliniken 2019 6 JPG (16.29 MB)
Application Pictures
Tirol Kliniken 2019 28 JPG (8.18 MB)
Application Pictures
Tirol Kliniken 2019 19 JPG (16.83 MB)
Application Pictures
Tirol Kliniken 2019 23 JPG (22.54 MB)
Application Pictures
Tirol Kliniken 2019 22 JPG (13.56 MB)
Application Pictures
Tirol Kliniken 2019 20 JPG (15.88 MB)
Application Pictures
Tirol Kliniken 2019 16 JPG (17.28 MB)
Application Pictures
Tirol Kliniken 2019 7 JPG (18.2 MB)
Application Pictures
Tirol Kliniken 2019 29 JPG (16.51 MB)
Application Pictures
Tirol Kliniken 2019 18 JPG (14.26 MB)
Application Pictures
Tirol Kliniken 2019 24 JPG (15.63 MB)
Application Pictures
Tirol Kliniken 2019 26 JPG (15.05 MB)
Application Pictures
Tirol Kliniken 2019 21 JPG (16.67 MB)
Application Pictures
Tirol Kliniken 2019 25 JPG (14.42 MB)
Application Pictures
Tirol Kliniken 2019 17 JPG (15.1 MB)

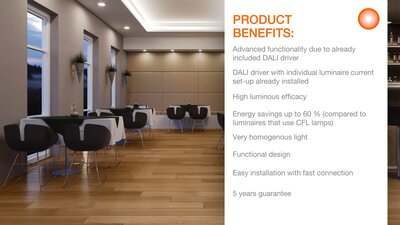

Video
LEDVANCE Downlight ALU EN MP4 (55.11 MB)
Video
LEDVANCE Downlight ALU DALI EN MP4 (55.01 MB)
EAN SEG number STK number EFO number ELDAS number
4058075202610 7473377 4231952 3242440 941401260
