Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|
| DL ALU DALI DN 150 14 W 3000 K IP44/IP20 WT | 14.00 W | 100000 | 100 ° | 1190 lm | Yes |
| DL ALU DALI DN 150 14 W 4000 K IP44/IP20 WT | 14.00 W | 100000 | 100 ° | 1260 lm | Yes |
| DL ALU DALI DN 150 14 W 6500 K IP44/IP20 WT | 14.00 W | 100000 | 100 ° | 1330 lm | Yes |
| DL ALU DALI DN 200 25 W 3000 K IP44/IP20 WT | 25.00 W | 100000 | 100 ° | 2250 lm | Yes |
| DL ALU DALI DN 200 25 W 4000 K IP44/IP20 WT | 25.00 W | 100000 | 100 ° | 2370 lm | Yes |
| DL ALU DALI DN 200 25 W 6500 K IP44/IP20 WT | 25.00 W | 100000 | 100 ° | 2370 lm | Yes |
| DL ALU DALI DN 200 35 W 3000 K IP44/IP20 WT | 35.00 W | 100000 | 100 ° | 2975 lm | Yes |
| DL ALU DALI DN 200 35 W 4000 K IP44/IP20 WT | 35.00 W | 100000 | 100 ° | 3150 lm | Yes |
| DL ALU DALI DN 200 35 W 6500 K IP44/IP20 WT | 35.00 W | 100000 | 100 ° | 3150 lm | Yes |
| Nominal wattage | 14.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 0/50/60 Hz |
| Nominal current | 100.000 mA |
| Inrush current | 20 A |
| Inrush current time Th50 | 140 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 32 |
| Max. number of luminaires per miniature circuit breaker C10 | 31 |
| Max. number of luminaires per miniature circuit breaker C16 | 53 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | External LED driver |
| Luminous flux | 1260 lm |
| Luminous efficacy | 90 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 6 sdcm |
| Luminous intensity | - |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 100 ° |
| Diameter | 160.00 mm |
| Height | 52.00 mm |
| Product weight | 360.00 g |
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Polymethylmethacrylate (PMMA) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+45 °C |
| Type of connection | Screwless terminal, 5-Pole |
| Type of protection | IP44/IP20 |
| Protection class IK (shock resistance) | IK02 |
| Dimmable | Yes |
| Type of dimming | DALI |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 150 mm |
| Mounting depth | 100 mm |
| LED module replaceable | Not replaceable |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 45000 h 1) |
| Lifespan L90/B10 at 25 °C | 30000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Standards | CE, CB, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Number of illuminants | Not relevant |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|

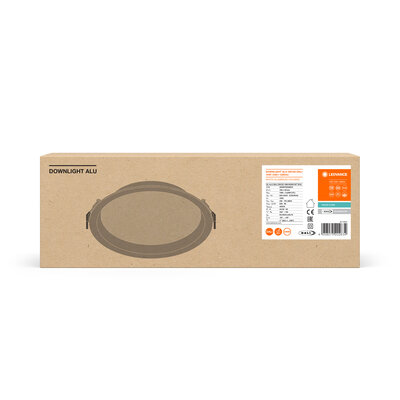

| 4058075202634 | Folding box 1 |
322 mm x 222 mm x 114 mm | 525.00 g | 8.15 dm³ |
| 4058075202641 | Shipping box 8 |
658 mm x 466 mm x 263 mm | 4955.00 g | 80.64 dm³ |
| Product image | Product name | EAN |
|---|---|---|
|
EM CONVERSION BOX | 4058075237025 |
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075202634 | 7473378 | 4231958 | 3242441 | 941401270 |
