Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|
| LED Value Slim Downlight 40 9W TRI8 RD | 9.00 W | 25000 | 120 ° | 620 … 720 lm | No |
| LED Value Slim Downlight 40 9W TRI8 SQ | 9.00 W | 25000 | 120 ° | 620 … 720 lm | No |
| LED Value Slim Downlight 60 12W TRI8 SQ | 12.00 W | 25000 | 120 ° | 940 … 1050 lm | No |
| LED Value Slim Downlight 60 12W TRI8 RD | 12.00 W | 25000 | 120 ° | 940 … 1050 lm | No |
| LED Value Slim Downlight 60 15W TRI8 RD | 15.00 W | 25000 | 120 ° | 1050 … 1200 lm | No |
| LED Value Slim Downlight 60 15W TRI8 SQ | 15.00 W | 25000 | 120 ° | 1050 … 1200 lm | No |
| LED Value Slim Downlight 80 18W TRI8 SQ | 18.00 W | 25000 | 120 ° | 1350 … 1500 lm | No |
| LED Value Slim Downlight 80 18W TRI8 RD | 18.00 W | 25000 | 120 ° | 1350 … 1500 lm | No |
| Nominal wattage | 18.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 150.000 mA |
| Inrush current | 12 A |
| Inrush current time Th50 | 400 µs |
| Power factor λ | > 0.5 |
| Protection class | II |
| Luminous flux | 1350 … 1500 lm |
| Luminous efficacy | 80 lm/W / 90 lm/W / 82 lm/W |
| Color temperature | 3000…6500 K |
| Light color (designation) | Warm White, Cool White, Daylight |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤6 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 120 ° |

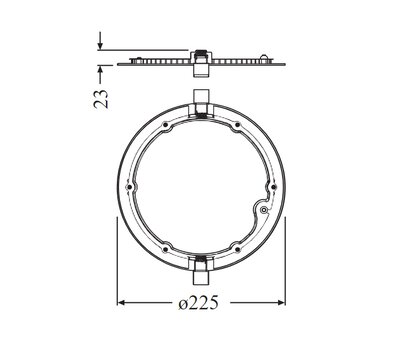

| Diameter | 225.00 mm |
| Height | 23.00 mm |
| Product weight | 340.00 g |
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Polymethylmethacrylate (PMMA) |
| Light emitting surface material | Polystyrene |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -10…+50 °C |
| Temperature range at storage | -20…+80 °C |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 205 mm |
| Mounting depth | 30 mm |
| LED module replaceable | Not replaceable |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 25000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Standards | CB, RoHS |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Number of illuminants | Not relevant |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854116032 | Folding box 1 |
230 mm x 47 mm x 230 mm | 439.00 g | 2.49 dm³ |
| 4099854116049 | Shipping box 20 |
479 mm x 241 mm x 482 mm | 9506.00 g | 55.64 dm³ |
