Professional

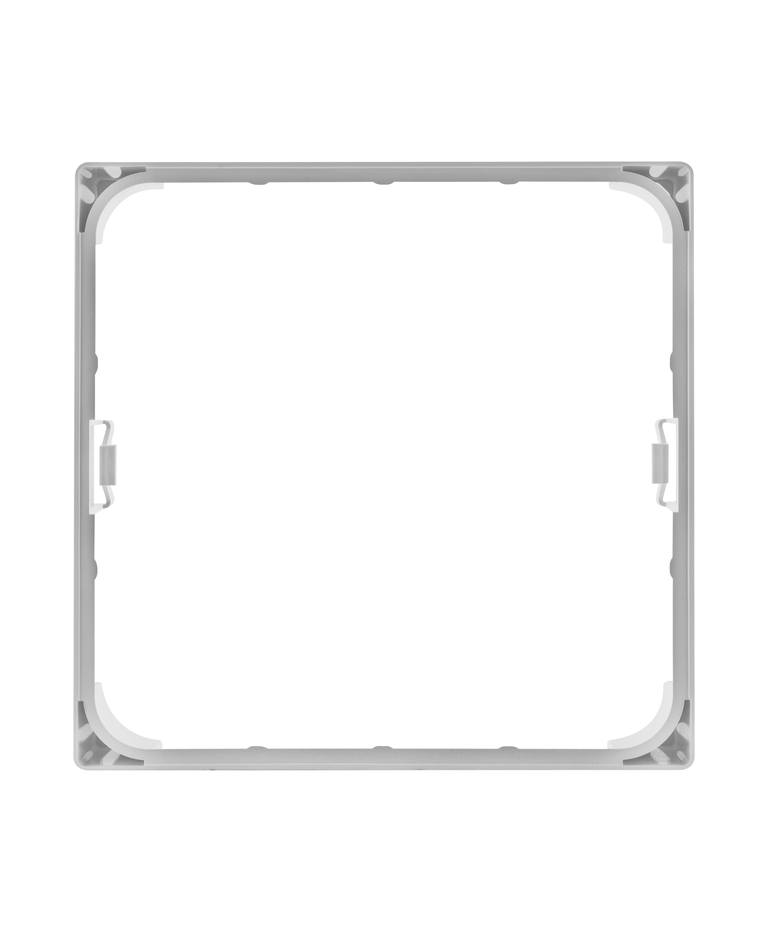

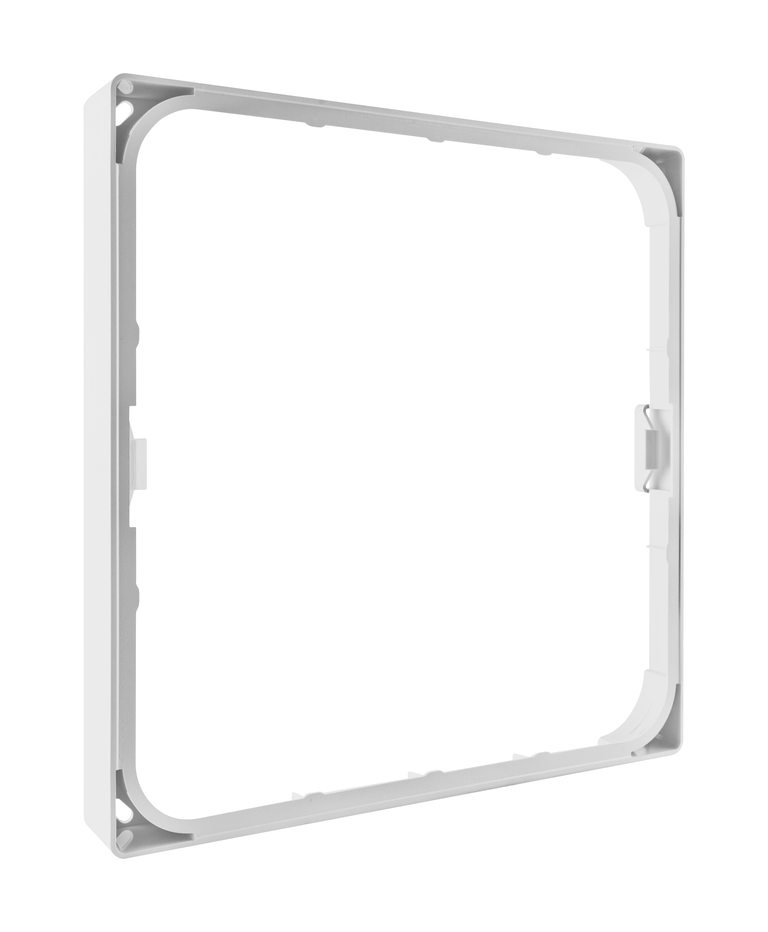

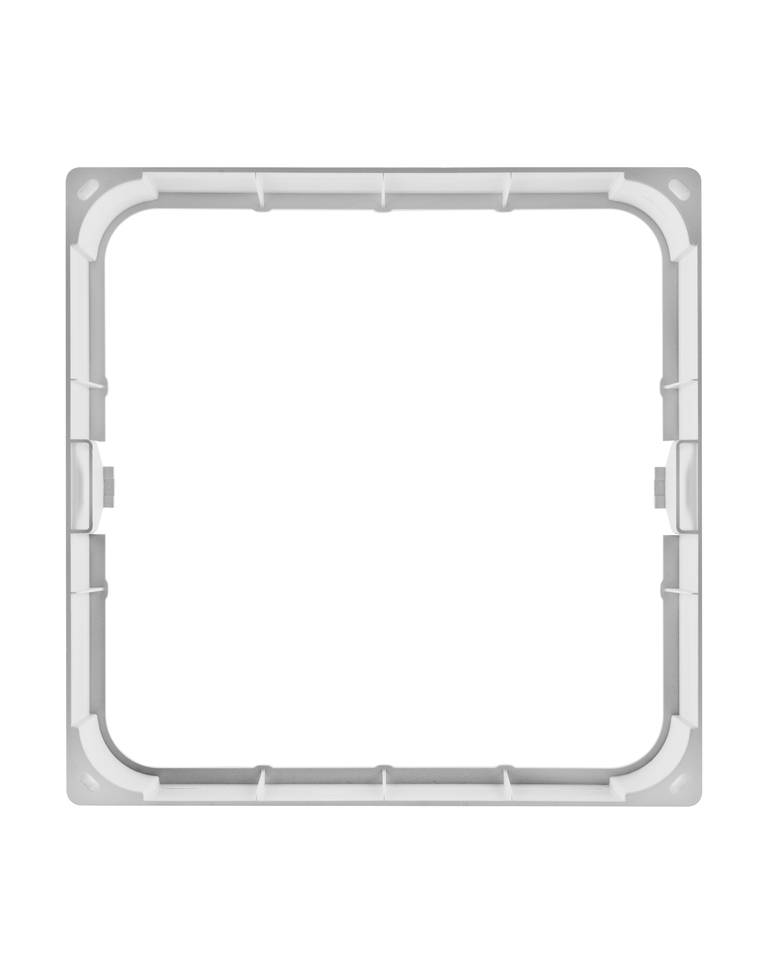

DOWNLIGHT SLIM SQUARE FRAME

DOWNLIGHT SLIM SQUARE FRAME

Choose your product version



DL SLIM FRAME SQ 155 WT

Product benefits
  • Cable entry on the side for electrical connection with low profil
  • Easy installation thanks to included drilling template

PRODUCT DETAILS

Dimensions & Weight

Length 170.0 mm
Height 38 mm
Width 170.0 mm
Product weight 68.00 g

Materials & Colors

Product color White

Application & Mounting

Mounting location Ceiling, Wall

Certificates & Standards

Ball shot safe No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Cable entry on the side for electrical connection with low profil
  • Easy installation thanks to included drilling template
Areas of application
  • General illumination
  • Public areas
  • Stairways
  • Corridors
  • Foyers
  • Shops
Product features
  • Low mounting depth
  • Robust polycarbonate casing
  • Mounting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075079410 Folding box
1
43 mm x 180 mm x 180 mm 119.00 g 1.39 dm³
4058075079427 Shipping box
6
280 mm x 190 mm x 200 mm 902.00 g 10.64 dm³
EAN SEG number STK number EFO number ELDAS number
4058075079410 7470585 4295653 3206966 941900150
