Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|
| DL SLIM ALU DN 180 17 W 3000 K WT | 17.00 W | 50000 | 120 ° | 1350 lm | No |
| DL SLIM ALU DN 180 17 W 4000 K WT | 17.00 W | 50000 | 120 ° | 1400 lm | No |
| DL SLIM ALU DN 205 22 W 3000 K WT | 22.00 W | 50000 | 120 ° | 1850 lm | No |
| DL SLIM ALU DN 205 22 W 4000 K WT | 22.00 W | 50000 | 120 ° | 1920 lm | No |
| Nominal wattage | 17.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 155 mA |
| Inrush current | 10 A |
| Inrush current time Th50 | 400 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 16 |
| Max. number of luminaires per miniature circuit breaker C10 | 14 |
| Max. number of luminaires per miniature circuit breaker C16 | 23 |
| Power factor λ | > 0.5 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | Electronic control gear (ECG) |
| Luminous flux | 1350 lm |
| Luminous efficacy | 80 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 6 sdcm |
| Luminous intensity | - |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 120 ° |
| Diameter | 192.00 mm |
| Height | 23.00 mm |
| Product weight | 280.00 g |
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Polymethylmethacrylate (PMMA) |
| Light emitting surface material | PMMA |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -30…+70 °C |
| Type of connection | Screwless terminal, 2-Pole |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| Mounting diameter | 180 mm |
| Mounting depth | 40 mm |
| Replaceable light source (EPREL) | Not replaceable |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 30000 h 1) |
| Lifespan L90/B10 at 25 °C | 15000 h |
| Number of switching cycles | 50000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Output current | 330 mA |
| ECG - Output ripple current | ≤ 10 % |
| ECG - Length | 120 mm |
| ECG - Width | 42 mm |
| ECG - Height | 28 mm |
| Standards | CE, CB |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Number of illuminants | Not relevant |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|

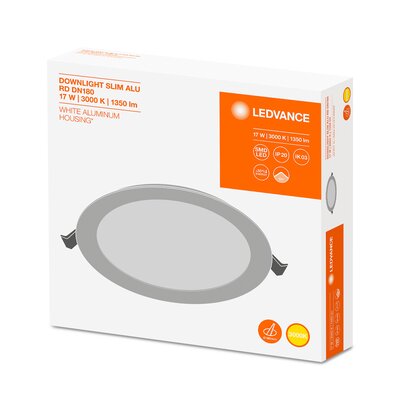

| 4058075063921 | Folding box 1 |
47 mm x 195 mm x 195 mm | 345.00 g | 1.79 dm³ |
| 4058075063938 | Shipping box 10 |
495 mm x 210 mm x 210 mm | 3787.00 g | 21.83 dm³ |
| Product image | Product name | EAN |
|---|---|---|
|
EM CONVERSION BOX | 4058075237025 |
| EAN | SEG number | STK number | ELDAS number |
|---|---|---|---|
| 4058075063921 | 7469083 | 4295655 | 941312060 |
