DOWNLIGHT SLIM ALU

DOWNLIGHT SLIM ALU

Choose your product version

180 17 W 3000 K WT

180 17 W 4000 K WT

205 22 W 3000 K WT

205 22 W 4000 K WT

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
DL SLIM ALU DN 180 17 W 3000 K WT 17.00 W 50000 120 ° 1350 lm No
DL SLIM ALU DN 180 17 W 4000 K WT 17.00 W 50000 120 ° 1400 lm No
DL SLIM ALU DN 205 22 W 3000 K WT 22.00 W 50000 120 ° 1850 lm No
DL SLIM ALU DN 205 22 W 4000 K WT 22.00 W 50000 120 ° 1920 lm No


DL SLIM ALU DN 205 22 W 4000 K WT

Product benefits
  • Very slim housing
  • Low installation depth
  • High luminous efficacy
  • Energy savings up to 60 % (compared to luminaires that use CFL lamps)
  • Very homogenous light
  • Functional design
  • External driver for easy replacement
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 22.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 190 mA
Inrush current 11 A
Inrush current time Th50 533 µs
Max. number of luminaires per miniature circuit breaker B16 11
Max. number of luminaires per miniature circuit breaker C10 11
Max. number of luminaires per miniature circuit breaker C16 18
Power factor λ > 0.5
Total harmonic distortion < 20 %
Protection class II
Operating mode Electronic control gear (ECG)

Photometrical data

Luminous flux 1920 lm
Luminous efficacy 90 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching < 6 sdcm
Luminous intensity -
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 120 °

Dimensions & Weight

Diameter 225.00 mm
Height 23.00 mm
Product weight 350.00 g

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Cover material Polymethylmethacrylate (PMMA)
Light emitting surface material PMMA
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -30…+70 °C
Type of connection Screwless terminal, 2-Pole
Type of protection IP20
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Recessed
Mounting location Ceiling, Wall
Application environment Indoor
Mounting diameter 205 mm
Mounting depth 40 mm
LED module replaceable Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 30000 h 1)
Lifespan L90/B10 at 25 °C 15000 h
Number of switching cycles 50000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 360 mA
ECG - Output ripple current ≤ 10 %
ECG - Length 120 mm
ECG - Width 42 mm
ECG - Height 28 mm

Certificates & Standards

Standards CE, CB
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No

Additional product data

Number of illuminants Not relevant
Product benefits
  • Very slim housing
  • Low installation depth
  • High luminous efficacy
  • Energy savings up to 60 % (compared to luminaires that use CFL lamps)
  • Very homogenous light
  • Functional design
  • External driver for easy replacement
  • 5 years guarantee
Areas of application
  • Direct replacement for luminaires with compact fluorescent lamps
  • General illumination
  • Public areas
  • Stairways
  • Corridors
  • Foyers
  • Shops
Product features
  • Solid aluminum housing in white
  • Small visible bezel
  • Light guide made of non-yellowing PMMA for long lifetime
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075064027 Folding box
1		 47 mm x 227 mm x 228 mm 435.00 g 2.43 dm³
4058075064034 Shipping box
10		 495 mm x 245 mm x 245 mm 4766.00 g 29.71 dm³
Product image Product name EAN
EM CONVERSION BOX 4058075237025
User Instruction / Safety Instructions
Downlight Slim Value PDF (2.56 MB)
On-Pack-Info
Legal Insert Downlight LED ALU+Comfort PDF (1.59 MB)
Legal information
LSI DL SLIM ALU PDF (1.26 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
EU Declaration of Conf ormity DOWNLIGHT SLIM ALU TÜV Rh PDF (561.37 KB)
Declarations of conformity
EU Declaration of Conf ormity DOWNLIGHT SLIM ALU LEDV PDF (666.16 KB)

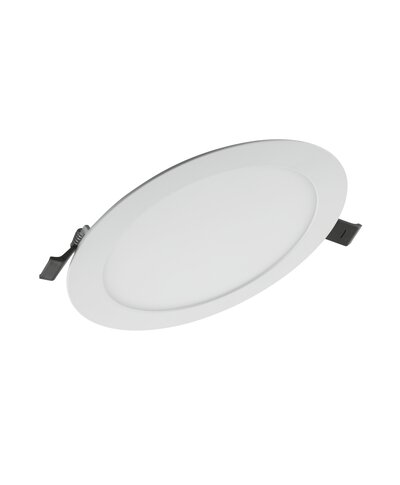

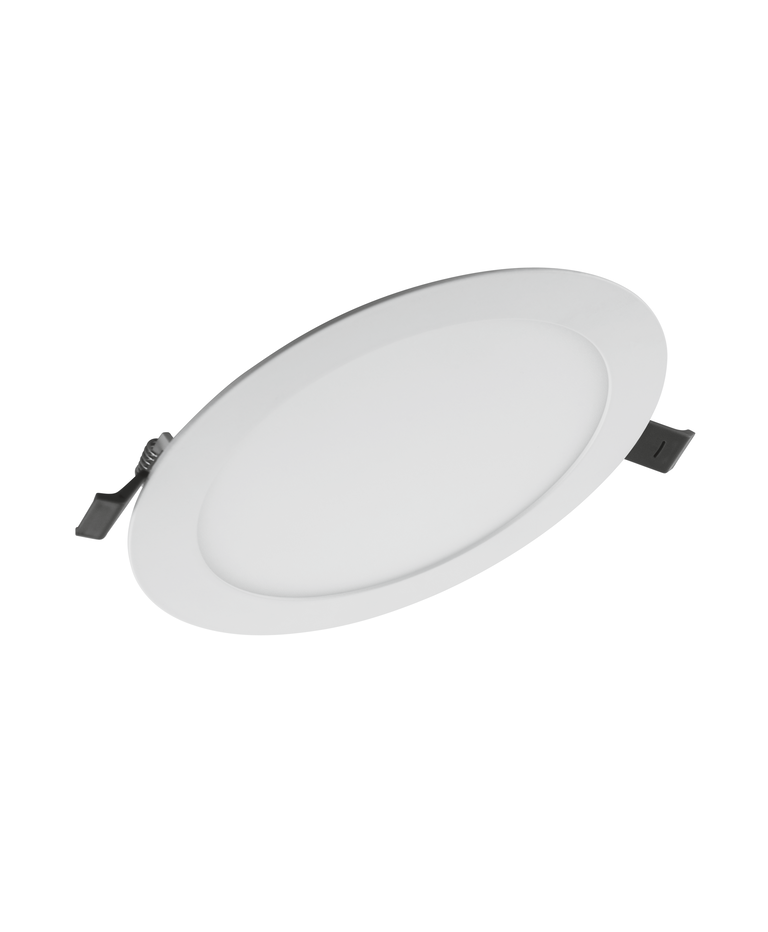

Product Image, Diagonal, White BG
DL SLIM VALUE DN205 22 W TIF (48.07 MB)

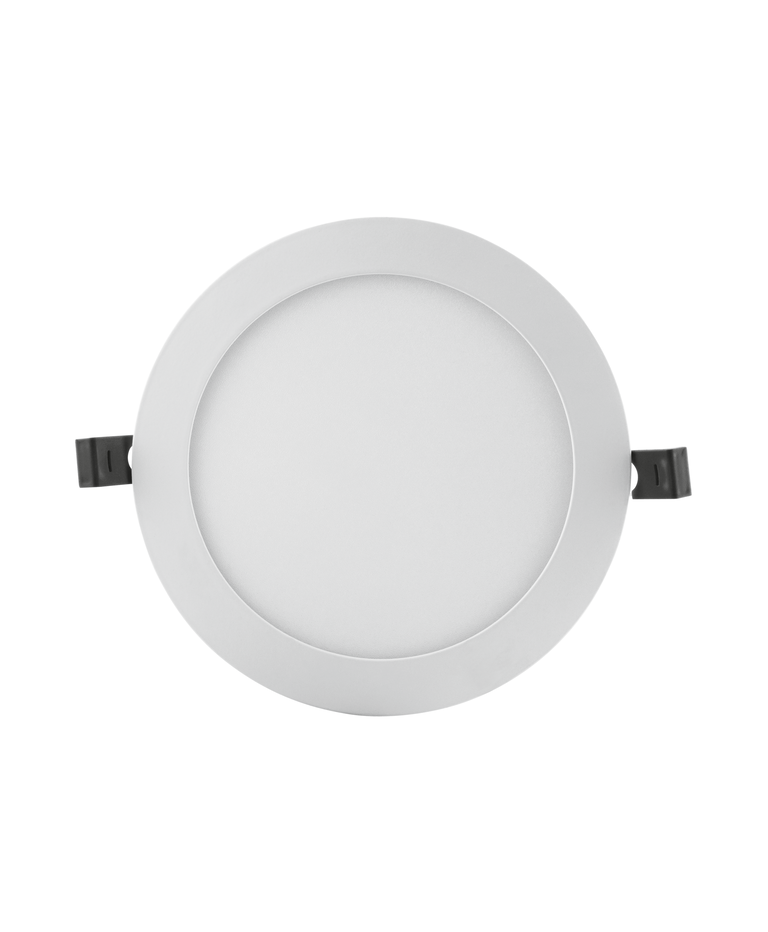

Product Image, Upright, White BG
DL SLIM VALUE DN205 22 W TIF (49.65 MB)
Product line drawing with letters
DL SLIM VALUE DN205 22 W SVG (13.67 KB)
Product line drawing with numbers
DL SLIM VALUE DN205 22 W SVG (15.89 KB)
Combo Shot = Product Beauty Shot + Packaging Image
DL SLIM ALU DN205 22W 4000K WT JPG (1.27 MB)
Packaging image, frontal
DL SLIM ALU DN205 22W 4000K WT JPG (1.84 MB)

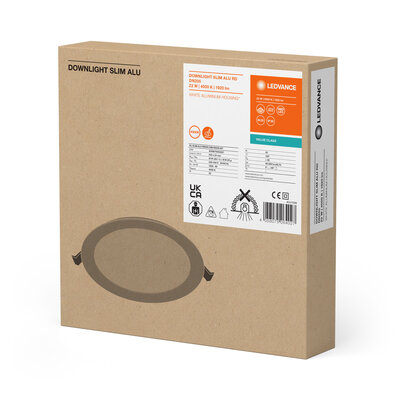

Packaging image, spacial
DL SLIM ALU RD 22W 830 MiCh Side TIF (1.77 MB)
IES file (IES)
DL SLIM VALUE DN205 22 W 4000K WT IES (5.17 KB)
LDT file (Eulumdat)
DL SLIM VALUE DN205 22 W 4000K WT LDT (5.63 KB)
ULD file (DIALux)
DOWNLIGHTSLIMALU20522W 4000KWT ULD (412.67 KB)
ROLF file (RELUX)
DL SLIM ALU DN205 ROLF (297.74 KB)

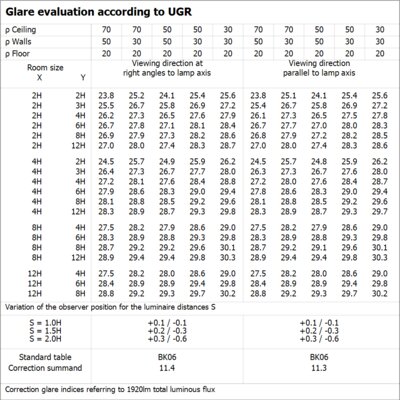

UGR file (UGR table)
4058075064027 DL SLIM VALUE DN205 22W 4000K WT PNG (57.54 KB)
LDC typ cone
4058075064027 DL SLIM VALUE DN205 22W 4000K WT SVG (82.49 KB)
LDC typ polar
4058075064027 DL SLIM VALUE DN205 22W 4000K WT SVG (318.88 KB)
BIM_Revit_3D
DL SLIM ALU ZIP (2.03 MB)
CAD_STEP_3D
DL Slim Alu 22W STEP (110.03 KB)
Tender documents
DOWNLIGHT SLIM ALU 205 22 W 4000 K WT-EN TXT (1.37 KB)
Video
LEDVANCE LUM Installat ion Video EN Downlight Slim Value MP4 (122.12 MB)
EAN SEG number STK number ELDAS number
4058075064027 7469089 4295658 941312360
