OVERVIEW

Product description	Nominal wattage	Number of switching cycles	Beam angle	Luminous flux	Dimmable
LED PFM DL 8 W 3000 K DALI	8.00 W	30000	65 °	840 lm	Yes
LED PFM DL 8 W 3000 K 1-10 V	8.00 W	30000	65 °	840 lm	Yes
LED PFM DL 8 W 3000 K On/Off	8.00 W	30000	65 °	880 lm	No
LED PFM DL 8 W 4000 K DALI	8.00 W	30000	65 °	880 lm	Yes
LED PFM DL 8 W 4000 K 1-10 V	8.00 W	30000	65 °	880 lm	Yes
LED PFM DL 8 W 6500 K DALI	8.00 W	30000	65 °	880 lm	Yes
LED PFM DL 8 W 6500 K 1-10 V	8.00 W	30000	65 °	880 lm	Yes
LED PFM DL 8 W 4000 K On/Off	8.00 W	30000	65 °	960 lm	No
LED PFM DL 8 W 6500 K On/Off	8.00 W	30000	65 °	960 lm	No
LED PFM DL 11 W 3000 K On/Off	11.00 W	30000	65 °	1210 lm	No
LED PFM DL 11 W 4000 K On/Off	11.00 W	30000	65 °	1320 lm	No
LED PFM DL 11 W 6500 K On/Off	11.00 W	30000	65 °	1320 lm	No
LED PFM DL 14 W 3000 K DALI	14.00 W	30000	65 °	1470 lm	Yes
LED PFM DL 14 W 3000 K 1-10 V	14.00 W	30000	65 °	1470 lm	Yes
LED PFM DL 14 W 3000 K On/Off	14.00 W	30000	65 °	1540 lm	No
LED PFM DL 14 W 4000 K DALI	14.00 W	30000	65 °	1540 lm	Yes
LED PFM DL 14 W 4000 K 1-10 V	14.00 W	30000	65 °	1540 lm	Yes
LED PFM DL 14 W 6500 K DALI	14.00 W	30000	65 °	1540 lm	Yes
LED PFM DL 14 W 6500 K 1-10 V	14.00 W	30000	65 °	1540 lm	Yes
LED PFM DL 14 W 4000 K On/Off	14.00 W	30000	65 °	1680 lm	No
LED PFM DL 14 W 6500 K On/Off	14.00 W	30000	65 °	1680 lm	No
LED PFM DL 17 W 3000 K On/Off	17.00 W	30000	65 °	1870 lm	No
LED PFM DL 17 W 4000 K On/Off	17.00 W	30000	65 °	2040 lm	No
LED PFM DL 17 W 6500 K On/Off	17.00 W	30000	65 °	2040 lm	No
LED PFM DL 21 W 3000 K 1-10 V	21.00 W	30000	65 °	2205 lm	Yes
LED PFM DL 21 W 3000 K DALI	21.00 W	30000	65 °	2205 lm	Yes
LED PFM DL 21 W 3000 K On/Off	21.00 W	30000	65 °	2310 lm	No
LED PFM DL 21 W 4000 K 1-10 V	21.00 W	30000	65 °	2310 lm	Yes
LED PFM DL 21 W 4000 K DALI	21.00 W	30000	65 °	2310 lm	Yes
LED PFM DL 21 W 6500 K DALI	21.00 W	30000	65 °	2310 lm	Yes
LED PFM DL 21 W 6500 K 1-10 V	21.00 W	30000	65 °	2310 lm	Yes
LED PFM DL 21 W 4000 K On/Off	21.00 W	30000	65 °	2520 lm	No
LED PFM DL 21 W 6500 K On/Off	21.00 W	30000	65 °	2520 lm	No

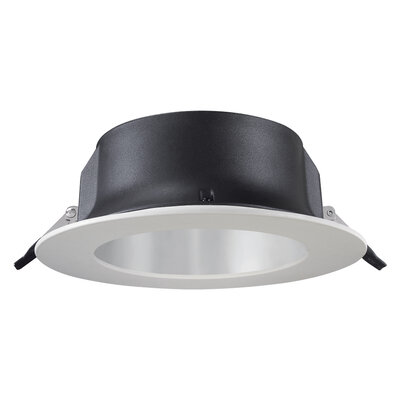

LED PFM DL 8 W 3000 K DALI

Product benefits

Stylish design
Die-cast aluminum housing for improved heat dissipation
Good glare reduction (UGR < 19) and cut off angle up to 30° for comfortable indoor lighting
External driver design allows for flexible change of control gear
Low maintenance and operation costs due to long lifetime of LED
Can be wireless controlled via cooperating with LEDVANCE LMS Bridge Superior
Type of protection: IP54 (room side) provides additional protection against humidity

View all details

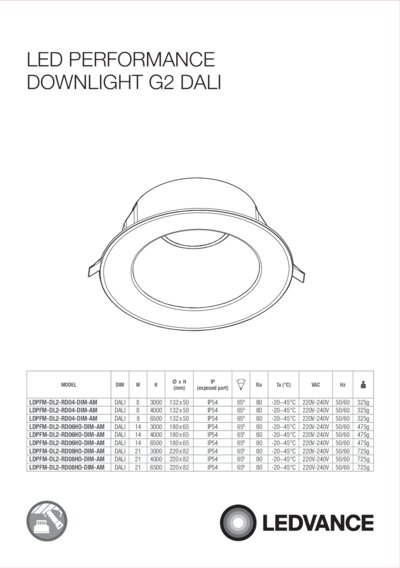

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	8.00 W
Nominal voltage	220…240 V
Mains frequency	50…60 Hz
Power factor λ	> 0.90
Total harmonic distortion	< 20 %
Protection class	II
Operating mode	External LED driver

Photometrical data

Luminous flux	840 lm
Luminous efficacy	105 lm/W
Color temperature	3000 K
Light color (designation)	Warm White
Color rendering index Ra	80
Standard deviation of color matching	≤5 sdcm
Beam angle	65 °

Dimensions & Weight

Diameter	132.00 mm
Height	50.00 mm
Product weight	285.00 g

Materials & Colors

Product color	Gray
Housing color	Gray
Body material	Metal
Cover material	Polymethylmethacrylate (PMMA)
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	-20…+70 °C
Type of connection	Cable, 2-pole
Type of protection	IP54/IP20
Dimmable	Yes
Type of dimming	DALI
Mounting type	Recessed
Mounting location	Ceiling
Application environment	Indoor
Mounting diameter	105.0…115.0 mm
Mounting depth	≥ 30 mm
Replaceable light source (EPREL)	Not replaceable

Lifespan

Lifespan L70/B50 at 25 °C	50000 h ¹⁾
Number of switching cycles	30000

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product description

Product benefits

Stylish design
Die-cast aluminum housing for improved heat dissipation
Good glare reduction (UGR < 19) and cut off angle up to 30° for comfortable indoor lighting
External driver design allows for flexible change of control gear
Low maintenance and operation costs due to long lifetime of LED
Can be wireless controlled via cooperating with LEDVANCE LMS Bridge Superior
Type of protection: IP54 (room side) provides additional protection against humidity

Areas of application

Offices
Shopping malls
Retail
Hospitality

Product features

Available with color temperature: 3,000 K, 4,000 K, 6,500 K
Color rendering index R_a: > 80
Initial color consistency: < 5 SDCM
Long lifetime: up to 50,000 h
Available with diameter: 4 inch, 6 inch and 8 inch
Available with wattage: 8 W, 11 W, 14 W, 17 W and 21 W
Available with version: on/off switch, 1-10 V dimmable and DALI dimmable

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075348158	Folding box 1	174 mm x 74 mm x 177 mm	402.00 g	2.28 dm³
4058075348165	Shipping box 30	543 mm x 390 mm x 385 mm	13192.00 g	81.53 dm³
