LED PERFORMANCE DOWNLIGHT G2

LED PERFORMANCE DOWNLIGHT G2

Choose your product version

8 W 3000 K 1-10 V

8 W 3000 K DALI

8 W 3000 K On/Off

8 W 4000 K DALI

8 W 4000 K 1-10 V

8 W 6500 K DALI

8 W 6500 K 1-10 V

8 W 4000 K On/Off

8 W 6500 K On/Off

11 W 3000 K On/Off

11 W 4000 K On/Off

11 W 6500 K On/Off

14 W 3000 K DALI

14 W 3000 K 1-10 V

14 W 3000 K On/Off

14 W 4000 K DALI

14 W 4000 K 1-10 V

14 W 6500 K DALI

14 W 6500 K 1-10 V

14 W 4000 K On/Off

14 W 6500 K On/Off

17 W 3000 K On/Off

17 W 4000 K On/Off

17 W 6500 K On/Off

21 W 3000 K 1-10 V

21 W 3000 K DALI

21 W 3000 K On/Off

21 W 4000 K 1-10 V

21 W 4000 K DALI

21 W 6500 K 1-10 V

21 W 6500 K DALI

21 W 4000 K On/Off

21 W 6500 K On/Off

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
LED PFM DL 8 W 3000 K 1-10 V 8.00 W 30000 65 ° 840 lm Yes
LED PFM DL 8 W 3000 K DALI 8.00 W 30000 65 ° 840 lm Yes
LED PFM DL 8 W 3000 K On/Off 8.00 W 30000 65 ° 880 lm No
LED PFM DL 8 W 4000 K DALI 8.00 W 30000 65 ° 880 lm Yes
LED PFM DL 8 W 4000 K 1-10 V 8.00 W 30000 65 ° 880 lm Yes
LED PFM DL 8 W 6500 K DALI 8.00 W 30000 65 ° 880 lm Yes
LED PFM DL 8 W 6500 K 1-10 V 8.00 W 30000 65 ° 880 lm Yes
LED PFM DL 8 W 4000 K On/Off 8.00 W 30000 65 ° 960 lm No
LED PFM DL 8 W 6500 K On/Off 8.00 W 30000 65 ° 960 lm No
LED PFM DL 11 W 3000 K On/Off 11.00 W 30000 65 ° 1210 lm No
LED PFM DL 11 W 4000 K On/Off 11.00 W 30000 65 ° 1320 lm No
LED PFM DL 11 W 6500 K On/Off 11.00 W 30000 65 ° 1320 lm No
LED PFM DL 14 W 3000 K DALI 14.00 W 30000 65 ° 1470 lm Yes
LED PFM DL 14 W 3000 K 1-10 V 14.00 W 30000 65 ° 1470 lm Yes
LED PFM DL 14 W 3000 K On/Off 14.00 W 30000 65 ° 1540 lm No
LED PFM DL 14 W 4000 K DALI 14.00 W 30000 65 ° 1540 lm Yes
LED PFM DL 14 W 4000 K 1-10 V 14.00 W 30000 65 ° 1540 lm Yes
LED PFM DL 14 W 6500 K DALI 14.00 W 30000 65 ° 1540 lm Yes
LED PFM DL 14 W 6500 K 1-10 V 14.00 W 30000 65 ° 1540 lm Yes
LED PFM DL 14 W 4000 K On/Off 14.00 W 30000 65 ° 1680 lm No
LED PFM DL 14 W 6500 K On/Off 14.00 W 30000 65 ° 1680 lm No
LED PFM DL 17 W 3000 K On/Off 17.00 W 30000 65 ° 1870 lm No
LED PFM DL 17 W 4000 K On/Off 17.00 W 30000 65 ° 2040 lm No
LED PFM DL 17 W 6500 K On/Off 17.00 W 30000 65 ° 2040 lm No
LED PFM DL 21 W 3000 K 1-10 V 21.00 W 30000 65 ° 2205 lm Yes
LED PFM DL 21 W 3000 K DALI 21.00 W 30000 65 ° 2205 lm Yes
LED PFM DL 21 W 3000 K On/Off 21.00 W 30000 65 ° 2310 lm No
LED PFM DL 21 W 4000 K 1-10 V 21.00 W 30000 65 ° 2310 lm Yes
LED PFM DL 21 W 4000 K DALI 21.00 W 30000 65 ° 2310 lm Yes
LED PFM DL 21 W 6500 K 1-10 V 21.00 W 30000 65 ° 2310 lm Yes
LED PFM DL 21 W 6500 K DALI 21.00 W 30000 65 ° 2310 lm Yes
LED PFM DL 21 W 4000 K On/Off 21.00 W 30000 65 ° 2520 lm No
LED PFM DL 21 W 6500 K On/Off 21.00 W 30000 65 ° 2520 lm No


LED PFM DL 8 W 3000 K On/Off

Product benefits
  • Stylish design
  • Die-cast aluminum housing for improved heat dissipation
  • Good glare reduction (UGR < 19) and cut off angle up to 30° for comfortable indoor lighting
  • External driver design allows for flexible change of control gear
  • Low maintenance and operation costs due to long lifetime of LED
  • Can be wireless controlled via cooperating with LEDVANCE LMS Bridge Superior
  • Type of protection: IP54 (room side) provides additional protection against humidity
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 8.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Power factor λ 0.90
Total harmonic distortion < 20 %
Protection class II
Operating mode External LED driver

Photometrical data

Luminous flux 880 lm
Luminous efficacy 100 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra 80
Standard deviation of color matching ≤5 sdcm
Beam angle 65 °

Dimensions & Weight

Diameter 132.00 mm
Height 50.00 mm
Product weight 230.00 g

Materials & Colors

Product color Gray
Housing color Gray
Body material Metal
Cover material Polymethylmethacrylate (PMMA)
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+45 °C
Temperature range at storage -20…+70 °C
Type of connection Cable, 2-pole
Type of protection IP54/IP20
Dimmable No
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting diameter 105.0…115.0 mm
LED module replaceable Not replaceable

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Number of switching cycles 30000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Product benefits
  • Stylish design
  • Die-cast aluminum housing for improved heat dissipation
  • Good glare reduction (UGR < 19) and cut off angle up to 30° for comfortable indoor lighting
  • External driver design allows for flexible change of control gear
  • Low maintenance and operation costs due to long lifetime of LED
  • Can be wireless controlled via cooperating with LEDVANCE LMS Bridge Superior
  • Type of protection: IP54 (room side) provides additional protection against humidity
Areas of application
  • Offices
  • Shopping malls
  • Retail
  • Hospitality
Product features
  • Available with color temperature: 3,000 K, 4,000 K, 6,500 K
  • Color rendering index Ra: > 80
  • Initial color consistency: < 5 SDCM
  • Long lifetime: up to 50,000 h
  • Available with diameter: 4 inch, 6 inch and 8 inch
  • Available with wattage: 8 W, 11 W, 14 W, 17 W and 21 W
  • Available with version: on/off switch, 1-10 V dimmable and DALI dimmable
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075347496 Folding box
1		 174 mm x 74 mm x 177 mm 347.00 g 2.28 dm³
4058075347502 Shipping box
30		 543 mm x 390 mm x 385 mm 11542.00 g 81.53 dm³
User Instruction / Safety Instructions
LED PERFORMANCE DOWNLI GHT G2 PDF (1.83 MB)
Product Image, Diagonal, White BG
LDPFM DL JPG (1.19 MB)
Product line drawing with numbers
LDPFM DL SVG (47.79 KB)

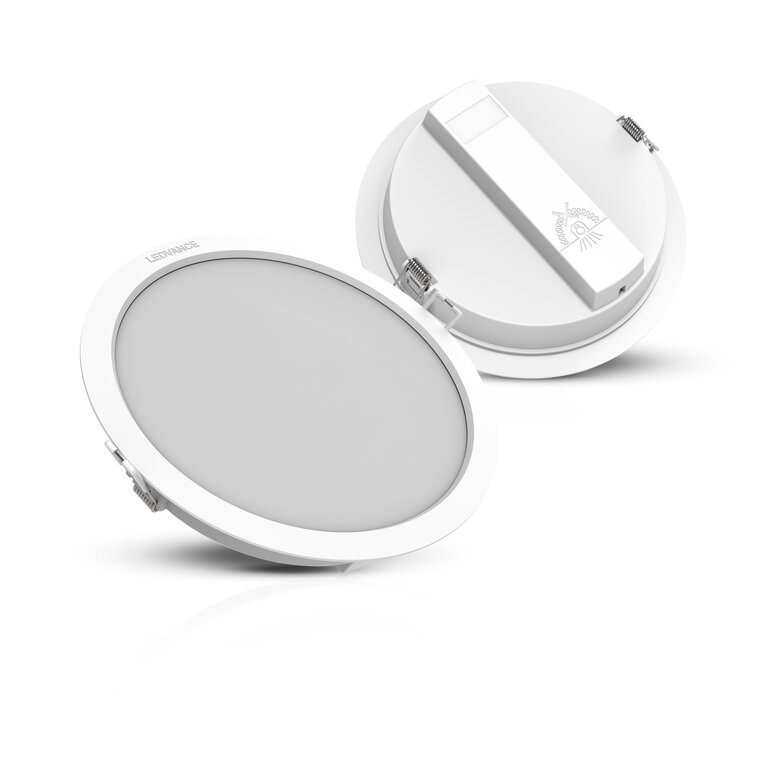

Beauty Shot
