FLOODLIGHT PERFORMANCE SYM R30

FLOODLIGHT PERFORMANCE SYM R30

Choose your product version

150 W 3000 K BK

150 W 4000 K BK

200 W 3000 K BK

200 W 4000 K BK

290 W 3000 K BK

290 W 4000 K BK

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
FL PFM SYM R30 150 W 3000 K BK 150.00 W 100000 30 ° 18700 lm No
FL PFM SYM R30 150 W 4000 K BK 150.00 W 100000 30 ° 20200 lm No
FL PFM SYM R30 200 W 3000 K BK 200.00 W 100000 30 ° 24800 lm No
FL PFM SYM R30 200 W 4000 K BK 200.00 W 100000 30 ° 26800 lm No
FL PFM SYM R30 290 W 3000 K BK 290.00 W 100000 30 ° 36200 lm No
FL PFM SYM R30 290 W 4000 K BK 290.00 W 100000 30 ° 39100 lm No


FL PFM SYM R30 150 W 3000 K BK

Product benefits
  • Energy savings of up to 90 % compared to halogen lamp floodlights
  • Energy savings of up to 45 % compared to luminaires that use conventional discharge lamps
  • Bright, robust and durable
  • Homogeneous luminance distribution and reduced glare
  • No upper light output ratio (ULOR 0%) when mounted at 0° tilt
  • Key hole to ensure ease of installation
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 150.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 735 mA
Inrush current 110 A
Inrush current time Th50 200 µs
Max. number of luminaires per miniature circuit breaker B16 3
Max. number of luminaires per miniature circuit breaker C10 2
Max. number of luminaires per miniature circuit breaker C16 4
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 18700 lm
Luminous efficacy 125 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching ≤5 sdcm
Luminous intensity -
Low flicker Yes
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG1
Beam angle 30 °

Dimensions & Weight

Length 451.00 mm
Height 77.00 mm
Width 330.00 mm
Product weight 4500.00 g
Cable length 2000 mm

Materials & Colors

Product color Black
Housing color Black
Body material Aluminum
Cover material Glass
Light emitting surface material Glass
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -30…+50 °C
Temperature range at storage -40…+70 °C
Type of connection Cable, 3-pole
Type of protection IP66
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Surface
Mounting location Wall, Pole, Floor, Ceiling
Application environment Outdoor
Adjustable Yes
Replaceable light source (EPREL) Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 70000 h 1)
Lifespan L90/B10 at 25 °C 30000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 2900 mA
ECG - Output ripple current < 10 %

Certificates & Standards

Standards CE, CB, ENEC, TÜV SÜD, EAC
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Energy savings of up to 90 % compared to halogen lamp floodlights
  • Energy savings of up to 45 % compared to luminaires that use conventional discharge lamps
  • Bright, robust and durable
  • Homogeneous luminance distribution and reduced glare
  • No upper light output ratio (ULOR 0%) when mounted at 0° tilt
  • Key hole to ensure ease of installation
  • 5 years guarantee
Areas of application
  • Direct replacement for luminaires using HID lamps
  • Outdoor use (IP66)
  • Parking
  • Public areas
  • Industry
  • Sports facilities
  • Lighting of large areas
  • D-sign according to EN 60598-2-24 for fire-risk commercial unit, e.g. by accumulation of dust
Product features
  • High luminous efficacy: up to 140 lm/W
  • Rotational symmetric light distribution for high mast area lighting
  • Angled (45°) mounting bracket and up to 180° tilting
  • Type of protection: IP66
  • Impact resistance: IK08
  • Ambient temperature in operation: -30…+50 °C
  • High surge protection: up to 10 kV (L/N-PE), 6 kV (L-N)
  • Integrated breather for preventing condensation inside the luminaire
  • Connection via 2 m cable, wiring required
Safety advice
  • All electrical connections must be made by a qualified person.
  • The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed.
  • Terminal block not included. Installation must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075353756 Shipping box
1		 516 mm x 130 mm x 368 mm 4970.00 g 24.69 dm³
User Instruction / Safety Instructions
FLOODLIGHT PERFORMANCE PDF (4.21 MB)
Legal information
LSI FL PFM SYM AND ASY M PDF (1.38 MB)
Legal information
Legal Insert FL PFM PDF (2.83 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
EU Declaration of Conf ormity FL PFM PDF (2.32 MB)

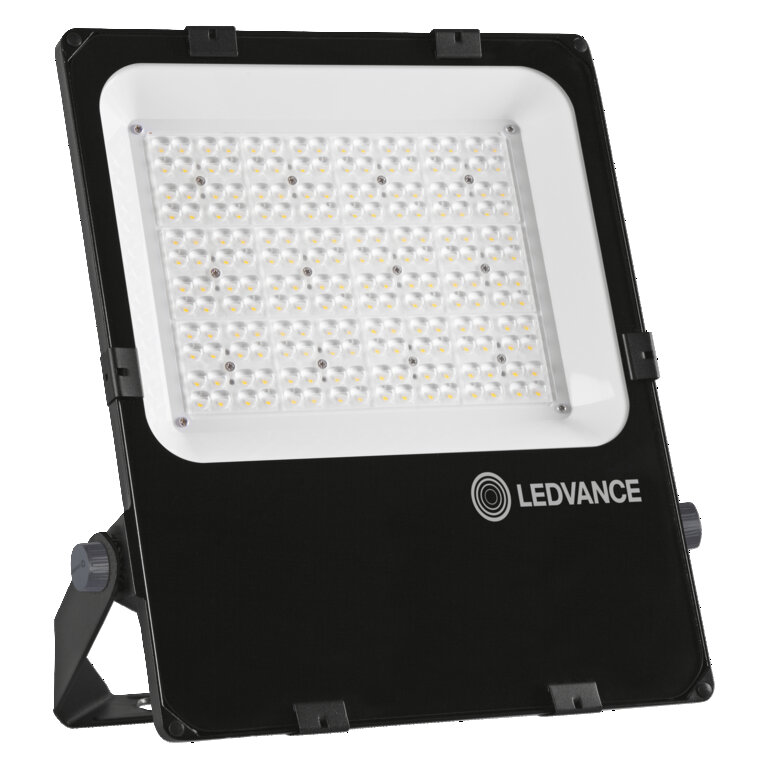

Product Image, Diagonal, White BG
FL PFM 150W BK JPG (2.87 MB)

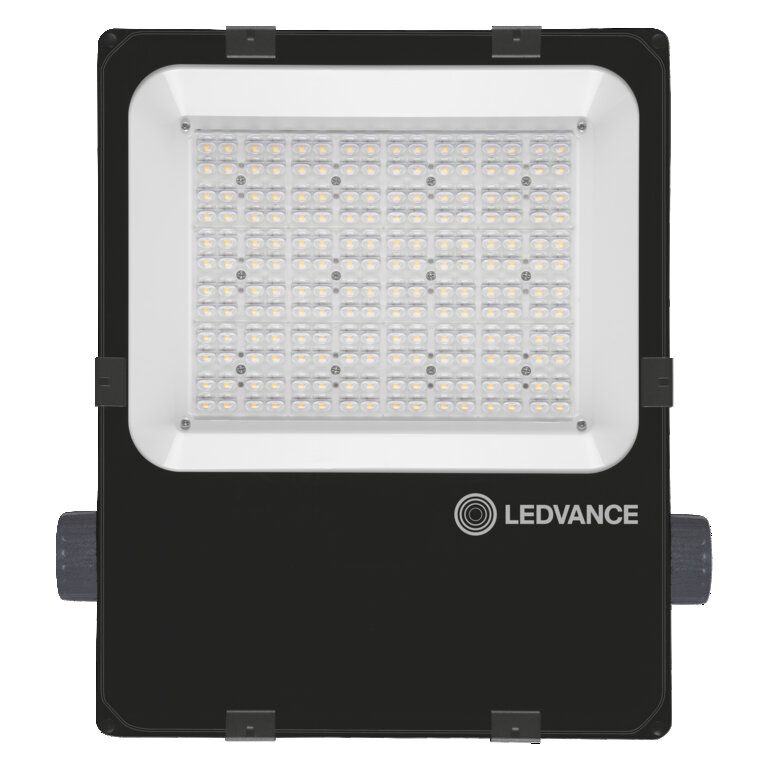

Product Image, Upright, White BG
FL PFM 150W BK JPG (2.79 MB)
Product line drawing with letters
FL PFM 150W BK SVG (35.16 KB)
Product line drawing with numbers
FL PFM 150W BK SVG (40.82 KB)
Prod.line drw, front, no dimensions
FL PFM 150W BK SVG (32.67 KB)
Packaging image, spacial
Floodlight PFM SYM R30 150W 830 BK MiCh TIF (36.06 MB)
Catalog info 1
Floodlight Performance SVG (41.29 KB)
Catalog info 2
Floodlight Performance SVG (25.88 KB)
Catalog info 6
Floodlight Performance SVG (109.52 KB)
IES file (IES)
FL PFM 150W 3000K SYM R30 BK IES (3.26 KB)
LDT file (Eulumdat)
FL PFM 150W 3000K SYM R30 BK LDT (2.9 KB)
ULD file (DIALux)
FL PFM 150W-3000K SYM R30 BK ULD (87.55 KB)
ROLF file (RELUX)
FL PFM 150W-3000K SYM ROLF (1.4 MB)
UGR file (UGR table)
FL PFM 150W 3000K SYM R30 BK PNG (56.93 KB)
LDC typ cone
FL PFM 150W 3000K SYM R30 BK SVG (11.45 KB)
LDC typ polar

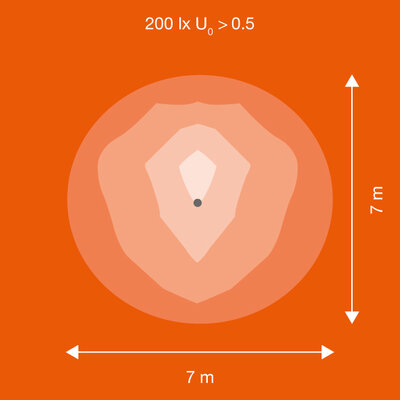

Floodlight Performance 150W SYM R30 simplifi ed isolux diagram JPG (99.72 KB)
LDC typ polar
FL PFM 150W 3000K SYM R30 BK SVG (17.59 KB)
BIM_Revit_3D
FL PFM ZIP (7.49 MB)
CAD_STEP_3D
FL PFM 150W STEP (9.17 MB)
Tender documents
FLOODLIGHT PERFORMANCE SYM R30 150 W 3000 K BK-EN TXT (2.16 KB)
Video
LEDVANCE Floodlight Pe rformance - English su btitles MP4 (112.31 MB)
EAN SEG number STK number EFO number ELDAS number
4058075353756 7766175 4567489 3242435 941500510
