Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|
| FL PFM SYM 60 150 W 3000 K BK | 150.00 W | 100000 | 60 ° x 60 ° | 19800 lm | No |
| FL PFM SYM 60 150 W 4000 K BK | 150.00 W | 100000 | 60 ° x 60 ° | 21000 lm | No |
| FL PFM SYM 60 200 W 3000 K BK | 200.00 W | 100000 | 60 ° x 60 ° | 26400 lm | No |
| FL PFM SYM 60 200 W 4000 K BK | 200.00 W | 100000 | 60 ° x 60 ° | 28000 lm | No |
| FL PFM SYM 60 290 W 3000 K BK | 290.00 W | 100000 | 60 ° x 60 ° | 38300 lm | No |
| FL PFM SYM 60 290 W 4000 K BK | 290.00 W | 100000 | 60 ° x 60 ° | 40600 lm | No |
| Nominal wattage | 150.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 735 mA |
| Inrush current | 110 A |
| Inrush current time Th50 | 200 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 3 |
| Max. number of luminaires per miniature circuit breaker C10 | 2 |
| Max. number of luminaires per miniature circuit breaker C16 | 4 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
| Luminous flux | 19800 lm |
| Luminous efficacy | 132 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤5 sdcm |
| Low flicker | Yes |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 60 ° x 60 ° |
| Length | 451.00 mm |
| Height | 77.00 mm |
| Width | 330.00 mm |
| Product weight | 4500.00 g |
| Cable length | 2000 mm |
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Cover material | Glass |
| Light emitting surface material | Glass |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -30…+50 °C |
| Temperature range at storage | -40…+70 °C |
| Type of connection | Cable, 3-pole |
| Type of protection | IP66 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall, Pole, Floor, Ceiling |
| Application environment | Outdoor |
| Adjustable | Yes |
| LED module replaceable | Not replaceable |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 100000 h 1) |
| Lifespan L80/B10 at 25 °C | 70000 h 1) |
| Lifespan L90/B10 at 25 °C | 30000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Output current | 2900 mA |
| ECG - Output ripple current | < 10 % |

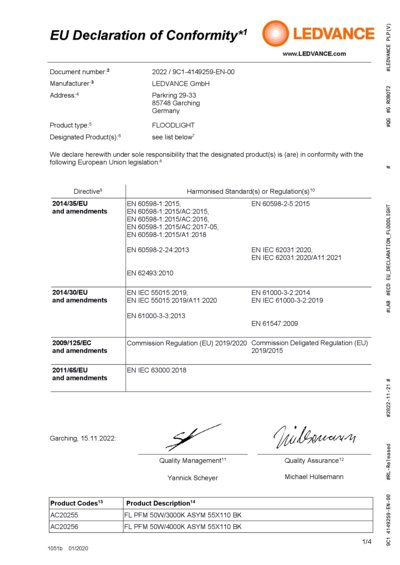

| Standards | CE, CB, ENEC, TÜV SÜD, EAC |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Ball shot safe | No |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|

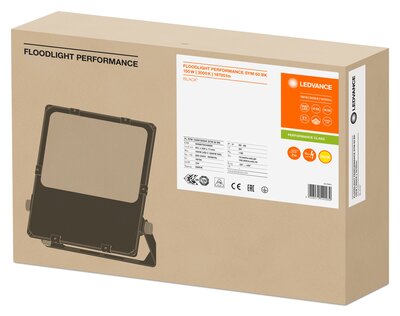

| 4058075540989 | Shipping box 1 |
516 mm x 130 mm x 368 mm | 4970.00 g | 24.69 dm³ |
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075540989 | 7766783 | 4508172 | 3202848 | 941506160 |
