Professional
FLOODLIGHT PERFORMANCE ASYM 45x140

FLOODLIGHT PERFORMANCE ASYM 45x140

Choose your product version

50 W 3000 K BK

50 W 4000 K BK

100 W 3000 K BK

100 W 4000 K BK

150 W 3000 K BK

150 W 4000 K BK

200 W 3000 K BK

200 W 4000 K BK

290 W 3000 K BK

290 W 4000 K BK

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
FL PFM ASYM 45x140 50 W 3000 K BK 50.00 W 100000 45 ° x 140 ° 5700 lm No
FL PFM ASYM 45x140 50 W 4000 K BK 50.00 W 100000 45 ° x 140 ° 6200 lm No
FL PFM ASYM 45x140 100 W 3000 K BK 100.00 W 100000 45 ° x 140 ° 11800 lm No
FL PFM ASYM 45x140 100 W 4000 K BK 100.00 W 100000 45 ° x 140 ° 12800 lm No
FL PFM ASYM 45x140 150 W 3000 K BK 150.00 W 100000 45 ° x 140 ° 18300 lm No
FL PFM ASYM 45x140 150 W 4000 K BK 150.00 W 100000 45 ° x 140 ° 19800 lm No
FL PFM ASYM 45x140 200 W 3000 K BK 200.00 W 100000 45 ° x 140 ° 24200 lm No
FL PFM ASYM 45x140 200 W 4000 K BK 200.00 W 100000 45 ° x 140 ° 26200 lm No
FL PFM ASYM 45x140 290 W 3000 K BK 290.00 W 100000 45 ° x 140 ° 35300 lm No
FL PFM ASYM 45x140 290 W 4000 K BK 290.00 W 100000 45 ° x 140 ° 38200 lm No


FL PFM ASYM 45x140 50 W 3000 K BK

Product benefits
  • Energy savings of up to 90 % compared to halogen lamp floodlights
  • Energy savings of up to 45 % compared to luminaires that use conventional discharge lamps
  • Bright, robust and durable
  • Homogeneous luminance distribution and reduced glare
  • No upper light output ratio (ULOR 0%) when mounted at 0° tilt
  • Key hole to ensure ease of installation
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 50.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 250 mA
Inrush current 50 A
Inrush current time Th50 200 µs
Max. number of luminaires per miniature circuit breaker B16 3
Max. number of luminaires per miniature circuit breaker C10 3
Max. number of luminaires per miniature circuit breaker C16 5
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 5700 lm
Luminous efficacy 115 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching ≤5 sdcm
Luminous intensity -
Low flicker No
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG1
Beam angle 45 ° x 140 °

Dimensions & Weight

Length 314.00 mm
Height 63.00 mm
Width 240.00 mm
Product weight 2600.00 g
Cable length 2000 mm

Materials & Colors

Product color Black
Housing color Black
Body material Aluminum
Cover material Glass
Light emitting surface material Glass
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -30…+50 °C
Temperature range at storage -40…+70 °C
Type of connection Cable, 3-pole
Type of protection IP66
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Surface
Mounting location Wall, Pole, Floor, Ceiling
Application environment Outdoor
Adjustable Yes
Replaceable light source (EPREL) Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 70000 h 1)
Lifespan L90/B10 at 25 °C 30000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 1050 mA
ECG - Output ripple current < 60 %

Certificates & Standards

Standards CE, CB, ENEC, TÜV SÜD, EAC
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Energy savings of up to 90 % compared to halogen lamp floodlights
  • Energy savings of up to 45 % compared to luminaires that use conventional discharge lamps
  • Bright, robust and durable
  • Homogeneous luminance distribution and reduced glare
  • No upper light output ratio (ULOR 0%) when mounted at 0° tilt
  • Key hole to ensure ease of installation
  • 5 years guarantee
Areas of application
  • Direct replacement for luminaires using HID lamps
  • Outdoor use (IP66)
  • Parking
  • Public areas
  • Industry
  • Sports facilities
  • Parking lots, industrial roads
  • D-sign according to EN 60598-2-24 for fire-risk commercial unit, e.g. by accumulation of dust
Product features
  • High luminous efficacy: up to 140 lm/W
  • Asymmetric light distribution for area lighting
  • Angled (45°) mounting bracket and up to 180° tilting
  • Type of protection: IP66
  • Impact resistance: IK08
  • Ambient temperature in operation: -30…+50 °C
  • High surge protection: up to 10 kV (L/N-PE), 6 kV (L-N)
  • Integrated breather for preventing condensation inside the luminaire
  • Connection via 2 m cable, wiring required
Safety advice
  • All electrical connections must be made by a qualified person.
  • The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed.
  • Terminal block not included. Installation must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075353619 Shipping box
1		 364 mm x 105 mm x 280 mm 2880.00 g 10.70 dm³
User Instruction / Safety Instructions

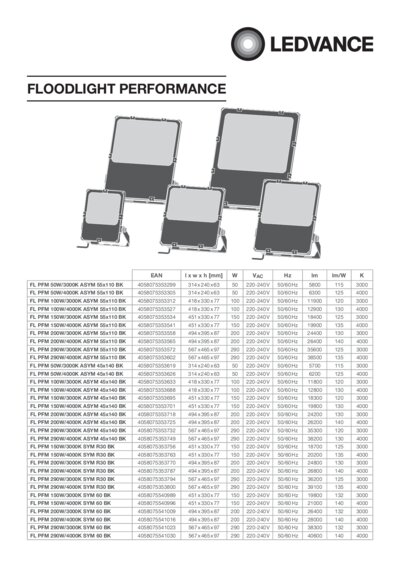

FLOODLIGHT PERFORMANCE PDF (4.21 MB)
Legal information

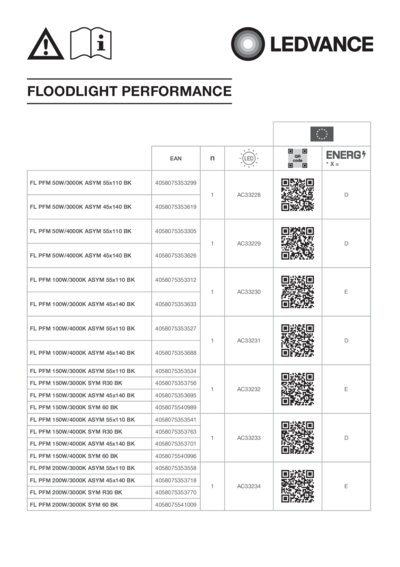

LSI FL PFM SYM AND ASY M PDF (1.38 MB)
Legal information
Legal Insert FL PFM PDF (2.83 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity

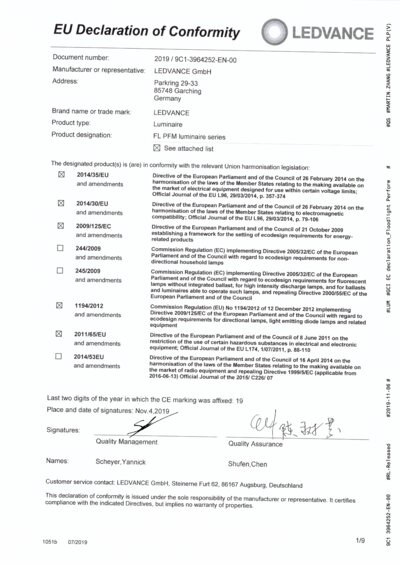

EU Declaration of Conf ormity FL PFM PDF (2.32 MB)

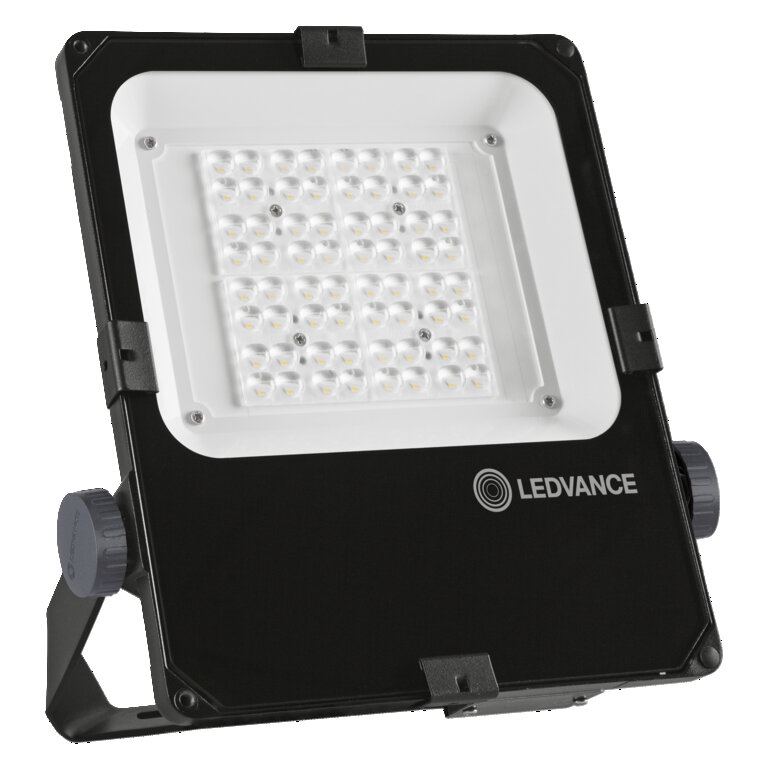

Product Image, Diagonal, White BG
FL PFM 50W ASYM JPG (2.97 MB)

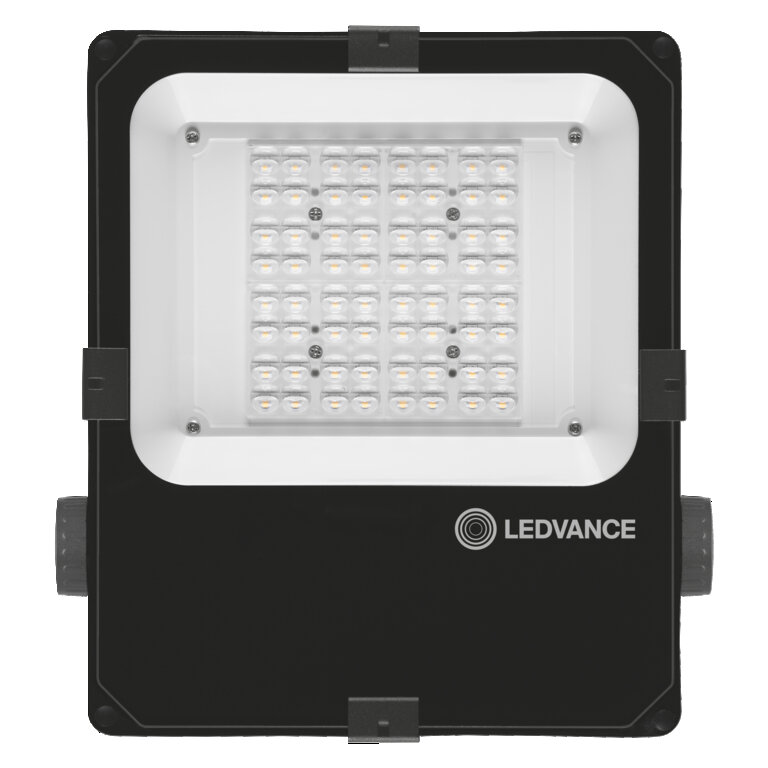

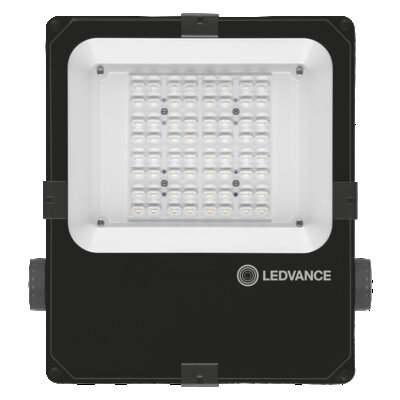

Product Image, Upright, White BG
FL PFM 50W ASYM JPG (2.6 MB)
Product line drawing with letters
FL PFM 50W ASYM SVG (30.05 KB)
Product line drawing with numbers
FL PFM 50W ASYM SVG (35.92 KB)
Prod.line drw, front, no dimensions
FL PFM 50W ASYM SVG (27.44 KB)

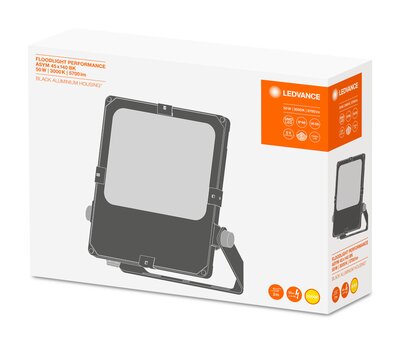

Packaging image, spacial
Floodlight PFM ASYM 45 x140 50W 830 BK MiCh TIF (21.19 MB)
Catalog info 1
Floodlight Performance SVG (41.29 KB)
Catalog info 2
Floodlight Performance SVG (25.88 KB)
Catalog info 6
Floodlight Performance SVG (109.52 KB)
IES file (IES)
FL PFM 50W 3000K ASYM 45x140 BK IES (22.32 KB)
IES file (IES)
FL PFM 50W 3000K ASYM 45X140 BK IES (46.09 KB)
LDT file (Eulumdat)
FL PFM 50W 3000K ASYM 45x140 BK LDT (16.99 KB)
LDT file (Eulumdat)
FL PFM 50W 3000K ASYM 45X140 BK LDT (31.32 KB)
ULD file (DIALux)
FL PFM 50W-3000K ASYM 45X140 BK ULD (86.53 KB)
ROLF file (RELUX)
FL PFM 50W-3000K ASYM ROLF (1.47 MB)
LDC typ polar
FL PFM 50W 3000K ASYM 45x140 BK SVG (17.62 KB)
LDC typ polar
FL PFM 50W 3000K ASYM 45X140 BK SVG (17.59 KB)
BIM_Revit_3D
FL PFM ZIP (7.49 MB)
CAD_STEP_3D
FL PFM 50W STEP (7.44 MB)
Tender documents
FLOODLIGHT PERFORMANCE ASYM 45x140 50 W 3000 K BK-EN TXT (2.1 KB)
Application Pictures

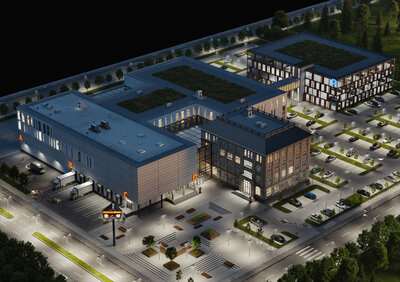

Complex of buildings i llumination JPG (13.09 MB)
Application Pictures

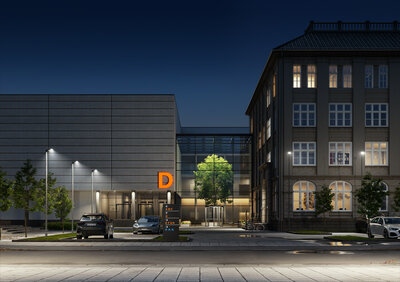

Outdoor car parks illu mination JPG (9.26 MB)
Application Pictures

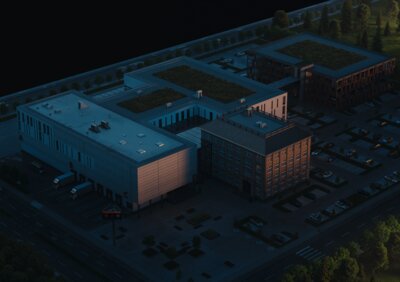

Complex of buildings b y night dark TIF (50.87 MB)
Application Pictures

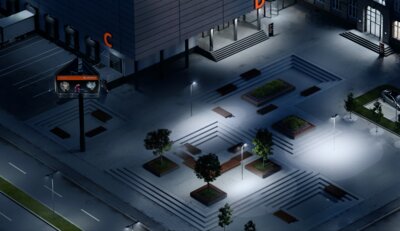

Complex of buildings i llumination - OPTI SEL ECT distributions PNG (68.93 MB)
