Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|

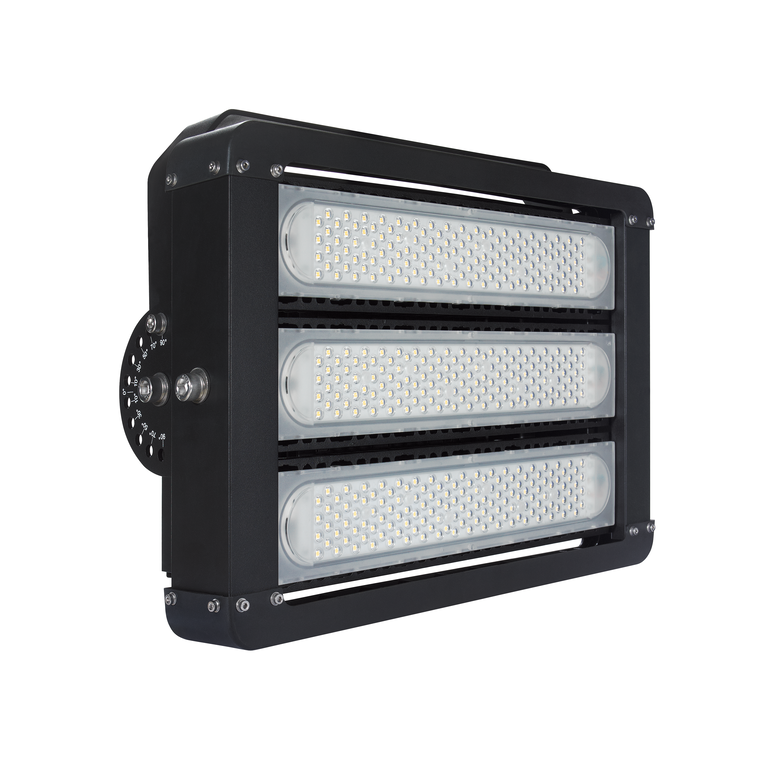

| ECO HP FLOOD 300W 840 VN 36600LM BK | 300.00 W | 100000 | 30 ° | 36600 lm | No |
| ECO HP FLOOD 300W 857 VN 36600LM BK | 300.00 W | 100000 | 30 ° | 36600 lm | No |
| ECO HP FLOOD 300W 840 W 40500LM BK | 300.00 W | 100000 | 90 ° | 40500 lm | No |
| ECO HP FLOOD 300W 857 W 40500LM BK | 300.00 W | 100000 | 90 ° | 40500 lm | No |
| ECO HP FLOOD 300W 840 N 41100LM BK | 300.00 W | 100000 | 60 ° | 41100 lm | No |
| ECO HP FLOOD 300W 857 N 41100LM BK | 300.00 W | 100000 | 60 ° | 41100 lm | No |

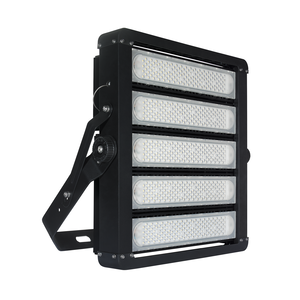

| ECO HP FLOOD 500W 840 VN 61000LM BK | 500.00 W | 100000 | 30 ° | 61000 lm | No |
| ECO HP FLOOD 500W 857 VN 61000LM BK | 500.00 W | 100000 | 30 ° | 61000 lm | No |
| ECO HP FLOOD 500W 840 W 67500LM BK | 500.00 W | 100000 | 90 ° | 67500 lm | No |
| ECO HP FLOOD 500W 857 W 67500LM BK | 500.00 W | 100000 | 90 ° | 67500 lm | No |
| ECO HP FLOOD 500W 840 N 68500LM BK | 500.00 W | 100000 | 60 ° | 68500 lm | No |
| ECO HP FLOOD 500W 857 N 68500LM BK | 500.00 W | 100000 | 60 ° | 68500 lm | No |
| Nominal wattage | 300.00 W |
| Nominal voltage | 100…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 1550.000 mA |
| Inrush current | 80 A |
| Inrush current time Th50 | 500 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 2 |
| Max. number of luminaires per miniature circuit breaker C10 | 2 |
| Max. number of luminaires per miniature circuit breaker C16 | 3 |
| Power factor λ | > 0.95 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Mains voltage |
| Luminous flux | 36600 lm |
| Luminous efficacy | 122 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 5 sdcm |
| Luminous intensity | - |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 30 ° |
| Length | 522.00 mm |
| Height | 152.00 mm |
| Width | 370.00 mm |
| Product weight | 10500.00 g |
| Cable length | 1000 mm |
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -40…+45 °C |
| Type of connection | Cable, 3-pole |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling |
| Application environment | Outdoor |
| Adjustable | Yes |
| Replaceable light source (EPREL) | Not replaceable |
| With light source | No |
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Standards | CE, EAC, RoHS, REACH |
| Luminaire with limited surface temperature, "D sign" | No |
| Number of illuminants | - |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075372443 | Shipping box 1 |
597 mm x 442 mm x 225 mm | 11623.00 g | 59.37 dm³ |
| EAN | STK number | EFO number |
|---|---|---|
| 4058075372443 | 4508184 | 3254367 |
