Professional

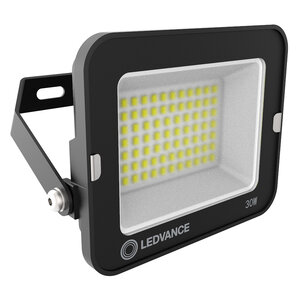

LED VALUE FLOODLIGHT GEN3

Choose your product version

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
LDVAL FL 10W 830 10.00 W 30000 100 ° 900 lm No
LDVAL FL 10W 840 10.00 W 30000 100 ° 1000 lm No
LDVAL FL 10W 865 10.00 W 30000 100 ° 1000 lm No

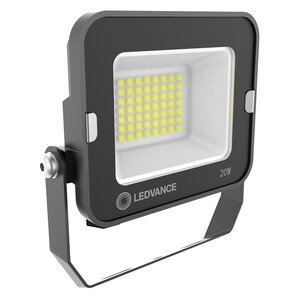

LDVAL FL 20W 830 20.00 W 30000 100 ° 1800 lm No
LDVAL FL 20W 840 20.00 W 30000 100 ° 2000 lm No
LDVAL FL 20W 865 20.00 W 30000 100 ° 2000 lm No
LDVAL FL 30W 830 30.00 W 30000 100 ° 2700 lm No
LDVAL FL 30W 840 30.00 W 30000 100 ° 3000 lm No
LDVAL FL 30W 865 30.00 W 30000 100 ° 3000 lm No

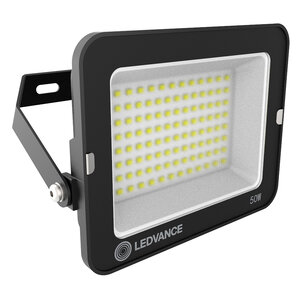

LDVAL FL 50W 830 50.00 W 30000 100 ° 4500 lm No
LDVAL FL 50W 840 50.00 W 30000 100 ° 5000 lm No
LDVAL FL 50W 865 50.00 W 30000 100 ° 5000 lm No

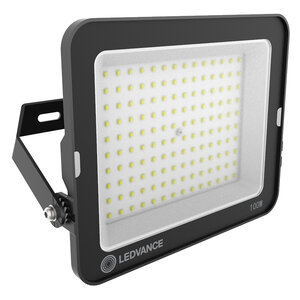

LDVAL FL 100W 830 100.00 W 30000 110 ° 9000 lm No
LDVAL FL 100W 840 100.00 W 30000 110 ° 10000 lm No
LDVAL FL 100W 865 100.00 W 30000 110 ° 10000 lm No

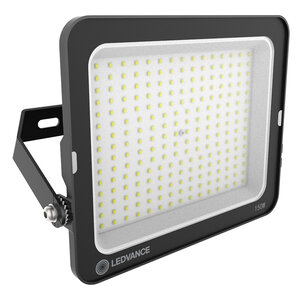

LDVAL FL 150W 830 150.00 W 30000 110 ° 13500 lm No
LDVAL FL 150W 840 150.00 W 30000 110 ° 15000 lm No
LDVAL FL 150W 865 150.00 W 30000 110 ° 15000 lm No

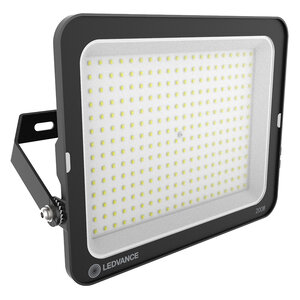

LDVAL FL 200W 830 200.00 W 30000 110 ° 18000 lm No
LDVAL FL 200W 840 200.00 W 30000 110 ° 20000 lm No
LDVAL FL 200W 865 200.00 W 30000 110 ° 20000 lm No

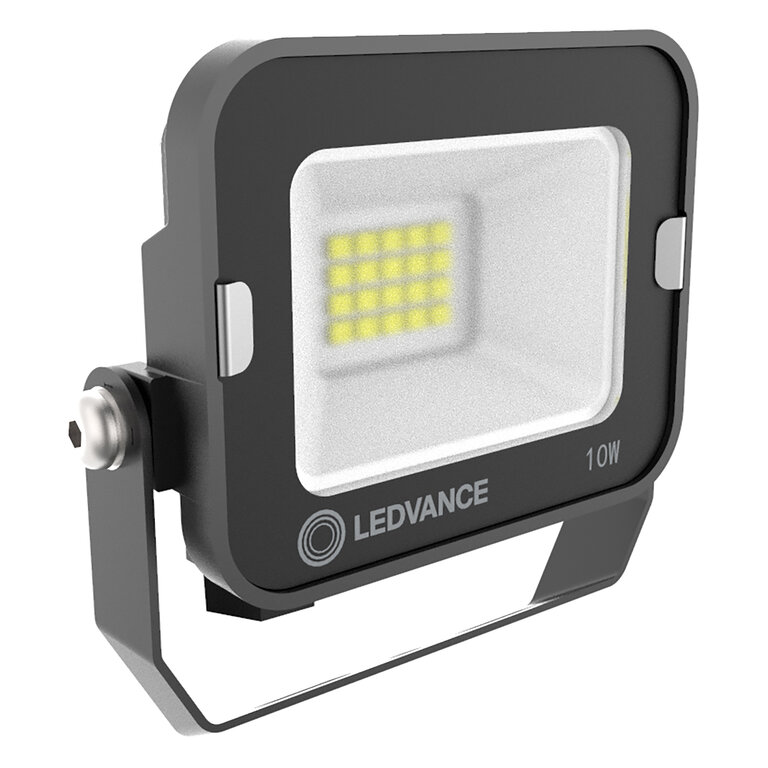

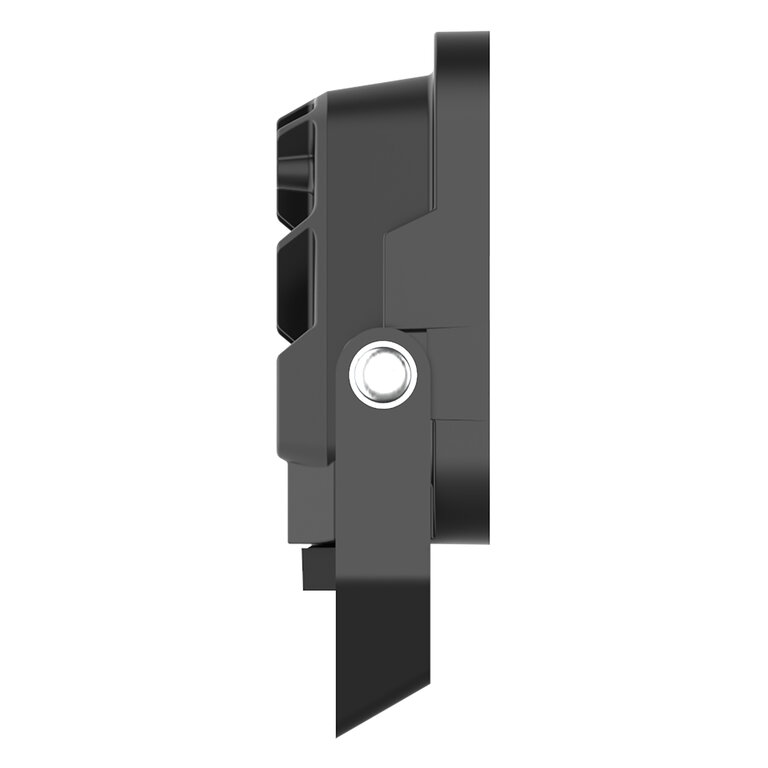

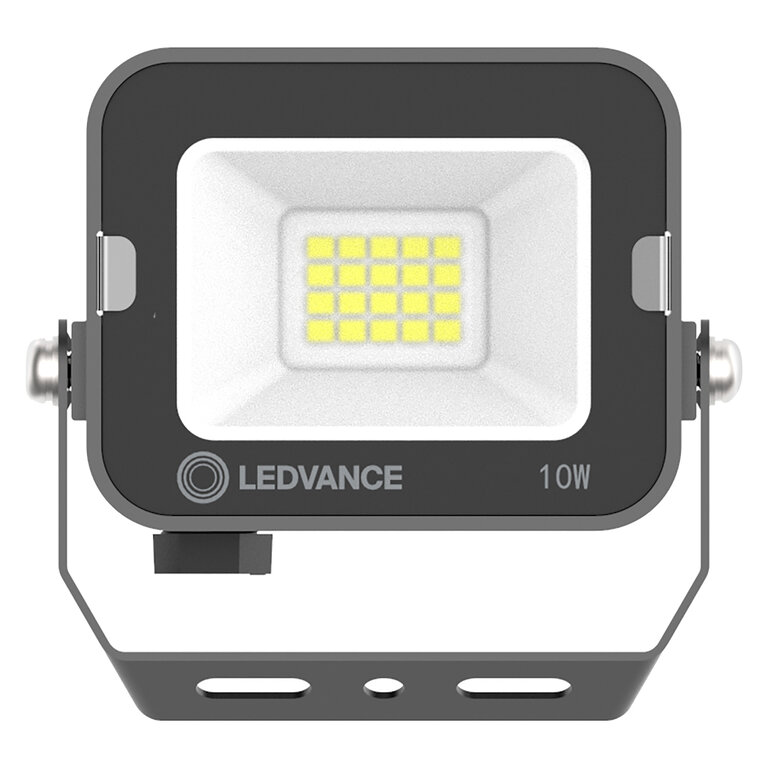

LDVAL FL 10W 830

Product benefits
  • Low windage thanks to the compact and slim design
  • Breather protects luminaires against the siphonage
  • Texture glass offer a comfortable lighting
  • IP65 protection is suitable for outdoor application

PRODUCT DETAILS

Electrical data

Nominal wattage 10.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 49.000 mA
Inrush current 20 A
Max. number of luminaires per miniature circuit breaker B16 -
Max. number of luminaires per miniature circuit breaker C16 -
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 900 lm
Luminous efficacy 90 lm/W
Color temperature 3000 K
Color rendering index Ra > 80
Standard deviation of color matching < 5 sdcm
Luminous intensity 400 cd
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG1
Beam angle 100 °

Dimensions & Weight

Length 97.00 mm
Height 27.00 mm
Width 91.00 mm
Product weight 190.00 g
Cable length 500 mm

Materials & Colors

Product color Black
Housing color Black
Body material Aluminum
Cover material Glass
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -30…+50 °C
Temperature range at storage -40…+70 °C
Type of protection IP65
Protection class IK (shock resistance) IK06
Dimmable No
Mounting type Surface

Lifespan

Lifespan L70/B50 at 25 °C 30000 h 1)
Lifespan L80/B10 at 25 °C 24000 h 1)
Lifespan L90/B10 at 25 °C 18000 h
Number of switching cycles 30000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

Standards CB, RoHS, EMC
Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Low windage thanks to the compact and slim design
  • Breather protects luminaires against the siphonage
  • Texture glass offer a comfortable lighting
  • IP65 protection is suitable for outdoor application
Areas of application
  • Architectural lighting
  • Security lighting
  • Public areas
Product features
  • Lifetime up to 30,000 h
  • Available in 10 W, 20 W, 30 W, 50 W, 100 W, 150 W and 200 W
  • Power factor: > 0.9
  • Safety compliance certificates: CB, EMC, RoHS 2.0
  • Driver on board technology platform
  • Available with color temperature: 3,000 K, 4,000 K, 6,500 K
  • Color rendering index Ra: > 80
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075589117 Folding box
1
52 mm x 102 mm x 94 mm 215.00 g 0.50 dm³
4058075589124 Shipping box
20
424 mm x 277 mm x 118 mm 4734.00 g 13.86 dm³
