HIGH BAY VALUE

HIGH BAY VALUE

Choose your product version

100 W 4000 K 100 DEG IP65 BK

100 W 6500 K 100 DEG IP65 BK

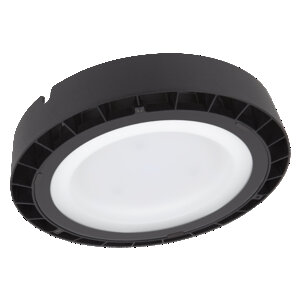

150 W 4000 K 100 DEG IP65 BK

150 W 6500 K 100 DEG IP65 BK

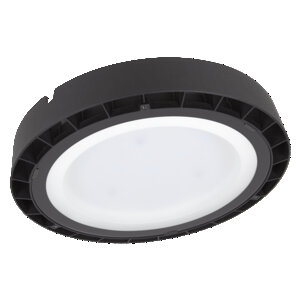

200 W 4000 K 100 DEG IP65 BK

200 W 6500 K 100 DEG IP65 BK

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
HIGH BAY VALUE 100 W 4000 K 100 DEG IP65 BK 100.00 W 50000 100 ° 10000 lm No
HIGH BAY VALUE 100 W 6500 K 100 DEG IP65 BK 100.00 W 50000 100 ° 10000 lm No
HIGH BAY VALUE 150 W 4000 K 100 DEG IP65 BK 150.00 W 50000 100 ° 16000 lm No
HIGH BAY VALUE 150 W 6500 K 100 DEG IP65 BK 150.00 W 50000 100 ° 16000 lm No
HIGH BAY VALUE 200 W 4000 K 100 DEG IP65 BK 200.00 W 50000 100 ° 20000 lm No
HIGH BAY VALUE 200 W 6500 K 100 DEG IP65 BK 200.00 W 50000 100 ° 20000 lm No


HIGH BAY VALUE 100 W 4000 K 100 DEG IP65 BK

Product benefits
  • Modern exclusive design
  • Energy savings of up to 60 % compared to conventional high bay luminaires
  • 3 years guarantee
  • Optimized weight and size due to compact design
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 100.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 450 mA
Inrush current 7.72 A
Inrush current time Th50 3.4 µs
Max. number of luminaires per miniature circuit breaker B16 28
Max. number of luminaires per miniature circuit breaker C10 17
Max. number of luminaires per miniature circuit breaker C16 28
Power factor λ ≥0.90
Total harmonic distortion < 20 %
Protection class I
Operating mode Mains voltage

Photometrical data

Luminous flux 10000 lm
Luminous efficacy 100 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching < 5 sdcm
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG1
Beam angle 100 °

Dimensions & Weight

Diameter 230.00 mm
Height 51.40 mm
Product weight 1338.00 g
Cable length 500 mm

Materials & Colors

Product color Black
Housing color Black
Body material Aluminum
Cover material Tempered glass
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+50 °C
Type of connection Cable, 3-pole
Type of protection IP65
Protection class IK (shock resistance) IK06
Dimmable No
Mounting type Suspended/Surface
Mounting location Ceiling
Application environment Indoor
LED module replaceable Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 32000 h 1)
Number of switching cycles 50000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

Standards CE, CB, EAC
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No
Product benefits
  • Modern exclusive design
  • Energy savings of up to 60 % compared to conventional high bay luminaires
  • 3 years guarantee
  • Optimized weight and size due to compact design
Areas of application
  • Replacement for high bay luminaires with mercury vapor or metal halide lamps
  • Warehouses
  • Logistics halls
  • Industry
  • High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
  • Operating temperature: -20…50 °C
  • Black aluminum housing, tempered glass cover
  • Opal cover
  • Type of protection: IP65
  • Lifetime (L70): up to 50,000 h
  • High luminous efficacy: up to 110 lm/W
Equipment / Accessories
  • Bracket available
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075408395 Shipping box
1		 255 mm x 252 mm x 72 mm 1533.00 g 4.63 dm³

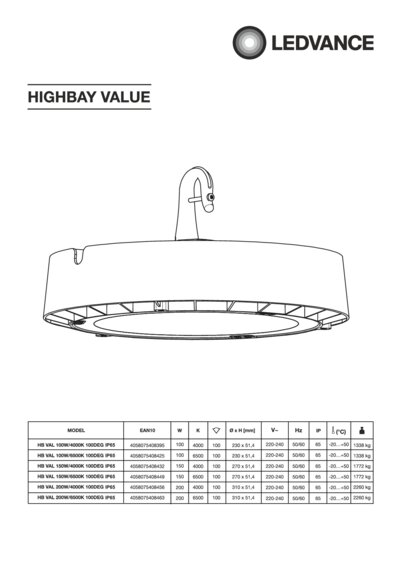

User Instruction / Safety Instructions
HIGH BAY VALUE USER IN STRUCTION PDF (2.41 MB)

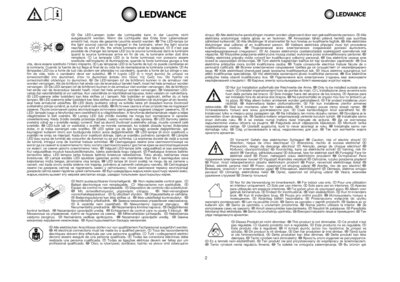

Legal information
Legal insert HB VAL AN D HB COMP V PDF (2.99 MB)

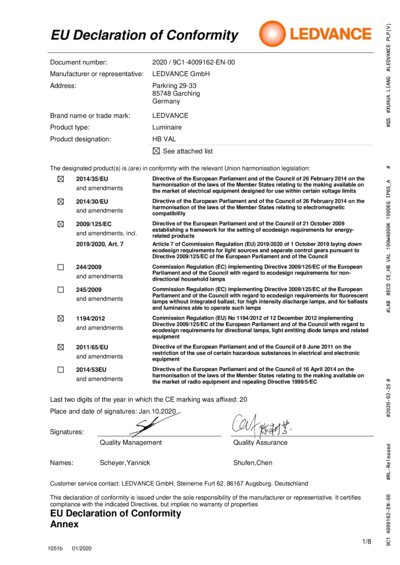

Declarations of conformity
HB VAL PDF (333.17 KB)

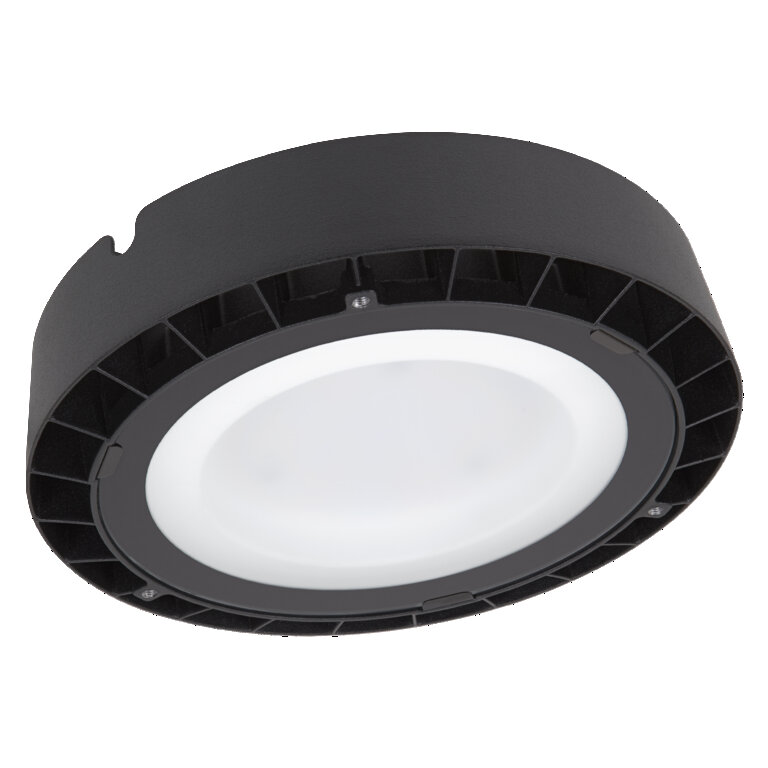

Product Image, Diagonal, White BG
HIGHBAY VALUE 100W JPG (2.33 MB)

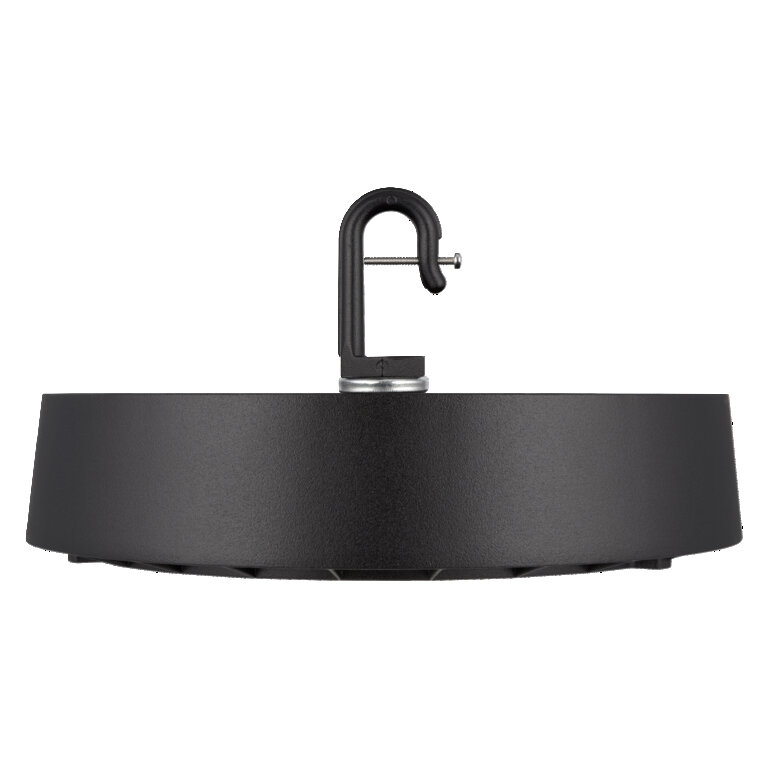

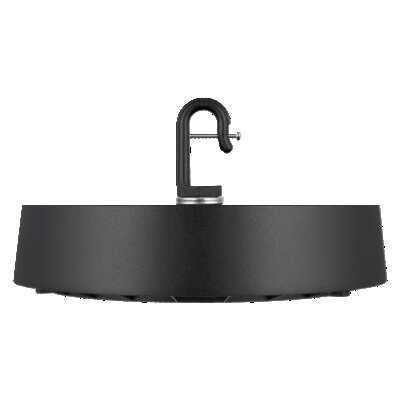

Product Image, Horizontal, White BG
HIGHBAY VALUE 100W JPG (1.89 MB)
Product line drawing with letters
HIGHBAY VALUE 100W SVG (35.6 KB)
Product line drawing with numbers
HIGHBAY VALUE 100W SVG (39.6 KB)
Prod.line drw, front, no dimensions
HIGHBAY VALUE 100W SVG (33.56 KB)
Catalog info 1
HIGH BAY VALUE 100W SVG (951.15 KB)
IES file (IES)
HB VALUE 100W 4000K 10 0DEG IP65 IES (632 B)
LDT file (Eulumdat)
HB VALUE 100W 4000K 10 0DEG IP65 LDT (603 B)
ROLF file (RELUX)
HB VAL 100W-4000K 100 DEG IP65 ROLF (1.19 MB)

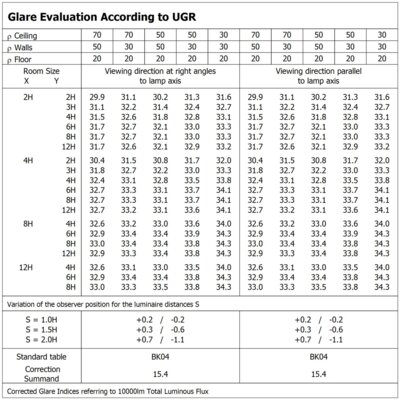

UGR file (UGR table)
HIGH BAY VALUE 100W PNG (16.99 MB)
LDC typ cone
HIGH BAY VALUE 100W SVG (134.72 KB)
LDC typ polar
HIGH BAY VALUE 100W SVG (64.18 KB)
BIM_Revit_3D
High Bay Value ZIP (1.38 MB)
CAD_STEP_3D
HB VAL 100W STEP (1.6 MB)
Tender documents
HIGH BAY VALUE 100 W 4 000 K 100 DEG IP65 BK- EN TXT (1.63 KB)
EAN STK number EFO number
4058075408395 4315597 3242451
