HIGH BAY DALI GEN 3

HIGH BAY DALI GEN 3

Choose your product version

93 W 4000 K 110DEG IP65

93 W 4000 K 70DEG IP65

155 W 4000 K 110DEG IP65

155 W 4000 K 70DEG IP65

190 W 4000 K 70DEG IP65

190 W 4000 K 110DEG IP65

210 W 4000 K 70DEG IP65

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
HB DALI 93 W 4000 K 110DEG IP65 93.00 W 200000 110 ° 13000 lm Yes
HB DALI 93 W 4000 K 70DEG IP65 93.00 W 200000 70 ° 13000 lm Yes
HB DALI 155 W 4000 K 110DEG IP65 155.00 W 200000 110 ° 22000 lm Yes
HB DALI 155 W 4000 K 70DEG IP65 155.00 W 200000 70 ° 22000 lm Yes
HB DALI 190 W 4000 K 70DEG IP65 190.00 W 200000 70 ° 27000 lm Yes
HB DALI 190 W 4000 K 110DEG IP65 190.00 W 200000 110 ° 27000 lm Yes
HB DALI 210 W 4000 K 70DEG IP65 210.00 W 200000 70 ° 30000 lm Yes


HB DALI 93 W 4000 K 110DEG IP65

Product benefits
  • High compatibility thanks to DALI-2 certification
  • DALI 2.0 interface for dimming and sensor operations
  • Low flicker light thanks to special electronic control gear
  • High luminous efficacy
  • Energy savings of up to 90 % compared to conventional high bay luminaires
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 93.00 W
Nominal voltage 100…277 V
Mains frequency 50…60 Hz
Nominal current 420 mA
Inrush current 41.2 A
Inrush current time Th50 300 µs
Max. number of luminaires per miniature circuit breaker B16 5
Max. number of luminaires per miniature circuit breaker C10 5
Max. number of luminaires per miniature circuit breaker C16 8
Power factor λ ≥0.95
Total harmonic distortion < 20 %
Protection class I
Operating mode Mains voltage

Photometrical data

Luminous flux 13000 lm
Luminous efficacy 140 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra ≥80
Standard deviation of color matching < 5 sdcm
Low flicker Yes
Photobiological safety group acc. to EN62778 RG1
Beam angle 110 °
UGR < 25

Dimensions & Weight

Diameter 280.00 mm
Height 160.00 mm
Product weight 2818.00 g

Materials & Colors

Product color Black
Housing color Black
Body material Aluminum
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -30…+50 °C
Temperature range at storage -40…+70 °C
Type of connection 2 Cables (2-pole/3-pole)
Type of protection IP65
Protection class IK (shock resistance) IK08
Dimmable Yes
Type of dimming DALI
Mounting type Suspended/Surface
Mounting location Ceiling, Wall
Application environment Indoor
Adjustable Yes
LED module replaceable Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 80000 h 1)
Lifespan L80/B10 at 25 °C 50000 h 1)
Lifespan L90/B10 at 25 °C 30000 h
Number of switching cycles 200000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

ECG - Output ripple current < 10 %

Certificates & Standards

Standards CE, CB, ENEC, TÜV SÜD, EAC, EPD
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No
EPD LEDV-00021-V01.01-EN
Product benefits
  • High compatibility thanks to DALI-2 certification
  • DALI 2.0 interface for dimming and sensor operations
  • Low flicker light thanks to special electronic control gear
  • High luminous efficacy
  • Energy savings of up to 90 % compared to conventional high bay luminaires
  • 5 years guarantee
Areas of application
  • Replacement for high bay luminaires with mercury vapor or metal halide lamps
  • Warehouses
  • Logistics halls
  • Industry
  • High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
  • Pre-configured DALI driver included
  • Luminous efficacy: up to 140 lm/W
  • Type of protection: IP65
  • Dimming range (DALI): 10…100 %
Equipment / Accessories
  • Mounting hook and brackets included
  • Reflectors and refractors as separate accessory available
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume

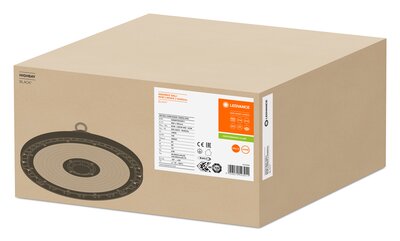

4058075543904 Shipping box
1		 317 mm x 317 mm x 180 mm 3381.00 g 18.09 dm³
User Instruction / Safety Instructions

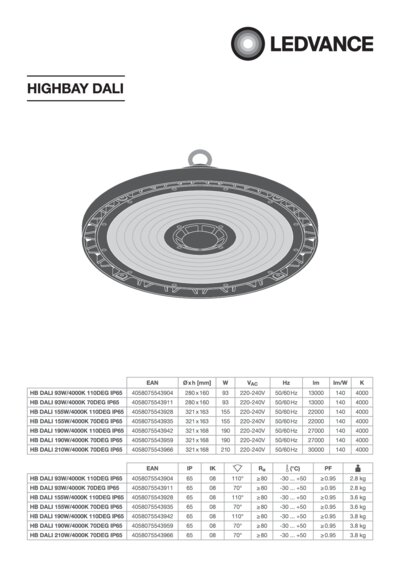

UI_High Bay DALI PDF (2.21 MB)
Legal information

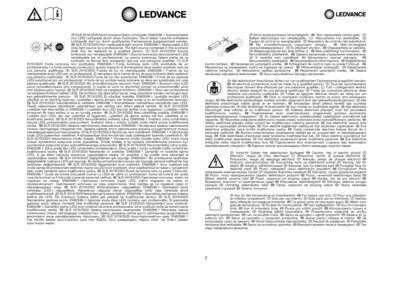

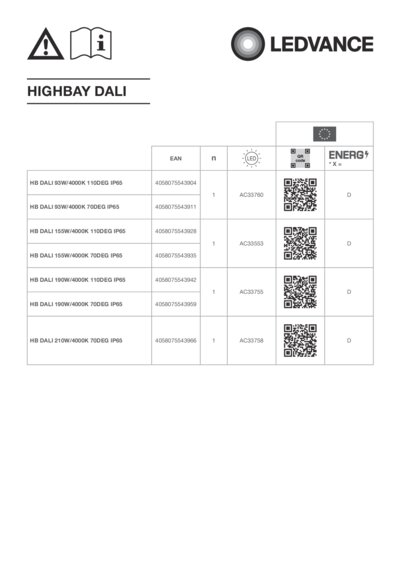

LS Insert HB DALI IP65 PDF (1.11 MB)
Legal information
Legal insert HB DALI PDF (4.88 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity

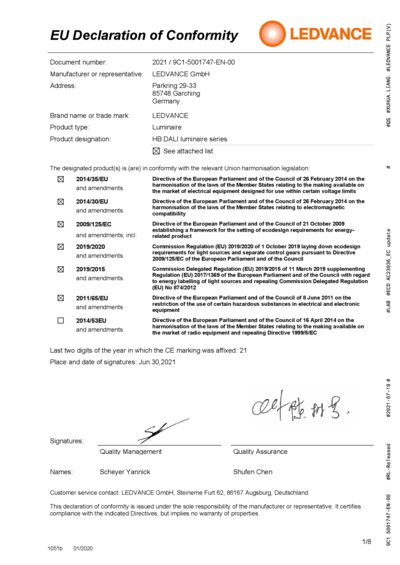

EC Declaration High Ba y DALI PDF (195.31 KB)
EPD

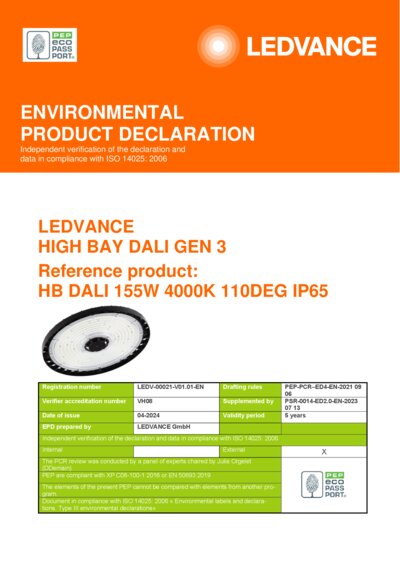

ENVIRONMENTAL PRODUCT DECLARATION HIGH BAY G EN 3 DALI PDF (672.66 KB)

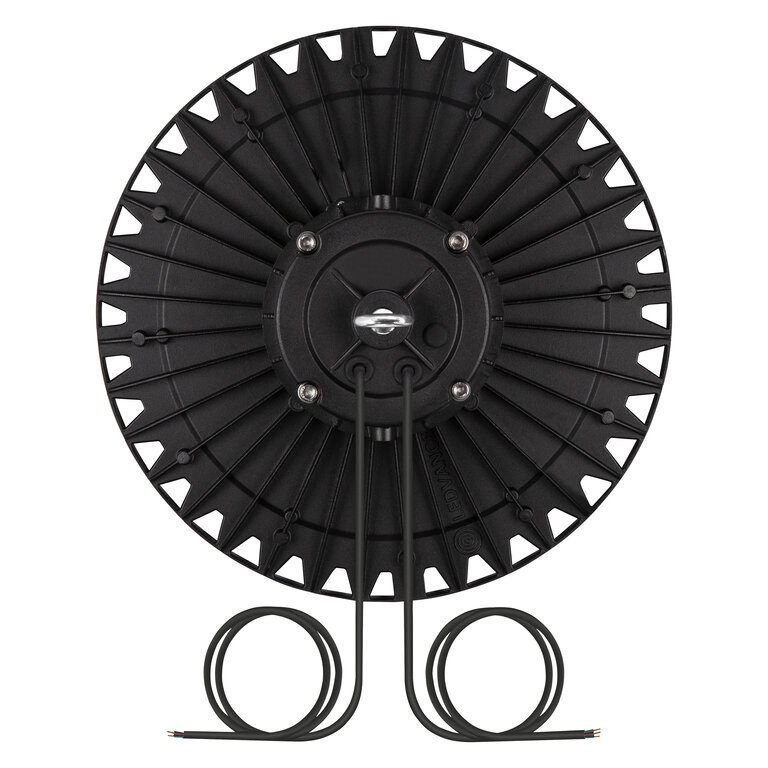

Product Image, Diagonal, White BG
HIGHBAY PERFORMANCE JPG (3.29 MB)
Product Image, Upright, White BG
HIGHBAY PERFORMANCE JPG (3.95 MB)

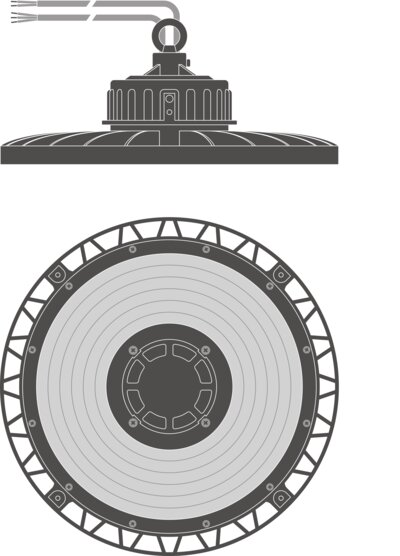

Product line drawing with letters
HB DALI PNG (1.44 MB)

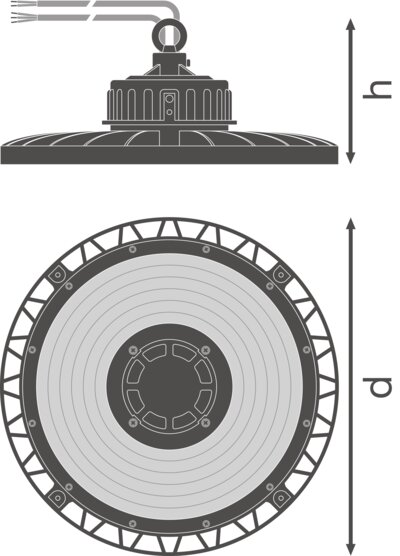

Product line drawing with numbers
HB DALI 93W/4000K SVG (97.75 KB)
Prod.line drw, front, no dimensions
HB DALI PNG (1.41 MB)

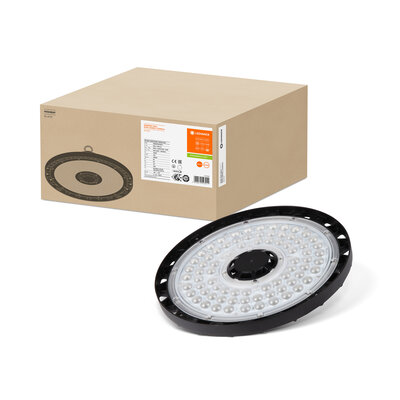

Combo Shot = Product Beauty Shot + Packaging Image
HB DALI 93W-4000K 110D EG IP65 LEDV JPG (2.12 MB)
Packaging image, spacial
HighBay LED 93W MiCh TIF (64.39 MB)
Catalog info 1
HIGHBAY DALI GEN 3 SVG (461.1 KB)
IES file (IES)
HB-DALI-93W-4000K-110D EG-IP65 IES (1.78 KB)
LDT file (Eulumdat)
HB DALI 93W 4000K 110D EG IP65 LDT (1.37 KB)
ULD file (DIALux)
HB DALI 93W-4000K 110D EG ULD (174.08 KB)
ROLF file (RELUX)
HB DALI 93W-4000K ROLF (1.36 MB)

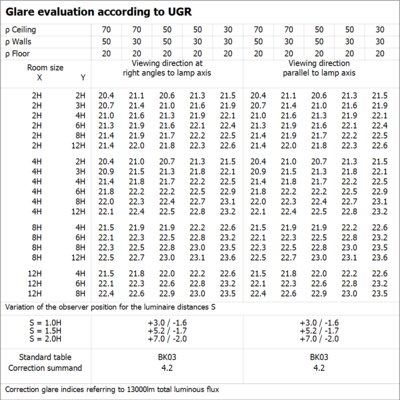

UGR file (UGR table)
HB 93W4000K 110DEG IP6 5 PNG (56.88 KB)
LDC typ cone
HB-DALI-93W-4000K-110D EG-IP65 SVG (11.43 KB)
LDC typ polar
HB-DALI-93W-4000K-110D EG-IP65 SVG (17.23 KB)
BIM_Revit_3D
HB GEN3 ZIP (9.2 MB)
CAD_STEP_3D
HB Gen3 DA 93W STEP (842.35 KB)
Tender documents
HIGH BAY DALI GEN 3 93 W 4000 K 110DEG IP65- EN TXT (2.05 KB)
Application Pictures

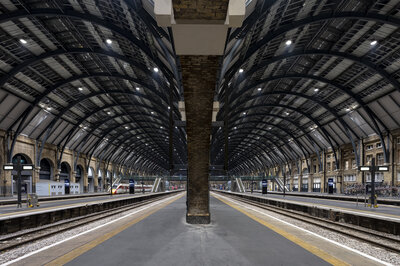

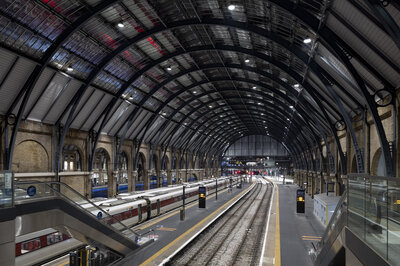

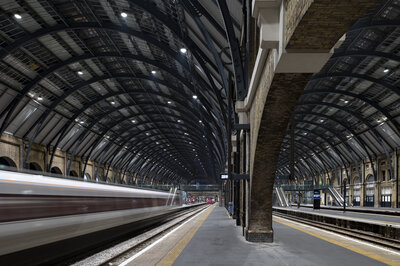

Kings Cross Station Pl atform JPG (11.01 MB)
Application Pictures

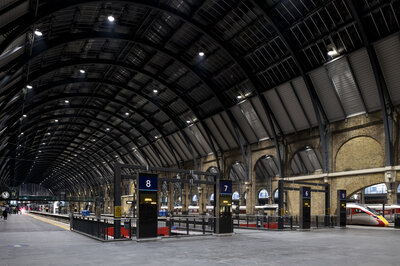

Kings Cross Station Pl atform middle JPG (10.72 MB)
Application Pictures

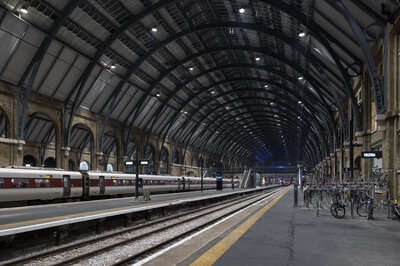

Kings Cross Station JPG (11.29 MB)
Application Pictures
Kings Cross Station JPG (11.61 MB)
Application Pictures

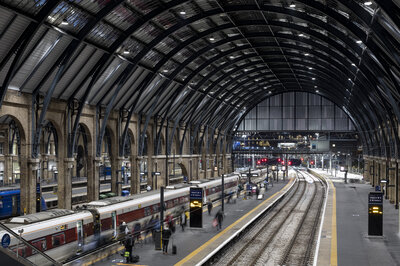

Kings Cross Station Pl atform Train JPG (12.75 MB)
Application Pictures
Kings Cross Station Pl atform JPG (12.71 MB)
Application Pictures
Kings Cross Station Pl atform Train JPG (11.75 MB)
Application Pictures
Kings Cross Station Pl atform Detail JPG (12.59 MB)
Application Pictures
Kings Cross Station Pl atform JPG (10.01 MB)
Application Pictures
Kings Cross Station cr ossover JPG (12.12 MB)
Application Pictures

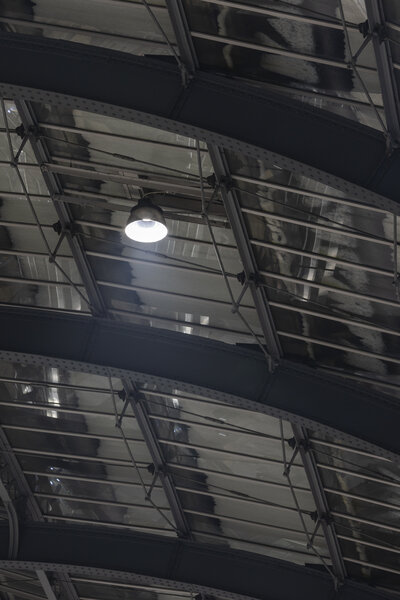

Kings Cross Station ce iling JPG (10.14 MB)
Application Pictures
Kings Cross Station JPG (11.29 MB)
Application Pictures
Kings Cross Station JPG (10.41 MB)
Application Pictures
Kings Cross Station JPG (12.04 MB)
Application Pictures Getty

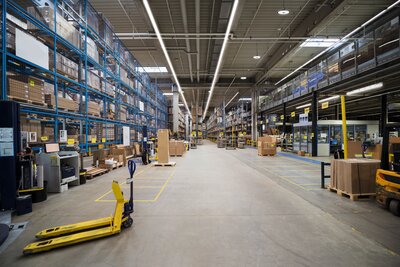

High rack warehouse in factory TIF (51.46 MB)
