Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|
| HB DALI 93 W 4000 K 110DEG IP65 | 93.00 W | 200000 | 110 ° | 13000 lm | Yes |
| HB DALI 93 W 4000 K 70DEG IP65 | 93.00 W | 200000 | 70 ° | 13000 lm | Yes |
| HB DALI 155 W 4000 K 110DEG IP65 | 155.00 W | 200000 | 110 ° | 22000 lm | Yes |
| HB DALI 155 W 4000 K 70DEG IP65 | 155.00 W | 200000 | 70 ° | 22000 lm | Yes |
| HB DALI 190 W 4000 K 70DEG IP65 | 190.00 W | 200000 | 70 ° | 27000 lm | Yes |
| HB DALI 190 W 4000 K 110DEG IP65 | 190.00 W | 200000 | 110 ° | 27000 lm | Yes |
| HB DALI 210 W 4000 K 70DEG IP65 | 210.00 W | 200000 | 70 ° | 30000 lm | Yes |
| Nominal wattage | 190.00 W |
| Nominal voltage | 100…277 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 860 mA |
| Inrush current | 62.0 A |
| Inrush current time Th50 | 374 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 3 |
| Max. number of luminaires per miniature circuit breaker C10 | 3 |
| Max. number of luminaires per miniature circuit breaker C16 | 4 |
| Power factor λ | ≥0.95 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Mains voltage |
| Luminous flux | 27000 lm |
| Luminous efficacy | 140 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 5 sdcm |
| Low flicker | Yes |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 110 ° |
| UGR | < 25 |
| Diameter | 321.00 mm |
| Height | 168.00 mm |
| Product weight | 3768.00 g |
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -30…+50 °C |
| Temperature range at storage | -40…+70 °C |
| Type of connection | 2 Cables (2-pole/3-pole) |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | Yes |
| Type of dimming | DALI |
| Mounting type | Suspended/Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| Adjustable | Yes |
| LED module replaceable | Not replaceable |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 80000 h 1) |
| Lifespan L80/B10 at 25 °C | 50000 h 1) |
| Lifespan L90/B10 at 25 °C | 30000 h |
| Number of switching cycles | 200000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| ECG - Output ripple current | < 10 % |
| Standards | CE, CB, ENEC, TÜV SÜD, EAC, EPD |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Ball shot safe | No |
| EPD | LEDV-00021-V01.01-EN |

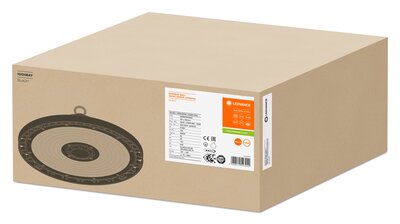

| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075543942 | Shipping box 1 |
357 mm x 357 mm x 184 mm | 4380.00 g | 23.45 dm³ |
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075543942 | 7216242 | 4315692 | 3202872 | 941302460 |
