HIGH BAY DALI GEN 5

Choose your product version

75W 865 70DEG IP66

75W 865 110DEG IP66

75W 840 70DEG IP66

75W 840 110DEG IP66

150W 865 110DEG IP66

150W 865 70DEG IP66

150W 840 70DEG IP66

150W 840 110DEG IP66

200W 865 70DEG IP66

200W 865 110DEG IP66

200W 840 70DEG IP66

200W 840 110DEG IP66

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
HB DA P 75W 865 70DEG IP66 75.00 W 200000 70 ° 13125 lm Yes
HB DA P 75W 865 110DEG IP66 75.00 W 200000 110 ° 13200 lm Yes
HB DA P 75W 840 70DEG IP66 75.00 W 200000 70 ° 13275 lm Yes
HB DA P 75W 840 110DEG IP66 75.00 W 200000 110 ° 13500 lm Yes
HB DA P 150W 865 110DEG IP66 150.00 W 200000 110 ° 26250 lm Yes
HB DA P 150W 865 70DEG IP66 150.00 W 200000 70 ° 26250 lm Yes
HB DA P 150W 840 70DEG IP66 150.00 W 200000 70 ° 26400 lm Yes
HB DA P 150W 840 110DEG IP66 150.00 W 200000 110 ° 26550 lm Yes
HB DA P 200W 865 70DEG IP66 200.00 W 200000 70 ° 35000 lm Yes
HB DA P 200W 865 110DEG IP66 200.00 W 200000 110 ° 35000 lm Yes
HB DA P 200W 840 70DEG IP66 200.00 W 200000 70 ° 35200 lm Yes
HB DA P 200W 840 110DEG IP66 200.00 W 200000 110 ° 36200 lm Yes

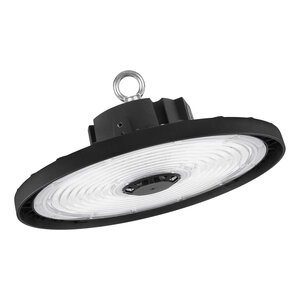

HB DA P 75W 865 70DEG IP66

Product benefits
  • Improved UGR compared to previous generations, down to UGR ≤ 19 (<150W, 70°) in combination with reflector
  • High luminous efficacy
  • Energy savings of up to 70 % compared to conventional high bay luminaires
  • Optimized weight and size due to compact design
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 75.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 335.000 mA
Inrush current 16.6 A
Inrush current time Th50 244 µs
Max. number of luminaires per miniature circuit breaker B16 15
Max. number of luminaires per miniature circuit breaker C10 12
Max. number of luminaires per miniature circuit breaker C16 19
Power factor λ > 0.95
Total harmonic distortion < 15 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 13125 lm
Luminous efficacy 175 lm/W
Color temperature 6500 K
Light color (designation) Cool Daylight
Color rendering index Ra ≥80
Standard deviation of color matching ≤4 sdcm
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0,4
Photobiological safety group acc. to EN62778 RG1
Beam angle 70 °

Dimensions & Weight

Diameter 280.00 mm
Height 161.00 mm
Product weight 2600.00 g
Cable length 1500 mm

Materials & Colors

Product color Black
Housing color Black
Body material Aluminum
Cover material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -30…+50 °C
Temperature range at storage -40…+80 °C
Type of connection Cable, 3-pole
Type of protection IP66
Protection class IK (shock resistance) IK10
Dimmable Yes
Type of dimming DALI2
Mounting type Surface/Suspended
Mounting location Ceiling, Wall
Application environment Indoor
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 120000 h 1)
Lifespan L80/B10 at 25 °C 100000 h 1)
Lifespan L90/B10 at 25 °C 49000 h
Number of switching cycles 200000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Nominal output current 305 mA
Output current 305 mA
ECG - Output ripple current < 5 %

Certificates & Standards

Standards CE, UKCA, EAC, CB, ENEC, TÜV SÜD, EPD
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No
EPD LEDV-00032-V01.01-EN
Replaceable light source (EPREL) Not replaceable

Additional product data

Added function VIVARES

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Improved UGR compared to previous generations, down to UGR ≤ 19 (<150W, 70°) in combination with reflector
  • High luminous efficacy
  • Energy savings of up to 70 % compared to conventional high bay luminaires
  • Optimized weight and size due to compact design
Areas of application
  • Replacement for high bay luminaires with mercury vapor or metal halide lamps
  • Warehouses, logistic halls
  • Industry
  • High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
  • DALI versions with IoT-ready DALI-2 driver
  • Different luminous flux and beam angle for mounting heights of ~ 6 m to 18 m in 4000 K or 6500 K
  • Dimming range (DALI): 10…100 %
  • Lifetime (L80/B10): up to 100,000 h (at 35 °C)
Equipment / Accessories
  • Mounting hook included
  • Mounting brackets, reflectors and refractors available as separate accessory
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075844469 Shipping box
1		 328 mm x 328 mm x 171 mm 3208.00 g 18.40 dm³
Product image Product name EAN
HB BRACKET 138 4058075844643

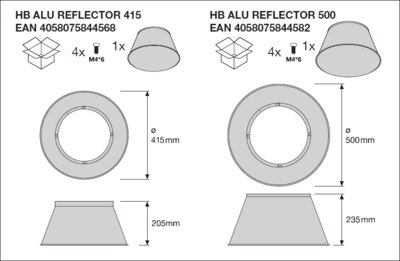

HB ALU REFLECTOR 415 4058075844568

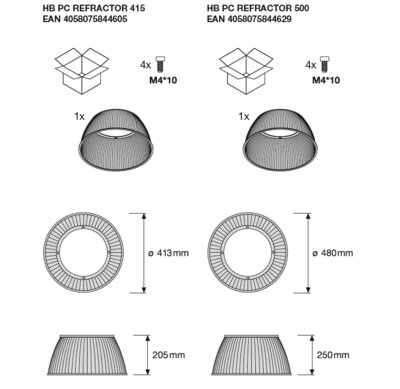

HB PC REFRACTOR 415 4058075844605

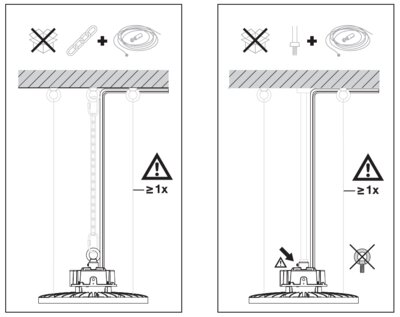

User instruction / safety instructions
HB ACC PDF (13.02 MB)
Legal information

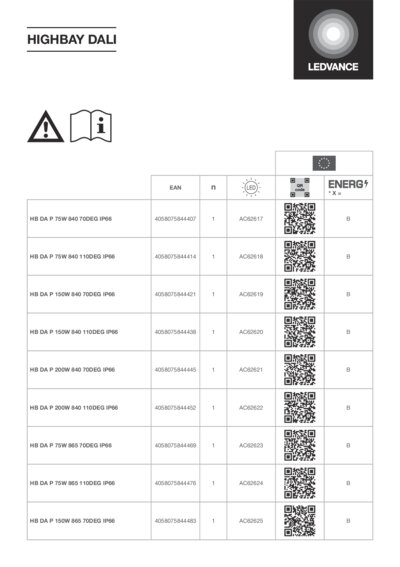

HB DA P PDF (2.23 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information

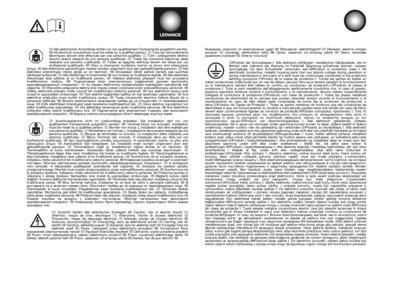

Safety Insert G1120549 6 PDF (364.68 KB)
Declarations of conformity

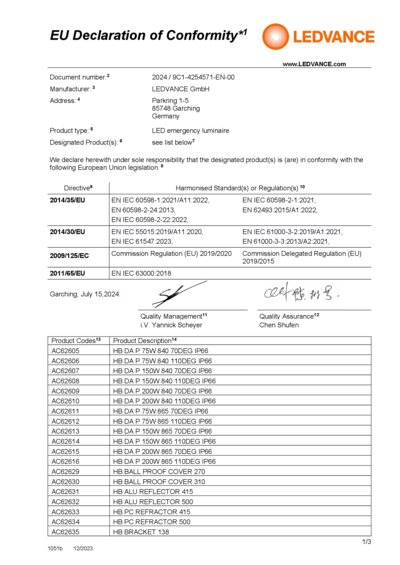

HIGHBAY DALI P PDF (238.59 KB)
Certificates

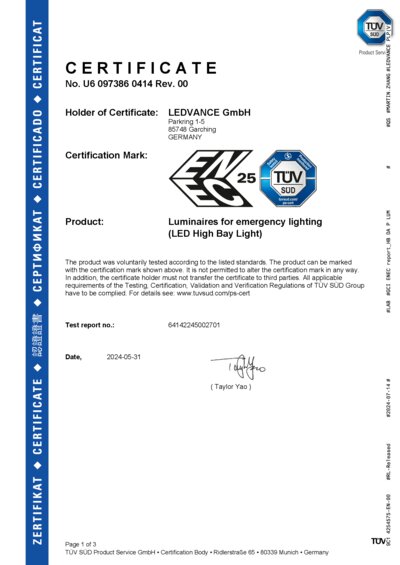

ENEC HIGHBAY P DALI PDF (418.43 KB)

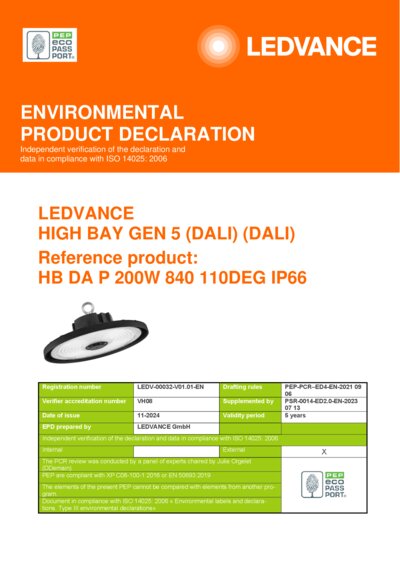

EPD
HIGH BAY GEN 5 DALI PDF (670.25 KB)

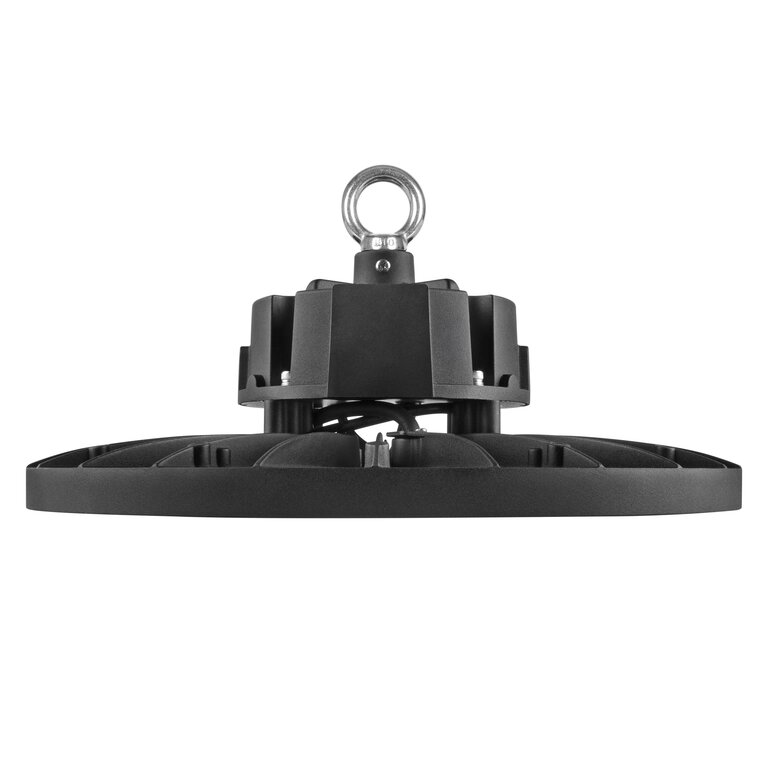

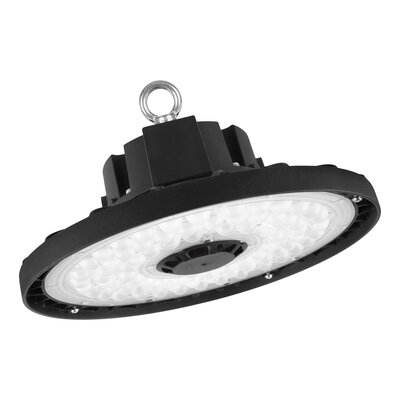

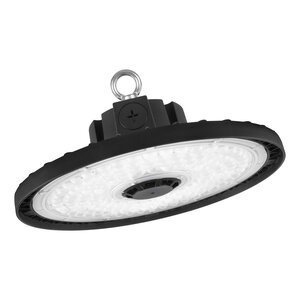

Product image: white background, diagonal

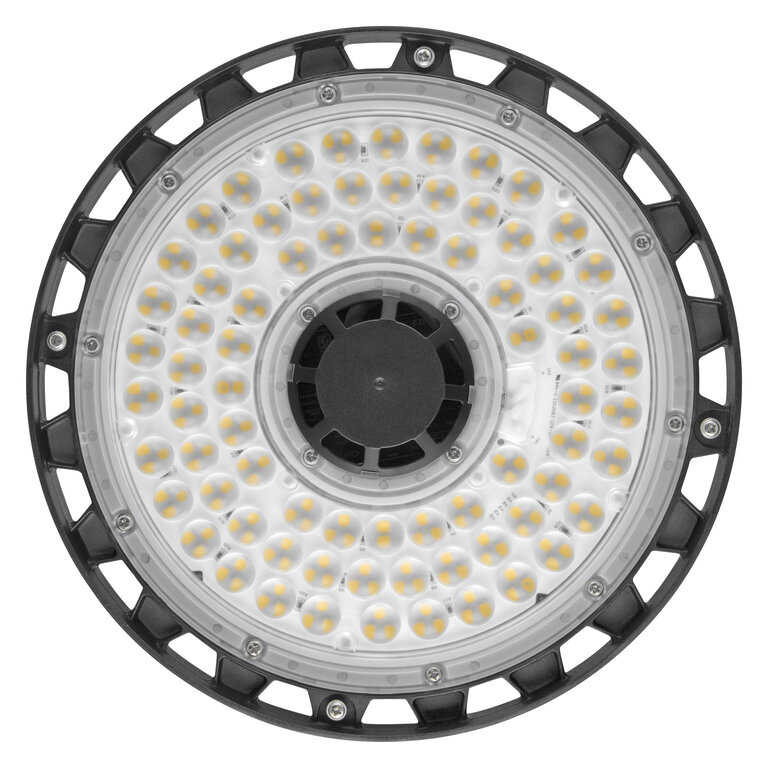

HB P 75W 840 70DEG IP6 6 PS JPG (1.71 MB)
Product image: white background, upright
HB P 75W 840 70DEG IP6 6 PS JPG (3.37 MB)
Product line drawing with numbers
HB P SVG (138.68 KB)
Product line drawing - technical
HB P SVG (133.45 KB)
Product line drawing - technical
HB P SVG (130.6 KB)
Combo Shot = Product Beauty Shot + Packaging Image

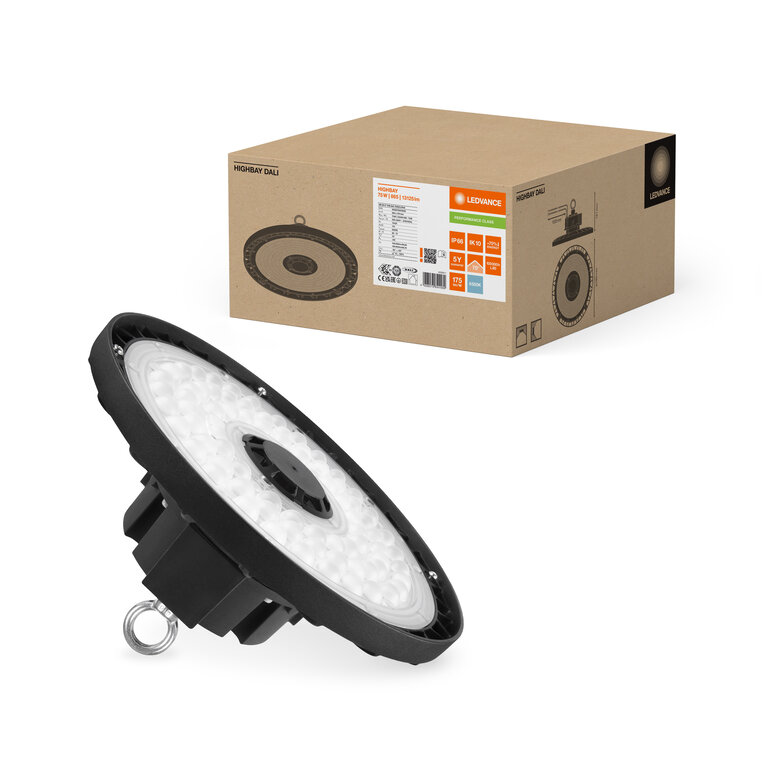

HB DA P 75W 865 70DEG IP66 JPG (1.41 MB)
Packaging image, frontal
HB DA P 75W 865 70DEG IP66 JPG (1.18 MB)

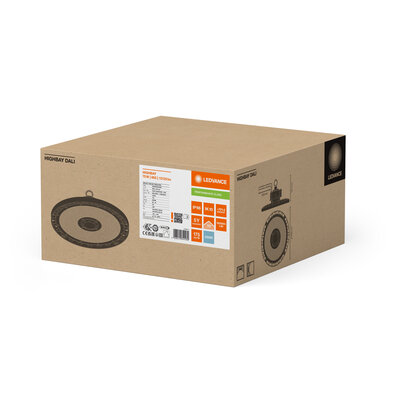

Packaging image, spacial
HB DA P 75W 865 70DEG IP66 JPG (1.33 MB)
Catalog info 2
HB P IP66 PNG (65.11 KB)
Catalog info 3
HB P IP66 PNG (91.54 KB)
Catalog info 4
HB P IP66 PNG (76.87 KB)
Catalog info 5
HB P IP66 PNG (115.41 KB)
IES file (IES)
HB DA P 75W 865 70DEG IP66 IES (1.77 KB)
IES file (IES)
HB DA P 75W 865 70DEG IP66 WITH REFLECTOR IES (3.28 KB)
IES file (IES)
HB DA P 75W 865 70DEG IP66 WITH REFRACTOR IES (3.29 KB)
LDT file (Eulumdat)
HB DA P 75W 865 70DEG IP66 LDT (1.48 KB)
LDT file (Eulumdat)
HB DA P 75W 865 70DEG IP66 WITH REFLECTOR LDT (2.9 KB)
LDT file (Eulumdat)
HB DA P 75W 865 70DEG IP66 WITH REFRACTOR LDT (2.92 KB)
ULD file (DIALux)
HB DA P 75W 865 70DEG IP66 ULD (138.75 KB)
ROLF file (RELUX)
HB DA P 75W 865 70DEG IP66 ROLF (840.37 KB)

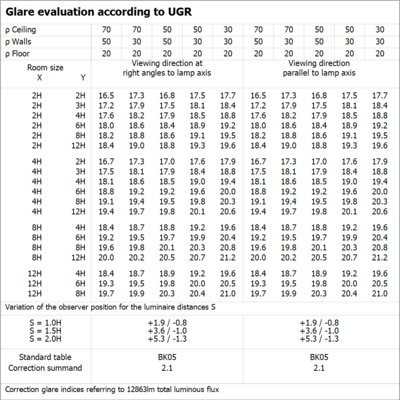

UGR file (UGR table)
HB DA P 75W 865 70DEG IP66 PNG (56.13 KB)
UGR file (UGR table)
HB DA P 75W 865 70DEG IP66 WITH REFLECTOR PNG (55.35 KB)
UGR file (UGR table)
HB DA P 75W 865 70DEG IP66 WITH REFRACTOR PNG (56.41 KB)
Light distribution curve type cone
HB DA P 75W 865 70DEG IP66 SVG (11.44 KB)
Light distribution curve type cone
HB DA P 75W 865 70DEG IP66 WITH REFLECTOR SVG (11.44 KB)
Light distribution curve type cone
HB DA P 75W 865 70DEG IP66 WITH REFRACTOR SVG (11.44 KB)
Light distribution curve type polar
HB DA P 75W 865 70DEG IP66 SVG (17.79 KB)
Light distribution curve type polar
HB DA P 75W 865 70DEG IP66 WITH REFLECTOR SVG (17.59 KB)
Light distribution curve type polar
HB DA P 75W 865 70DEG IP66 WITH REFRACTOR SVG (17.2 KB)
BIM Revit 3D
High Bay G5 ZIP (2.39 MB)
CAD STEP 3D
HB G5 75W STEP (1.09 MB)
Tender documents
HIGH BAY DALI GEN 5 75 W 865 70DEG IP66-EN TXT (2.34 KB)
Application pictures Getty
High Bay Gen 5 industr ial hall JPG (16 MB)
EAN SEG number
4058075844469 7220096
