Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|

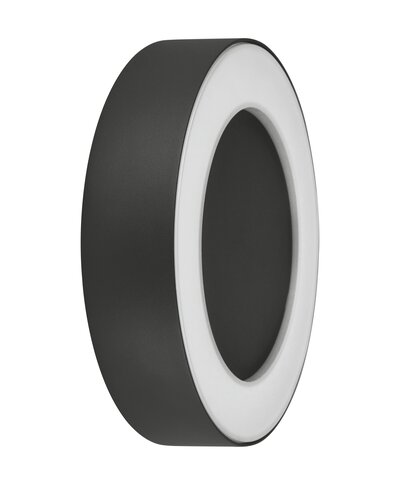

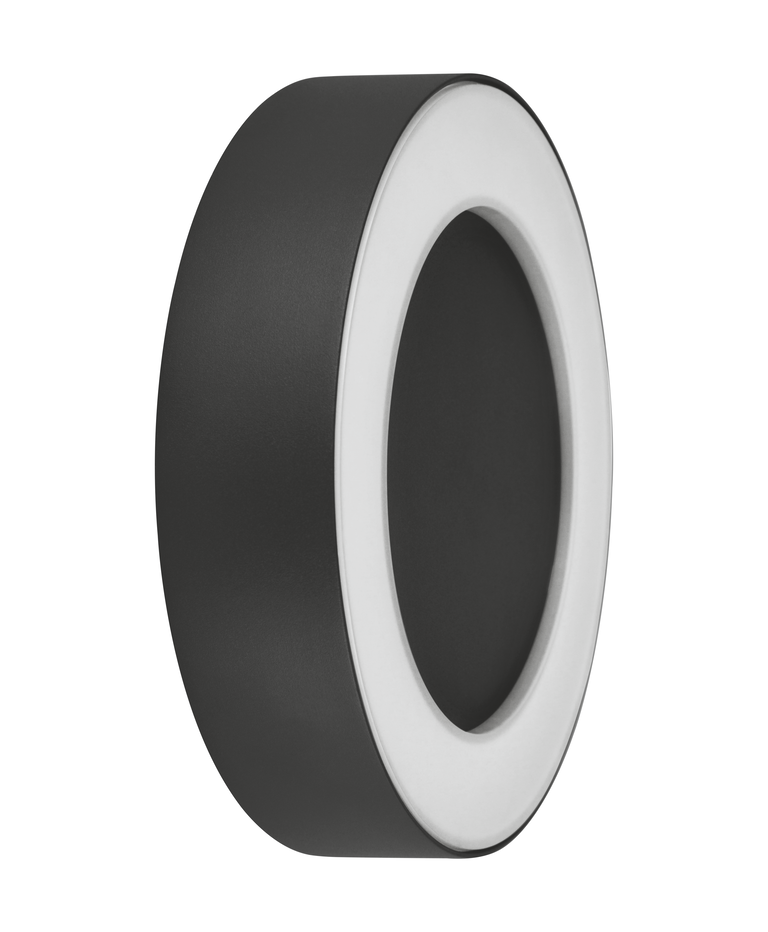

| O SURFACE RD 13 W 3000 K IP54 GY | 13.00 W | 15000 | 100 ° | 480 lm | No |

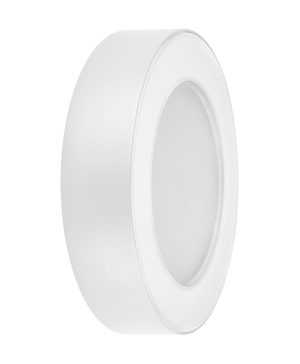

| O SURFACE RD 13 W 3000 K IP54 WT | 13.00 W | 15000 | 100 ° | 600 lm | No |
| Nominal wattage | 13.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 63 mA |
| Max. number of luminaires per miniature circuit breaker B16 | 75 |
| Max. number of luminaires per miniature circuit breaker C10 | 96 |
| Max. number of luminaires per miniature circuit breaker C16 | 60 |
| Power factor λ | > 0.5 |
| Protection class | I |
| Operating mode | Mains voltage |
| Luminous flux | 480 lm |
| Luminous efficacy | 35 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 100 ° |
| Diameter | 202.00 mm |
| Height | 45.00 mm |
| Product weight | 770.00 g |
| Product color | Gray |
| Housing color | Gray |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Type of connection | Screw terminal, 3-Pole |
| Type of protection | IP54 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Outdoor |
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Standards | CE |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
| BEG eligible | No |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075074897 | Folding box 1 |
65 mm x 237 mm x 228 mm | 830.00 g | 3.51 dm³ |
| 4058075074903 | Shipping box 6 |
470 mm x 255 mm x 215 mm | 5254.00 g | 25.77 dm³ |
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075074897 | 7703489 | 4567422 | 3201717 | 941301260 |
