Professional

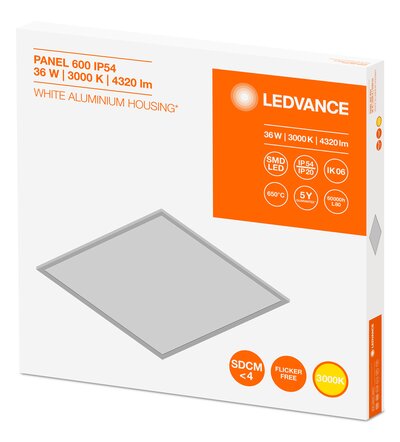

PANEL 600 IP54

Choose your product version

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
PANEL 600 IP54 36 W 3000 K OP WT 36.00 W 25000 120 ° 4320 lm No
PANEL 600 IP54 36 W 3000 K OP WT DALI 36.00 W 25000 120 ° 4320 lm Yes
PANEL 600 IP54 36 W 4000 K OP WT 36.00 W 25000 120 ° 4320 lm No


PANEL 600 IP54 36 W 3000 K OP WT

Product benefits
  • Suitable for use in dusty and damp locations thanks to high IP rating
  • High lumen output reduces the total number of panels per installation
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
  • Versions with DALI ECG available

PRODUCT DETAILS

Electrical data

Nominal wattage 36.00 W
Nominal voltage 220…240 V
Mains frequency 50/60 Hz
Nominal current 190.000 mA
Inrush current 15.0 A
Inrush current time Th50 460 µs
Max. number of luminaires per miniature circuit breaker B16 17
Max. number of luminaires per miniature circuit breaker C10 35
Max. number of luminaires per miniature circuit breaker C16 56
Power factor λ > 0.90
Total harmonic distortion 20 %
Protection class II
Operating mode External LED driver

Photometrical data

Luminous flux 4320 lm
Luminous efficacy 120 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching 3 sdcm
Luminous intensity -
Low flicker Yes
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °

Dimensions & Weight

Length 595.00 mm
Height 12.60 mm
Width 595.00 mm
Product weight 3200.00 g

Materials & Colors

Product color White
Housing color White
Body material Steel
Cover material Polymethylmethacrylate (PMMA)
Light emitting surface material PMMA
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -10…+45 °C
Type of connection Screw terminal, 2-Pole (L,N)
Type of protection IP54/IP20
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Recessed/Suspended/Surface
Mounting location Ceiling, Wall
Application environment Indoor
Mounting length 575 mm
Mounting width 575 mm
Mounting depth 50,0 mm
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 70000 h 1)
Lifespan L80/B10 at 25 °C 60000 h 1)
Lifespan L90/B10 at 25 °C 35000 h
Number of switching cycles 25000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

ECG - Length 150 mm
ECG - Width 41.4 mm
ECG - Height 30 mm

Certificates & Standards

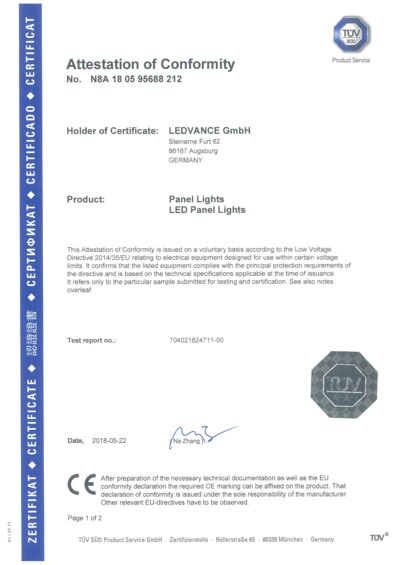

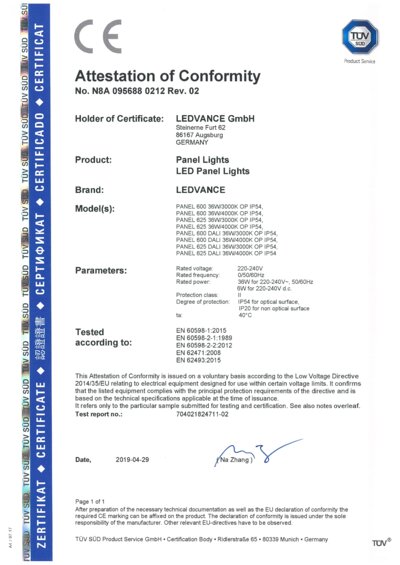

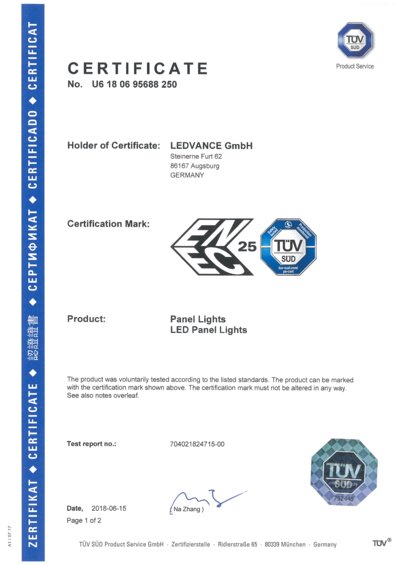

Standards CE, CB, ENEC, TÜV SÜD, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Suitable for use in dusty and damp locations thanks to high IP rating
  • High lumen output reduces the total number of panels per installation
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
  • Versions with DALI ECG available
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Hospitals
  • Laboratories
  • Suitable for recessed ceiling systems with grid size of 600 x 600 mm
  • Kitchens, workspaces
Product features
  • Type of protection: IP54
  • Luminous flux: up to 4,320 lm
  • High luminous efficacy: up to 120 lm/W
  • Lifetime (L80/B50): up to 60,000 h (at 25 °C)
  • Aluminum housing, PMMA diffuser
Equipment / Accessories
  • Accessories for several mounting options available
  • External control gear included
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075149489 Folding box
1
625 mm x 62 mm x 635 mm 3495.00 g 24.61 dm³
4058075149496 Shipping box
4
650 mm x 270 mm x 645 mm 14830.00 g 113.20 dm³
Product image Product name EAN
CONNECTOR BOX 5POLE L/N 4x 4058075473010
PANEL RECESSED MOUNT CLIPS VAL 4x 4058075409859
PANEL 600 RECESSED MOUNT FRAME 4058075402881
PANEL 600 SURFACE MOUNT KIT H70 VAL 4058075402843
PANEL 600 SURFACE MOUNT KIT H75 4058075472914
PANEL Suspension Kit 4058075402928
EAN SEG number STK number EFO number ELDAS number
4058075149489 7016100 4231928 3201683 941400360
