Professional
PANEL 600 IP54

PANEL 600 IP54

Choose your product version

36 W 3000 K OP WT DALI

36 W 3000 K OP WT

36 W 4000 K OP WT

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
PANEL 600 IP54 36 W 3000 K OP WT DALI 36.00 W 25000 120 ° 4320 lm Yes
PANEL 600 IP54 36 W 3000 K OP WT 36.00 W 25000 120 ° 4320 lm No
PANEL 600 IP54 36 W 4000 K OP WT 36.00 W 25000 120 ° 4320 lm No


PANEL 600 IP54 36 W 3000 K OP WT DALI

Product benefits
  • Suitable for use in dusty and damp locations thanks to high IP rating
  • High lumen output reduces the total number of panels per installation
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
  • Versions with DALI ECG available
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 36.00 W
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 190.000 mA
Inrush current 23 A
Inrush current time Th50 200 µs
Max. number of luminaires per miniature circuit breaker B16 23
Max. number of luminaires per miniature circuit breaker C10 23
Max. number of luminaires per miniature circuit breaker C16 38
Power factor λ > 0.90
Total harmonic distortion ≤ 20 %
Protection class II
Operating mode External LED driver

Photometrical data

Luminous flux 4320 lm
Luminous efficacy 120 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra ≥80
Standard deviation of color matching 3 sdcm
Luminous intensity -
Low flicker Yes
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °

Dimensions & Weight

Length 595.00 mm
Height 12.60 mm
Width 595.00 mm
Product weight 3200.00 g

Materials & Colors

Product color White
Housing color White
Body material Steel
Cover material Polymethylmethacrylate (PMMA)
Light emitting surface material PMMA
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -10…+40 °C
Type of connection Screwless terminal, 5-Pole
Type of protection IP54/IP20
Protection class IK (shock resistance) IK03
Dimmable Yes
Type of dimming DALI
Mounting type Recessed/Suspended/Surface
Mounting location Ceiling, Wall
Application environment Indoor
Mounting length 575 mm
Mounting width 575 mm
Mounting depth 50,0 mm
LED module replaceable Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 80000 h 1)
Lifespan L80/B10 at 25 °C 60000 h 1)
Lifespan L90/B10 at 25 °C 35000 h
Number of switching cycles 25000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

ECG - Length 150 mm
ECG - Width 43 mm
ECG - Height 30 mm

Certificates & Standards

Standards CE, CB, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Product benefits
  • Suitable for use in dusty and damp locations thanks to high IP rating
  • High lumen output reduces the total number of panels per installation
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
  • Versions with DALI ECG available
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Hospitals
  • Laboratories
  • Suitable for recessed ceiling systems with grid size of 600 x 600 mm
  • Kitchens, workspaces
Product features
  • Type of protection: IP54
  • Luminous flux: up to 4,320 lm
  • High luminous efficacy: up to 120 lm/W
  • Lifetime (L80/B50): up to 60,000 h (at 25 °C)
  • Aluminum housing, PMMA diffuser
Equipment / Accessories
  • Accessories for several mounting options available
  • External control gear included
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075217720 Folding box
1		 650 mm x 62 mm x 650 mm 3510.00 g 26.20 dm³
4058075217737 Shipping box
4		 665 mm x 270 mm x 670 mm 14950.00 g 120.30 dm³
Product image Product name EAN
PANEL 600 RECESSED MOUNT FRAME 4058075402881
PANEL Suspension Kit 4058075402928
PANEL 600 SURFACE MOUNT KIT H70 VAL 4058075402843
PANEL RECESSED MOUNT CLIPS VAL 4x 4058075409859
CONNECTOR BOX 5POLE L/N/PE/D+/D- 4x 4058075473034
PANEL 600 SURFACE MOUNT KIT H75 4058075472914
User Instruction / Safety Instructions

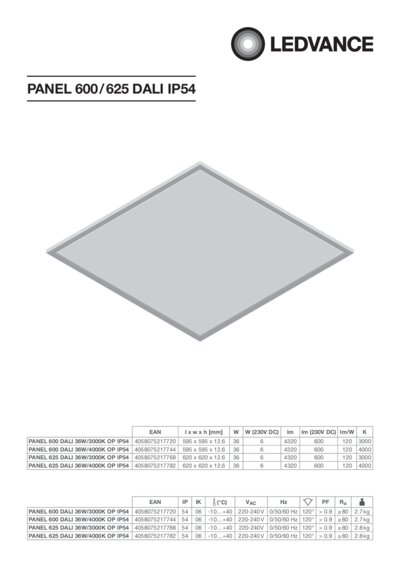

PANEL 600 / 625 DALI I P54 PDF (3.13 MB)
Legal information

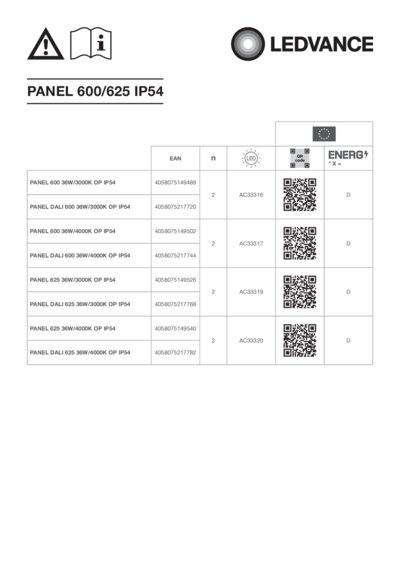

LSI PANEL AND PANEL DA LI PDF (2.67 MB)
Legal information
Legal insert DL UGR19 PFM PDF (5.32 MB)
Declarations of conformity
Attestation of conform ity PANEL PDF (663.88 KB)
Product Image, Upright, White BG
707938_LEDVANCE Panel LED 600 TIF (83.03 MB)
Product line drawing with letters
PANEL 600 IP54 SVG (10.93 KB)
Product line drawing with numbers
PANEL 600 IP54 SVG (21.77 KB)
Product line drawing - technical
PANEL 600 IP54 SVG (3.5 KB)

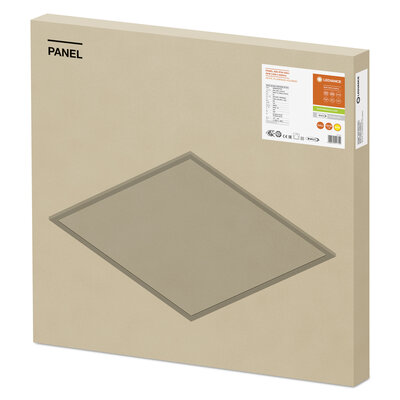

Packaging image, spacial
Panel LED 600 DALI 830 white MiCh Side TIF (2.56 MB)
Catalog info 1
Panel LED 600 625 DALI SVG (97.8 KB)
Catalog info 2
Panel LED 600 625 DALI SVG (137.88 KB)
IES file (IES)
Panel DALI 600 36W 300 0K OP IP54 IES (5.41 KB)
LDT file (Eulumdat)
Panel DALI 600 36W 300 0K OP IP54 LDT (5.25 KB)
ULD file (DIALux)
PL DALI 600 36W-3000K OP IP54 ULD (73.73 KB)
UGR file (UGR table)
Panel DALI 600 36W 300 0K OP IP54 PNG (57.92 KB)
LDC typ cone
Panel DALI 600 36W 300 0K OP IP54 SVG (88.84 KB)
LDC typ polar
Panel DALI 600 36W 300 0K OP IP54 SVG (322.9 KB)
BIM_Revit_3D
Panel IP54 ZIP (823.99 KB)
CAD_STEP_3D
PL IP54 600 STEP (35.92 KB)
Tender documents
PANEL 600 IP54 36 W 30 00 K OP WT DALI-EN TXT (1.57 KB)
Application Pictures
Tirol Kliniken 2019 10 JPG (21.04 MB)
Application Pictures
Tirol Kliniken 2019 9 JPG (14.91 MB)
EAN SEG number STK number EFO number ELDAS number
4058075217720 7016864 4246004 3000654 941401400
