PANEL PERFORMANCE 1200

PANEL PERFORMANCE 1200

Choose your product version

40 W 3000 K WT

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
PANEL 1200 40 W 3000 K WT 40.00 W 25000 120 ° 4000 lm No


PANEL 1200 40 W 3000 K WT

Product benefits
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
  • External driver for extended flexibility
  • Light guide plate with micro structure made of non-yellowing material for long lifetime
  • Easy and quick installation
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 40.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 1200.000 mA
Max. number of luminaires per miniature circuit breaker B16 24
Max. number of luminaires per miniature circuit breaker C10 21
Max. number of luminaires per miniature circuit breaker C16 34
Power factor λ > 0.95
Total harmonic distortion ≤ 20 %
Protection class II
Operating mode External LED driver

Photometrical data

Luminous flux 4000 lm
Luminous efficacy 100 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching 5 sdcm
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °

Dimensions & Weight

Length 1195.00 mm
Height 10.50 mm
Width 295.00 mm
Product weight 3000.00 g

Materials & Colors

Product color White
Housing color White
Body material Steel
Cover material Polystyrene (PS)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -10…+45 °C
Type of connection Terminal, 2-Pole (L, N)
Type of protection IP20
Protection class IK (shock resistance) IK06
Dimmable No
Mounting type Recessed/Suspended/Surface
Mounting location Ceiling, Wall
Application environment Indoor
Mounting length 1175 mm
Mounting width 275 mm
Mounting depth 50,0 mm
LED module replaceable Not replaceable

Lifespan

Lifespan L70/B50 at 25 °C 60000 h 1)
Lifespan L80/B10 at 25 °C 40000 h 1)
Lifespan L90/B10 at 25 °C 20000 h
Number of switching cycles 25000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Recommended control gear OTI DALI 50/220…240/1A4LT2FAN (EAN: 4052899919433)

Certificates & Standards

Standards CE, CB, TÜV SÜD, EAC, RoHS
Ball shot safe No
Product benefits
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
  • External driver for extended flexibility
  • Light guide plate with micro structure made of non-yellowing material for long lifetime
  • Easy and quick installation
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Corridors
  • Offices
  • Conference rooms
  • Reception areas
  • Foyers
  • Elevators
  • Suitable for recessed ceiling systems with grid size of 300 x 1200 mm
Product features
  • High luminous efficacy: up to 100 lm/W
  • Lifetime (L80/B10): up to 40,000 h (at 25 °C)
  • Aluminum housing, polystyrene diffuser
Equipment / Accessories
  • Accessories for several mounting options available
  • External control gear included
  • Not suitable for use with Emergency Conversion Box
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075321809 Folding box
1		 330 mm x 1,285 mm x 43 mm 3718.00 g 18.23 dm³
4058075321816 Shipping box
4		 1,295 mm x 180 mm x 355 mm 15771.00 g 82.75 dm³
Product image Product name EAN
PANEL 1200 X 300 SURFACE MOUNT KIT VAL 4058075472952
CONNECTOR BOX 5POLE L/N/PE/D+/D- 4x 4058075473034
EM CONVERSION BOX 4058075237025
PANEL 1200 Surface Mount Kit 4058075108820
PANEL 1200 Security Bracket 4058075108882
CONNECTOR BOX 5POLE L/N 4x 4058075473010
PANEL 1200x300 RECESSED MOUNT FRAME 4058075472976
PANEL RECESSED MOUNT CLIPS VAL 4x 4058075409859
Extended installation guide
User Instruction Panel LED PDF (2.9 MB)
On-Pack-Info
Legal Insert Panel PDF (226.51 KB)
Declarations of conformity
CE Panel 1200 625 PDF (736.38 KB)
Product Image, Diagonal, White BG
Panel LED 1200 perspec tive RGB TIF (4.17 MB)
Product line drawing with letters
LEDVANCE Panel LED 120 0 ml SVG (9.74 KB)
Product line drawing with letters
Panel LED 1200 ml k SVG (9.74 KB)
Product line drawing with numbers
LEDVANCE Panel LED 120 0 mn SVG (9.69 KB)
Product line drawing with numbers
Panel LED 1200 mn k SVG (9.69 KB)
Prod.line drw, front, no dimensions
Panel LED 1200 k SVG (3.95 KB)
Prod.line drw, front, no dimensions
LEDVANCE Panel LED 120 0 SVG (3.95 KB)

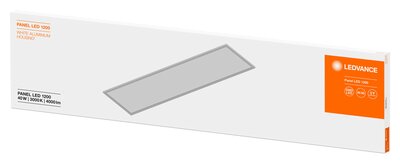

Packaging image, spacial
Panel LED 1200 white M iCh TIF (317.71 MB)
IES file (IES)
Panel LED 1200 40W 300 0K 230V IES (1.14 KB)
LDT file (Eulumdat)
Panel LED 1200 40W 300 0K 230V LDT (1.27 KB)
UGR file (UGR table)
Panel LED 1200 40W 300 0K 230V PNG (59.88 KB)
LDC typ cone
Panel LED 1200 40W 300 0K 230V SVG (89.37 KB)
LDC typ cone
4058075807327 Panel LE D 1200 40W 3000K 230V SVG (83.3 KB)
LDC typ polar
4058075807327 Panel LE D 1200 40W 3000K 230V SVG (318.55 KB)
LDC typ polar
Panel LED 1200 40W 300 0K 230V SVG (320.29 KB)
Application Pictures
LUMINAIRE COMPOSING B2 B ratio 16 to 9 PSD (32.55 MB)
Application Pictures
2019 EHH car center ca se study No:1 from 29 JPG (14.2 MB)
Application Pictures
2019 EHH car center ca se study No:20 from 29 JPG (13.88 MB)
Application Pictures
2019 EHH car center ca se study No:21 from 29 JPG (7.97 MB)
Application Pictures
2019 EHH car center ca se study No:2 from 29 JPG (12.27 MB)
Application Pictures
2019 EHH car center ca se study No:22 from 29 JPG (12.24 MB)
EAN SEG number STK number EFO number ELDAS number
4058075321809 7017780 4266686 3000673 941401300
