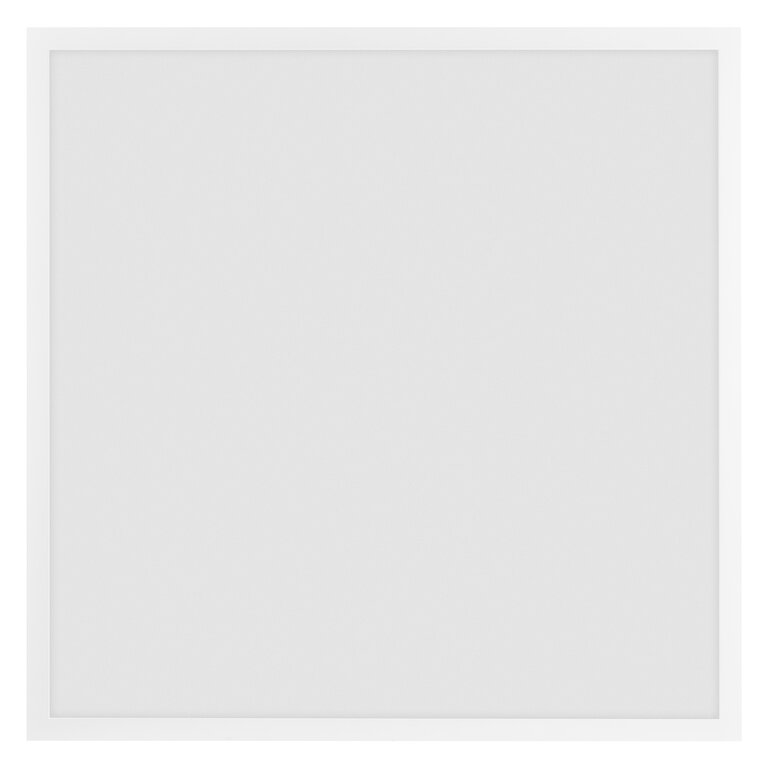

PANEL PERFORMANCE 600 UGR < 19

PANEL PERFORMANCE 600 UGR < 19

Choose your product version

33 W 3000 K WT

33 W 4000 K WT

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
PANEL PFM 600 UGR < 19 33 W 3000 K WT 33.00 W 25000 90 ° 3100 lm No
PANEL PFM 600 UGR < 19 33 W 4000 K WT 33.00 W 25000 90 ° 3600 lm No


PANEL PFM 600 UGR < 19 33 W 3000 K WT

Product benefits
  • Good glare reduction (UGR < 19)
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
  • External driver for extended flexibility
  • Light guide plate with micro structure made of non-yellowing material for long lifetime
  • Easy and quick installation
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 33.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 170 mA
Inrush current 15.6 A
Inrush current time Th50 156 µs
Max. number of luminaires per miniature circuit breaker B16 38
Max. number of luminaires per miniature circuit breaker C10 30
Max. number of luminaires per miniature circuit breaker C16 49
Power factor λ ≥0.95
Total harmonic distortion < 7 %
Protection class II
Operating mode External LED driver

Photometrical data

Luminous flux 3100 lm
Luminous efficacy 100 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra ≥80
Standard deviation of color matching 5 sdcm
Low flicker Yes
Photobiological safety group acc. to EN62778 RG0
Beam angle 90 °
UGR < 19

Dimensions & Weight

Length 595.00 mm
Height 9.00 mm
Width 595.00 mm
Product weight 2050.00 g

Materials & Colors

Product color White
Housing color White
Body material Steel
Cover material Polystyrene (PS)
Light emitting surface material Polystyrene
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -10…+45 °C
Type of connection Cable, 3-pole
Type of protection IP20
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Recessed/Suspended/Surface
Mounting location Ceiling, Wall
Application environment Indoor
Mounting length 591 mm
Mounting width 591 mm
Mounting depth 50,0 mm
LED module replaceable Not replaceable

Lifespan

Lifespan L70/B50 at 25 °C 80000 h 1)
Lifespan L80/B10 at 25 °C 60000 h 1)
Lifespan L90/B10 at 25 °C 35000 h
Number of switching cycles 25000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

ECG - Output ripple current < 5 %

Certificates & Standards

Standards CE, CB, TÜV SÜD, EAC, RoHS
Ball shot safe No
Product benefits
  • Good glare reduction (UGR < 19)
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
  • External driver for extended flexibility
  • Light guide plate with micro structure made of non-yellowing material for long lifetime
  • Easy and quick installation
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Corridors
  • Offices
  • Conference rooms
  • Reception areas
  • Foyers
  • Elevators
  • Suitable for recessed ceiling systems with grid size of 600 x 600 mm
Product features
  • High luminous efficacy: up to 110 lm/W
  • Lifetime (L80/B10): up to 60,000 h (at 25 °C)
  • Connector box with push wire terminal for tool-free connection
  • Aluminum housing, polystyrene diffuser
Equipment / Accessories
  • Accessories for several mounting options available
  • External control gear included
  • Not suitable for use with Emergency Conversion Box
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075225237 Folding box
1		 40 mm x 627 mm x 684 mm 2370.00 g 17.15 dm³
4058075225244 Shipping box
4		 695 mm x 170 mm x 645 mm 12500.00 g 76.21 dm³
4058075394698 Shipping box
6		 782 mm x 150 mm x 687 mm 16363.00 g 80.59 dm³
Product image Product name EAN
PANEL 600 SURFACE MOUNT KIT H70 VAL 4058075402843
PANEL RECESSED MOUNT CLIPS VAL 4x 4058075409859
PANEL 600 RECESSED MOUNT FRAME 4058075402881
PANEL 600 SURFACE MOUNT KIT H75 4058075472914
EM CONVERSION BOX 4058075237025
PANEL Suspension Kit 4058075402928
User Instruction / Safety Instructions
UI PANEL PFM 600_625 PDF (3.53 MB)
Certificates
Certificate TUV PANEL PFM PDF (2.45 MB)

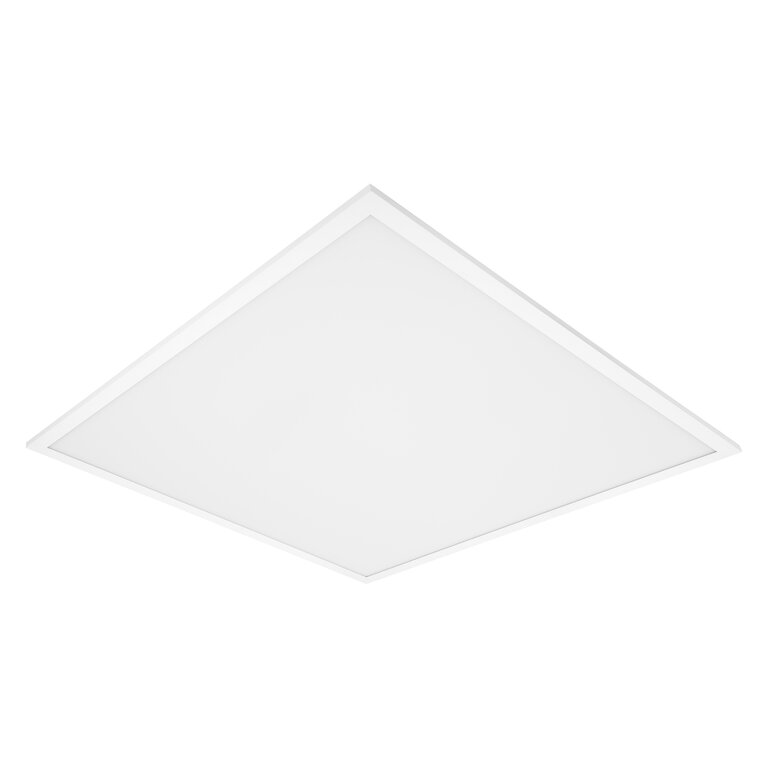

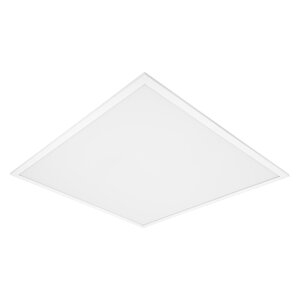

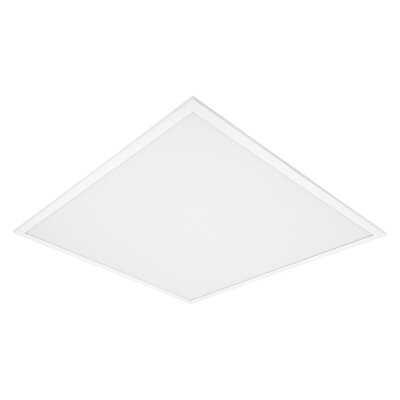

Product Image, Diagonal, White BG
PL PFM 600 33W UGR19 JPG (1.66 MB)

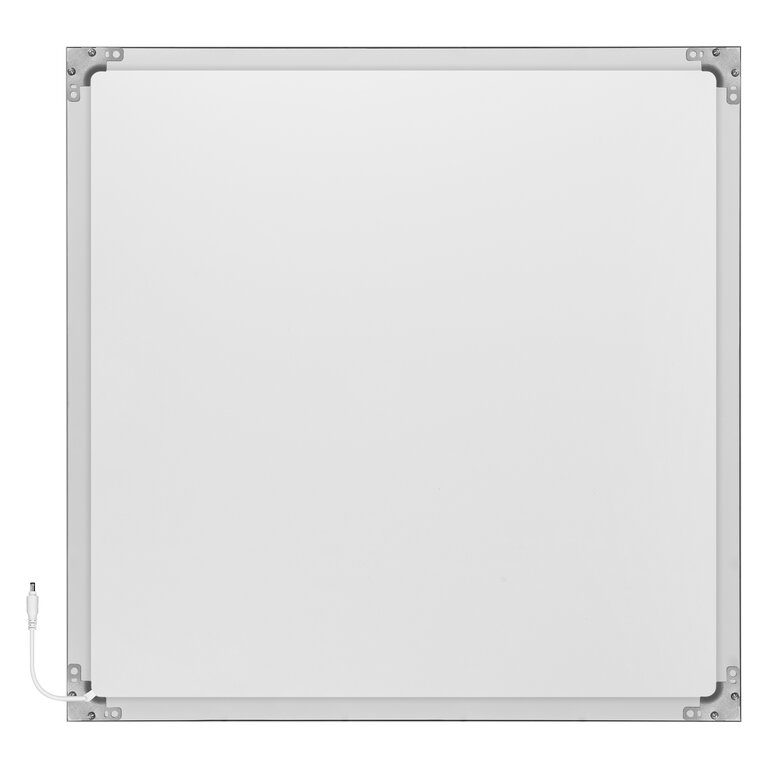

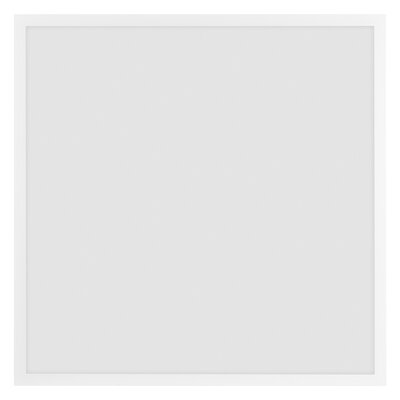

Product Image, Upright, White BG
PL PFM 600 33W UGR19 JPG (2.69 MB)

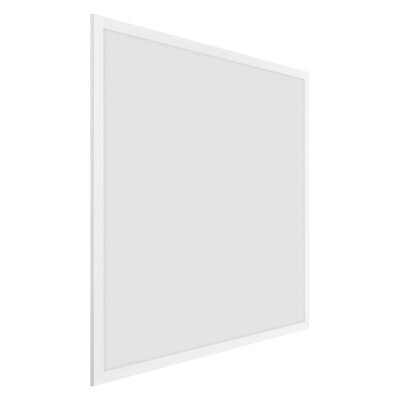

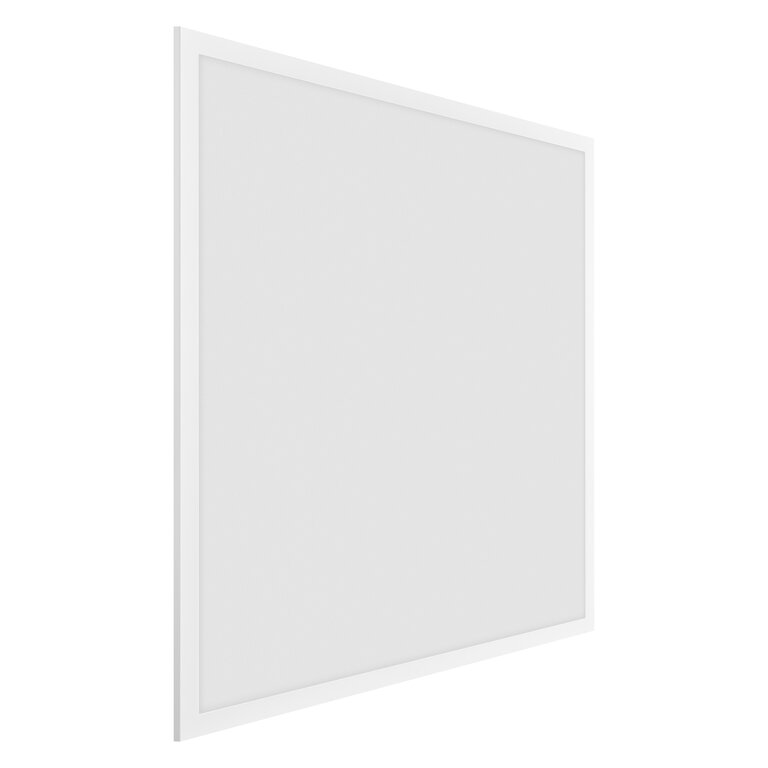

Product Image, Spacial, White BG
PL PFM 600 33W UGR19 JPG (1.02 MB)
Product line drawing with letters
PL PFM 600 33W UGR19 SVG (6.28 KB)
Product line drawing with numbers
PL PFM 600 33W UGR19 SVG (12.39 KB)
Product line drawing - technical
PL PFM 600 33W UGR19 SVG (3.51 KB)

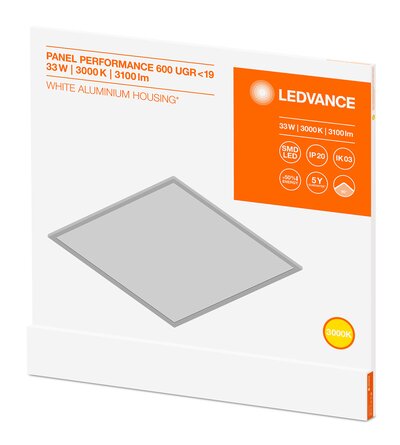

Packaging image, spacial
Panel PFM 600 UGR19 wh ite 33W 830 MiCh TIF (17.15 MB)
Catalog info 1
Panel PFM 600 625 SVG (140.98 KB)
Catalog info 2
Panel PFM 600 625 SVG (141.22 KB)
Catalog info 5
Panel PFM 600 625 SVG (136.69 KB)
IES file (IES)
PL PFM 600 33W3000K UG R19 IES (7.04 KB)
LDT file (Eulumdat)
PL PFM 600 33W3000K UG R19 LDT (8.15 KB)
UGR file (UGR table)
PL PFM 600 33W3000K UG R19 PNG (58.9 KB)
LDC typ cone
PL PFM 600 33W3000K UG R19 SVG (89.06 KB)
LDC typ polar
PL PFM 600 33W3000K UG R19 SVG (297.49 KB)
Application Pictures
Tirol Kliniken 2019 9 JPG (14.91 MB)
Application Pictures
Tirol Kliniken 2019 10 JPG (21.04 MB)
EAN SEG number STK number EFO number ELDAS number
4058075225237 7017471 4266680 3000666 941401480
