Professional

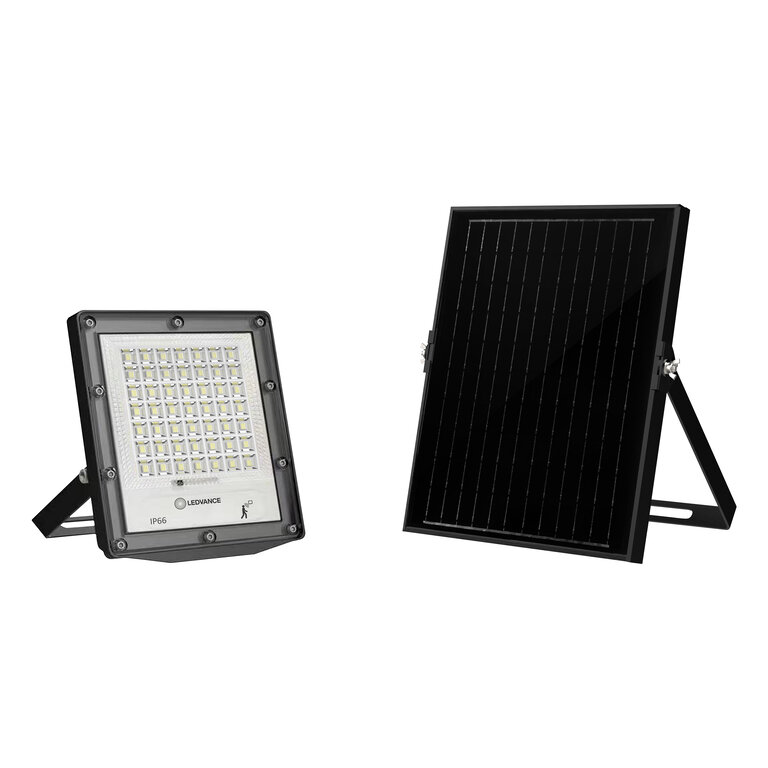

LED ECO SOLAR FLOODLIGHT

LED ECO SOLAR FLOODLIGHT

Choose your product version

830 810LM

830 900LM

840 900LM

865 900LM

840 1000LM

865 1000LM

830 1600LM

830 1800LM

840 1800LM

865 1800LM

840 2000LM

865 2000LM

830 2400LM

830 2700LM

840 2700LM

865 2700LM

840 3000LM

865 3000LM

830 3400LM

840 3800LM

865 3800LM

830 4000LM

840 4500LM

865 4500LM

OVERVIEW

Product description Luminous flux Dimmable
LED ECO SOLAR FLOODLIGHT 830 810LM 810 lm No
LED ECO SOLAR FLOODLIGHT 830 900LM 900 lm No
LED ECO SOLAR FLOODLIGHT 840 900LM 900 lm No
LED ECO SOLAR FLOODLIGHT 865 900LM 900 lm No
LED ECO SOLAR FLOODLIGHT 840 1000LM 1000 lm No
LED ECO SOLAR FLOODLIGHT 865 1000LM 1000 lm No
LED ECO SOLAR FLOODLIGHT 830 1600LM 1600 lm No
LED ECO SOLAR FLOODLIGHT 830 1800LM 1800 lm No
LED ECO SOLAR FLOODLIGHT 840 1800LM 1800 lm No
LED ECO SOLAR FLOODLIGHT 865 1800LM 1800 lm No
LED ECO SOLAR FLOODLIGHT 840 2000LM 2000 lm No
LED ECO SOLAR FLOODLIGHT 865 2000LM 2000 lm No
LED ECO SOLAR FLOODLIGHT 830 2400LM 2400 lm No
LED ECO SOLAR FLOODLIGHT 830 2700LM 2700 lm No
LED ECO SOLAR FLOODLIGHT 840 2700LM 2700 lm No
LED ECO SOLAR FLOODLIGHT 865 2700LM 2700 lm No
LED ECO SOLAR FLOODLIGHT 840 3000LM 3000 lm No
LED ECO SOLAR FLOODLIGHT 865 3000LM 3000 lm No
LED ECO SOLAR FLOODLIGHT 830 3400LM 3400 lm No
LED ECO SOLAR FLOODLIGHT 840 3800LM 3800 lm No
LED ECO SOLAR FLOODLIGHT 865 3800LM 3800 lm No
LED ECO SOLAR FLOODLIGHT 830 4000LM 4000 lm No
LED ECO SOLAR FLOODLIGHT 840 4500LM 4500 lm No
LED ECO SOLAR FLOODLIGHT 865 4500LM 4500 lm No


LED ECO SOLAR FLOODLIGHT 865 1000LM

Product benefits
  • Die-cast aluminum housing ensures reliable operation
  • Energy savings thanks to high system efficacy: up to 180lm/W
  • 12 hours lighting per night to fulfill the whole night application
  • Lamp body and solar panel split design, easy for charging and lighting
  • Professional lighting distribution provides uniformity lighting
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Protection class III

Photometrical data

Luminous flux 1000 lm
Color temperature 6500 K
Color rendering index Ra ≥80

Dimensions & Weight

Length 150.00 mm
Height 45.00 mm
Width 130.00 mm
Product weight 1600.00 g

Materials & Colors

Product color Gray
Housing color Gray
Body material Aluminum
Mercury content 0.0 mg

Application & Mounting

Type of protection IP66
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Surface
Application environment Outdoor
LED module replaceable Not replaceable

Sensor

Type of sensor Motion, Light

BATTERY

Battery size [GMS] Others

Certificates & Standards

Standards CB, ROHS
Product benefits
  • Die-cast aluminum housing ensures reliable operation
  • Energy savings thanks to high system efficacy: up to 180lm/W
  • 12 hours lighting per night to fulfill the whole night application
  • Lamp body and solar panel split design, easy for charging and lighting
  • Professional lighting distribution provides uniformity lighting
Areas of application
  • Residential streets
  • Architectural lighting
  • Landscape lighting
Product features
  • Available in 4 sizes with 4 lumen packages
  • Available in on-off and sensor version
  • LiFeP04 battery charge-discharge cycle 2000 times
  • Overcharge, over-discharge, overheat and short circuit protection
  • Monocrystalline solar panel and UV resistant polycarbonate lens
  • Remote control provided for easy control of operation
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854287206 Folding box
1		 241 mm x 69 mm x 281 mm 1856.00 g 4.67 dm³
4099854287213 Shipping box
5		 366 mm x 301 mm x 267 mm 9779.00 g 29.41 dm³
User Instruction / Safety Instructions
LED ECO SOLAR FLOODLIG HT PDF (19.64 MB)
Product Image, Diagonal with LEDVANCE LOGO, White BG
LDECO SOLAR FLS JPG (2.45 MB)
Product line drawing with numbers
SVG (339.24 KB)
IES file (IES)
LDECO SOLAR FLS 865 10 00LM IES (10.68 KB)
