Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|

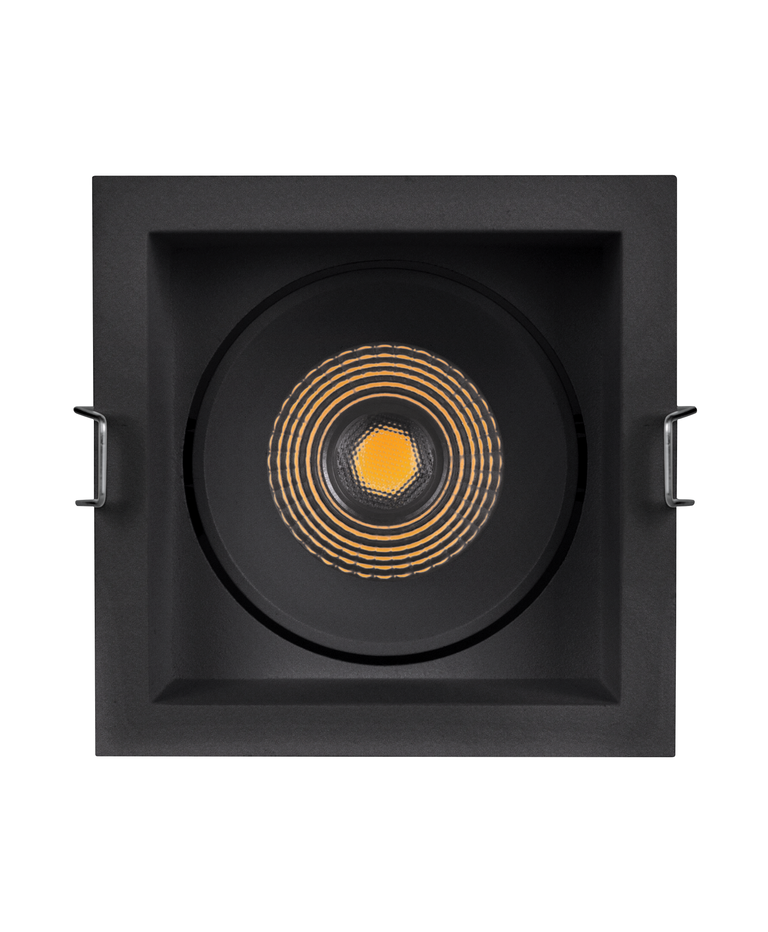

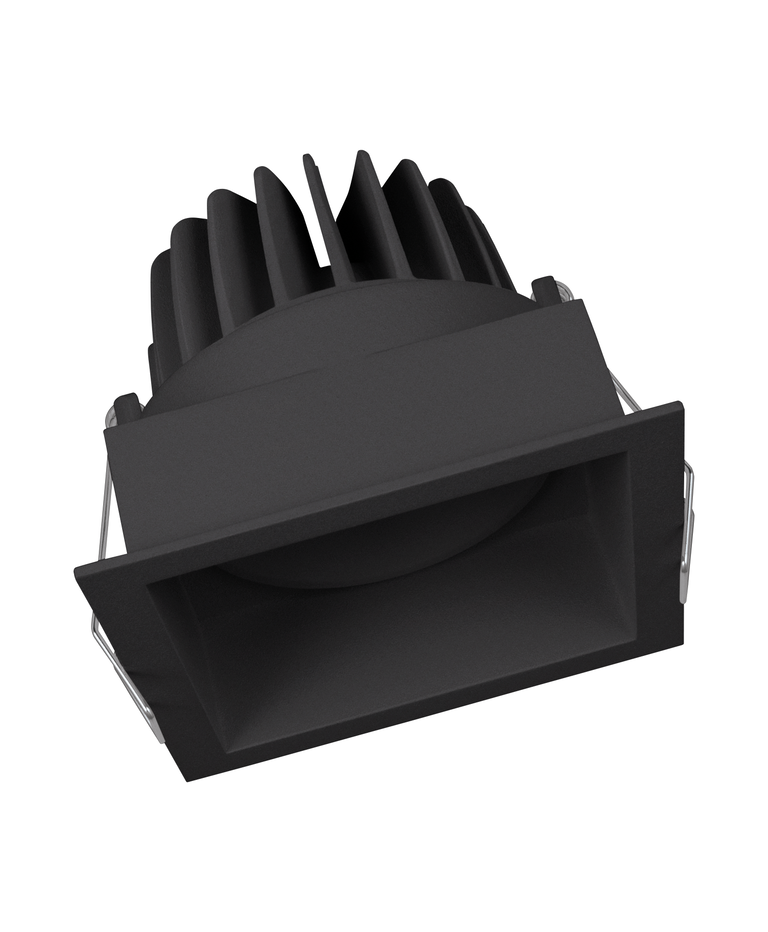

| SPOT SQUARE DK ADJ 8 W 3000 K BK | 8.00 W | 50000 | 36 ° | 650 lm | No |

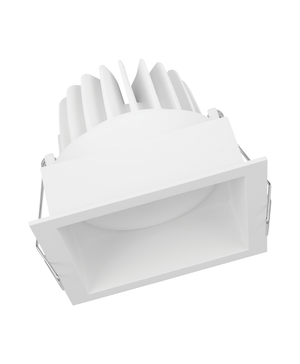

| SPOT SQUARE DK ADJ 8 W 3000 K WT | 8.00 W | 50000 | 36 ° | 650 lm | No |
| Nominal wattage | 8.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 65 mA |
| Inrush current | 23 A |
| Inrush current time Th50 | < 3.4 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 32 |
| Max. number of luminaires per miniature circuit breaker C10 | 26 |
| Max. number of luminaires per miniature circuit breaker C16 | 41 |
| Power factor λ | > 0.5 |
| Total harmonic distortion | < 15 % |
| Protection class | II |
| Operating mode | External LED driver |
| Luminous flux | 650 lm |
| Luminous efficacy | 90 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤4 sdcm |
| Luminous intensity | - |
| Low flicker | Yes |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 36 ° |
| Length | 90.00 mm |
| Height | 72.00 mm |
| Width | 90.00 mm |
| Product weight | 230.00 g |
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Cover material | Polymethylmethacrylate (PMMA) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Ambient temperature range | -10…+40 °C |
| Type of connection | Screw terminal, 2-Pole (L,N) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting length | 83 mm |
| Mounting width | 83 mm |
| Mounting depth | 90 mm |
| Adjustable | Yes |
| LED module replaceable | Not replaceable |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 45000 h 1) |
| Lifespan L90/B10 at 25 °C | 30000 h |
| Number of switching cycles | 50000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| ECG - Length | 78 mm |
| ECG - Width | 32 mm |
| ECG - Height | 21 mm |

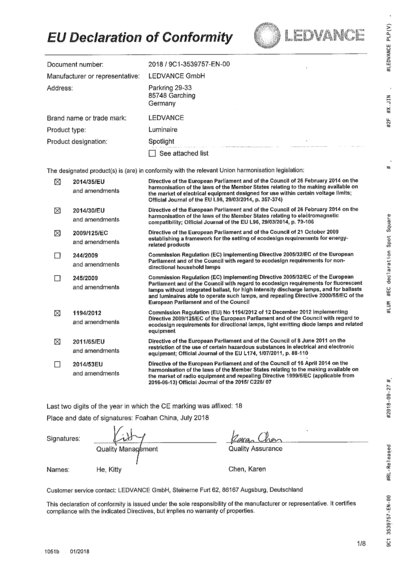

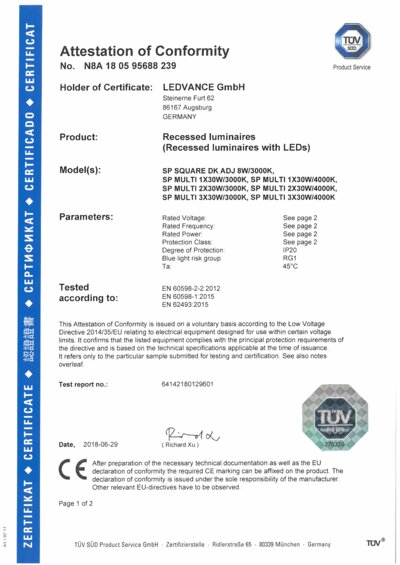

| Standards | CE, TÜV SÜD, RoHS, ENEC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|

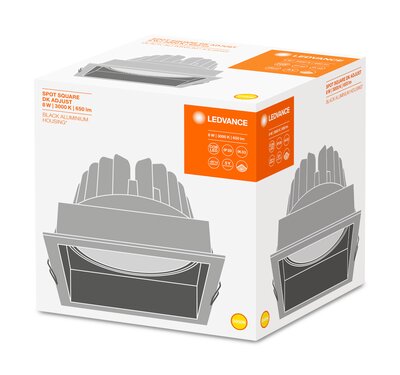

| 4058075114067 | Folding box 1 |
105 mm x 110 mm x 115 mm | 265.00 g | 1.33 dm³ |
| 4058075114074 | Shipping box 6 |
345 mm x 115 mm x 245 mm | 1795.00 g | 9.72 dm³ |
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075114067 | 7451236 | 4231825 | 3201948 | 941400610 |
