Professional
SPOT SQUARE DARKLIGHT ADJUST

SPOT SQUARE DARKLIGHT ADJUST

Choose your product version

8 W 3000 K BK

8 W 3000 K WT

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
SPOT SQUARE DK ADJ 8 W 3000 K BK 8.00 W 50000 36 ° 650 lm No
SPOT SQUARE DK ADJ 8 W 3000 K WT 8.00 W 50000 36 ° 650 lm No


SPOT SQUARE DK ADJ 8 W 3000 K WT

Product benefits
  • Cut off angle for comfortable indoor lighting
  • High luminous efficacy
  • Die-cast aluminum housing for improved heat dissipation
  • Energy savings of up to 90 % compared to halogen lamp spotlights
  • External driver for extended flexibility (compatible with selected DALI drivers)
  • Easy replacement of external driver thanks to plug with bayonet lock
  • Design matches the LEDVANCE Spot-, Down- and Tracklight luminaire family
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 8.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 65 mA
Inrush current 23 A
Inrush current time Th50 < 3.4 µs
Max. number of luminaires per miniature circuit breaker B16 32
Max. number of luminaires per miniature circuit breaker C10 26
Max. number of luminaires per miniature circuit breaker C16 41
Power factor λ > 0.5
Total harmonic distortion < 15 %
Protection class II
Operating mode External LED driver

Photometrical data

Luminous flux 650 lm
Luminous efficacy 90 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching ≤4 sdcm
Luminous intensity -
Low flicker Yes
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 36 °

Dimensions & Weight

Length 90.00 mm
Height 72.00 mm
Width 90.00 mm
Product weight 230.00 g

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Cover material Polymethylmethacrylate (PMMA)
Glow Wire Test according to IEC 60695-2-12 650 °C

Application & Mounting

Ambient temperature range -10…+40 °C
Type of connection Screw terminal, 2-Pole (L,N)
Type of protection IP20
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting length 83 mm
Mounting width 83 mm
Mounting depth 90 mm
Adjustable Yes
LED module replaceable Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 45000 h 1)
Lifespan L90/B10 at 25 °C 30000 h
Number of switching cycles 50000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

ECG - Length 78 mm
ECG - Width 32 mm
ECG - Height 21 mm

Certificates & Standards

Standards CE, TÜV SÜD, RoHS, ENEC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Product benefits
  • Cut off angle for comfortable indoor lighting
  • High luminous efficacy
  • Die-cast aluminum housing for improved heat dissipation
  • Energy savings of up to 90 % compared to halogen lamp spotlights
  • External driver for extended flexibility (compatible with selected DALI drivers)
  • Easy replacement of external driver thanks to plug with bayonet lock
  • Design matches the LEDVANCE Spot-, Down- and Tracklight luminaire family
  • 5 years guarantee
Areas of application
  • Replacement of halogen lamp spotlights
  • General accent lighting
  • Shops, boutiques
  • Hotel rooms
  • Bars, restaurants
  • Galleries, museums
  • Residential interiors
Product features
  • Adjustable tilt angle: +/- 20°
  • Initial color consistency: ≤ 4 SDCM
  • Lens material: PMMA
Equipment / Accessories
  • Driver included
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075114043 Folding box
1		 105 mm x 110 mm x 115 mm 265.00 g 1.33 dm³
4058075114050 Shipping box
6		 345 mm x 115 mm x 245 mm 1795.00 g 9.72 dm³
User Instruction / Safety Instructions
UI Spot Square DK PDF (3.03 MB)
On-Pack-Info
Legal Insert Spot LED PDF (1.59 MB)
Legal information
LSI SP SQUARE DK ADJ PDF (1.19 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
EU Declaration of Conf ormity Spot Square 8W LEDV PDF (694.89 KB)
Declarations of conformity
Attestation-of-Conform ity SP SQ and Multi TÜ V PDF (2.18 MB)

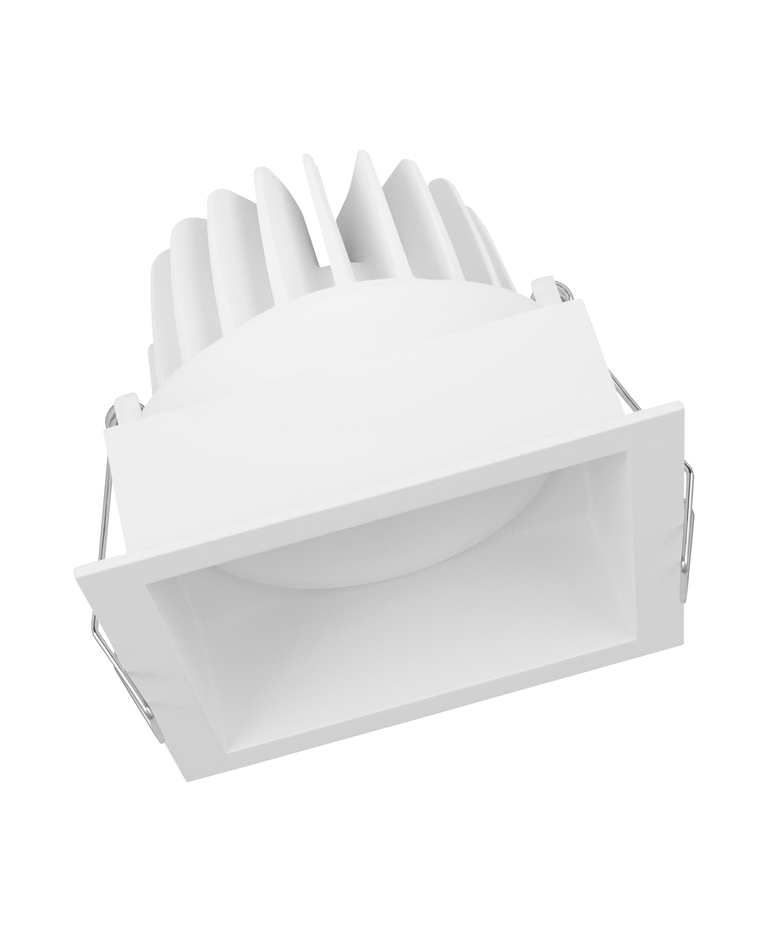

Product Image, Diagonal, White BG
SP SQUARE DK ADJ 8W/30 00K FL WT TIF (9.16 MB)

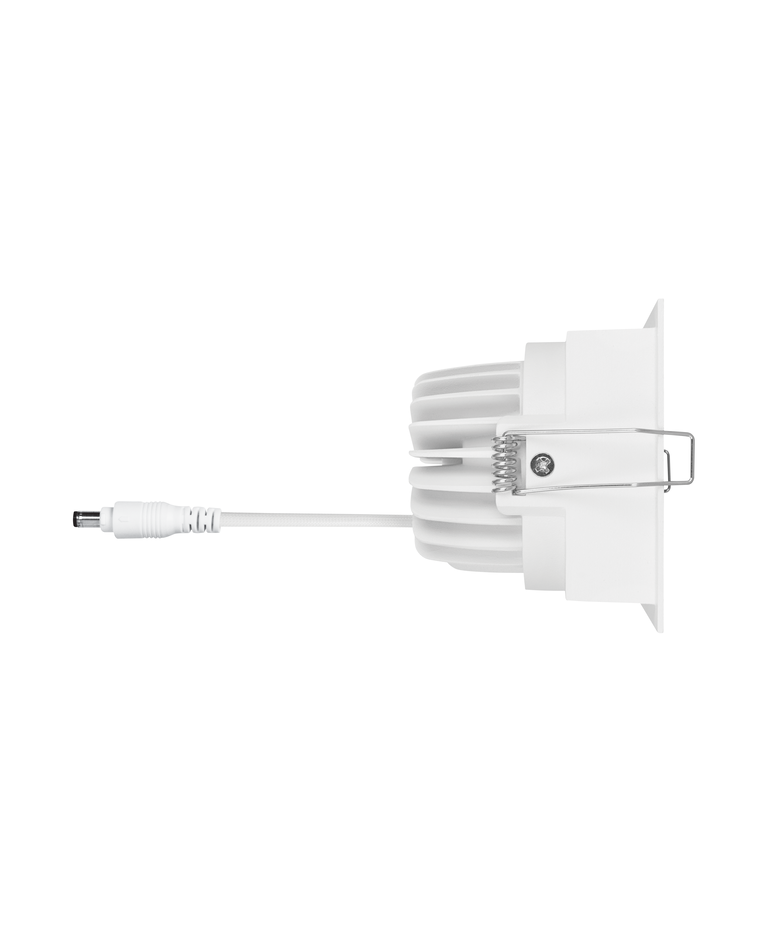

Product Image, Upright, White BG
SP SQUARE DK ADJ 8W/30 00K FL WT TIF (12.47 MB)
Product line drawing with letters
SP SQUARE DK ADJ 8W/30 00K FL WT SVG (41.57 KB)
Product line drawing with numbers
SP SQUARE DK ADJ 8W/30 00K FL WT SVG (49.66 KB)
Product line drawing - technical
SP SQUARE DK ADJ 8W/30 00K FL WT SVG (34.08 KB)

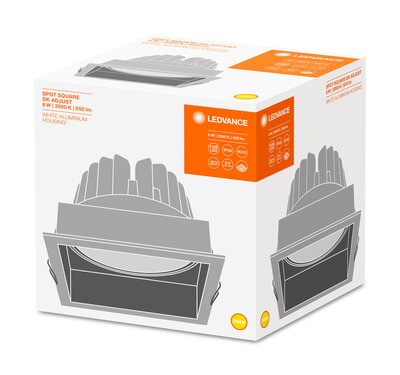

Packaging image, spacial
Spot Square DK Adjust 8W 830 FL white MiCh S ide TIF (15.48 MB)
Catalog info 1
Spot Square DK Adjust SVG (10.59 KB)
Catalog info 2
Spot Square DK Adjust SVG (70.92 KB)
Catalog info 6
Spot Square DK Adjust SVG (75.8 KB)
IES file (IES)
SP SQUARE DK ADJ 8W300 0K FL WT IES (4.62 KB)
LDT file (Eulumdat)
SP SQUARE DK ADJ 8W300 0K FL WT LDT (5.35 KB)
ULD file (DIALux)
SPOTSQUAREDARKLIGHTADJ UST8W3000KWT ULD (169.98 KB)
ROLF file (RELUX)
SP SQUARE DK ADJ ROLF (571.69 KB)

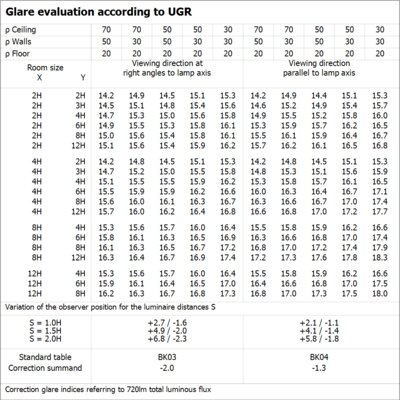

UGR file (UGR table)
SP SQUARE DK ADJ 8W300 0K FL WT PNG (59.96 KB)
LDC typ cone
SP SQUARE DK ADJ 8W300 0K FL WT SVG (85.7 KB)
LDC typ polar
SP SQUARE DK ADJ 8W300 0K FL WT SVG (276.31 KB)
BIM_Revit_3D
SPOT SQUARE DARKLIGHT ADJUST ZIP (852.77 KB)
CAD_STEP_3D
SP SQUARE DK ADJ STP (3.07 MB)
Tender documents
SPOT SQUARE DARKLIGHT ADJUST 8 W 3000 K WT-E N TXT (1.5 KB)
Application Pictures
Hotelroom Spot Square TIF (32.99 MB)
EAN SEG number STK number EFO number ELDAS number
4058075114043 7451235 4231937 3201947 941400620
