SPOT DIM

SPOT DIM

Choose your product version

8 W 3000 K IP44/IP20 SI

8 W 3000 K IP44/IP20 WT

8 W 4000 K IP44/IP20 SI

8 W 4000 K IP44/IP20 WT

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
SPOT FIX DIM 8 W 3000 K IP44/IP20 SI 8.00 W 100000 36 ° 620 lm Yes
SPOT FIX DIM 8 W 3000 K IP44/IP20 WT 8.00 W 100000 36 ° 620 lm Yes
SPOT FIX DIM 8 W 4000 K IP44/IP20 SI 8.00 W 100000 36 ° 670 lm Yes
SPOT FIX DIM 8 W 4000 K IP44/IP20 WT 8.00 W 100000 36 ° 670 lm Yes


SPOT FIX DIM 8 W 3000 K IP44/IP20 SI

Product benefits
  • High luminous efficacy
  • Design matches the LEDVANCE DOWNLIGHT luminaire family
  • Energy savings of up to 90 % compared to halogen lamp spotlights
  • Functional and minimalistic design
  • Easy and quick installation
  • External driver for extended flexibility (compatible with selected DALI drivers)
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 8.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 170 mA
Max. number of luminaires per miniature circuit breaker B16 200
Max. number of luminaires per miniature circuit breaker C10 100
Max. number of luminaires per miniature circuit breaker C16 200
Power factor λ > 0.90
Total harmonic distortion 20 %
Protection class II
Operating mode Electronic control gear (ECG)

Photometrical data

Luminous flux 620 lm
Luminous efficacy 75 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching ≤4 sdcm
Luminous intensity -
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 36 °

Dimensions & Weight

Diameter 81.00 mm
Height 51.00 mm
Product weight 268.00 g

Materials & Colors

Product color Silver
Housing color Silver
Body material Aluminum
Light emitting surface material PMMA
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+45 °C
Type of connection Screw terminal, 2-Pole (L,N)
Type of protection IP44/IP20
Protection class IK (shock resistance) IK06
Dimmable Yes
Type of dimming LEA/TR.EDG
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting diameter 68 mm
Mounting depth 90 mm
LED module replaceable Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 40000 h 1)
Lifespan L90/B10 at 25 °C 20000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

ECG - Length 120 mm
ECG - Height 35 mm

Certificates & Standards

Standards CE, CB, TÜV SÜD, EAC, RoHS
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Product benefits
  • High luminous efficacy
  • Design matches the LEDVANCE DOWNLIGHT luminaire family
  • Energy savings of up to 90 % compared to halogen lamp spotlights
  • Functional and minimalistic design
  • Easy and quick installation
  • External driver for extended flexibility (compatible with selected DALI drivers)
  • 5 years guarantee
Areas of application
  • Replacement of halogen lamp spotlights
  • General illumination
  • Hotel rooms
  • Bars, restaurants
  • Accent lighting
  • Galleries, museums
  • Residential interiors
Product features
  • Initial color consistency: ≤ 4 SDCM
  • Housing material: aluminum
  • Lens material: PMMA
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075126923 Folding box
1		 142 mm x 102 mm x 112 mm 354.00 g 1.62 dm³
4058075126930 Shipping box
27		 440 mm x 320 mm x 360 mm 10083.00 g 50.69 dm³
User Instruction / Safety Instructions
User Instruction Spot LED DIM PDF (2.69 MB)
On-Pack-Info
Legal Insert Spot LED PDF (1.59 MB)
Legal information
LSI SPOTFP LED FIX AND SPOT LED FIX PDF (1.4 MB)
Declarations of conformity
Attestation-of-Conform ity-Spot LED -Fix DIM +Downlight LED 35W TÜV PDF (2.3 MB)
Declarations of conformity
CE Declaration_Spot FP LED fix_Spot LED fix PDF (199.5 KB)

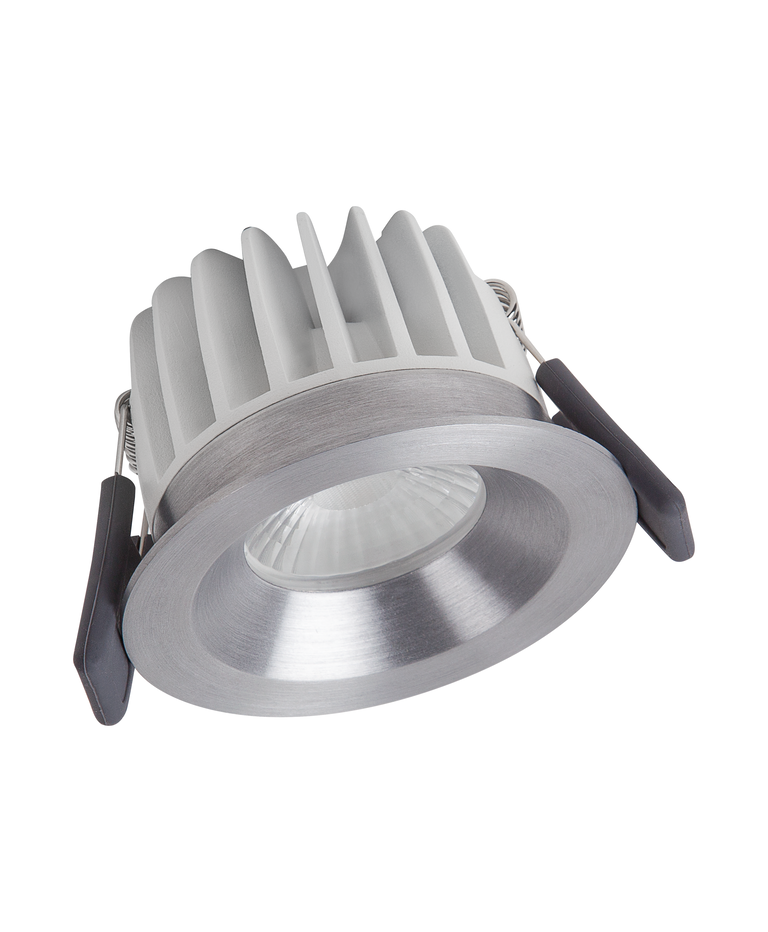

Product Image, Diagonal, White BG
Spot FP LED DIM 8W sil ver TIF (45.94 MB)

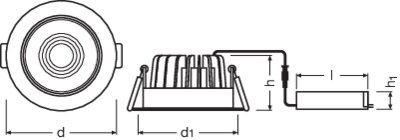

Product line drawing with letters
LEDVANCE Spot LED fix 8W DIM ml SVG (33.65 KB)
Product line drawing with letters
Spot LED DIM 8W ml k EPS (406.47 KB)
Product line drawing with numbers
Spot LED DIM 8W mn k EPS (411.66 KB)
Product line drawing with numbers
LEDVANCE Spot LED fix 8W DIM mn SVG (33.63 KB)
Prod.line drw, front, no dimensions
LEDVANCE Spot LED fix 8W DIM SVG (24.19 KB)
Prod.line drw, front, no dimensions
Spot LED DIM 8W k EPS (393.9 KB)

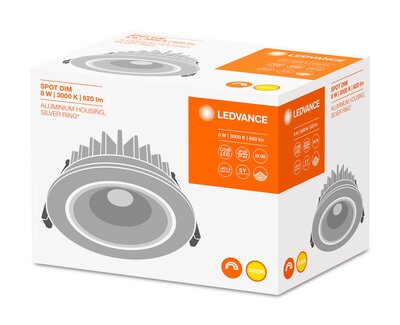

Packaging image, spacial
Spot fix DIM SI 8W 830 MiCh Side TIF (17.37 MB)
Catalog info 2
Spot LED DIM SVG (41.49 KB)
Catalog info 6
Spot LED DIM SVG (46.69 KB)
IES file (IES)
Spot LED fix 8W 3000K SI DIM IP44 IES (5.47 KB)
LDT file (Eulumdat)
Spot LED fix 8W 3000K SI DIM IP44 LDT (5.94 KB)
ULD file (DIALux)
SPOTDIM8W3000KIP44SI ULD (1.35 MB)
ROLF file (RELUX)
SPOT LED FIX 8W-3000K ROLF (3.65 KB)
LDC typ cone
4058075811294 Spot LED fix 8W 3000K SI DIM I P44 SVG (85.25 KB)
LDC typ polar
4058075811294 Spot LED fix 8W 3000K SI DIM I P44 SVG (273.92 KB)
Video
LEDVANCE Spot LED EN MP4 (58.7 MB)
EAN SEG number STK number ELDAS number
4058075126923 7451249 4125302 941400690
