Professional
SPOT FIREPROOF DIM

SPOT FIREPROOF DIM

Choose your product version

8 W 3000 K IP65/IP20 WT

8 W 3000 K IP65/IP20 SI

8 W 4000 K IP65/IP20 WT

8 W 4000 K IP65/IP20 SI

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
SPOT FP FIX DIM 8 W 3000 K IP65/IP20 WT 8.00 W 100000 36 ° 620 lm Yes
SPOT FP FIX DIM 8 W 3000 K IP65/IP20 SI 8.00 W 100000 36 ° 620 lm Yes
SPOT FP FIX DIM 8 W 4000 K IP65/IP20 WT 8.00 W 100000 36 ° 670 lm Yes
SPOT FP FIX DIM 8 W 4000 K IP65/IP20 SI 8.00 W 100000 36 ° 670 lm Yes


SPOT FP FIX DIM 8 W 3000 K IP65/IP20 WT

Product benefits
  • High luminous efficacy
  • Design matches the LEDVANCE DOWNLIGHT luminaire family
  • Energy savings of up to 90 % compared to halogen lamp spotlights
  • Functional and minimalistic design
  • Easy installation with fast connection
  • External driver for extended flexibility (compatible with selected dim. drivers)
  • Designed for extra IP protection
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 8.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 170 mA
Max. number of luminaires per miniature circuit breaker B16 200
Max. number of luminaires per miniature circuit breaker C10 100
Max. number of luminaires per miniature circuit breaker C16 200
Power factor λ > 0.90
Total harmonic distortion < 15 %
Protection class II
Operating mode Electronic control gear (ECG)

Photometrical data

Luminous flux 620 lm
Luminous efficacy 75 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching ≤4 sdcm
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 36 °

Dimensions & Weight

Diameter 81.00 mm
Height 51.00 mm
Product weight 269.00 g

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Light emitting surface material PMMA
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+45 °C
Type of connection Screw terminal, 2-Pole (L,N)
Type of protection IP65/IP20
Protection class IK (shock resistance) IK06
Dimmable Yes
Type of dimming LEA/TR.EDG
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting diameter 68 mm
Mounting depth 90 mm
Replaceable light source (EPREL) Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 40000 h 1)
Lifespan L90/B10 at 25 °C 20000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

ECG - Length 120 mm
ECG - Height 35 mm

Certificates & Standards

Standards CE, CB, TÜV SÜD, EAC, RoHS
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • High luminous efficacy
  • Design matches the LEDVANCE DOWNLIGHT luminaire family
  • Energy savings of up to 90 % compared to halogen lamp spotlights
  • Functional and minimalistic design
  • Easy installation with fast connection
  • External driver for extended flexibility (compatible with selected dim. drivers)
  • Designed for extra IP protection
  • 5 years guarantee
Areas of application
  • Replacement of halogen lamp spotlights
  • Hotel rooms
  • Bars, restaurants
  • Bathrooms
  • Accent lighting
  • Galleries, museums
  • General illumination
Product features
  • Fire-resistant (up to 90 minutes, tested in accordance with EN 1365-2:2014 'fire resistance tests for loadbearing elements - Part 2: Floors and roofs')
  • Outdoor use and fire-resistant (up to 90 minutes, BS476-20:1987 and BS476-21:1987)
  • Compatible with standard ceiling cutouts of 68 mm
  • Initial color consistency: ≤ 4 SDCM
  • Type of protection, front side: IP65
Safety advice
  • Coordination with your responsible fire safety inspector is required in advance
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • The luminaires are not suitable for covering with thermally insulated material.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075190641 Folding box
1		 142 mm x 102 mm x 112 mm 355.00 g 1.62 dm³
4058075127432 Folding box
1		 142 mm x 102 mm x 112 mm 355.00 g 1.62 dm³
4058075127449 Shipping box
27		 440 mm x 320 mm x 360 mm 10110.00 g 50.69 dm³
4058075190658 Shipping box
27		 440 mm x 320 mm x 360 mm 10110.00 g 50.69 dm³
User Instruction / Safety Instructions

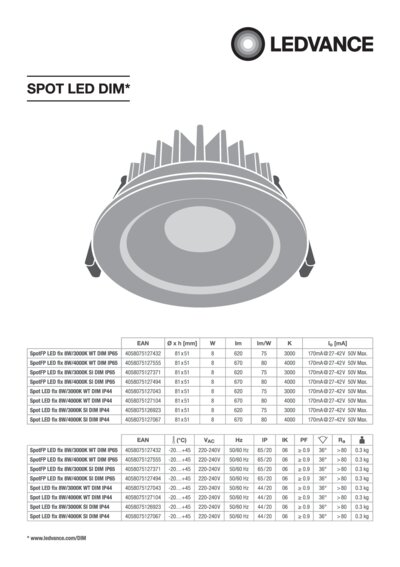

User Instruction Spot LED DIM PDF (2.69 MB)
On-Pack-Info
Legal Insert Spot LED PDF (1.59 MB)
Legal information

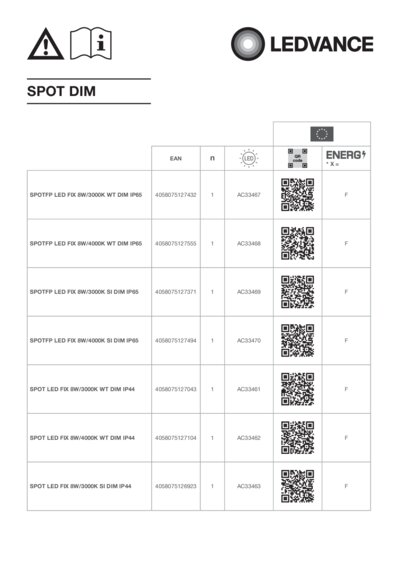

LSI SPOTFP LED FIX AND SPOT LED FIX PDF (1.4 MB)
Declarations of conformity

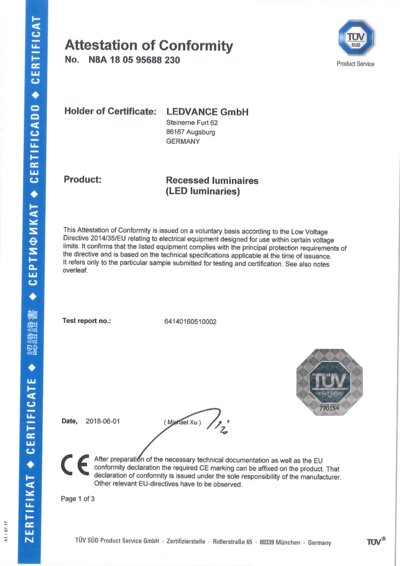

Attestation-of-Conform ity-Spot LED -Fix DIM +Downlight LED 35W TÜV PDF (2.3 MB)
Declarations of conformity

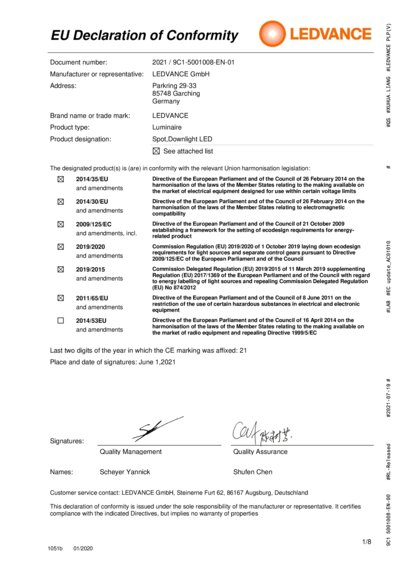

CE Declaration_Spot FP LED fix_Spot LED fix PDF (199.5 KB)

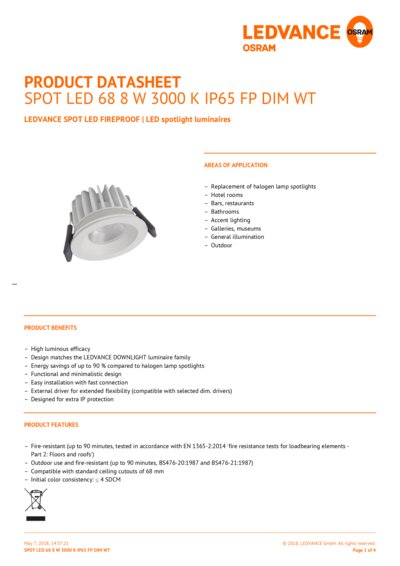

PRODUCT DATASHEET
SPOT LED 68 8 W 3000 K IP65 FP DIM WT PDF (274.45 KB)
Product Image, Diagonal, White BG
Spot FP LED DIM 8W whi te TIF (45.93 MB)

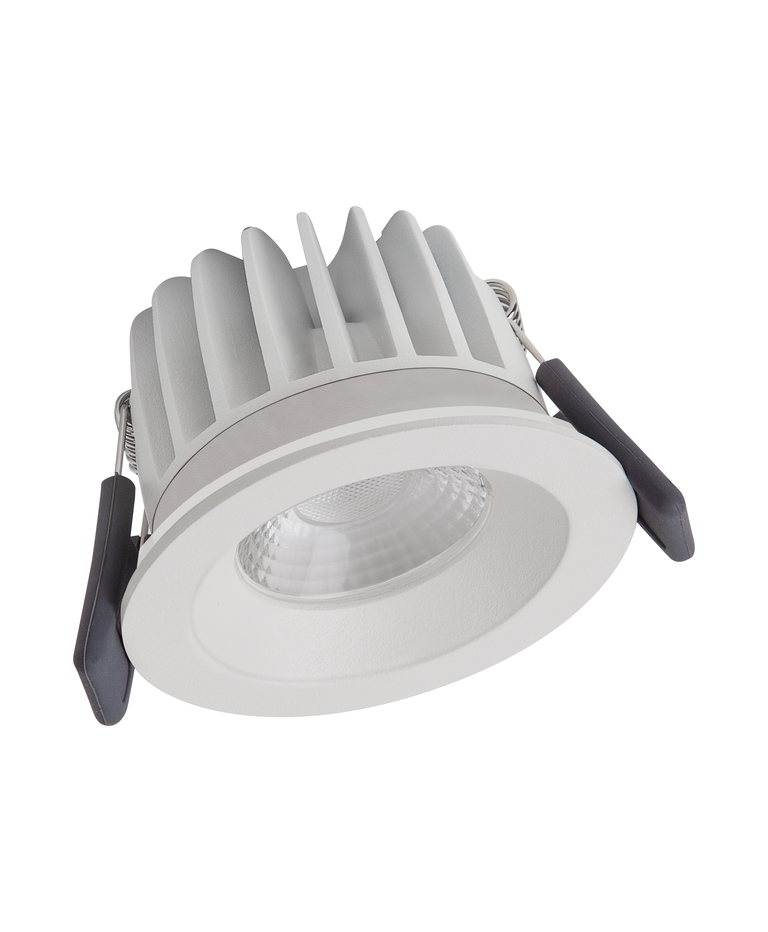

Product Image, Diagonal, White BG
Spot FP LED DIM 8W whi te fireproof TIF (45.94 MB)

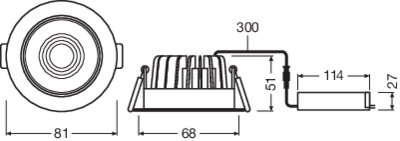

Product line drawing with numbers
Spot LED DIM 8W mn k EPS (411.66 KB)
Product line drawing with numbers
Spot FP LED DIM 8W mn k EPS (412.38 KB)

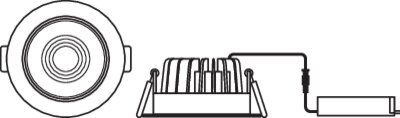

Prod.line drw, front, no dimensions
Spot LED DIM 8W k EPS (393.9 KB)
Prod.line drw, front, no dimensions
Spot FP LED DIM 8W k EPS (394.4 KB)

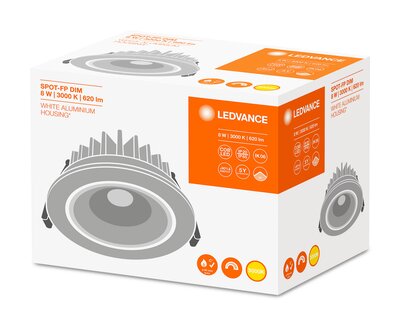

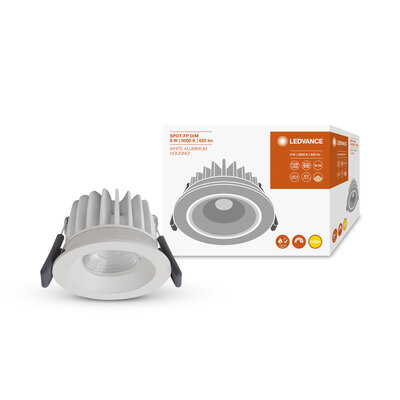

Combo Shot = Product Beauty Shot + Packaging Image
Spot FP fix DIM white 8W 830 MiCh Side JPG (1.43 MB)
Packaging image, spacial
Spot FP fix DIM white 8W 830 MiCh Side TIF (17.37 MB)
Catalog info 2
Spot LED DIM SVG (41.49 KB)
Catalog info 6
Spot LED SVG (47.49 KB)
Catalog info 6
Spot LED DIM SVG (108.19 KB)
IES file (IES)
SpotFP LED fix 8W 3000 K WT DIM IP65 IES (5.47 KB)
LDT file (Eulumdat)
SpotFP LED fix 8W 3000 K WT DIM IP65 LDT (5.94 KB)
ULD file (DIALux)
SPOTFIREPROOFDIM8W3000 KIP65WT ULD (1.48 MB)
ROLF file (RELUX)
SPOTFP LED FIX 8W-3000 K ROLF (4.02 KB)
UGR file (UGR table)
4058075811171 SpotFP L ED fix 8W 3000K WT DIM IP65 PNG (60.28 KB)
LDC typ cone
4058075811171 SpotFP L ED fix 8W 3000K WT DIM IP65 SVG (85.25 KB)
LDC typ polar
4058075811171 SpotFP L ED fix 8W 3000K WT DIM IP65 SVG (273.92 KB)
Video
LEDVANCE Spot LED EN MP4 (58.7 MB)
EAN SEG number STK number ELDAS number
4058075127432 7451275 4125304 941400760
