Professional
SPOT VARIO

SPOT VARIO

Choose your product version

170 35 W 3000 K 24DEG WT

170 35 W 4000 K 24DEG WT

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
SPOT VARIO DN 170 35 W 3000 K 24DEG WT 35.00 W 50000 24 ° 3350 lm No
SPOT VARIO DN 170 35 W 4000 K 24DEG WT 35.00 W 50000 24 ° 3550 lm No


SPOT VARIO DN 170 35 W 3000 K 24DEG WT

Product benefits
  • Low flicker light thanks to special electronic control gear
  • High luminous efficacy
  • Die-cast aluminum housing for improved heat dissipation
  • Easy replacement of external driver thanks to plug with bayonet lock
  • Design matches the LEDVANCE Spot-, Down- and Tracklight luminaire family
  • Shallow mounting depth
  • Various options to highlight target areas
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 35.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 850 mA
Inrush current 40 A
Inrush current time Th50 100 µs
Max. number of luminaires per miniature circuit breaker B16 15
Max. number of luminaires per miniature circuit breaker C10 9
Max. number of luminaires per miniature circuit breaker C16 15
Power factor λ > 0.90
Total harmonic distortion 20 %
Protection class II
Operating mode External LED driver

Photometrical data

Luminous flux 3350 lm
Luminous efficacy 95 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching < 5 sdcm
Luminous intensity -
Low flicker Yes
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG1
Beam angle 24 °

Dimensions & Weight

Diameter 180.00 mm
Height 129.00 mm
Product weight 1126.00 g

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Cover material Polymethylmethacrylate (PMMA)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+45 °C
Type of connection Screw terminal, 2-Pole (L,N)
Type of protection IP20
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting diameter 170 mm
Mounting depth 150 mm
Adjustable Yes
Replaceable light source (EPREL) Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 45000 h 1)
Lifespan L90/B10 at 25 °C 30000 h
Number of switching cycles 50000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

ECG - Length 153 mm
ECG - Width 44 mm
ECG - Height 31 mm

Certificates & Standards

Standards CE, CB, ENEC, TÜV SÜD, RoHS
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Low flicker light thanks to special electronic control gear
  • High luminous efficacy
  • Die-cast aluminum housing for improved heat dissipation
  • Easy replacement of external driver thanks to plug with bayonet lock
  • Design matches the LEDVANCE Spot-, Down- and Tracklight luminaire family
  • Shallow mounting depth
  • Various options to highlight target areas
  • 5 years guarantee
Areas of application
  • Accent- and general lighting for all kind of salesrooms
  • Retail
  • Supermarkets
  • Shops, boutiques
  • Hotel rooms
  • Stairways
  • Corridors
  • Lobbies
Product features
  • Large faceted reflector for high light output
  • Beam angle: 24°
  • Rotation angle: 0°...350°, tilt angle: 0°...35°
  • Diameter of required ceiling cut out: 165...170 mm
Equipment / Accessories
  • Driver included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • The luminaires are not suitable for covering with thermally insulated material.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075104020 Folding box
1		 200 mm x 200 mm x 150 mm 1204.00 g 6.00 dm³
4058075104037 Shipping box
4		 415 mm x 215 mm x 320 mm 5560.00 g 28.55 dm³

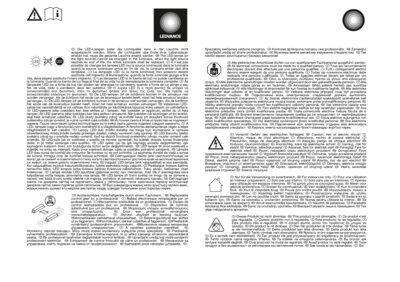

User Instruction / Safety Instructions

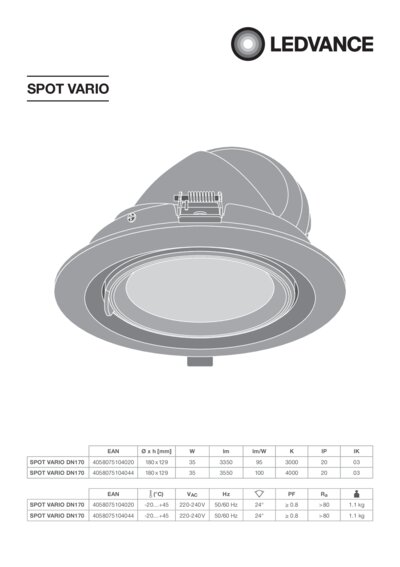

SP VARIO DN170 PDF (3.18 MB)
Legal information

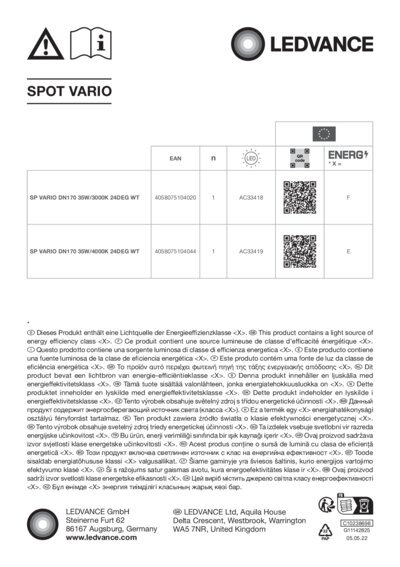

LSI_SP VARIO DN170 PDF (2.64 MB)
Legal information
SP VARIO DN170 PDF (663.38 KB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity

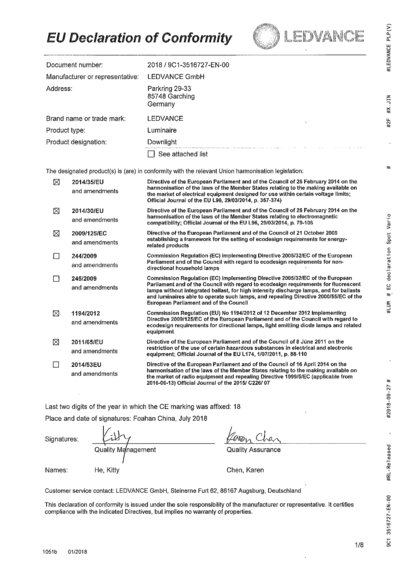

EU Declaration of Conf ormity SP Vario DN 170 35W LEDV PDF (694.07 KB)
Declarations of conformity

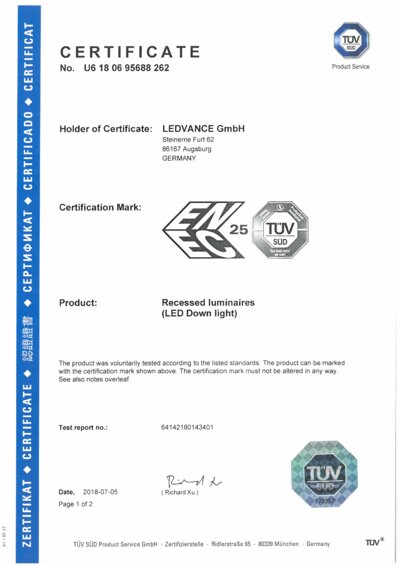

Attestation-of-Conform ity Spot Vario TÜV PDF (1.85 MB)

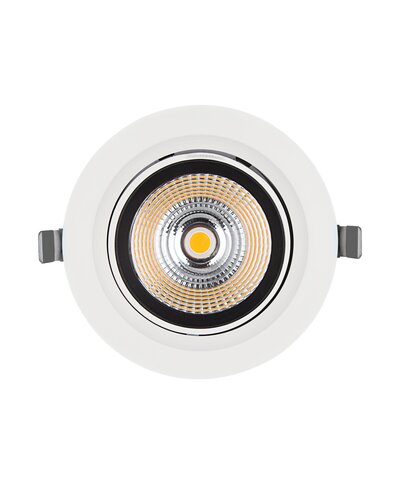

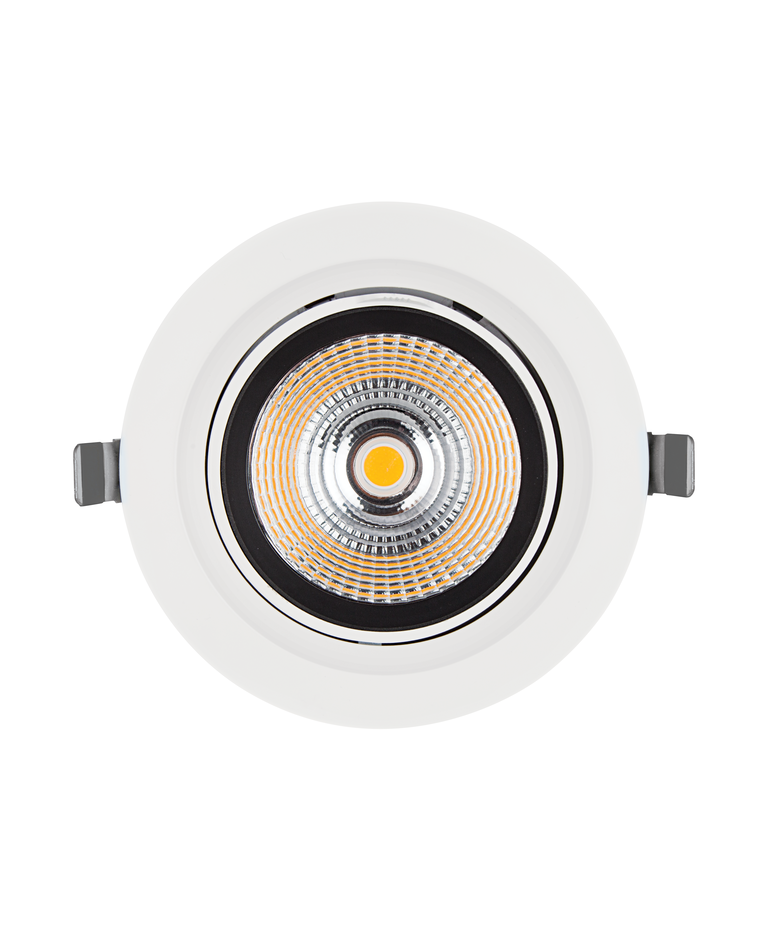

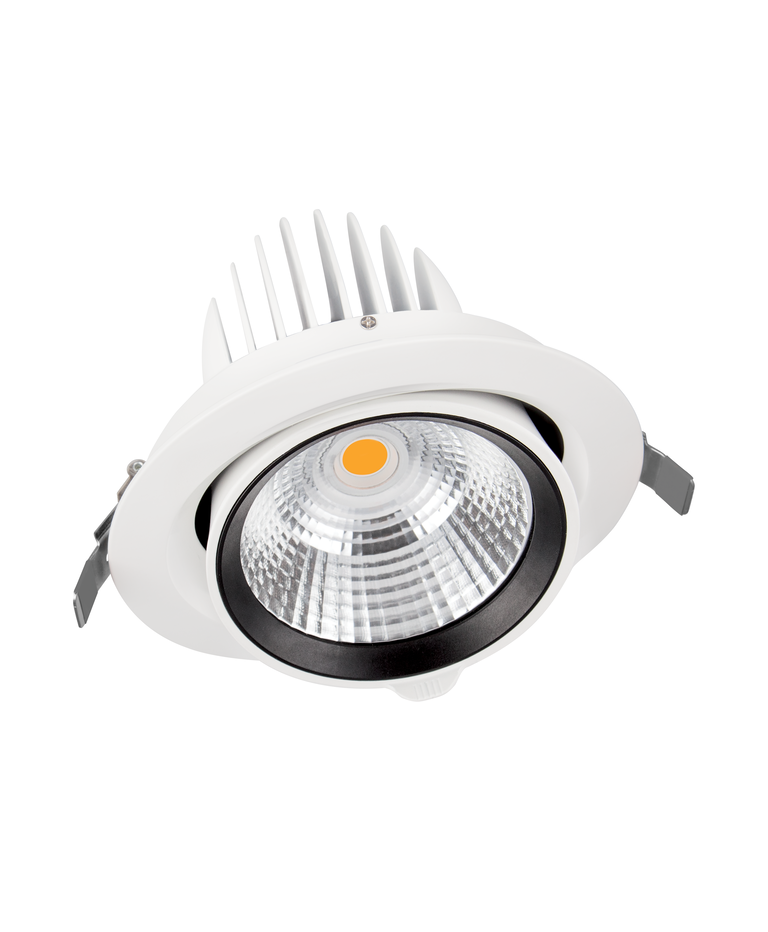

Product Image, Diagonal, White BG
SP VARIO DN170 35W WT TIF (59.13 MB)

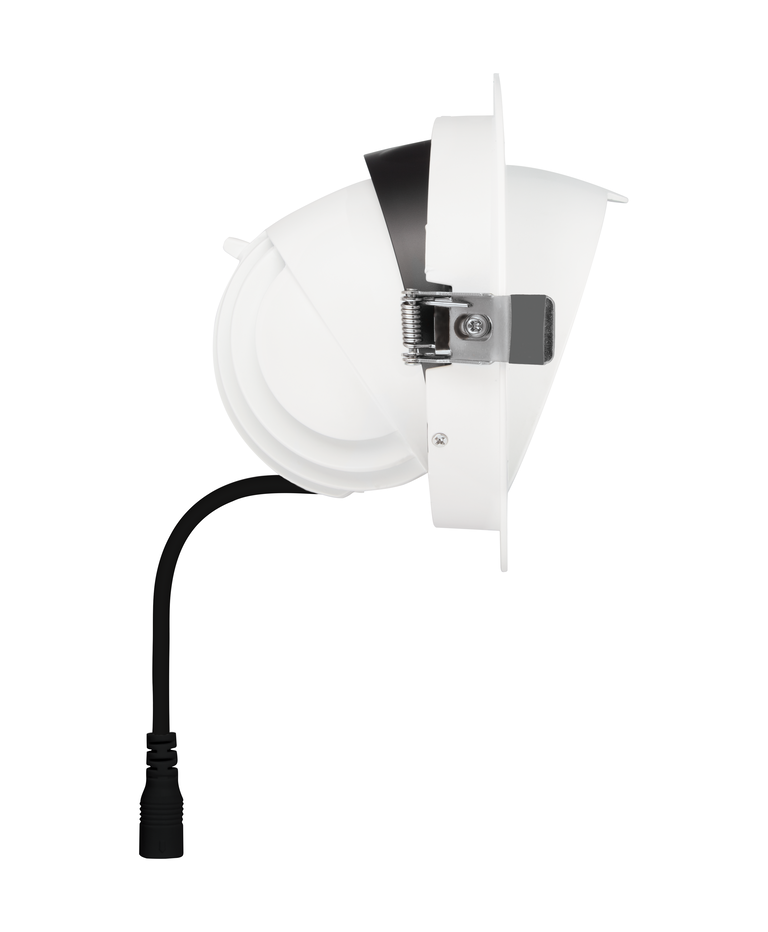

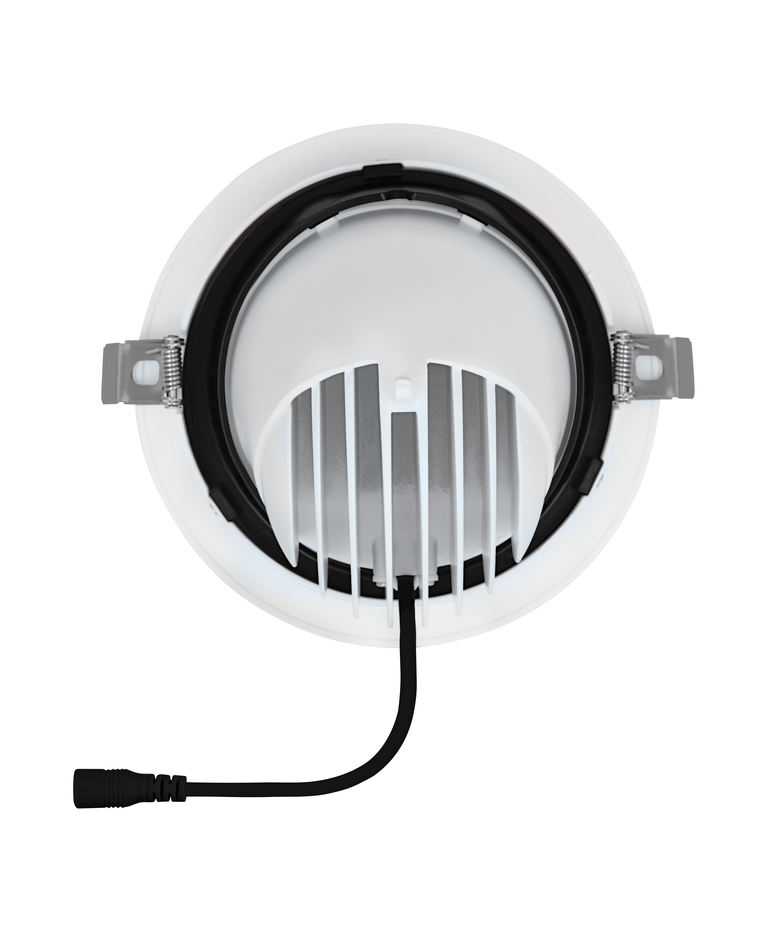

Product Image, Horizontal, White BG
SP VARIO DN170 35W WT TIF (45.8 MB)
Product line drawing with letters
SP VARIO DN170 35W WT SVG (55.14 KB)
Product line drawing with numbers
SP VARIO DN170 35W WT SVG (65.44 KB)
Product line drawing - technical
SP VARIO DN170 35W WT SVG (50.07 KB)

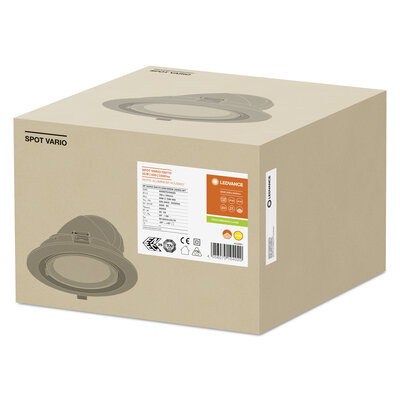

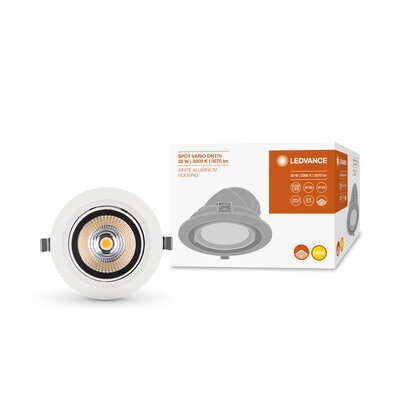

Combo Shot = Product Beauty Shot + Packaging Image
SP VARIO DN170 35W 300 0K 24DEG WT MiCh Side JPG (1.47 MB)
Packaging image, spacial
SP VARIO DN170 35W 300 0K 24DEG WT MiCh Side TIF (2.06 MB)
Catalog info 1
Spot Vario SVG (34.52 KB)
Catalog info 2
Spot Vario SVG (82.23 KB)
Catalog info 3
Spot Vario SVG (55.25 KB)
Catalog info 6
Spot Vario SVG (68.85 KB)
IES file (IES)
SP VARIO DN170 35W3000 K 24DEG WT IES (5.61 KB)
LDT file (Eulumdat)
SP VARIO DN170 35W3000 K 24DEG WT LDT (5.33 KB)
ULD file (DIALux)
SPOTVARIO17035W3000K24 DEGWT ULD (598.02 KB)
ROLF file (RELUX)
SP VARIO DN170 35W-300 0K ROLF (605.35 KB)
UGR file (UGR table)
SP VARIO DN170 35W3000 K 24DEG WT PNG (62.11 KB)
LDC typ cone
SP VARIO DN170 35W3000 K 24DEG WT SVG (89.13 KB)
LDC typ polar
SP VARIO DN170 35W3000 K 24DEG WT SVG (282.94 KB)
BIM_Revit_3D
SpotVARIO ZIP (3.29 MB)
CAD_STEP_3D
Spot Vario STEP (1.11 MB)
Tender documents
SPOT VARIO 170 35 W 30 00 K 24DEG WT-EN TXT (1.55 KB)

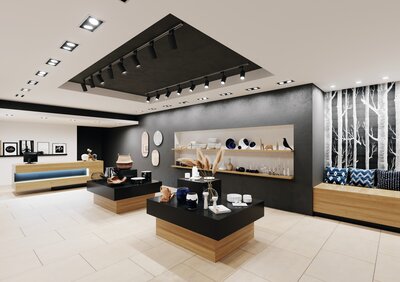

Application Pictures
Shop Spot Multi, Spot Vario, Tracklight Spot TIF (28.83 MB)
Video

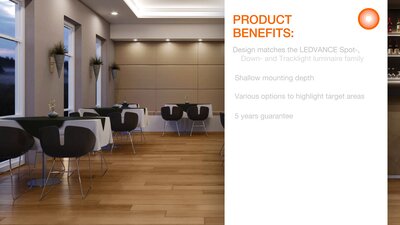

LEDVANCE Spot Vario EN MP4 (82.95 MB)
EAN SEG number STK number EFO number ELDAS number
4058075104020 7451205 4231826 3201939 941400630
