Professional
SPOT MULTI 3x30W

SPOT MULTI 3x30W

Choose your product version

3000K FL WT/BK

4000K FL WT/BK

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
SPOT MULTI 3 x 30W 3000K FL WT/BK 3*30 W 50000 38 ° 3*2700 lm No
SPOT MULTI 3 x 30W 4000K FL WT/BK 3*30 W 50000 38 ° 3*2700 lm No


SPOT MULTI 3 x 30W 4000K FL WT/BK

Product benefits
  • Low flicker light thanks to special electronic control gear
  • High luminous efficacy
  • Covering against other ceiling installations thanks to closed sheet steel housing
  • Easy replacement of external driver thanks to plug with bayonet lock
  • Functional and minimalistic design
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 3*30 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 450 mA
Inrush current 69 A
Inrush current time Th50 < 3.4 µs
Max. number of luminaires per miniature circuit breaker B16 10
Max. number of luminaires per miniature circuit breaker C10 8
Max. number of luminaires per miniature circuit breaker C16 13
Power factor λ ≥0.90
Total harmonic distortion < 15 %
Protection class II
Operating mode External LED driver

Photometrical data

Luminous flux 3*2700 lm
Luminous efficacy 90 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching ≤4 sdcm
Luminous intensity -
Low flicker Yes
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG1
Beam angle 38 °

Dimensions & Weight

Length 487.00 mm
Height 135.00 mm
Width 173.00 mm
Product weight 3870.00 g

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Cover material Polymethylmethacrylate (PMMA)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -10…+40 °C
Type of connection Screw terminal, 2-Pole (L,N)
Type of protection IP20
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting length 475 mm
Mounting width 160 mm
Mounting depth 250 mm
Adjustable Yes
LED module replaceable Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 45000 h 1)
Lifespan L90/B10 at 25 °C 30000 h
Number of switching cycles 50000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

ECG - Length 113 mm
ECG - Width 40 mm
ECG - Height 25 mm

Certificates & Standards

Standards CE, CB, ENEC, TÜV SÜD, RoHS
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Product benefits
  • Low flicker light thanks to special electronic control gear
  • High luminous efficacy
  • Covering against other ceiling installations thanks to closed sheet steel housing
  • Easy replacement of external driver thanks to plug with bayonet lock
  • Functional and minimalistic design
  • 5 years guarantee
Areas of application
  • Accent- and general lighting for all kind of salesrooms
  • Fashion shops, accessories shops
  • Shops, boutiques
  • Hotel rooms
  • Cafés
Product features
  • Large faceted reflector for high light output
  • Beam angle: 38°
  • Gimbal adjustment angle: +/- 25°
Equipment / Accessories
  • Driver included
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075114029 Folding box
1		 210 mm x 525 mm x 170 mm 4050.00 g 18.74 dm³
4058075114036 Shipping box
2		 535 mm x 220 mm x 400 mm 16760.00 g 47.08 dm³
User Instruction / Safety Instructions
UI Spot Multi PDF (2.99 MB)
On-Pack-Info
Legal Insert Spot LED PDF (1.59 MB)
Legal information
LSI SP MULTI PDF (1.19 MB)
Declarations of conformity
EU Declaration of Conf ormity Spot Multi LEDV PDF (701.37 KB)
Declarations of conformity
Attestation-of-Conform ity SP SQ and Multi TÜ V PDF (2.18 MB)
Product Image, Diagonal, White BG
SP MULTI 3 x 30W TIF (56.19 MB)
Product Image, Upright, White BG
SP MULTI 3 x 30W TIF (53.09 MB)
Product line drawing with letters
SP MULTI 3 x 30W SVG (31.91 KB)
Product line drawing with numbers
SP MULTI 3 x 30W SVG (41.3 KB)
Product line drawing - technical
SP MULTI 3 x 30W SVG (24.65 KB)

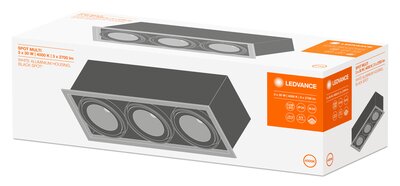

Packaging image, spacial
Spot Multi 3x 30W 840 FL white MiCh Side TIF (87.08 MB)
Catalog info 1
Spot Multi 1x 30W 830 SVG (21.02 KB)
Catalog info 2
Spot Multi 1x 30W 830 SVG (54.26 KB)
Catalog info 6
Spot Multi 1x 30W 830 SVG (21.08 KB)
IES file (IES)
SP MULTI 3 x 30W4000K FL WT IES (5.81 KB)
LDT file (Eulumdat)
SP MULTI 3 x 30W4000K FL WT LDT (5.35 KB)
ULD file (DIALux)
SPOTMULTI3x30W4000KFLW TBK ULD (91.65 KB)
UGR file (UGR table)
SP MULTI 3 x 30W4000K FL WT PNG (61.4 KB)
LDC typ cone
SP MULTI 3 x 30W4000K FL WT SVG (86.02 KB)
LDC typ polar
SP MULTI 3 x 30W4000K FL WT SVG (285.57 KB)
BIM_Revit_3D
Spot Multi ZIP (8 MB)
CAD_STEP_3D
SP MULTI 3x30W STEP (721.63 KB)
Tender documents
SPOT MULTI 3x30W 4000K FL WTBK-EN TXT (1.54 KB)
Application Pictures
Shop Spot Multi, Spot Vario, Tracklight Spot TIF (28.83 MB)
Video
LEDVANCE Spot Multi EN MP4 (69.65 MB)
EAN SEG number STK number EFO number ELDAS number
4058075114029 7451234 4231936 3201946 941400600
