STREETLIGHT ECO LITE

STREETLIGHT ECO LITE

Choose your product version

30 W/3000 K

30 W/3000 K

30 W/4000 K

30 W/4000 K

30 W/6500 K

30 W/6500 K

50 W/3000 K

50 W/3000 K

50 W/4000 K

50 W/4000 K

50 W/6500 K

50 W/6500 K

100 W/3000 K

100 W/3000 K

100 W/4000 K

100 W/4000 K

100 W/6500 K

100 W/6500 K

150 W/3000 K

150 W/3000 K

150 W/4000 K

150 W/4000 K

150 W/6500 K

150 W/6500 K

OVERVIEW

Product description Nominal wattage Beam angle Luminous flux Dimmable
LDECO LITE STREET 30 W/3000 K 30.00 W 120 ° 3000 lm No
LDECO LITE STREET 30 W/3000 K 30.00 W 70 ° x 130 ° 3000 lm No
LDECO LITE STREET 30 W/4000 K 30.00 W 70 ° x 130 ° 3300 lm No
LDECO LITE STREET 30 W/4000 K 30.00 W 120 ° 3300 lm No
LDECO LITE STREET 30 W/6500 K 30.00 W 120 ° 3300 lm No
LDECO LITE STREET 30 W/6500 K 30.00 W 70 ° x 130 ° 3300 lm No
LDECO LITE STREET 50 W/3000 K 50.00 W 70 ° x 130 ° 5000 lm No
LDECO LITE STREET 50 W/3000 K 50.00 W 120 ° 5000 lm No
LDECO LITE STREET 50 W/4000 K 50.00 W 120 ° 5500 lm No
LDECO LITE STREET 50 W/4000 K 50.00 W 70 ° x 130 ° 5500 lm No
LDECO LITE STREET 50 W/6500 K 50.00 W 70 ° x 130 ° 5500 lm No
LDECO LITE STREET 50 W/6500 K 50.00 W 120 ° 5500 lm No
LDECO LITE STREET 100 W/3000 K 100.00 W 70 ° x 130 ° 10000 lm No
LDECO LITE STREET 100 W/3000 K 100.00 W 120 ° 10000 lm No
LDECO LITE STREET 100 W/4000 K 100.00 W 120 ° 11000 lm No
LDECO LITE STREET 100 W/4000 K 100.00 W 70 ° x 130 ° 11000 lm No
LDECO LITE STREET 100 W/6500 K 100.00 W 70 ° x 130 ° 11000 lm No
LDECO LITE STREET 100 W/6500 K 100.00 W 120 ° 11000 lm No
LDECO LITE STREET 150 W/3000 K 150.00 W 70 ° x 130 ° 15000 lm No
LDECO LITE STREET 150 W/3000 K 150.00 W 120 ° 15000 lm No
LDECO LITE STREET 150 W/4000 K 150.00 W 120 ° 16500 lm No
LDECO LITE STREET 150 W/4000 K 150.00 W 70 ° x 130 ° 16500 lm No
LDECO LITE STREET 150 W/6500 K 150.00 W 70 ° x 130 ° 16500 lm No
LDECO LITE STREET 150 W/6500 K 150.00 W 120 ° 16500 lm No

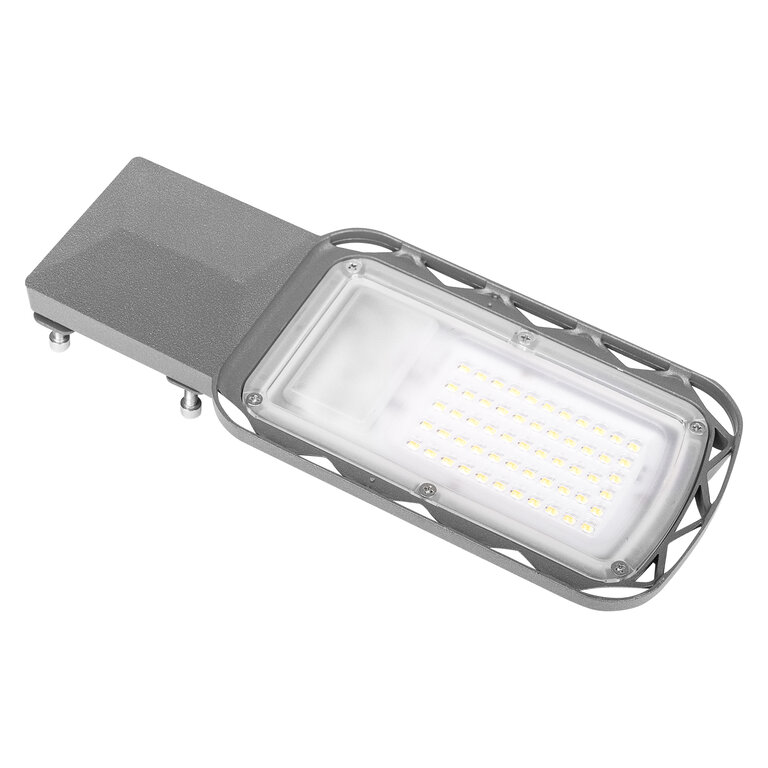

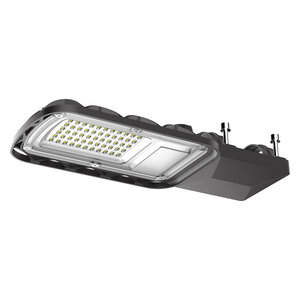

LDECO LITE STREET 30 W/3000 K

Product benefits
  • Compact design
  • Wide range of applications thanks to a large variety of versions
  • Easy connection thanks to included wire (50 cm)
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 30.00 W
Nominal voltage 220…240 V
Protection class I

Photometrical data

Luminous flux 3000 lm
Luminous efficacy 100 lm/W
Color temperature 3000 K
Color rendering index Ra > 70
Standard deviation of color matching < 6 sdcm
Beam angle 120 °

Dimensions & Weight

Length 293.00 mm
Height 53.00 mm
Width 126.00 mm
Product weight 840.00 g

Materials & Colors

Product color Gray
Housing color Gray
Body material Aluminum
Cover material Tempered glass
Mercury content 0.0 mg

Application & Mounting

Type of protection IP65
Protection class IK (shock resistance) IK07
Dimmable No
Mounting type Side entry
Mounting location Pole
Application environment Outdoor
LED module replaceable Not replaceable

Certificates & Standards

Standards CB, RoHS
Product benefits
  • Compact design
  • Wide range of applications thanks to a large variety of versions
  • Easy connection thanks to included wire (50 cm)
Areas of application
  • Streets
  • Parking
  • Parks
  • Gardens
  • Residential sector
Product features
  • Available with wattage: 30 W, 50 W, 100 W and 150 W
  • High luminous efficacy: up to 110 lm/W
  • Input voltage: 220…240 V
  • Color temperature: 3,000 K, 4,000 K, 6,500 K
  • Color rendering index Ra: > 70
  • Type of protection: IP65
  • Certificate: CB, RoHS
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075568167 Folding box
1		 141 mm x 48 mm x 318 mm 1000.00 g 2.15 dm³
4058075568174 Shipping box
12		 443 mm x 328 mm x 210 mm 12708.00 g 30.51 dm³

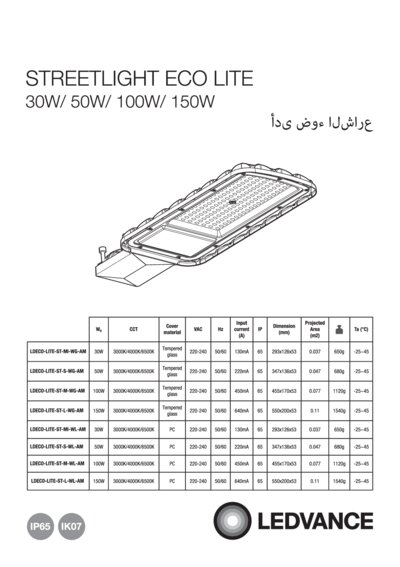

User Instruction / Safety Instructions
LDECO LITE STREET 30W5 0W100W150W WG_WL PDF (1.34 MB)

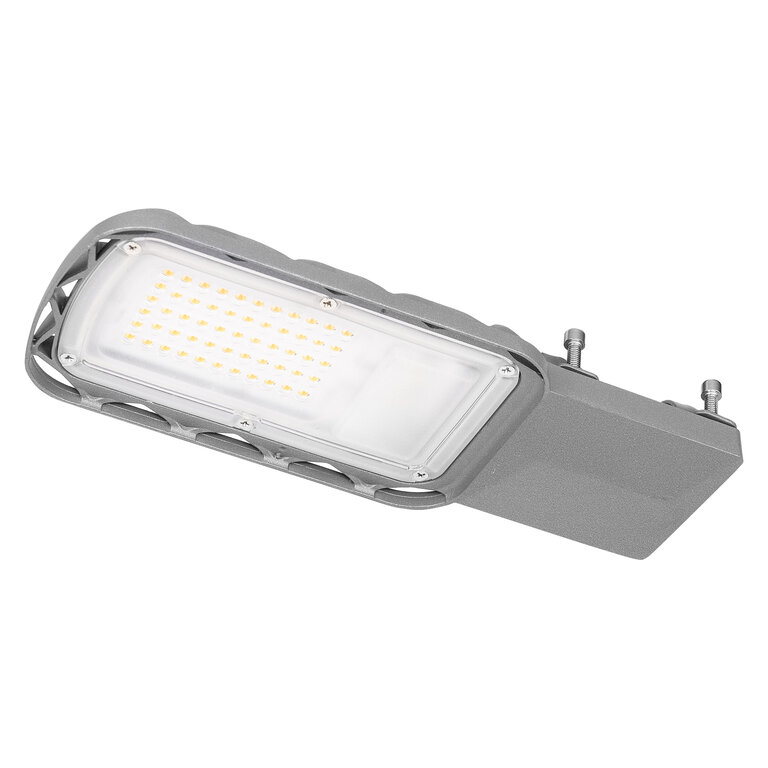

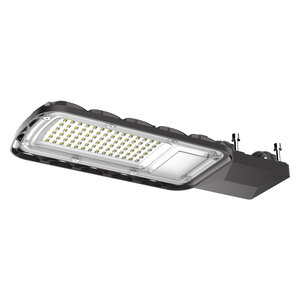

Product Image, Spacial, White BG
LDECO LITE STREET 30W WG JPG (1.17 MB)
Product line drawing with numbers
LDECO LITE STREET 30W WG_WL SVG (71.73 KB)
Product line drawing - technical
LDECO LITE STREET 30W5 0W100W150W WG_WL SVG (491.87 KB)
IES file (IES)
LDECO LITE STREET 30W 830,840,865 WG 12X1 LE DV IES (21.13 KB)
