Professional

LED TRACK SPOT LIGHT

Choose your product version

9 W 15 ° 3000 K Black

9 W 15 ° 3000 K White

9 W 24 ° 3000 K White

9 W 24 ° 3000 K Black

9 W 36 ° 3000 K Black

9 W 36 ° 3000 K White

9 W 15 ° 4000 K Black

9 W 36 ° 4000 K Black

9 W 24 ° 4000 K White

9 W 36 ° 4000 K White

9 W 24 ° 4000 K Black

9 W 15 ° 4000 K White

15 W 15 ° 3000 K White

15 W 15 ° 3000 K Black

15 W 24 ° 3000 K Black

15 W 36 ° 3000 K White

15 W 24 ° 3000 K White

15 W 36 ° 3000 K Black

15 W 15 ° 4000 K Black

15 W 24 ° 4000 K White

15 W 24 ° 4000 K Black

15 W 36 ° 4000 K White

15 W 15 ° 4000 K White

15 W 36 ° 4000 K Black

20 W 36 ° 3000 K White

20 W 24 ° 3000 K Black

20 W 36 ° 3000 K Black

20 W 15 ° 3000 K White

20 W 24 ° 3000 K White

20 W 15 ° 3000 K Black

20 W 15 ° 4000 K Black

20 W 15 ° 4000 K White

20 W 24 ° 4000 K Black

20 W 24 ° 4000 K White

20 W 36 ° 4000 K Black

20 W 36 ° 4000 K White

30 W 36 ° 3000 K White

30 W 24 ° 3000 K Black

30 W 36 ° 3000 K Black

30 W 15 ° 3000 K Black

30 W 24 ° 3000 K White

30 W 15 ° 3000 K White

30 W 15 ° 4000 K White

30 W 15 ° 4000 K Black

30 W 24 ° 4000 K Black

30 W 24 ° 4000 K White

30 W 36 ° 4000 K White

30 W 36 ° 4000 K Black

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
LED Performance Track Spot 9 W 15 ° 3000 K Black 9.00 W 30000 15 ° 645 lm No
LED Performance Track Spot 9 W 15 ° 3000 K White 9.00 W 30000 15 ° 645 lm No
LED Performance Track Spot 9 W 24 ° 3000 K White 9.00 W 30000 24 ° 645 lm No
LED Performance Track Spot 9 W 24 ° 3000 K Black 9.00 W 30000 24 ° 645 lm No
LED Performance Track Spot 9 W 36 ° 3000 K Black 9.00 W 30000 36 ° 645 lm No
LED Performance Track Spot 9 W 36 ° 3000 K White 9.00 W 30000 36 ° 645 lm No
LED Performance Track Spot 9 W 15 ° 4000 K Black 9.00 W 30000 15 ° 660 lm No
LED Performance Track Spot 9 W 36 ° 4000 K Black 9.00 W 30000 36 ° 660 lm No
LED Performance Track Spot 9 W 24 ° 4000 K White 9.00 W 30000 24 ° 660 lm No
LED Performance Track Spot 9 W 36 ° 4000 K White 9.00 W 30000 36 ° 660 lm No
LED Performance Track Spot 9 W 24 ° 4000 K Black 9.00 W 30000 24 ° 660 lm No
LED Performance Track Spot 9 W 15 ° 4000 K White 9.00 W 30000 15 ° 660 lm No
LED Performance Track Spot 15 W 15 ° 3000 K White 15.00 W 30000 15 ° 1045 lm No
LED Performance Track Spot 15 W 15 ° 3000 K Black 15.00 W 30000 15 ° 1045 lm No
LED Performance Track Spot 15 W 24 ° 3000 K Black 15.00 W 30000 24 ° 1045 lm No
LED Performance Track Spot 15 W 36 ° 3000 K White 15.00 W 30000 36 ° 1045 lm No
LED Performance Track Spot 15 W 24 ° 3000 K White 15.00 W 30000 24 ° 1045 lm No
LED Performance Track Spot 15 W 36 ° 3000 K Black 15.00 W 30000 36 ° 1045 lm No
LED Performance Track Spot 15 W 15 ° 4000 K Black 15.00 W 30000 15 ° 1075 lm No
LED Performance Track Spot 15 W 24 ° 4000 K White 15.00 W 30000 24 ° 1075 lm No
LED Performance Track Spot 15 W 24 ° 4000 K Black 15.00 W 30000 24 ° 1075 lm No
LED Performance Track Spot 15 W 36 ° 4000 K White 15.00 W 30000 36 ° 1075 lm No
LED Performance Track Spot 15 W 15 ° 4000 K White 15.00 W 30000 15 ° 1075 lm No
LED Performance Track Spot 15 W 36 ° 4000 K Black 15.00 W 30000 36 ° 1075 lm No
LED Performance Track Spot 20 W 36 ° 3000 K White 20.00 W 30000 36 ° 1350 lm No
LED Performance Track Spot 20 W 24 ° 3000 K Black 20.00 W 30000 24 ° 1350 lm No
LED Performance Track Spot 20 W 36 ° 3000 K Black 20.00 W 30000 36 ° 1350 lm No
LED Performance Track Spot 20 W 15 ° 3000 K White 20.00 W 30000 15 ° 1350 lm No
LED Performance Track Spot 20 W 24 ° 3000 K White 20.00 W 30000 24 ° 1350 lm No
LED Performance Track Spot 20 W 15 ° 3000 K Black 20.00 W 30000 15 ° 1350 lm No
LED Performance Track Spot 20 W 15 ° 4000 K Black 20.00 W 30000 15 ° 1390 lm No
LED Performance Track Spot 20 W 15 ° 4000 K White 20.00 W 30000 15 ° 1390 lm No
LED Performance Track Spot 20 W 24 ° 4000 K Black 20.00 W 30000 24 ° 1390 lm No
LED Performance Track Spot 20 W 24 ° 4000 K White 20.00 W 30000 24 ° 1390 lm No
LED Performance Track Spot 20 W 36 ° 4000 K Black 20.00 W 30000 36 ° 1390 lm No
LED Performance Track Spot 20 W 36 ° 4000 K White 20.00 W 30000 36 ° 1390 lm No
LED Performance Track Spot 30 W 36 ° 3000 K White 30.00 W 30000 36 ° 2300 lm No
LED Performance Track Spot 30 W 24 ° 3000 K Black 30.00 W 30000 24 ° 2300 lm No
LED Performance Track Spot 30 W 36 ° 3000 K Black 30.00 W 30000 36 ° 2300 lm No
LED Performance Track Spot 30 W 15 ° 3000 K Black 30.00 W 30000 15 ° 2300 lm No
LED Performance Track Spot 30 W 24 ° 3000 K White 30.00 W 30000 24 ° 2300 lm No
LED Performance Track Spot 30 W 15 ° 3000 K White 30.00 W 30000 15 ° 2300 lm No
LED Performance Track Spot 30 W 15 ° 4000 K White 30.00 W 30000 15 ° 2360 lm No
LED Performance Track Spot 30 W 15 ° 4000 K Black 30.00 W 30000 15 ° 2360 lm No
LED Performance Track Spot 30 W 24 ° 4000 K Black 30.00 W 30000 24 ° 2360 lm No
LED Performance Track Spot 30 W 24 ° 4000 K White 30.00 W 30000 24 ° 2360 lm No
LED Performance Track Spot 30 W 36 ° 4000 K White 30.00 W 30000 36 ° 2360 lm No
LED Performance Track Spot 30 W 36 ° 4000 K Black 30.00 W 30000 36 ° 2360 lm No


LED Performance Track Spot 9 W 15 ° 3000 K Black

Product benefits
  • High power COB LED provides high lumen output in compact housing
  • Low flicker light thanks to special electronic control gear
  • Good color rendering for the best product presentation
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 9.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Power factor λ 0.90
Protection class II
Operating mode LED DRIVER

Photometrical data

Luminous flux 645 lm
Luminous efficacy 76 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra 90
Standard deviation of color matching 5 sdcm
Beam angle 15 °

Dimensions & Weight

Length 75.00 mm
Height 175.00 mm
Width 50.00 mm
Product weight 240.00 g

Materials & Colors

Product color Black
Housing color Black
Body material Aluminum
Cover material Polymethylmethacrylate (PMMA)
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+70 °C
Type of connection WAGO
Type of protection IP20
Dimmable No
Mounting type Suspended
Mounting location Mounting rail
Application environment Indoor

Lifespan

Lifespan L70/B50 at 25 °C 30000 h 1)
Number of switching cycles 30000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • High power COB LED provides high lumen output in compact housing
  • Low flicker light thanks to special electronic control gear
  • Good color rendering for the best product presentation
Areas of application
  • Shops, supermarkets
  • Retail outlets
  • Shopping malls
  • Hotels, restaurants
Product features
  • Color: black or white
  • Available with color temperature: 3,000 K, 4,000 K
  • Color rendering index Ra: > 90
  • Power factor: > 0.9
  • Initial color consistency: < 5 SDCM
  • Lifetime (L70/B50): up to 30,000 h
  • Type of protection: IP20
  • CCC marked, CB test certificate
  • Follows the unified LEDVANCE design language (SCALE design)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075327771 Folding box
1		 85 mm x 75 mm x 185 mm 308.00 g 1.18 dm³
4058075327788 Shipping box
20		 455 mm x 320 mm x 205 mm 6885.00 g 29.85 dm³

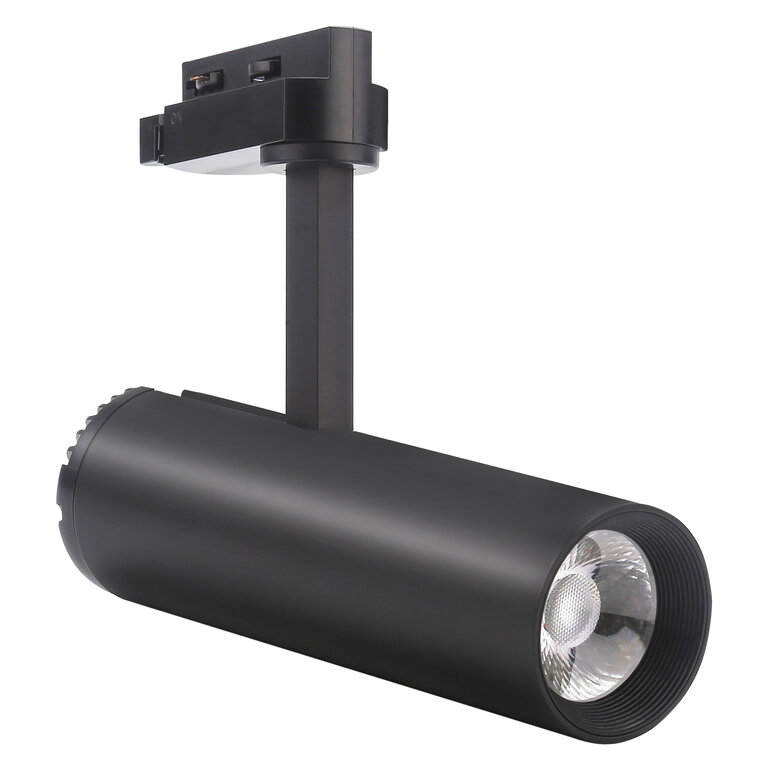

Product image: white background, upright
LDPFM Trackspot light black JPG (1.54 MB)
Product line drawing with numbers
LDPFM Trackspot light 9W SVG (152.8 KB)
IES file (IES)
LDPFM-Trackspot-9W 930 15D IES (64.11 KB)
