TruSys® PERFORMANCE WIDE

TruSys PERFORMANCE WIDE

Choose your product version

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
TruSys® PFM W 35 W 4000 K DALI 35.00 W 100000 90 ° 5600 lm Yes
TruSys® PFM W 35 W/4000 K 35.00 W 100000 90 ° 5600 lm No
TruSys® PFM W 50 W/4000 K 50.00 W 100000 90 ° 8000 lm No
TruSys® PFM W 50 W 4000 K DALI 50.00 W 100000 90 ° 8000 lm Yes
TruSys® PFM W 70 W 4000 K DALI 70.00 W 100000 90 ° 11200 lm Yes
TruSys® PFM W 70 W/4000 K 70.00 W 100000 90 ° 11200 lm No

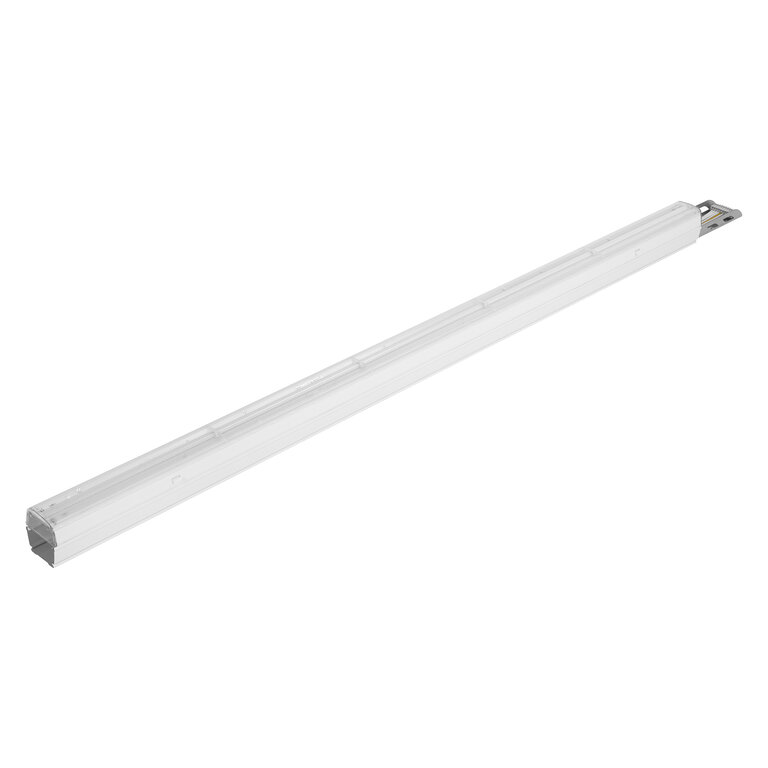

TruSys® PFM W 35 W 4000 K DALI

Product benefits
  • Homogenous light distribution
  • Easy installation, no tools required for connection
  • Energy saving and cost-effective
  • Flexible application due to a range of different lumen packages and beam angles
  • Rows of up to 57 (On-Off) / 66 (DALI) luminaires possible
  • Versions with DALI ECG available

PRODUCT DETAILS

Electrical data

Nominal wattage 35.00 W
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 190 mA
Inrush current 29 A
Inrush current time Th50 180 µs
Max. number of luminaires per miniature circuit breaker B16 21
Max. number of luminaires per miniature circuit breaker C10 22
Max. number of luminaires per miniature circuit breaker C16 36
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 5600 lm
Luminous efficacy 160 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra ≥80
Standard deviation of color matching ≤3 sdcm
Low flicker Yes
Photobiological safety group acc. to EN62778 RG1
Beam angle 90 °

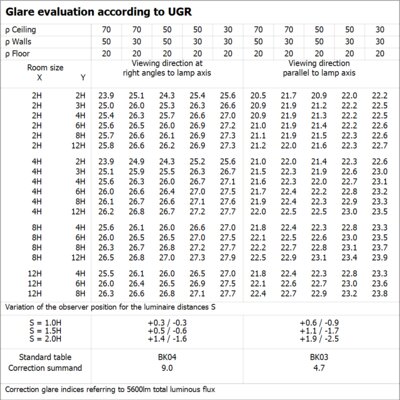

UGR 21

Dimensions & Weight

Length 1500.00 mm
Height 39.40 mm
Width 66.80 mm
Product weight 1660.00 g

Materials & Colors

Product color White
Housing color White
Body material Steel
Cover material Polymethylmethacrylate (PMMA)
Light emitting surface material PMMA
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -25…+40 °C
Type of connection Plug-In connection
Type of protection IP20
Protection class IK (shock resistance) IK04
Dimmable Yes
Type of dimming DALI
Mounting type Suspended/Surface
Mounting location Mounting rail
Application environment Indoor
Replaceable light source (EPREL) Not replaceable
With light source No

Lifespan

Lifespan L70/B50 at 25 °C 65000 h 1)
Lifespan L80/B10 at 25 °C 60000 h 1)
Lifespan L90/B10 at 25 °C 50000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 420 mA
ECG - Output ripple current < 20 %

Certificates & Standards

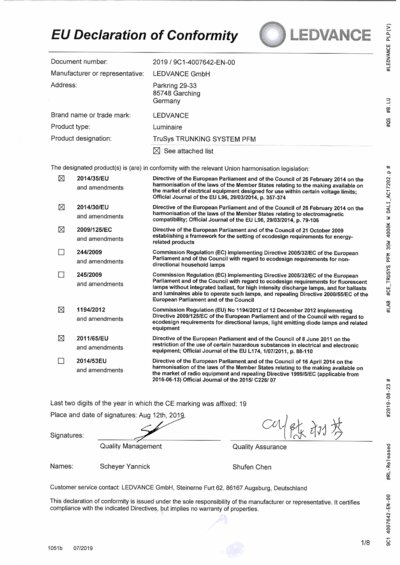

Standards CE, CB, ENEC 18, EAC, RoHS
Ball shot safe No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Homogenous light distribution
  • Easy installation, no tools required for connection
  • Energy saving and cost-effective
  • Flexible application due to a range of different lumen packages and beam angles
  • Rows of up to 57 (On-Off) / 66 (DALI) luminaires possible
  • Versions with DALI ECG available
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Industry halls, high rack warehouse, garages, hardware stores
  • Discounters, supermarkets
Product features
  • Beam angle wide: 90°
  • Click into place solution with smart click buttons
  • Luminous efficacy: up to 160 lm/W
  • Fixed luminare taps
  • Lumen package 5600 lm, 8000 lm, 11200 lm
  • Steel-sheet housing
  • Lens material: PMMA
  • Type of protection: IP20
  • Common family design with LEDVANCE
  • Lifetime (L80/B10): up to 60,000 h
Equipment / Accessories
  • Mounting rail with fixed integrated 5- and 8-pole cable
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075394056 Folding box
1
108 mm x 1,534 mm x 102 mm 1835.00 g 16.90 dm³
4058075394063 Shipping box
4
1,547 mm x 218 mm x 231 mm 8133.00 g 77.90 dm³
