Professional
TruSys® DOUBLE ASYMMETRIC

TruSys DOUBLE ASYMMETRIC

Choose your product version

53 W 3000 K SI

53 W 3000 K SI DALI

53 W 6500 K SI

53 W 6500 K SI DALI

53 W 4000 K SI DALI

53 W 4000 K SI

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
TruSys® DA 53 W 3000 K SI 53.00 W 100000 2 x 35 ° 6400 lm No
TruSys® DA 53 W 3000 K SI DALI 53.00 W 100000 2 x 35 ° 6400 lm Yes
TruSys® DA 53 W 6500 K SI 53.00 W 100000 2 x 35 ° 6700 lm No
TruSys® DA 53 W 6500 K SI DALI 53.00 W 100000 2 x 35 ° 6700 lm Yes
TruSys® DA 53 W 4000 K SI DALI 53.00 W 100000 2 x 35 ° 6900 lm Yes
TruSys® DA 53 W 4000 K SI 53.00 W 100000 2 x 35 ° 6900 lm No


TruSys® DA 53 W 3000 K SI

Product benefits
  • Innovative optical design with a rod lense-technology over the entire length of the luminaire
  • Internal holders prevent the luminaire from falling while being mounted
  • Easy electrical and mechanical connection to the mounting rail via snap-in mounting
  • Bidirectional light distribution for lighting and accentuation of shelves
  • Clean look as mouting brackets are not visible when mounted
  • Plug-and-play system allows easy installation
  • High-value design
  • Rows of up to 81 (On-Off) / 91 (DALI) luminaires and an overall length of 124 m (On-Off) / 151 m (DALI) possible
  • Energy savings of up to 65 % compared to luminaires with 2 x 80 W T5 lamps
  • Version with DALI ECG available
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 53.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 220 mA
Inrush current 30 A
Inrush current time Th50 250 µs
Max. number of luminaires per miniature circuit breaker B16 16
Max. number of luminaires per miniature circuit breaker C10 15
Max. number of luminaires per miniature circuit breaker C16 27
Power factor λ ≥0.95
Total harmonic distortion < 6.1 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 6400 lm
Luminous efficacy 120 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra ≥80
Standard deviation of color matching ≤3 sdcm
Low flicker Yes
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG1
Beam angle 2 x 35 °

Dimensions & Weight

Length 1534.00 mm
Height 53.00 mm
Width 71.00 mm
Product weight 1740.00 g

Materials & Colors

Product color Silver
Housing color Silver
Body material Aluminum
Cover material Polymethylmethacrylate (PMMA)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+45 °C
Type of connection Plug-In connection
Type of protection IP20
Protection class IK (shock resistance) IK07
Dimmable No
Mounting type Suspended/Surface
Mounting location Mounting rail
Application environment Indoor
Replaceable light source (EPREL) Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 75000 h 1)
Lifespan L80/B10 at 25 °C 50000 h 1)
Lifespan L90/B10 at 25 °C 35000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

Standards CE, CB, TÜV SÜD, ENEC, EAC, RoHS
Ball shot safe No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Innovative optical design with a rod lense-technology over the entire length of the luminaire
  • Internal holders prevent the luminaire from falling while being mounted
  • Easy electrical and mechanical connection to the mounting rail via snap-in mounting
  • Bidirectional light distribution for lighting and accentuation of shelves
  • Clean look as mouting brackets are not visible when mounted
  • Plug-and-play system allows easy installation
  • High-value design
  • Rows of up to 81 (On-Off) / 91 (DALI) luminaires and an overall length of 124 m (On-Off) / 151 m (DALI) possible
  • Energy savings of up to 65 % compared to luminaires with 2 x 80 W T5 lamps
  • Version with DALI ECG available
Areas of application
  • Direct replacement for luminaires with compact fluorescent lamps
  • Discounters, supermarkets
Product features
  • Double asymmetric wallwasher light distribution with beam angle 2x 35°
  • Luminous efficacy: up to 135 lm/W
  • Fixed energy taps for electrical connection
  • High-quality aluminum casing
  • Type of protection: IP20
  • Follows the unified LEDVANCE design language (SCALE design)
Equipment / Accessories
  • Mounting rail with fixed integrated 5- (On-Off) / 7-pole (DALI) cable
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075100633 Folding box
1		 58 mm x 1,552 mm x 82 mm 1905.00 g 7.38 dm³
4058075100640 Shipping box
3		 1,561 mm x 186 mm x 94 mm 6140.00 g 27.29 dm³
User Instruction / Safety Instructions

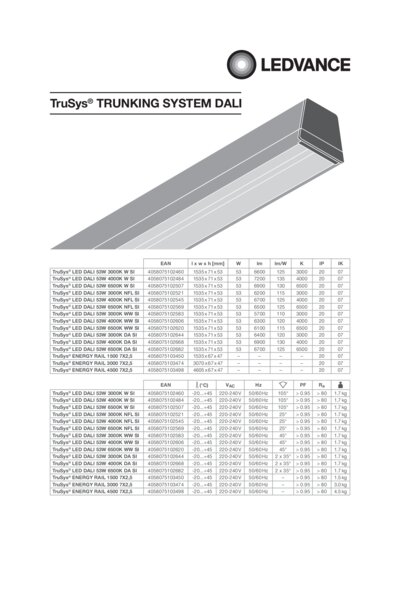

UI_TruSys® TRUNKING SY STEM PDF (3.11 MB)
On-Pack-Info

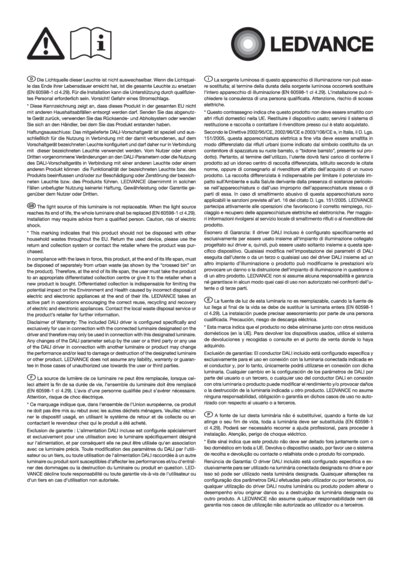

Legal Insert TruSys PDF (1.55 MB)
Legal information

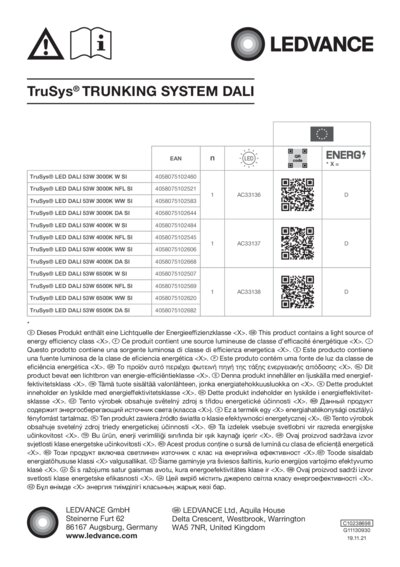

LS Insert Trusys LED PDF (1.19 MB)
Declarations of conformity
TRUSYS LED PDF (2.36 MB)
Product Image, Diagonal, White BG
TruSys TIF (39.91 MB)
Product Image, Horizontal, White BG
TruSys TIF (89.67 MB)
Product Image, Horizontal, White BG, Alternativ Image
TruSys TIF (89.67 MB)
Product Image, Horizontal, White BG, Alternativ Image
TruSys TIF (89.67 MB)
Product Image, Horizontal, White BG, Alternativ Image
TruSys TIF (89.67 MB)
Product line drawing with letters
TRUSYS LED SVG (6.14 KB)
Product line drawing with numbers
TRUSYS LED SVG (11.83 KB)
Product line drawing - technical
TRUSYS LED SVG (3.36 KB)
IES file (IES)
TRUSYS LED 53W 3000K D A SI IES (14.79 KB)
LDT file (Eulumdat)
LEDVANCE TruSys LED 53 W 3000K DA SI LDT (11.3 KB)
ULD file (DIALux)
TruSysDOUBLEASYMMETRIC 53W3000KSI ULD (158.21 KB)
ULD file (DIALux)
TRUSYS DOUBLE ASYMMETR IC 53W 3000K ULD (160.77 KB)
ROLF file (RELUX)
TRUSYS LED 53W 3000K ROLF (100.26 KB)

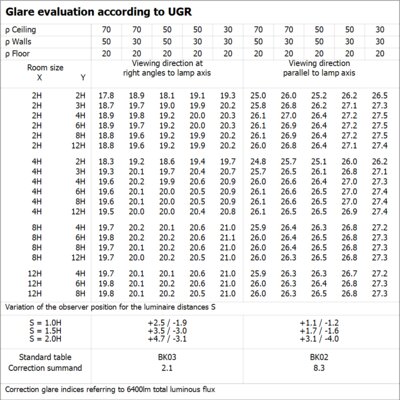

UGR file (UGR table)
LEDVANCE TruSys LED 53 W 3000K DA SI PNG (63.49 KB)
LDC typ cone
LEDVANCE TruSys LED 53 W 3000K DA SI SVG (84.41 KB)
LDC typ polar
LEDVANCE TruSys LED 53 W 3000K DA SI SVG (253.28 KB)
BIM_Revit_3D
TRUSYS 1500 3000 4500 ZIP (28.07 MB)
CAD_STEP_3D
TRUSYS 1500 STEP (406.82 KB)
Tender documents
TruSys DOUBLE ASYMMETR IC 53 W 3000 K SI-EN TXT (1.51 KB)

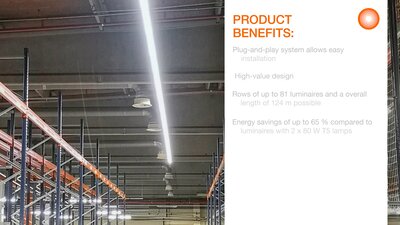

Video
LEDVANCE TruSys DA 53 W EN MP4 (87.03 MB)
Video
LEDVANCE LUM Installat ion Video EN TruSys MP4 (252.76 MB)
EAN SEG number STK number ELDAS number
4058075100633 7214293 4231838 941600180
