Professional

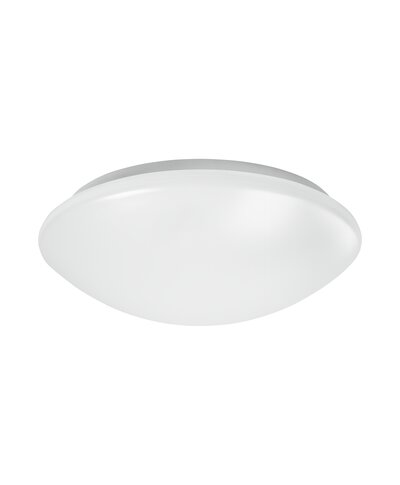

SURFACE CIRCULAR 350

SURFACE CIRCULAR 350

Choose your product version

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
SF CIRCULAR 350 18 W 3000 K IP44 WT 18.00 W 100000 120 ° 1440 lm No
SF CIRCULAR 350 18 W 4000 K IP44 WT 18.00 W 100000 120 ° 1440 lm No


SF CIRCULAR 350 18 W 3000 K IP44 WT

Product benefits
  • Indoor luminaire with high luminous efficacy
  • Energy savings of up to 55 % compared to luminaires that use CFL
  • Easy and quick installation
  • Very homogenous light
  • 3 years guarantee

PRODUCT DETAILS

Electrical data

Nominal wattage 18.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 153 mA
Inrush current 15.0 A
Inrush current time Th50 200 µs
Max. number of luminaires per miniature circuit breaker B16 31
Max. number of luminaires per miniature circuit breaker C10 26
Max. number of luminaires per miniature circuit breaker C16 42
Power factor λ > 0.5
Total harmonic distortion < 120 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 1440 lm
Luminous efficacy 80 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching ≤5 sdcm
Low flicker Yes
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °

Dimensions & Weight

Diameter 350.00 mm
Height 115.00 mm
Product weight 600.00 g

Materials & Colors

Product color White
Housing color White
Body material Steel
Cover material Polymethylmethacrylate (PMMA)
Light emitting surface material PMMA
Glow Wire Test according to IEC 60695-2-12 650 °C

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -25…+70 °C
Type of connection Screw terminal, 3-Pole
Type of protection IP44
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Surface
Mounting location Ceiling, Wall
Application environment Indoor
Replaceable light source (EPREL) Not replaceable

Lifespan

Lifespan L70/B50 at 25 °C 30000 h 1)
Lifespan L80/B10 at 25 °C 22000 h 1)
Lifespan L90/B10 at 25 °C 15000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 117 mA

Certificates & Standards

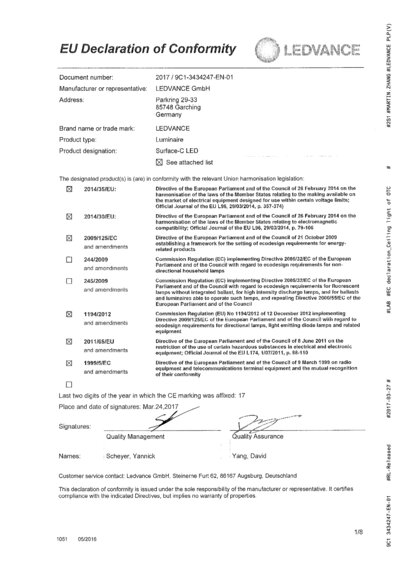

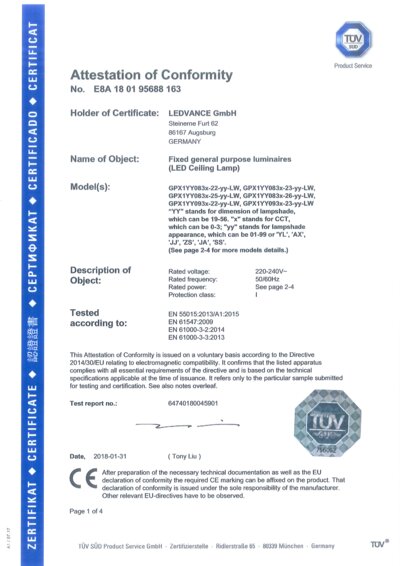

Standards CE, CB, TÜV SÜD, EAC
Ball shot safe No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Additional info can be provided per individual request

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Indoor luminaire with high luminous efficacy
  • Energy savings of up to 55 % compared to luminaires that use CFL
  • Easy and quick installation
  • Very homogenous light
  • 3 years guarantee
Areas of application
  • Corridors
  • Stairways
  • Bathrooms
  • Foyers
Product features
  • Type of protection: IP44 (ceiling mounting), IP20 (wall mounting)
  • Impact resistance: IK03
  • Metal housing, PMMA cover
  • Ambient temperature in operation: -20…+40 °C
  • Indoor use only, not suitable for outdoor use
Equipment / Accessories
  • Replacement cover optional available

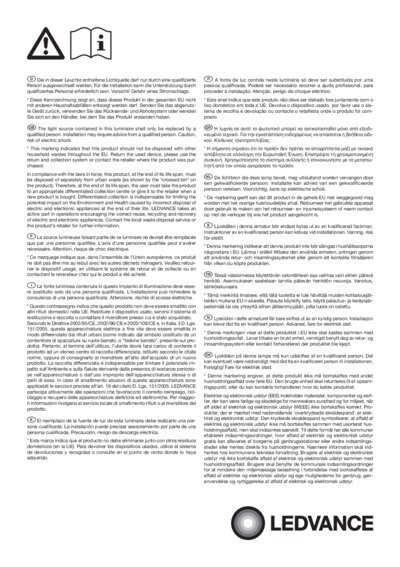

Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075080010 Folding box
1
386 mm x 386 mm x 120 mm 969.00 g 17.88 dm³
4058075080027 Shipping box
5
625 mm x 410 mm x 410 mm 5862.00 g 105.06 dm³
EAN SEG number STK number EFO number ELDAS number
4058075080010 7504777 4110713 3241067 941000400
