Choose your product version
| Product description | Nominal wattage | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|

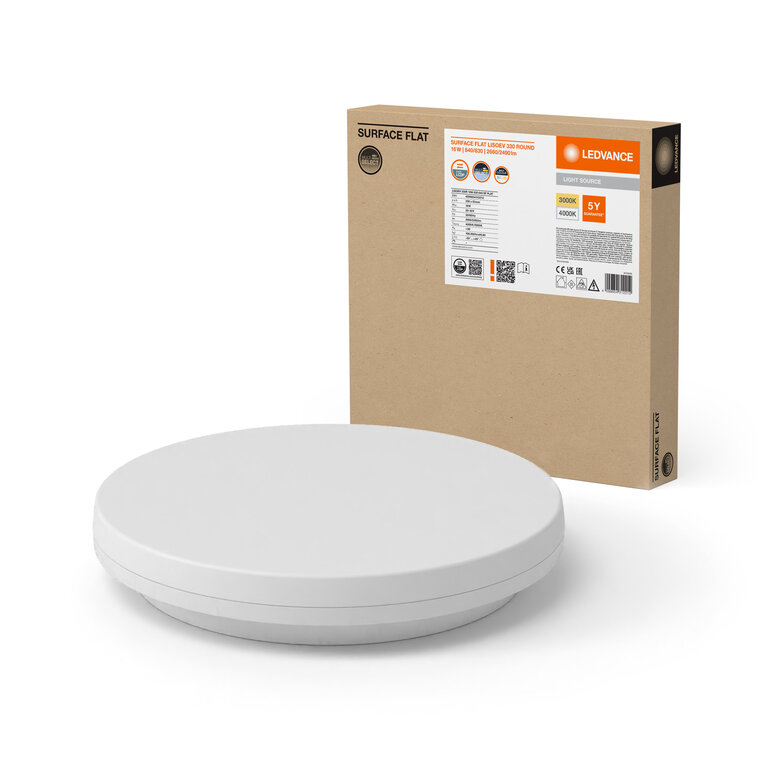

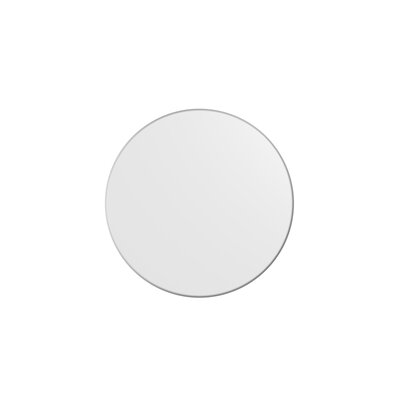

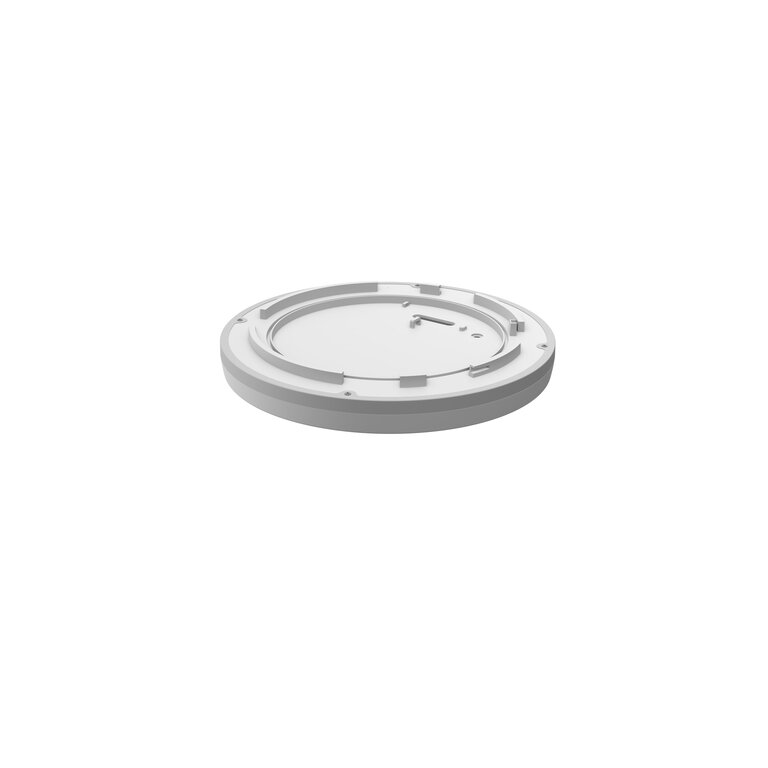

| LISOEV 330 R 19W 830 840 SF FLAT | 16.0 W | 120 ° | 2660 lm | No |

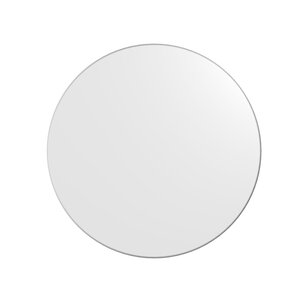

| LISOEV 500 R 27W 830 840 SF FLAT | 23 W | 120 ° | 3780 lm | No |

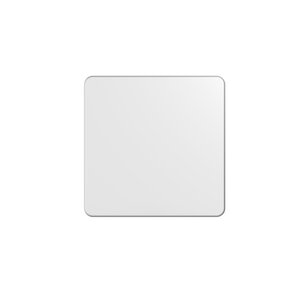

| LISOEV 330 SQ 19W 830 840 SF FLAT | 16.0 W | 120 ° | 2660 lm | No |

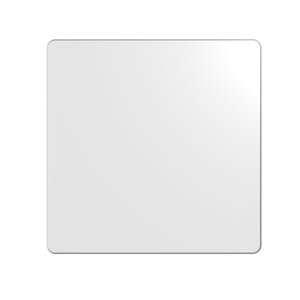

| LISOEV 500 SQ 27W 830 840 SF FLAT | 23 W | 120 ° | 3780 lm | No |
| Nominal wattage | 16.0 W |
| Nominal voltage | 30…40 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 450 mA |
| Luminous flux | 2660 lm |
| Luminous efficacy | 140 lm/W |
| Color temperature | 3000 K / 4000 K |
| Light color (designation) | Warm White, Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 3 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 120 ° |
| Diameter | 330.00 mm |
| Height | 53.00 mm |
| Product weight | 882.00 g |
| Product color | White |
| Housing color | White |
| Body material | Polycarbonate (PC) |
| Ambient temperature range | -20…+45 °C |
| Temperature range at storage | -40…+80 °C |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Surface |
| Lifespan L70/B50 at 25 °C | 10000 h |
| Lifespan L80/B10 at 25 °C | 100000 h |
| Lifespan L90/B10 at 25 °C | 50000 h |

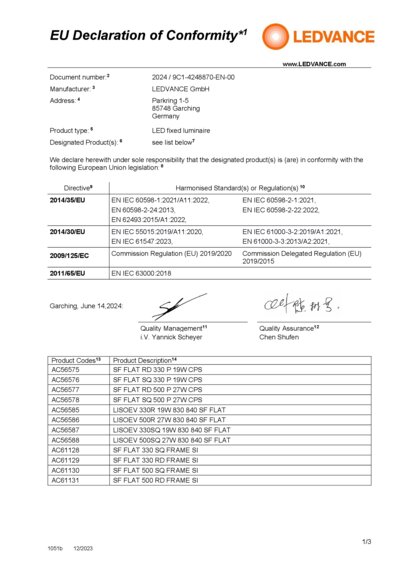

| Standards | CE |
| Replaceable light source (EPREL) | Not replaceable |
| Product remark | Available from September 2024 |

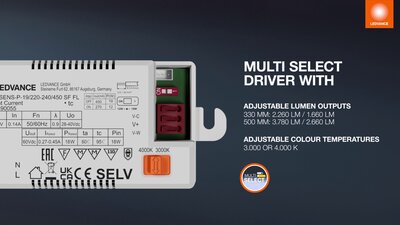

| Added function | EVERLOOP, MULTI SELECT |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

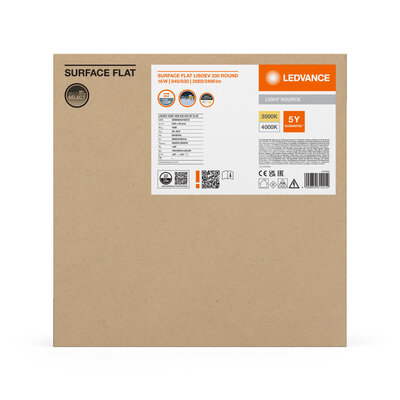

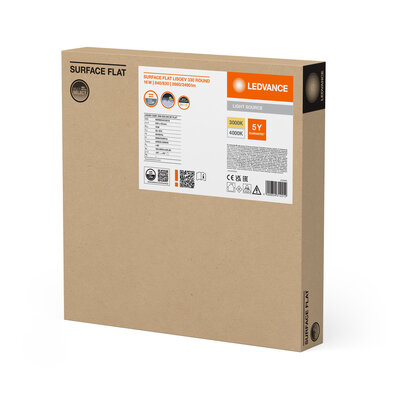

| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854312212 | Folding box 1 |
57 mm x 336 mm x 336 mm | 1078.00 g | 6.44 dm³ |
| 4099854312229 | Shipping box 6 |
355 mm x 353 mm x 358 mm | 7129.00 g | 44.86 dm³ |
| EAN | SEG number | STK number | EFO number |
|---|---|---|---|
| 4099854312212 | 8100034 | 4152064 | 3378136 |
