Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|

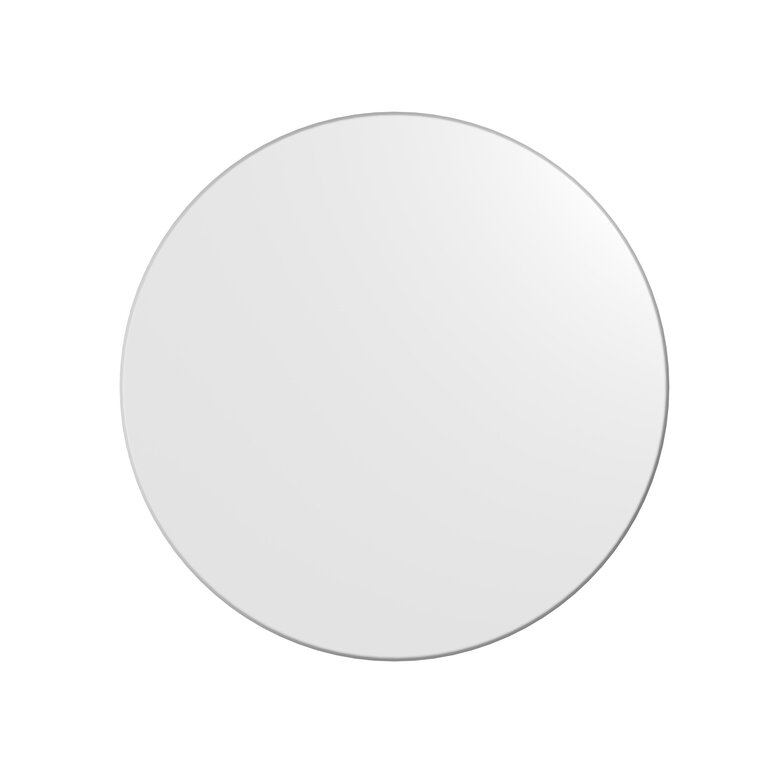

| SF FLAT RD DALI 500 P 27W CS | 27.00 W | 100000 | 120 ° | 3780 lm | Yes |
| Nominal wattage | 27.00 W 1) |
| Nominal voltage | 220…240 V |
| Mains frequency | 0/50/60 Hz |
| Nominal current | 120.000 mA |
| Inrush current | 17.8 A |
| Inrush current time Th50 | 200 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 11 |
| Max. number of luminaires per miniature circuit breaker C10 | 10 |
| Max. number of luminaires per miniature circuit breaker C16 | 16 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | Integrated LED driver |
1) For possible options refer to lumen/power table image
| Luminous flux | 3780 lm 1) |
| Luminous efficacy | 140 lm/W 1) |
| Color temperature | 3000 K / 4000 K |
| Light color (designation) | Warm White, Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 3 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 120 ° |
1) For possible options refer to lumen/power table image
| Diameter | 500.00 mm |
| Height | 71.00 mm |
| Product weight | 3129.00 g |
| Product color | White |
| Housing color | White |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+45 °C |
| Temperature range at storage | -40…+80 °C |
| Type of connection | Screwless terminal, 5-Pole (L, N, PE, DA+, DA-) |
| Type of protection | IP54 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | Yes |
| Type of dimming | DALI2 |
| Mounting type | Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 100000 h 1) |
| Lifespan L80/B10 at 25 °C | 100000 h 1) |
| Lifespan L90/B10 at 25 °C | 50000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Output current | 650 mA |
| ECG - Output ripple current | < 5 % |
| Wattage in emergency operation mode | 5.5 W |
| Luminous flux in emergency operation mode | 510 lm |
| Standards | CE, CB, ENEC, UKCA, EAC, EPD |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Ball shot safe | No |
| EPD | LEDV-00028-V01.01-EN |
| Replaceable light source (EPREL) | Not replaceable |

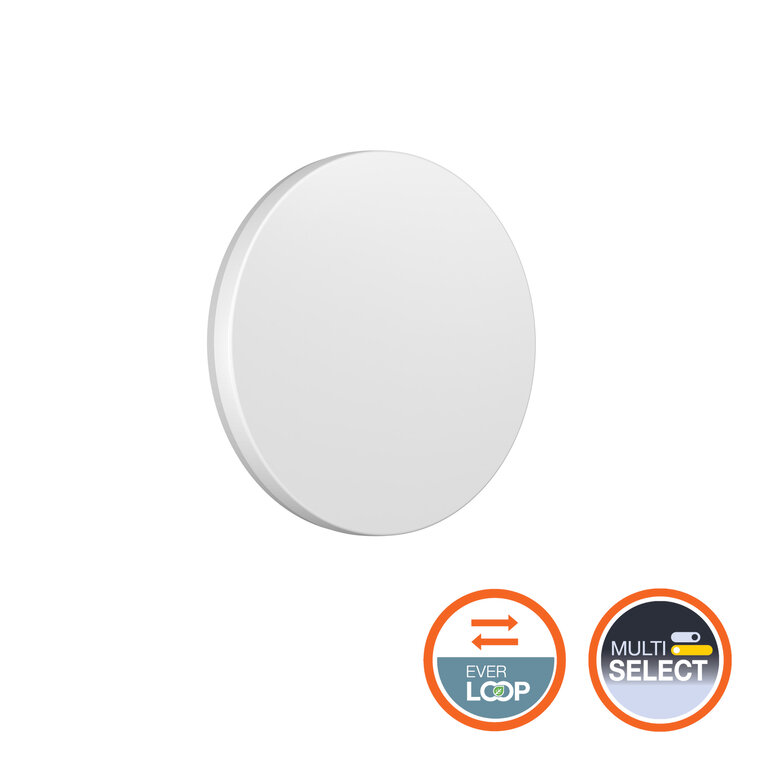

| Added function | EVERLOOP, MULTI SELECT, VIVARES |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

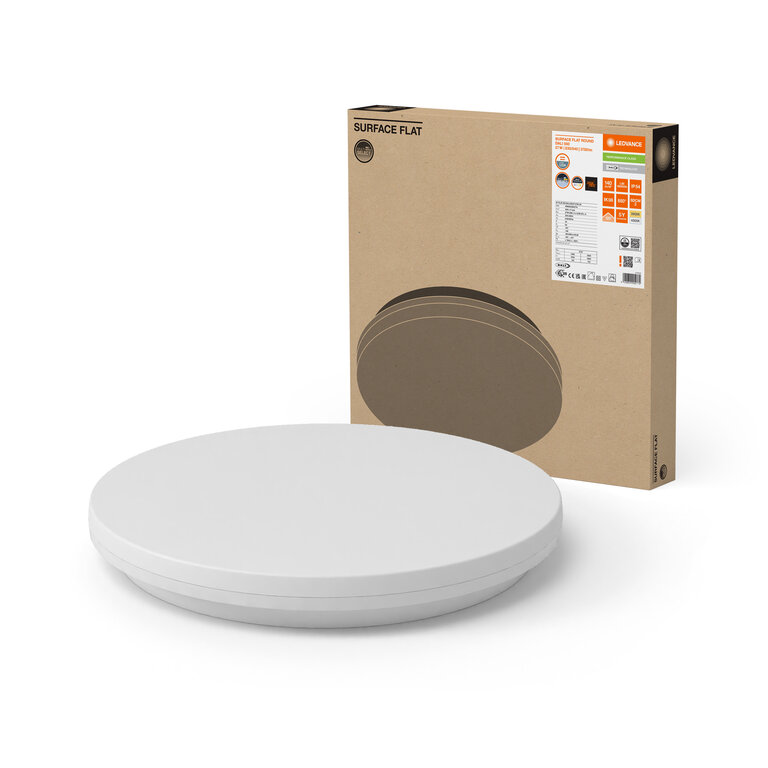

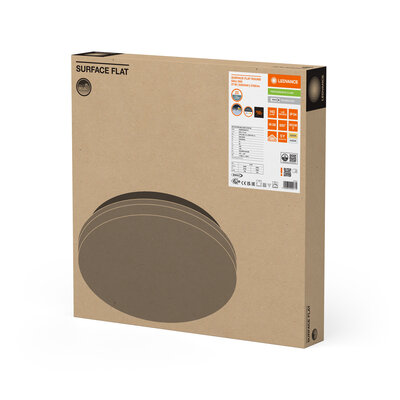

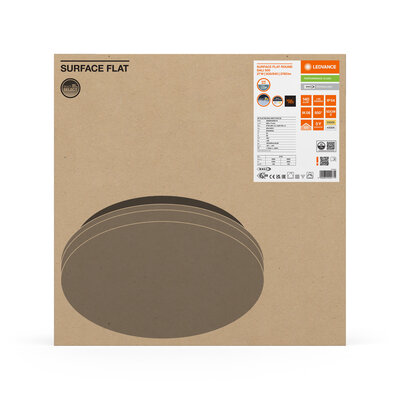

| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854292774 | Folding box 1 |
77 mm x 507 mm x 507 mm | 3390.00 g | 19.79 dm³ |
| 4099854292781 | Shipping box 4 |
520 mm x 327 mm x 530 mm | 14410.00 g | 90.12 dm³ |
| Product image | Product name | EAN |
|---|---|---|
|
|
LISOEV 500 R 27W 830 840 SF FLAT | 4099854312236 |
|
SF FLAT 500 ROUND FRAME SI | 4099854292972 |
| EAN | SEG number | STK number | EFO number |
|---|---|---|---|
| 4099854292774 | 7511156 | 4152055 | 3378127 |
